1. పరిచయం
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Kingston Brass KS2792ZLBS Widespread Kitchen Faucet. Designed for durability and functionality, this faucet features solid brass construction, a ceramic disc cartridge, and a polished brass finish. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of your product.

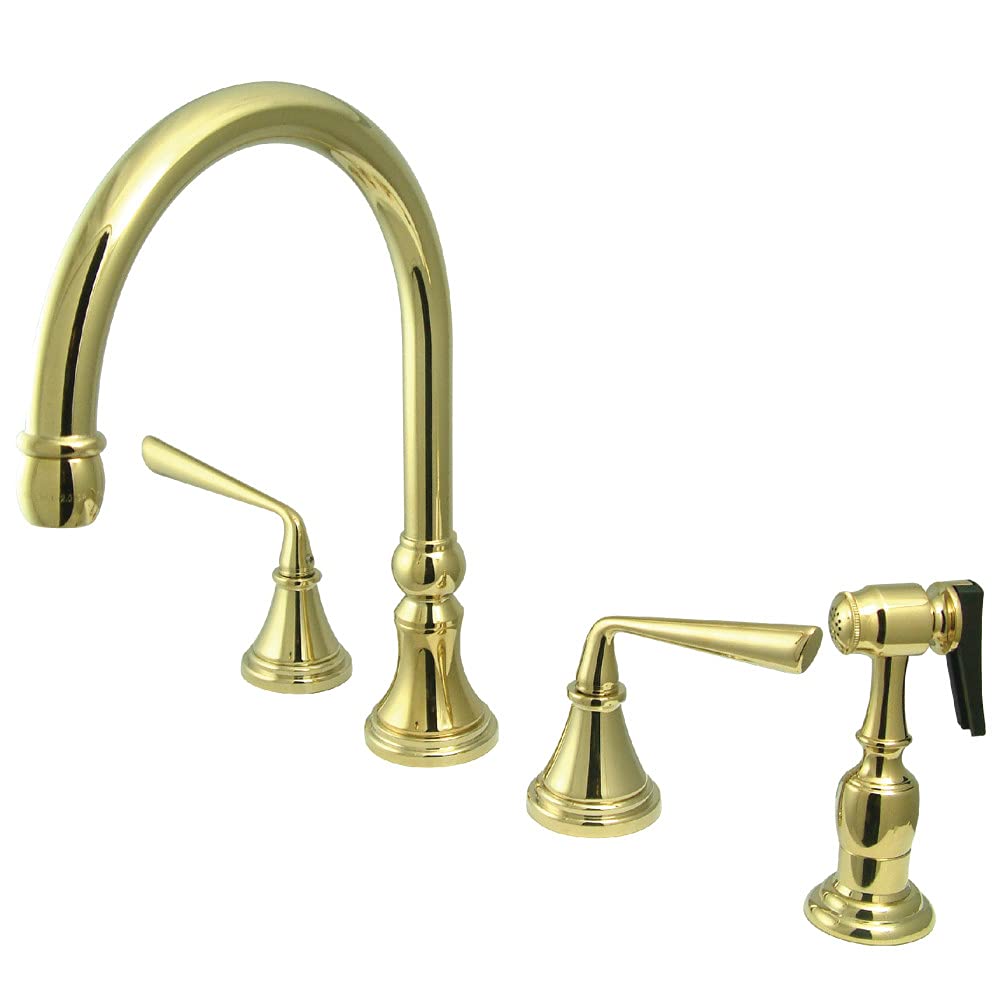

Figure 1: Kingston Brass KS2792ZLBS Widespread Kitchen Faucet, Polished Brass.
2. సెటప్ మరియు ఇన్స్టాలేషన్
The Kingston Brass KS2792ZLBS faucet is designed for a 4-hole installation with an 8-inch to 16-inch widespread arrangement. It includes the main faucet body, two handles, and a side sprayer. Professional installation is recommended.
2.1. మీరు ప్రారంభించడానికి ముందు
- Ensure all necessary components are present: faucet body, handles, side sprayer, mounting hardware, and water supply lines.
- మీ కిచెన్ సింక్ కు ప్రధాన నీటి సరఫరాను ఆపివేయండి.
- సులభంగా యాక్సెస్ కోసం సింక్ కింద ఉన్న ప్రాంతాన్ని క్లియర్ చేయండి.
2.2. సంస్థాపనా దశలు
- Prepare Sink Holes: Ensure your sink has four pre-drilled holes suitable for a widespread faucet installation (8 to 16 inches apart).
- Mount Faucet Components: Insert the faucet spout, hot handle, cold handle, and side sprayer through their respective holes from the top of the sink. Secure them from underneath with the provided mounting hardware.
- నీటి లైన్లను కనెక్ట్ చేయండి: Attach the hot and cold water supply lines to the corresponding faucet inlets. Connect the sprayer hose to the diverter valve on the faucet body. Ensure all connections are hand-tightened, then use a wrench for a quarter-turn to secure, avoiding overtightening.
- లీక్ల కోసం పరీక్ష: Slowly turn on the main water supply and check all connections for leaks. Operate the faucet handles and sprayer to ensure proper water flow and temperature control.

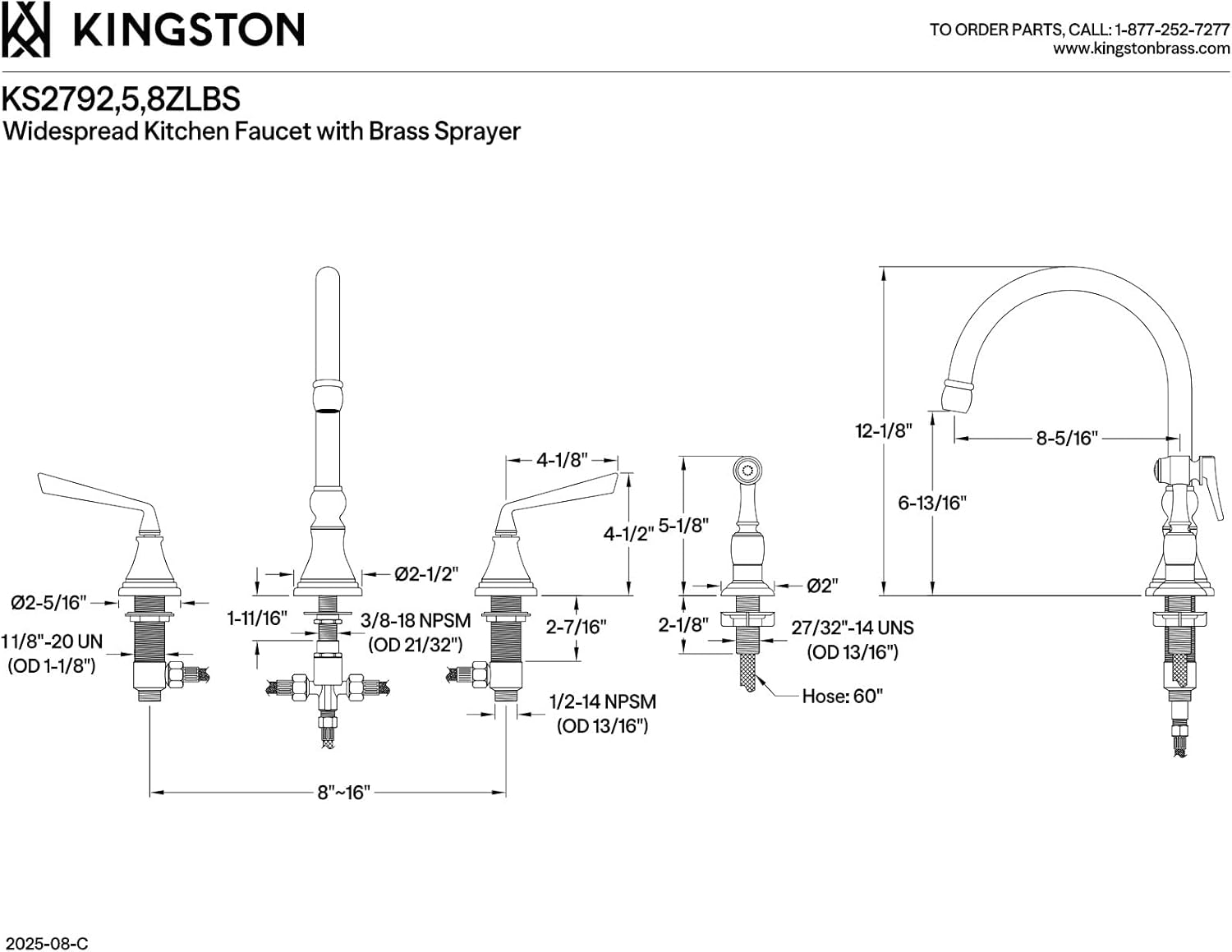

Figure 2: Dimensional drawing for Kingston Brass KS2792ZLBS faucet, showing measurements for installation.
3. ఆపరేటింగ్ సూచనలు
Your Kingston Brass KS2792ZLBS faucet is designed for ease of use and efficient water control.
- నీటి ప్రవాహం మరియు ఉష్ణోగ్రత: The two metal lever handles control the water flow and temperature. Turn the left handle for hot water and the right handle for cold water. The 1/4-turn on/off mechanism allows for precise control.
- చిమ్ము భ్రమణం: The faucet spout rotates 360 degrees, providing flexibility and convenience for various sink tasks.
- సైడ్ స్ప్రేయర్: The included brass side sprayer provides an additional water delivery option for rinsing and cleaning. Press the lever on the sprayer head to activate water flow through the sprayer.
- నీటి ప్రవాహం రేటు: The faucet operates at a maximum flow rate of 1.8 Gallons Per Minute (GPM) or 6.8 Liters Per Minute (LPM) at 60 PSI, ensuring efficient water usage.
Figure 3: The KS2792ZLBS faucet installed in a kitchen, demonstrating its functional design.
4. సంరక్షణ మరియు నిర్వహణ
Proper care and maintenance will help preserve the finish and functionality of your Kingston Brass faucet.
- ముగింపును శుభ్రపరచడం: Clean the polished brass finish regularly with a soft, damp cloth and mild soap. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- ఏరేటర్ నిర్వహణ: The faucet features an integrated removable aerator. If you experience reduced water flow, unscrew the aerator from the spout head and clean any debris or mineral buildup. Rinse thoroughly and reattach.
- సిరామిక్ డిస్క్ కార్ట్రిడ్జ్: The faucet is equipped with a durable ceramic disc cartridge designed for droplet-free functionality. If leaks occur from the handles, the cartridge may need inspection or replacement.
5. ట్రబుల్షూటింగ్
Refer to the following common issues and solutions before contacting customer support.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| తక్కువ నీటి ప్రవాహం | Clogged aerator or mineral buildup | Remove and clean the aerator. Ensure water supply valves are fully open. |
| Leaks from spout or handles | Loose connections or worn ceramic disc cartridge | Check and tighten all water line connections. If leaks persist, the ceramic disc cartridge may need replacement. |
| Sprayer not working or leaking | Diverter valve issue or sprayer head blockage | Check the sprayer hose connection. If the diverter valve is faulty, it may require professional inspection or replacement. Clean the sprayer head for blockages. |
| వేడి లేదా చల్లని నీరు లేదు | Water supply valve closed or cross-connection issue | Ensure both hot and cold water supply valves under the sink are fully open. Verify correct hot/cold line connections. |
6. స్పెసిఫికేషన్లు
Key technical details for the Kingston Brass KS2792ZLBS Widespread Kitchen Faucet:
- బ్రాండ్: కింగ్స్టన్ బ్రాస్
- మోడల్ సంఖ్య: KS2792ZLBS
- మెటీరియల్: ఘన ఇత్తడి
- ముగించు రకం: పాలిష్ చేసిన ఇత్తడి
- మౌంటు రకం: డెక్ మౌంట్
- హ్యాండిల్స్ సంఖ్య: 2 (లివర్)
- హోల్ కౌంట్: 4
- చిమ్ము ఎత్తు: 11.88 అంగుళాలు
- స్పౌట్ రీచ్: 8.25 అంగుళాలు
- ఫ్లో రేట్: నిమిషానికి 1.8 గ్యాలన్లు (GPM)
- ప్రత్యేక ఫీచర్: తుప్పు నిరోధకత
- చేర్చబడిన భాగాలు: Faucet, Mounting Hardware, Side Sprayer
- ధృవపత్రాలు: ADA Compliant, Compliant with California Energy Commission Title 20
చిత్రం 4: పైగాview of key features and specifications for the KS2792ZLBS faucet.
7. వారంటీ మరియు మద్దతు
7.1. వారంటీ సమాచారం
The Kingston Brass KS2792ZLBS Widespread Kitchen Faucet comes with a 10-సంవత్సరం పరిమిత వారంటీ provided to the original consumer. This warranty covers defects in material and manufacturing under normal use. Please retain your proof of purchase for warranty claims.
7.2. కస్టమర్ మద్దతు
For technical assistance, replacement parts, or warranty inquiries, please contact Kingston Brass customer service. You may also visit the official Kingston Brass store for additional product information and resources.
Kingston Brass Store: స్టోర్ను సందర్శించండి
