1. పరిచయం
Welcome to the user manual for the Allis-Chalmers Oil Pressure Switch, Model 25240-89910. This document provides essential information for the proper installation, operation, and maintenance of your new oil pressure switch. Please read these instructions carefully before proceeding with installation or use to ensure safe and effective performance.
2. భద్రతా సమాచారం
Always prioritize safety when working with automotive components. Failure to follow these safety guidelines may result in injury or damage to property.
- పవర్ డిస్కనెక్ట్ చేయండి: Before beginning any installation or maintenance, ensure the vehicle's battery is disconnected to prevent electrical shock or accidental engine startup.
- రక్షణ గేర్ ధరించండి: భద్రతా గ్లాసెస్ మరియు చేతి తొడుగులు సహా తగిన వ్యక్తిగత రక్షణ పరికరాలను ఎల్లప్పుడూ ధరించండి.
- ప్రొఫెషనల్ ఇన్స్టాలేషన్ సిఫార్సు చేయబడింది: ఇన్స్టాలేషన్ ప్రక్రియలోని ఏ దశ గురించి మీకు ఖచ్చితంగా తెలియకపోతే, అర్హత కలిగిన ఆటోమోటివ్ టెక్నీషియన్ నుండి సహాయం తీసుకోవడం చాలా మంచిది.
- జాగ్రత్తగా నిర్వహించండి: Avoid dropping or subjecting the switch to impact, as this can damage internal components.
- లీక్ల కోసం తనిఖీ చేయండి: After installation, always check for oil leaks around the new switch.
3. ఉత్పత్తి ముగిసిందిview
The Allis-Chalmers Oil Pressure Switch, model 25240-89910, is a critical component designed to monitor the oil pressure within an engine system. It provides an electrical signal to the vehicle's control unit or dashboard indicator, alerting the user to low oil pressure conditions. This switch is engineered for consistent quality and reliable performance.
3.1 భాగాలు
The oil pressure switch typically consists of a threaded metal body for secure mounting into the engine block, an electrical connector for signal transmission, and an internal pressure-sensing mechanism. The image below illustrates the general appearance of the oil pressure switch.

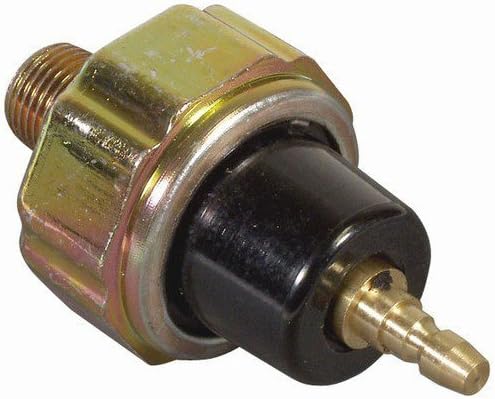

మూర్తి 1: Allis-Chalmers Oil Pressure Switch Model 25240-89910. This image shows the threaded metal base, the black plastic housing, and the brass electrical connector pin.
4. సంస్థాపన
Follow these steps for proper installation of the Allis-Chalmers Oil Pressure Switch. Ensure the engine is cool before starting.
- తయారీ: వాహనాన్ని చదునైన ఉపరితలంపై పార్క్ చేసి పార్కింగ్ బ్రేక్ను ఆన్ చేయండి. ఇంజిన్ పూర్తిగా చల్లబరచడానికి అనుమతించండి. వాహనం బ్యాటరీ యొక్క నెగటివ్ టెర్మినల్ను డిస్కనెక్ట్ చేయండి.
- పాత స్విచ్ను గుర్తించండి: Identify the existing oil pressure switch on your engine. Its location can vary by vehicle model, but it is typically found near the oil filter or on the engine block.
- పాత స్విచ్ తొలగించండి: Carefully disconnect the electrical connector from the old switch. Using an appropriate wrench, unscrew the old oil pressure switch. Be prepared for a small amount of oil to drain out.
- కొత్త స్విచ్ సిద్ధం చేయండి: Apply a small amount of thread sealant (suitable for automotive use) to the threads of the new Allis-Chalmers 25240-89910 oil pressure switch.
- కొత్త స్విచ్ను ఇన్స్టాల్ చేయండి: Hand-thread the new switch into the engine block to ensure it starts correctly. Then, use a wrench to tighten it to the manufacturer's specified torque. Do not overtighten.
- వైరింగ్ కనెక్ట్ చేయండి: Reconnect the electrical connector to the new oil pressure switch, ensuring a secure connection.
- చివరి తనిఖీలు: Reconnect the vehicle's battery. Start the engine and check for any oil leaks around the newly installed switch. Observe the oil pressure gauge or warning light on the dashboard to confirm proper operation.
5. ఆపరేషన్
The oil pressure switch operates by detecting the engine's internal oil pressure. When the engine is running, oil is circulated under pressure. If this pressure falls below a predetermined safe threshold, the switch changes its electrical state, triggering a warning light or message on the vehicle's dashboard (e.g., 'Check Oil Pressure' or a red oil can icon).
Normal operation involves the switch remaining in a state indicating sufficient oil pressure, meaning no warning light is illuminated. If the oil pressure warning light illuminates while the engine is running, it indicates a potential issue requiring immediate attention. Stop the engine safely and investigate the cause.
6. నిర్వహణ
The Allis-Chalmers Oil Pressure Switch Model 25240-89910 is designed for durability and typically requires minimal maintenance. However, regular visual inspections can help ensure its continued reliable operation.
- దృశ్య తనిఖీ: Periodically inspect the switch and its surrounding area for any signs of oil leaks, corrosion, or damage to the electrical connector.
- విద్యుత్ కనెక్షన్: Ensure the electrical connector remains securely attached and free from dirt or debris.
- పరిశుభ్రత: Keep the area around the switch clean to prevent buildup that could interfere with its function or hide potential issues.
7. ట్రబుల్షూటింగ్
If you experience issues related to your oil pressure system, consult the table below for common problems and potential solutions.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Oil pressure warning light illuminates while driving. | Low engine oil level, faulty oil pressure switch, engine mechanical issue. | Safely stop the vehicle. Check engine oil level and add if necessary. If oil level is correct, inspect the switch for damage or consult a qualified mechanic for diagnosis. |
| Oil leak observed around the switch. | Improper installation (not tightened correctly), damaged threads, faulty thread sealant, damaged switch body. | Ensure the switch is tightened to specification. If leak persists, remove, inspect threads and sealant, and reinstall. Replace switch if body is damaged. |
| Oil pressure warning light remains off when it should be on (e.g., during engine start self-test). | Faulty oil pressure switch, wiring issue, dashboard indicator issue. | Inspect electrical connection to the switch. Test the switch for continuity. Consult a mechanic for electrical system diagnosis. |
8. స్పెసిఫికేషన్లు
Key specifications for the Allis-Chalmers Oil Pressure Switch Model 25240-89910 are listed below:
- బ్రాండ్: Allis-Chalmers
- మోడల్: 25240-89910
- స్విచ్ రకం: ప్రెజర్ స్విచ్
- అంతర్జాతీయ రక్షణ రేటింగ్: IP54
- వస్తువు బరువు: 1.6 ఔన్సులు
- UPC: 723810255599
- తయారీదారు: అనంతర మార్కెట్
9. వారంటీ మరియు మద్దతు
This Allis-Chalmers Oil Pressure Switch Model 25240-89910 comes with a 6 Months Unlimited Warranty, ensuring coverage against manufacturing defects under normal use conditions.
For technical support, warranty claims, or further assistance, please contact your original retailer or the manufacturer directly. Please have your purchase information and product model number (25240-89910) available when contacting support.
