IFAM 026003 X5 Euro Profile Cylinder Lock Instruction Manual

1. పరిచయం

The IFAM 026003 X5 Euro Profile Cylinder Lock is a robust security solution designed for doors requiring a standard euro profile cylinder. This lock is particularly suitable for applications where cylinder changes may be frequent, such as rental properties. It features a durable steel body and bolt, ensuring reliable security for your premises.

2. ఉత్పత్తి లక్షణాలు

• మోడల్: X5 Lock mechanism
• ముగించు: Dark grey powder coating
• నిర్మాణం: Body and lock made of steel
• బోల్ట్: Chromed steel lever, 9 mm thickness
• Closing Mechanism: Two-turn closing
• సిలిండర్: యూరో ప్రోfile cylinder required (not included)
• అనుకూలత: Suitable for both left and right opening doors

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

The IFAM 026003 X5 lock is designed for straightforward installation. It requires a standard euro profile cylinder, which is not included with this product. Ensure the door is prepared with the correct apertures for the lock body and strike plate.

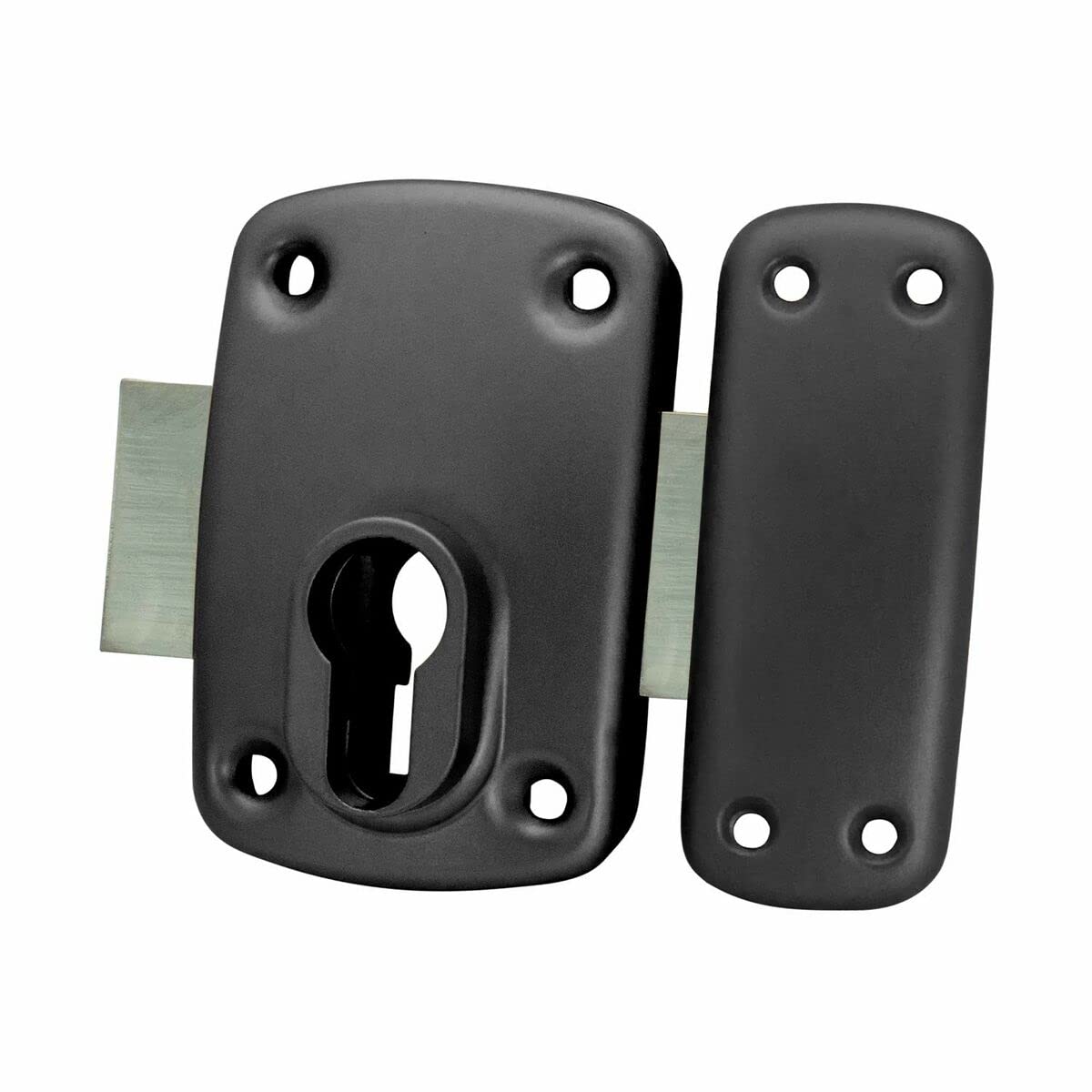

This image shows the IFAM 026003 X5 Euro Profile Cylinder Lock mounted on a door, illustrating its dark grey finish and the position of the euro profile cylinder slot and the bolt.

ఇన్‌స్టాలేషన్ దశలు:

1. తలుపును సిద్ధం చేయండి: Ensure the door frame and door edge are properly prepared for the lock body and strike plate. An installation template is typically provided to assist with accurate drilling and positioning.
2. లాక్ బాడీని మౌంట్ చేయండి: Position the main lock body on the door surface. Secure it using the provided screws. Ensure the euro profile cylinder slot aligns correctly with the door's cylinder opening.
3. Install the Euro Profile సిలిండర్: Insert your chosen euro profile cylinder into the designated slot within the lock body. Secure it with the cylinder retaining screw, which is usually located on the side of the lock body.
4. స్ట్రైక్ ప్లేట్‌ను అటాచ్ చేయండి: Mount the strike plate to the door frame, ensuring it aligns perfectly with the lock's bolt when the door is closed. Secure with screws.
5. పరీక్ష ఆపరేషన్: Before fully tightening all screws, test the lock's operation with the door open and closed to ensure smooth engagement and disengagement of the bolt. Make any necessary adjustments for optimal performance.

4. ఆపరేటింగ్ సూచనలు

The IFAM 026003 X5 lock operates with a standard euro profile cylinder and key (not included). To operate the lock:

• లాక్ చేయడానికి: Insert the key into the euro profile cylinder and turn it two full rotations. This action will extend the steel bolt into the strike plate, securely locking the door.
• అన్‌లాక్ చేయడానికి: Insert the key into the euro profile cylinder and turn it two full rotations in the opposite direction. This action will retract the steel bolt, allowing the door to open.

5. నిర్వహణ

To ensure the longevity and smooth operation of your IFAM 026003 X5 lock, periodic maintenance is recommended.

• శుభ్రపరచడం: Keep the lock mechanism free from dust and debris. Use a soft, dry cloth to wipe the exterior surfaces.
• సరళత: Every three years, or if operation becomes stiff, consider lubricating the internal mechanism. Use a non-greasy, graphite-based lubricant specifically designed for locks. Avoid oil-based lubricants as they can attract dirt and cause buildup.
• తనిఖీ: Periodically check all mounting screws for tightness. Ensure the bolt moves freely and engages fully with the strike plate without obstruction.

6. ట్రబుల్షూటింగ్

• Lock is stiff or difficult to turn:
  • Check if the euro profile cylinder is correctly installed and not binding.
  • Apply a suitable lock lubricant to the cylinder and internal mechanism.
  • Ensure the door and frame are not warped, causing misalignment that could impede lock operation.
• Bolt does not engage fully:
  • Verify the alignment of the lock body and the strike plate. Adjust if necessary to ensure proper engagement.
  • Check for any obstructions or debris in the strike plate opening.
• Excessive Noise during Operation:
  • This lock may produce some mechanical noise during operation, which is normal. However, if the noise is unusual or excessive, inspect for loose parts or misalignment of the lock components.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

IFAM products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the IFAM official website or contact your local distributor. Spare parts are generally available for up to 2 years from the date of purchase, ensuring long-term usability and maintenance of your lock.
