SMITH & LOCKE 76mm 3-Gorge Brass Mortise Lock Instruction Manual

1. పరిచయం

This manual provides instructions for the installation, operation, and maintenance of your SMITH & LOCKE 76mm 3-Gorge Brass Mortise Lock. Please read these instructions carefully before installation and retain them for future reference. This lock is designed for use on 30 and 60-minute fire doors and features an easily reversible latch system.

ప్యాకేజీ విషయాలు:

• 1 x SMITH & LOCKE 76mm 3-Gorge Brass Mortise Lock
• 2 x కీలు
• Fixings (screws)

2. సెటప్ మరియు ఇన్‌స్టాలేషన్

Proper installation is crucial for the security and functionality of the lock. If you are unsure about any step, consult a qualified professional.

2.1 సాధనాలు అవసరం

• డ్రిల్
• చెక్క ఉలి
• సుత్తి
• స్క్రూడ్రైవర్ (ఫిలిప్స్ హెడ్)
• కొలిచే టేప్
• పెన్సిల్

2.2 Preparing the Door

1. Mark the desired height for the lock on the edge of the door. The spindle hole should typically be at a standard height (e.g., 90-100 cm from the floor).
2. Using the lock body as a template, mark the mortise cut-out on the door edge. Ensure the depth and width are accurate for a snug fit.
3. Chisel out the mortise pocket in the door edge. Test fit the lock body periodically to ensure a correct fit.
4. Mark the positions for the spindle hole and keyhole on both faces of the door, aligning them with the lock body.
5. Drill the spindle hole and keyhole through the door.

2.3 Latch Reversibility

The latch bolt is easily reversible to suit left-hand or right-hand opening doors.

1. Locate the small screw on the side of the latch mechanism.
2. Unscrew and remove this screw.
3. Pull the latch bolt out, rotate it 180 degrees, and push it back into the lock body.
4. Reinsert and tighten the small screw to secure the latch in its new orientation.

2.4 Installing the Lock Body

1. Insert the lock body into the mortise pocket in the door edge.
2. Secure the lock body with the provided screws through the faceplate into the door edge.
3. Install the door handles/knobs and spindle, ensuring they operate the latch smoothly.
4. Install the key escutcheons (keyhole covers) on both sides of the door.

2.5 స్ట్రైక్ ప్లేట్‌ను ఇన్‌స్టాల్ చేస్తోంది

1. Close the door gently and mark the position of the latch bolt and deadbolt on the door frame.
2. Using the strike plate as a template, mark the cut-out for the latch and deadbolt on the door frame.
3. Chisel out the recess for the strike plate and the pockets for the latch and deadbolt.
4. Secure the strike plate to the door frame with the provided screws.
5. Test the lock operation to ensure the latch and deadbolt engage smoothly and securely with the strike plate. Adjust if necessary.

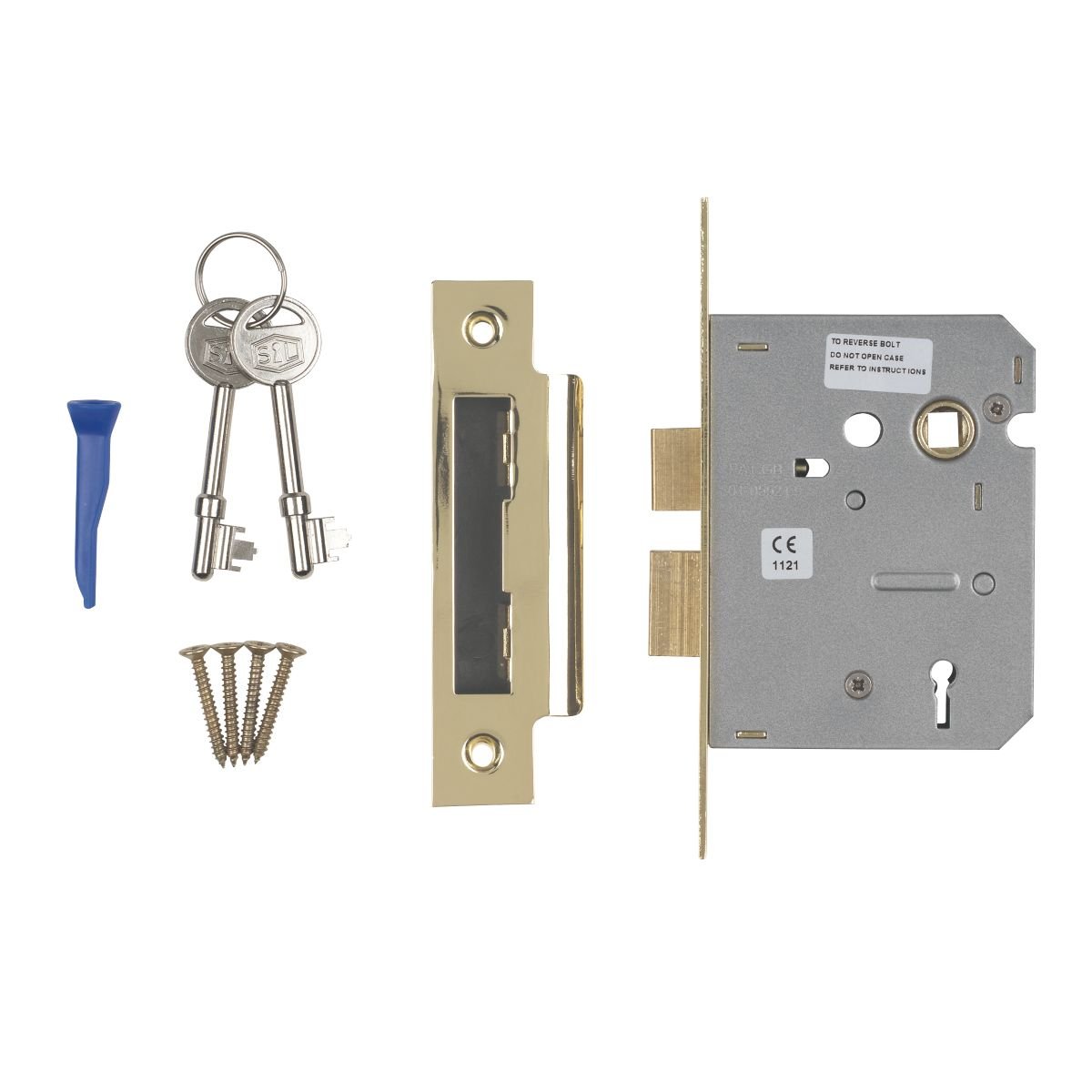

చిత్రం 1: ఉదాample of a mortise lock installed in a door, showing the faceplate and keyhole. This image illustrates the typical appearance of the SMITH & LOCKE 76mm 3-Gorge Brass Mortise Lock once fitted.

3. ఆపరేటింగ్ సూచనలు

This section describes the basic operation of your 3-gorge mortise lock.

3.1 లాచ్ ఆపరేషన్

• To open the door from either side, turn the door handle/knob. This retracts the latch bolt.
• When the door is closed, the spring-loaded latch bolt automatically extends into the strike plate, holding the door shut.

3.2 Deadbolt Operation

• To lock the door, insert one of the provided keys into the keyhole and turn it. The deadbolt will extend into the strike plate, securing the door.
• To unlock the door, insert the key and turn it in the opposite direction until the deadbolt fully retracts.
• The 3-gorge mechanism provides enhanced security when the deadbolt is engaged.

4. నిర్వహణ

Regular maintenance ensures the longevity and smooth operation of your lock.

• శుభ్రపరచడం: Wipe the visible parts of the lock (faceplate, handles, key escutcheons) with a soft, damp cloth. Avoid abrasive cleaners or solvents, as these can damage the brass finish.
• సరళత: Periodically (e.g., once a year), apply a small amount of graphite powder or a silicone-based lubricant into the keyhole and around the latch bolt mechanism. Do not use oil-based lubricants as they can attract dust and grime.
• తనిఖీ: Check all screws for tightness. Ensure the latch and deadbolt move freely without obstruction. If any parts appear worn or damaged, consider replacement.

5. ట్రబుల్షూటింగ్

If you encounter issues with your lock, refer to the following common problems and solutions:

If these solutions do not resolve the issue, contact customer support or a qualified locksmith.

6. స్పెసిఫికేషన్లు

• ఉత్పత్తి రకం: 3-Gorge Mortise Lock
• బ్రాండ్: SMITH & LOCKE
• మెటీరియల్: ఇత్తడి
• బ్యాక్‌సెట్: 76 మిమీ (7.6 సెం.మీ)
• కొలతలు (L x D x H): 76 x 22 x 155 mm (approximate, for lock body)
• ఫైర్ డోర్ రేటింగ్: Suitable for 30 and 60-minute fire doors (Certifire approved)
• ధృవపత్రాలు: Kitemark certified, EN 12209
• Keys Included: 2
• ఫిక్సింగ్‌లు: చేర్చబడింది
• గొళ్ళెం: రివర్సబుల్

7. వారంటీ సమాచారం

SMITH & LOCKE products are manufactured to high standards and are subject to rigorous quality control. This product comes with a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage caused by improper installation, misuse, neglect, unauthorized modifications, or normal wear and tear. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact customer support.

8. కస్టమర్ మద్దతు

If you require further assistance, have questions about your SMITH & LOCKE 76mm 3-Gorge Brass Mortise Lock, or need to report a problem, please contact your retailer or the manufacturer's customer service department.

Please have your product model number (76mm 3-Gorge Brass Mortise Lock) and proof of purchase ready when contacting support.

ఆన్‌లైన్ వనరులు: For additional information and product updates, visit the official SMITH & LOCKE webసైట్ (అందుబాటులో ఉంటే).
