WINGONEER DC 5V Brushless CPU Cooling Fan for Raspberry Pi 3 / Pi 2 Model B RPI B+

1. పరిచయం

Thank you for choosing the WINGONEER DC 5V Brushless CPU Cooling Fan. This fan is designed to provide efficient cooling for your Raspberry Pi 3, Raspberry Pi 2 Model B, or RPI B+ to help maintain optimal operating temperatures and prevent thermal throttling. This manual provides detailed instructions for installation, operation, and troubleshooting.

2. ప్యాకేజీ విషయాలు

దయచేసి మీ ప్యాకేజీలో అన్ని అంశాలు చేర్చబడ్డాయని ధృవీకరించండి:

• 1 x DC 5V Brushless CPU Cooling Fan
• 4 x మౌంటు స్క్రూలు
• 4 x నట్స్

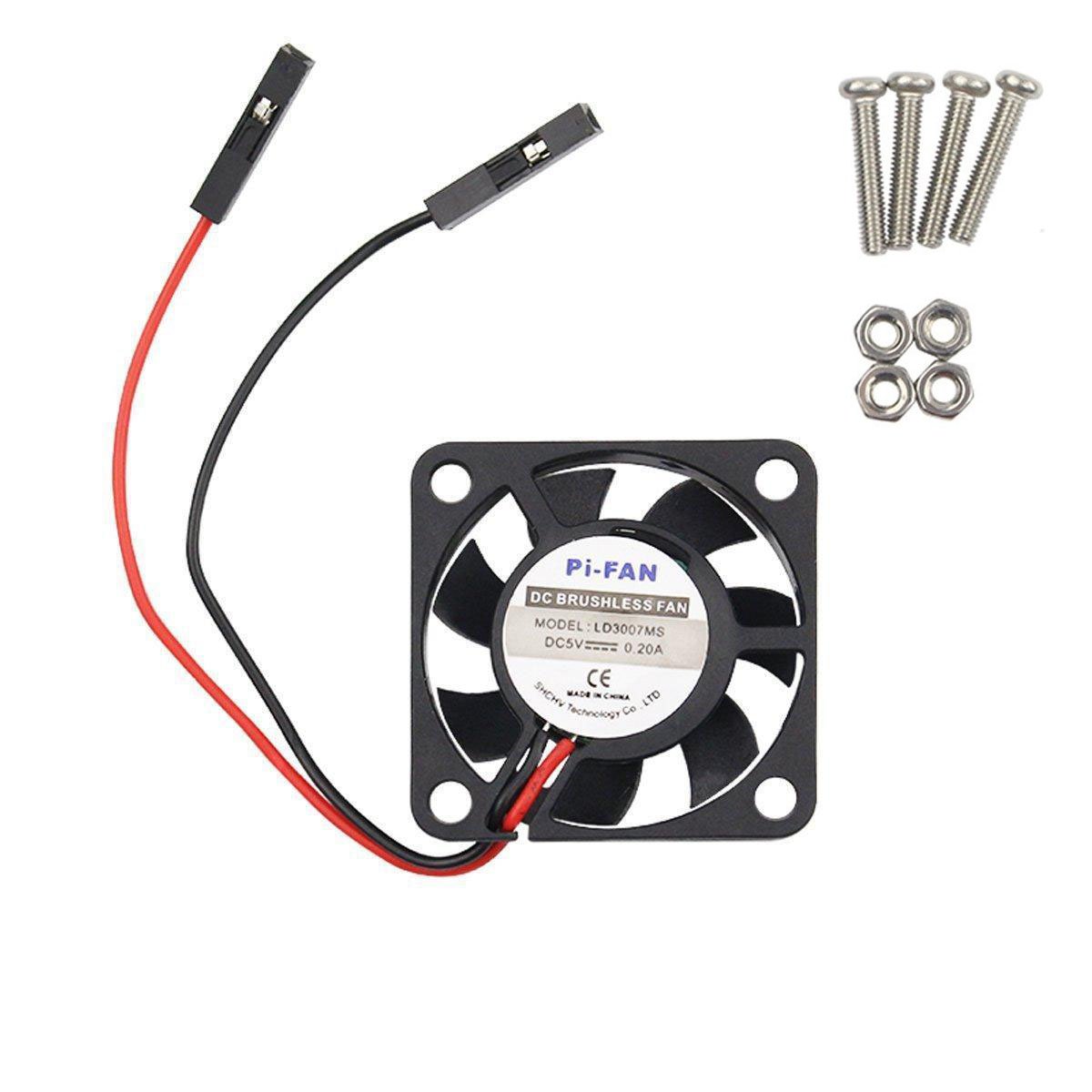

Image: The WINGONEER DC 5V Brushless CPU Cooling Fan, along with the included mounting screws and nuts.

చిత్రం: క్లోజప్ view of the four mounting screws and four nuts provided for fan installation.

3. సెటప్ & ఇన్‌స్టాలేషన్

Follow these steps to install your cooling fan:

3.1. Connecting the Fan to Raspberry Pi GPIO Pins

The fan can be connected to either the 5V or 3.3V GPIO pins on your Raspberry Pi. The 5V connection provides maximum cooling but may result in higher noise levels. The 3.3V connection offers quieter operation with slightly reduced cooling performance.

Image: Schematic showing the GPIO pin locations for connecting the fan to either 5V (red circles) or 3.3V (red circles) power on the Raspberry Pi. Note indicates 5V connection may be noisier but reduces heat better.

3.1.1. 5V Connection Method

Connect the red wire of the fan to the 5V pin and the black wire to a Ground (GND) pin on your Raspberry Pi's GPIO header. Refer to the diagram for exact pin locations.

Image: Visual guide demonstrating how to connect the fan's 5V (red) and Ground (black) wires to the corresponding GPIO pins on the Raspberry Pi.

3.1.2. 3.3V Connection Method

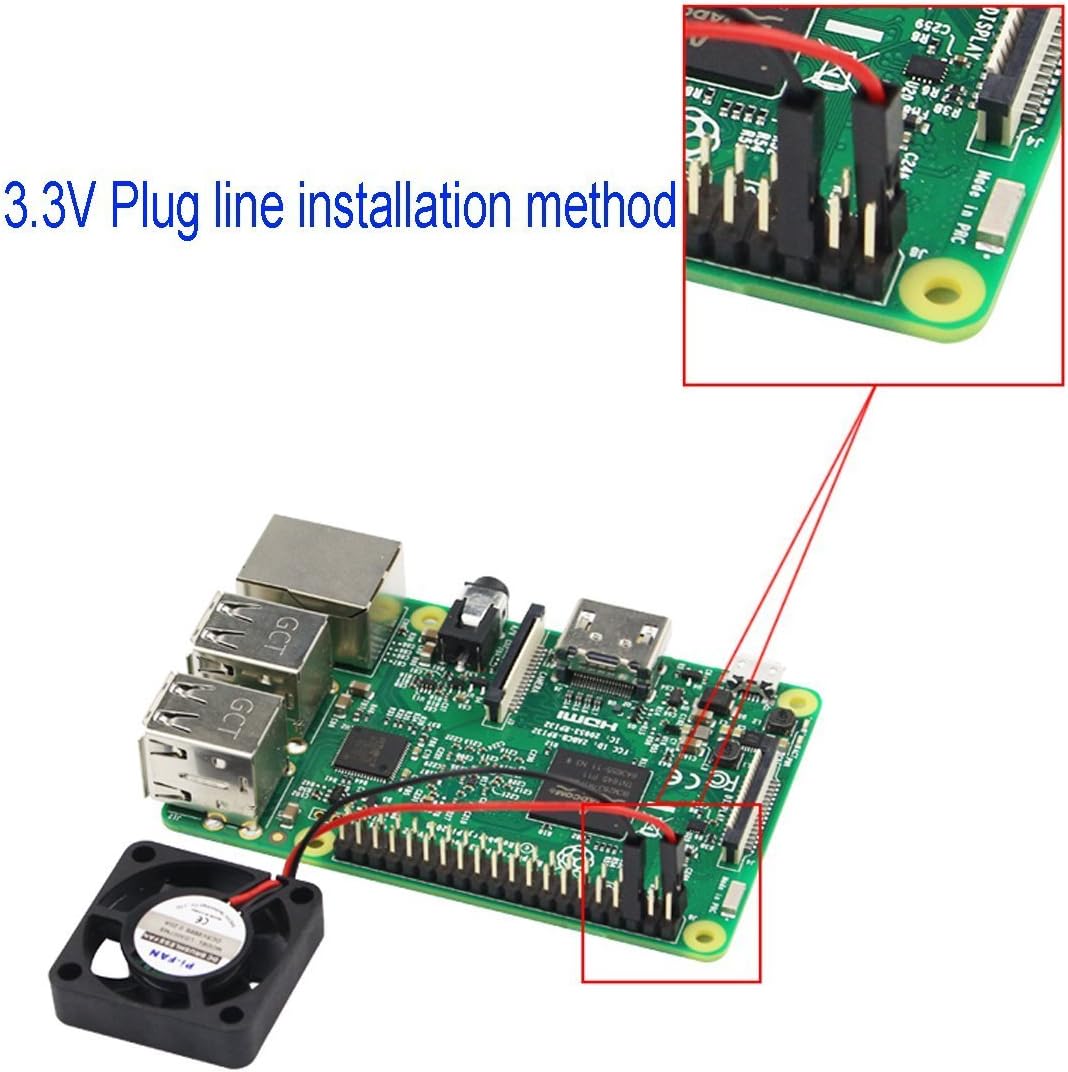

For quieter operation, connect the red wire of the fan to the 3.3V pin and the black wire to a Ground (GND) pin on your Raspberry Pi's GPIO header. Refer to the diagram for exact pin locations.

Image: Visual guide demonstrating how to connect the fan's 3.3V (red) and Ground (black) wires to the corresponding GPIO pins on the Raspberry Pi.

3.2. ఫ్యాన్ మౌంట్

Use the provided screws and nuts to securely mount the fan to your Raspberry Pi or compatible enclosure. Ensure the fan is positioned to direct airflow over the CPU for optimal cooling.

4. ఆపరేషన్

Once installed and connected, the fan will begin operating as soon as your Raspberry Pi is powered on. No additional software or configuration is typically required for basic operation.

4.1. Noise Levels

The fan operates at a low noise level of approximately 25 decibels. Connecting to the 3.3V GPIO pins will result in quieter operation compared to the 5V connection, which provides maximum airflow and cooling.

5. నిర్వహణ

To ensure longevity and optimal performance of your cooling fan, consider the following maintenance tips:

• రెగ్యులర్ క్లీనింగ్: Periodically inspect the fan blades and surrounding area for dust accumulation. Use a soft brush or compressed air to gently remove any dust.
• తనిఖీ: Check the fan for any signs of damage or loose connections. Ensure the mounting screws are secure.

6. ట్రబుల్షూటింగ్

6.1. ఫ్యాన్ తిరగడం లేదు

• కనెక్షన్‌లను తనిఖీ చేయండి: Ensure the red and black wires are securely connected to the correct GPIO pins (5V or 3.3V and GND).
• విద్యుత్ సరఫరా: Verify that your Raspberry Pi is receiving adequate power.
• అడ్డంకులు: Check for any physical obstructions preventing the fan blades from spinning.

6.2. అధిక శబ్దం

• 3.3V కనెక్షన్: If connected to 5V, try switching to the 3.3V GPIO pins for reduced noise.
• మౌంటు: Ensure the fan is securely mounted and not vibrating against any surfaces. Loose screws can cause noise.
• దుమ్ము: ఫ్యాన్ బ్లేడ్లపై పేరుకుపోయిన దుమ్మును శుభ్రం చేయండి.

6.3. Insufficient Cooling

• 5V కనెక్షన్: Ensure the fan is connected to the 5V GPIO pins for maximum cooling performance.
• వాయు ప్రవాహ అవరోధం: Check that there are no obstructions blocking the fan's airflow to and from the Raspberry Pi's CPU.
• Thermal Paste/Pads: If using a case, ensure proper thermal paste or pads are applied between the Raspberry Pi's CPU/RAM and any heatsinks or the case itself (if applicable).

7. స్పెసిఫికేషన్లు

Image: The WINGONEER cooling fan displayed on a digital scale, indicating a weight of 6.0 grams.

8. వారంటీ & సపోర్ట్

వారంటీ సమాచారం మరియు సాంకేతిక మద్దతు కోసం, దయచేసి తయారీదారు అధికారిని చూడండి. webసైట్ లేదా వారి కస్టమర్ సర్వీస్‌ను నేరుగా సంప్రదించండి. ఏవైనా వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదును ఉంచండి.
