3M 4US-MAXS-S01H Quick Change Single Stage Drinking Water Filter System User Manual

1. ఉత్పత్తి ముగిసిందిview

The 3M 4US-MAXS-S01H Quick Change Single Stage Drinking Water Filter System is designed to provide clean, great-tasting water directly from a dedicated faucet. This high-performance system utilizes a single-stage filtration process to reduce various contaminants, ensuring healthier drinking water for your household.

ముఖ్య లక్షణాలు:

• High Performance Filtration: Reduces lead, cryptosporidium, giardia cysts, chlorine taste and odor, sediment, rust, and dirt.
• Quick-Change Filter Design: Allows for easy and mess-free filter replacements without needing to turn off the water supply.
• Dedicated Faucet: Includes a separate faucet for filtered water access.
• Improved Flow Rate: Offers a 25% faster flow rate compared to similar under-sink drinking water filtration systems.

2. Parts and Materials (Included)

Before beginning installation, ensure all parts listed below are present in your package. Refer to the diagram for visual identification of each component.

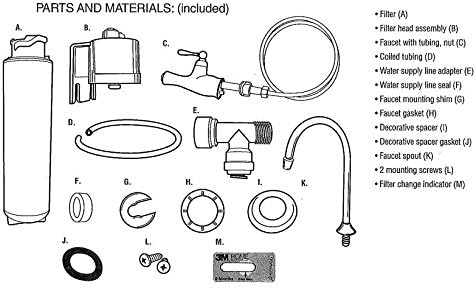

Image: Diagram illustrating all included parts for the 3M 4US-MAXS-S01H water filter system.

1. Filter (A)
2. Filter head assembly (B)
3. Faucet with tubing, nut (C)
4. Coiled tubing (D)
5. Water supply line adapter (E)
6. Water supply line seal (F)
7. Faucet mounting shim (G)
8. Faucet gasket (H)
9. Decorative spacer (I)
10. Decorative spacer gasket (J)
11. Faucet spout (K)
12. 2 mounting screws (L)
13. Filter change indicator (M)

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

Proper installation is crucial for the optimal performance and longevity of your water filter system. Please read all instructions carefully before proceeding.

3.1 ప్రీ-ఇన్‌స్టాలేషన్ చెక్‌లిస్ట్:

• Ensure you have all parts listed in Section 2.
• Gather necessary tools: adjustable wrench, drill (if needed for faucet hole), screwdriver, bucket, towels.
• Locate a suitable mounting area under your sink, ensuring enough space for filter changes.
• Turn off the cold water supply to your sink before starting.

3.2 ఇన్‌స్టాలేషన్ దశలు:

1. కుళాయిని ఇన్స్టాల్ చేయండి: If a dedicated faucet hole is not present, drill one according to the faucet's specifications. Secure the faucet (C) to the sink using the faucet gasket (H), decorative spacer (I), decorative spacer gasket (J), and mounting nut. Connect the faucet spout (K) if it's separate.
2. Connect Water Supply Line Adapter: Turn off the cold water supply. Disconnect the existing cold water line from the shut-off valve. Install the water supply line adapter (E) onto the cold water shut-off valve. జాగ్రత్త: The plastic fitting on the adapter can be easily cross-threaded. Ensure it is perfectly aligned and hand-tighten initially. Only use a wrench for the final snugging. Over-tightening can damage the fitting and cause leaks.
3. కనెక్ట్ ట్యూబ్: Connect one end of the coiled tubing (D) to the water supply line adapter (E) and the other end to the filter head assembly (B). Connect the tubing from the faucet (C) to the filter head assembly (B). Ensure all quick-connect fittings are fully inserted and secure.
4. Mount Filter Head Assembly: Choose a secure location under the sink to mount the filter head assembly (B) using the provided mounting screws (L). Ensure there is adequate clearance below for filter replacement.
5. ఫిల్టర్‌ని ఇన్‌స్టాల్ చేయండి: Insert the filter cartridge (A) into the filter head assembly (B) by aligning the tabs and twisting until it locks into place.
6. లీక్‌ల కోసం తనిఖీ చేయండి: Slowly turn on the cold water supply. Check all connections for leaks. If leaks occur, tighten connections carefully. If a leak persists from a quick-connect fitting, ensure the tubing is fully inserted and the connection is secure.
7. ఫ్లష్ సిస్టమ్: Open the dedicated filtered water faucet and let water run for 5-10 minutes to flush out any carbon fines and air from the system. The water may appear cloudy initially; this is normal.

ముఖ్యమైన పరిగణనలు:

• If your existing cold water line uses a rigid pipe, you may need to replace it with a flexible supply line to accommodate the water supply line adapter and ensure proper fit.
• Familiarize yourself with quick-connect fittings before working under the sink to ensure proper connection and disconnection.

4. ఆపరేటింగ్ సూచనలు

Once installed and flushed, your 3M water filter system is ready for use.

• To dispense filtered water, simply open the dedicated filtered water faucet.
• The system provides a strong flow rate for quick access to filtered water.
• For best results, use the filtered water for drinking, cooking, and preparing beverages.

5. నిర్వహణ మరియు ఫిల్టర్ భర్తీ

Regular filter replacement is essential to maintain the performance of your 3M water filter system and ensure continuous access to clean water.

5.1 Filter Replacement Schedule:

• The replacement filter model is 4US-MAXS-F01H.
• Replace the filter cartridge every 6 months or sooner if you notice a significant drop in water flow or taste/odor issues.
• Use the included filter change indicator (M) to mark the installation date and remind you when to replace the filter.

5.2 Quick-Change Filter Replacement Steps:

Image: The 3M 4US-MAXS-F01H replacement filter cartridge.

1. No Water Shut-off Required: The quick-change design allows for filter replacement without turning off the main water supply.
2. పాత ఫిల్టర్ తొలగించండి: Grasp the old filter cartridge (A) and twist it counter-clockwise approximately a quarter turn until it releases from the filter head assembly (B). Pull the filter straight down to remove it. A small amount of water may drip out; this is normal.
3. కొత్త ఫిల్టర్‌ను ఇన్‌స్టాల్ చేయండి: Remove the protective cap from the new 4US-MAXS-F01H replacement filter. Align the tabs on the new filter with the slots in the filter head assembly (B). Push the filter up and twist clockwise approximately a quarter turn until it locks securely into place.
4. కొత్త ఫిల్టర్‌ను ఫ్లష్ చేయండి: Open the dedicated filtered water faucet and let water run for 5-10 minutes to flush out any air and carbon fines from the new filter.
5. రీసెట్ సూచిక: Update your filter change indicator (M) with the new installation date.

Important Note Regarding Replacement Filters: Some users have reported difficulty in sourcing the 4US-MAXS-F01H replacement filters, with claims that 3M may no longer produce them. It is highly recommended to verify the availability of replacement filters before purchasing or relying on this system long-term. Check with authorized retailers or 3M directly for current availability.

6. ట్రబుల్షూటింగ్

7. స్పెసిఫికేషన్లు

8. వారంటీ సమాచారం

Specific warranty details for the 3M 4US-MAXS-S01H Quick Change Single Stage Drinking Water Filter System are not provided in this manual. For information regarding product warranty, please refer to the documentation included with your purchase or contact 3M customer support directly.

9. కస్టమర్ మద్దతు

For technical assistance, replacement parts, or further inquiries about your 3M water filter system, please contact 3M customer support. Contact information can typically be found on the product packaging or the official 3M webసైట్.

తయారీదారు: Water Channel Partners (for 3M)

బ్రాండ్: 3M
