GROHE Tempesta Cosmopolitan 210 Thermostatic Shower System User Manual

1. పరిచయం

This manual provides essential information for the safe installation, operation, and maintenance of your GROHE Tempesta Cosmopolitan 210 Thermostatic Shower System. Please read these instructions carefully before installation and retain them for future reference. This system features a 210 mm overhead shower, a 100 mm hand shower with two spray patterns, and a thermostatic mixer for precise temperature control.

2. భద్రతా సమాచారం

• ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని నీటి సరఫరా లైన్‌లు ఆపివేయబడ్డాయని నిర్ధారించుకోండి.
• Consult a qualified plumber if you are unsure about any installation steps.
• ఇన్‌స్టాలేషన్ సమయంలో తగిన వ్యక్తిగత రక్షణ పరికరాలు (PPE) ధరించండి.
• Check for leaks after installation and before final use.
• The thermostatic mixer is designed to prevent scalding, but always test water temperature before stepping into the shower, especially for children or individuals with sensitive skin.

3. ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• 210 mm Overhead Shower
• 100 mm Hand Shower
• Swiveling Shower Arm
• థర్మోస్టాటిక్ షవర్ వాల్వ్
• మౌంటు ఉపకరణాలు
• సూచనల మాన్యువల్ (ఈ పత్రం)

చిత్రం 1: పైగాview of the GROHE Tempesta Cosmopolitan 210 Shower System components.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

The GROHE Tempesta Cosmopolitan 210 Shower System is designed for wall mounting. Accurate measurements and secure fastening are crucial for proper function and safety. Refer to the technical diagram for precise dimensions and mounting points.

1. ఇన్‌స్టాలేషన్ ప్రాంతాన్ని సిద్ధం చేయండి: Ensure the wall surface is suitable for mounting and that water supply lines (hot on the left, cold on the right) are correctly positioned and flushed.
2. Mount the Thermostatic Mixer: Secure the thermostatic shower valve to the wall using the provided mounting accessories. Ensure it is level and firmly attached.
3. Install the Shower Rail: Attach the shower rail to the wall, aligning it with the thermostatic mixer. The rail provides support for the overhead shower and the adjustable hand shower holder.
4. Connect the Overhead Shower: Attach the swiveling shower arm and the 210 mm overhead shower to the top of the rail.
5. Connect the Hand Shower: Connect the hand shower hose to the thermostatic mixer and the 100 mm hand shower. Place the hand shower in its adjustable holder on the rail.
6. లీక్‌ల కోసం పరీక్ష: Slowly turn on the water supply and check all connections for leaks. Tighten any leaking connections as necessary.

Figure 2: Technical diagram showing installation dimensions and components.

Figure 3: The shower system installed and in operation, demonstrating water flow from both shower heads.

5. ఆపరేటింగ్ సూచనలు

Your GROHE Tempesta Cosmopolitan 210 Shower System is designed for ease of use and comfort.

5.1. Temperature Control (GROHE TurboStat)

The thermostatic mixer maintains a constant water temperature regardless of pressure fluctuations. Use the temperature control handle to set your desired water temperature.

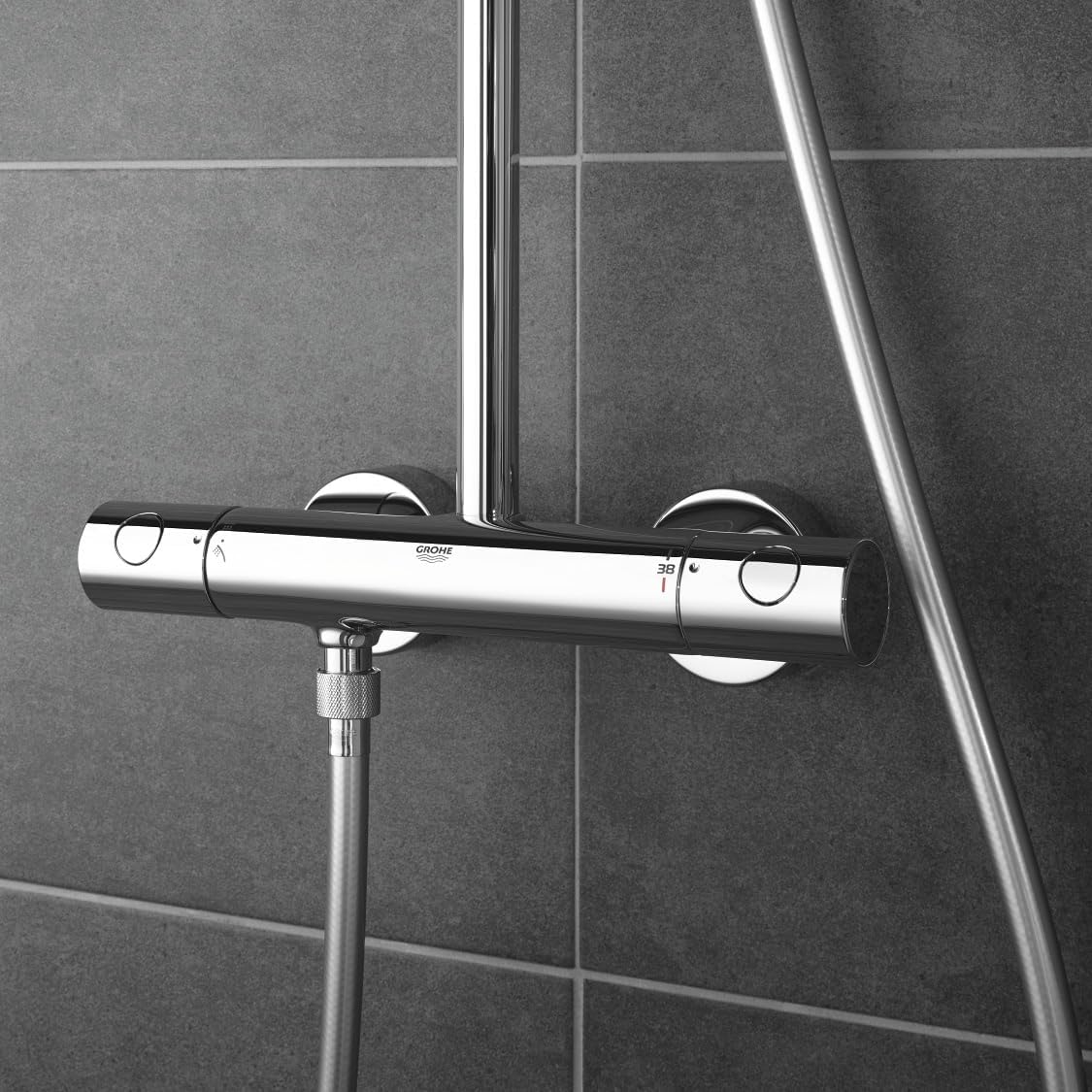

మూర్తి 4: క్లోజ్-అప్ view of the thermostatic mixer, showing temperature and flow controls.

5.2. Safety Stop (GROHE SafeStop)

For safety, the temperature is preset to 38°C (100.4°F). To select higher temperatures, press and hold the SafeStop button on the temperature handle while turning it. An optional GROHE SafeStop Plus limiter can be installed to prevent temperatures from exceeding 43°C (109.4°F).

5.3. Spray Pattern Selection (GROHE DreamSpray)

The hand shower offers two distinct spray patterns:

• రెయిన్ స్ప్రే: A soft, even spray pattern designed to mimic gentle summer rain.
• జెట్ స్ప్రే: A powerful, focused spray for a revitalizing massage or effective cleaning.

Switch between the overhead shower and hand shower, and select the hand shower's spray pattern using the diverter on the thermostatic mixer.

Figure 5: The 210 mm overhead shower delivering a consistent Rain spray.

6. నిర్వహణ

Regular cleaning and maintenance will ensure the longevity and optimal performance of your GROHE shower system.

6.1. క్రోమ్ ఫినిష్‌ను శుభ్రపరచడం

Clean the chrome surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using harsh chemicals, abrasive pads, or cleaners containing acids, alcohol, or chlorine, as these can damage the finish. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.

6.2. SpeedClean Nozzles

The shower heads are equipped with SpeedClean anti-limescale nozzles. To remove limescale deposits, simply wipe the silicone nozzles with your finger or a cloth. This helps maintain consistent spray performance.

6.3. Inner WaterGuide

The Inner WaterGuide technology protects against scalding by ensuring the surface of the shower head remains cool. No specific maintenance is required for this feature.

7. ట్రబుల్షూటింగ్

మీ షవర్ సిస్టమ్‌తో మీరు సమస్యలను ఎదుర్కొంటే, ఈ క్రింది సాధారణ సమస్యలు మరియు పరిష్కారాలను చూడండి:

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact GROHE customer support or a certified plumbing professional.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information, please refer to the documentation provided with your purchase or visit the official GROHE website. If you require technical assistance, spare parts, or have any questions regarding your GROHE Tempesta Cosmopolitan 210 Shower System, please contact GROHE customer support directly or the retailer from whom you purchased the product.
