Sommer Aperto A 800 XL Garage Door Opener Instruction Manual

1. ఉత్పత్తి ముగిసిందిview

The Sommer Aperto A 800 XL is a high-performance garage door opener designed for various door types, offering advanced features for security, efficiency, and user convenience. This system includes two Pearl Twin hand transmitters for remote operation.

ముఖ్య లక్షణాలు:

• Maximum Door Dimensions: 6,000 mm width / 2,500 mm height
• గరిష్ట డోర్ బరువు: 140 కిలోలు
• Maximum Pull and Push Force: 800 ఎన్
• Maximum Carriage Speed: 180 mm/s
• Universal drive compatible with sectional, overhead, up-and-over, side-sectional, and sliding doors.
• Integrated LED technology for durable and efficient lighting.
• Energy-saving standby mode with less than 1 watt consumption.
• High self-braking motor with active back pressure for enhanced security.
• Wear-free chain for high tensile strength.
• SOMloq2 bidirectional, encrypted radio system for secure communication.
• Automatic learning process with continuous adaptation for optimized performance.
• Optimized speed profiles for quick opening and safe closing.
• Soft start/stop function for smooth operation.
• Emergency release cord for manual door operation during power outages.

The main unit of the Sommer Aperto A 800 XL garage door opener, showcasing దాని కాంపాక్ట్ డిజైన్.

2. సెటప్ మరియు ఇన్‌స్టాలేషన్

Installation of the Aperto A 800 XL requires careful attention to safety and proper alignment. It is recommended to consult the detailed instructions provided in the complete manual for specific step-by-step procedures. Ensure all components are securely fastened and correctly positioned according to the manufacturer's guidelines.

ఇన్‌స్టాలేషన్ భాగాలు:

The package includes various components necessary for installation, such as mounting brackets, screws, and specialized tools. Familiarize yourself with all parts before beginning the installation process.

Various components included for the installation of the garage door opener, such as mounting brackets, screws, and tools.

Track System Assembly:

The track system, equipped with a durable chain, is crucial for the smooth and reliable operation of the garage door. The track can be easily shortened or extended using an extension set to accommodate different door sizes. Ensure the chain is properly tensioned and aligned.

The track system with chain, designed for smooth and reliable operation of the garage door. It can be extended or shortened as needed.

3. ఆపరేటింగ్ సూచనలు

The Aperto A 800 XL is operated primarily using the included Pearl Twin hand transmitters. The system utilizes the secure SOMloq2 radio technology for reliable communication.

రిమోట్ కంట్రోల్ ఉపయోగించడం:

• Press the designated button on the Pearl Twin hand transmitter to initiate the opening or closing sequence of the garage door.
• The SOMloq2 radio system ensures secure and encrypted communication between the remote and the opener.
• The system offers bidirectional feedback, allowing you to check the door status (open/closed) if supported by your remote model.

The Pearl Twin remote control, featuring two buttons for operation. Details about the SOMloq2 radio system, including its bidirectional communication and 128-bit AES encryption, are also shown.

అత్యవసర విడుదల:

In the event of a power failure, the garage door can be manually operated using the emergency release cord. Pull the cord to disengage the motor and allow for manual opening or closing of the door. Re-engage the motor once power is restored or manual operation is no longer needed.

4. నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your Sommer Aperto A 800 XL garage door opener. Perform the following checks periodically:

• గొలుసు తనిఖీ: Regularly inspect the drive chain for proper tension and signs of wear. Refer to the full manual for specific tensioning instructions.
• కదిలే భాగాలు: Keep all moving parts of the garage door and opener clean and free from debris. Lubricate as recommended in the detailed manual.
• ట్రాక్ సిస్టమ్: Ensure the track system is clear of any obstructions that could impede door movement.
• భద్రతా సెన్సార్లు: Verify that safety sensors (if installed) are clean and properly aligned to prevent accidents.

For detailed lubrication schedules and specific maintenance procedures, always consult the comprehensive instruction manual provided with your product.

5. ట్రబుల్షూటింగ్

If you encounter issues with your Aperto A 800 XL garage door opener, consider the following common troubleshooting steps:

• Door Not Moving: Check the power supply to the opener. Ensure the emergency release is not engaged. Verify that safety sensors are not obstructed or misaligned.
• రిమోట్ కంట్రోల్ స్పందించడం లేదు: Replace the battery in the Pearl Twin hand transmitter. Ensure you are within the operating range.
• అసాధారణ శబ్దాలు: Inspect the chain and moving parts for any foreign objects or signs of wear. Lubricate as necessary.
• Door Reverses Unexpectedly: This may indicate an obstruction or an issue with the force settings. Clear any obstructions and refer to the manual for adjusting force limits.

For persistent issues or more complex problems, refer to the comprehensive troubleshooting guide in the main product manual or contact Sommer customer support.

6. స్పెసిఫికేషన్లు

Below are the detailed technical specifications for the Sommer Aperto A 800 XL garage door opener:

A detailed table outlining the technical specifications of the Aperto A 800 XL, including power supply, frequency, maximum forces, speed, and dimensions.

7. భద్రతా సమాచారం

The Sommer Aperto A 800 XL is designed with multiple safety features to ensure secure operation and prevent unauthorized access. Adhere to all safety guidelines during installation and operation.

• The highly self-braking motor and active back pressure mechanism help prevent forced entry attempts.
• Integrated, cyclically tested safety devices ensure reliable operation.
• The SOMloq2 radio system provides 128-bit AES encryption for enhanced security against signal interception.
• An optional alarm/warning buzzer can be activated to alert users during closing operations or in case of attempted break-ins.
• Always ensure the area around the garage door is clear of people, pets, and objects before and during operation.
• Do not allow children to play with or operate the garage door opener or its remote controls.

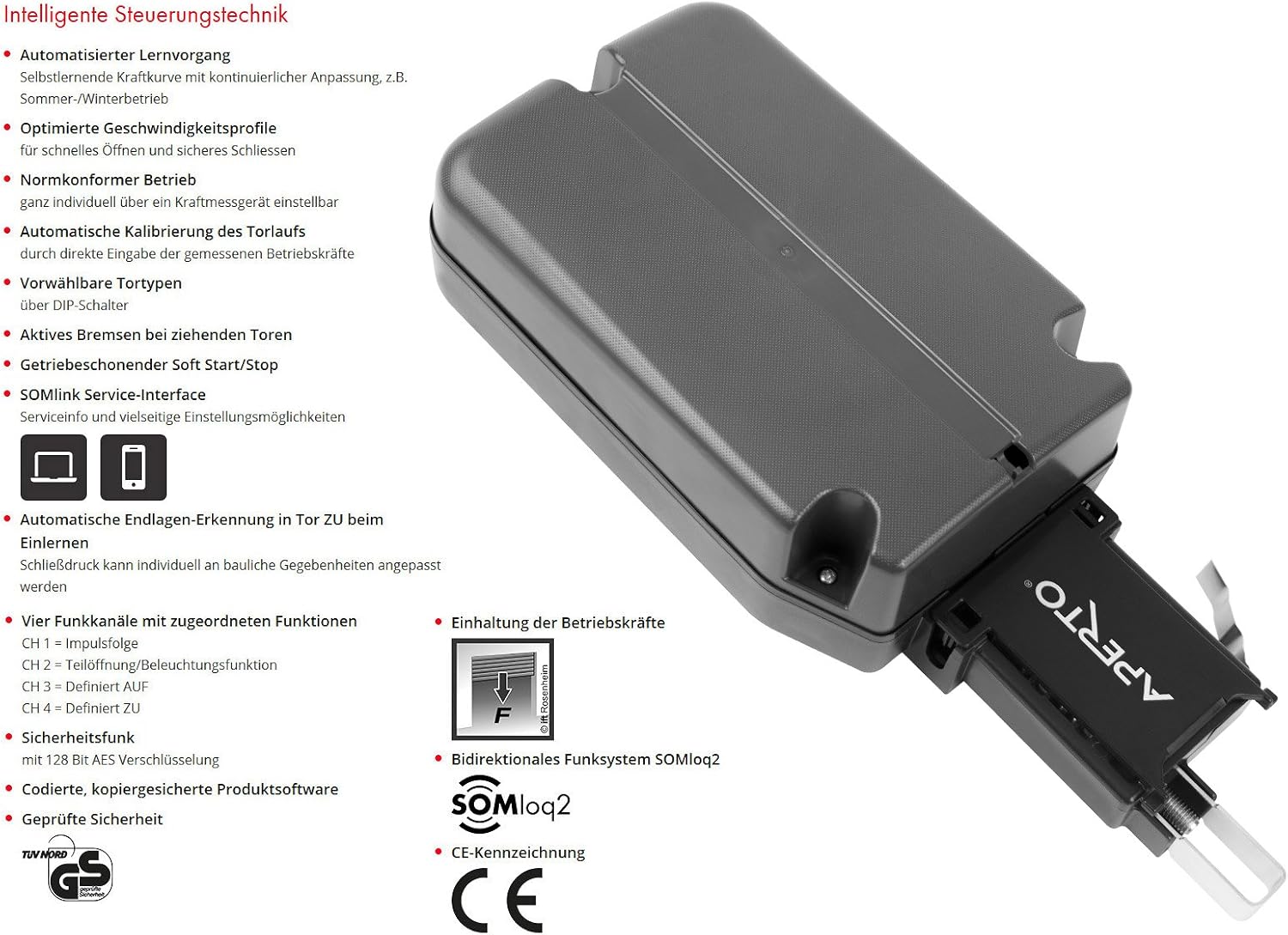

ఒక ఓవర్view of the intelligent control technology, including automated learning, optimized speed profiles, and safety features like active braking and the SOMloq2 radio system. TÜV Nord and CE certifications are also displayed.

This image highlights the quality, safety, flexibility, and intelligence aspects of the A 800 XL, such as universal drive compatibility, LED technology, robust security measures, and various expansion options.

8. వారంటీ మరియు మద్దతు

For detailed warranty information, terms, and conditions, please refer to the official Sommer website or the warranty documentation included with your product. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical support, troubleshooting assistance beyond this manual, or to inquire about spare parts, please contact your authorized Sommer dealer or visit the official Sommer support portal. Provide your product model number (Aperto A 800 XL) and serial number (if applicable) when seeking support.

తయారీదారు: సోమర్
