MIABOO Retro Portable Bluetooth Speaker and Digital Radio Alarm Clock User Manual

పరిచయం

This manual provides detailed instructions for the operation and maintenance of your MIABOO Retro Portable Bluetooth Speaker and Digital Radio Alarm Clock. Please read this manual thoroughly before use to ensure proper functionality and to maximize your experience with the device.

The MIABOO M20 is a versatile device combining multiple functions:

• పోర్టబుల్ బ్లూటూత్ స్పీకర్
• Wireless Music Player (TF Card, AUX-IN)
• హ్యాండ్స్-ఫ్రీ కాలింగ్
• AM/FM రేడియో
• డిజిటల్ అలారం గడియారం

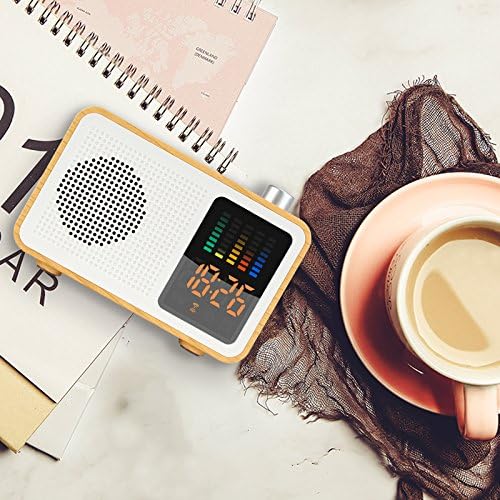

చిత్రం: ముందు భాగం view of the MIABOO Retro Portable Bluetooth Speaker and Digital Radio Alarm Clock, showcasing దాని చెక్క casing, speaker grille, digital display with time and equalizer, and top control knob.

సెటప్

Unpacking and Initial Charge

Carefully remove the device from its packaging. Before first use, it is recommended to fully charge the device. Connect the provided USB charging cable to the device's USB port and to a compatible USB power adapter (not included) or computer USB port.

The device contains 1 Lithium-Ion battery, which is included and required for operation.

చిత్రం: వైపు view of the MIABOO speaker showing the USB charging port with a cable connected, along with TF card and AUX ports.

ఆపరేటింగ్ సూచనలు

పవర్ ఆన్/ఆఫ్

To power on the device, press and hold the power button (usually located on the side or top) until the display illuminates. To power off, press and hold the power button again.

మోడ్ ఎంపిక

Press the 'M' button (Mode button) to cycle through available modes: Bluetooth, FM Radio, AM Radio, TF Card, and AUX-IN.

Image: Graphic illustrating the multiple functions of the MIABOO speaker, including Bluetooth play, AUX play, TF card play, FM radio, and alarm clock.

బ్లూటూత్ పెయిరింగ్

1. Switch the device to Bluetooth mode. The display will show a Bluetooth icon, and the device will enter pairing mode.
2. మీ మొబైల్ పరికరంలో, బ్లూటూత్‌ని ప్రారంభించండి మరియు అందుబాటులో ఉన్న పరికరాల కోసం శోధించండి.
3. Select "MIABOO M20" (or similar name) from the list of devices.
4. Once paired, the device will emit a confirmation sound, and the Bluetooth icon on the display will become solid.
5. You can now play audio from your mobile device through the speaker.

FM/AM రేడియో ఆపరేషన్

1. Switch the device to FM or AM Radio mode using the 'M' button.
2. To automatically scan and save available stations, press and hold the Play/Pause button. The device will scan and store stations.
3. To manually tune, use the '+' and '-' buttons to adjust the frequency.
4. To switch between saved stations, briefly press the Play/Pause button or use the '+' and '-' buttons.

చిట్కా: For improved radio reception, connect a pair of headphones to the AUX-IN port, as the headphone cable can act as an external antenna. Alternatively, ensure the charging cable is connected, as it can also aid reception.

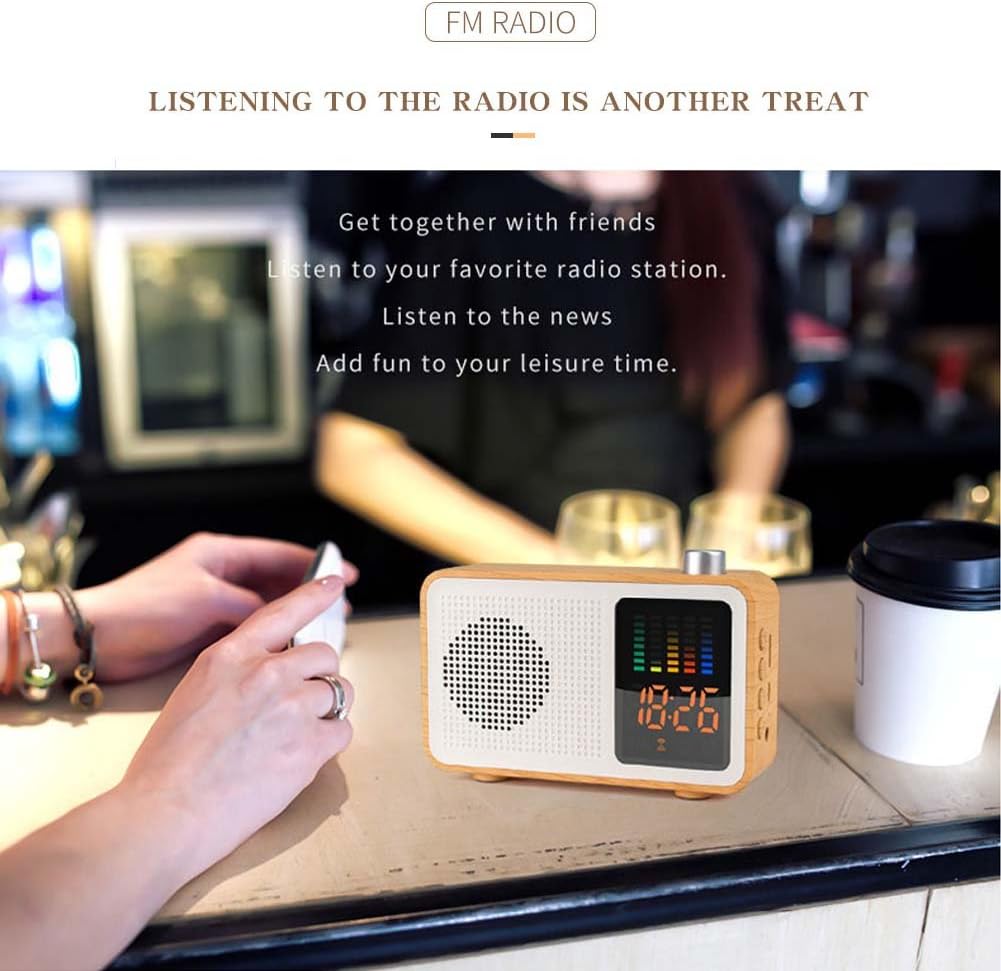

Image: The MIABOO speaker placed on a table in a cafe, demonstrating its use for listening to FM radio.

TF కార్డ్ ప్లేబ్యాక్

1. MP3 ఆడియోతో TF (మైక్రో SD) కార్డ్‌ని చొప్పించండి fileTF కార్డ్ స్లాట్‌లోకి లు.
2. Switch the device to TF Card mode.
3. పరికరం స్వయంచాలకంగా ఆడియోను ప్లే చేయడం ప్రారంభిస్తుంది fileకార్డు నుండి s.
4. Use the Play/Pause button to pause/resume playback and the '+' and '-' buttons to skip tracks.

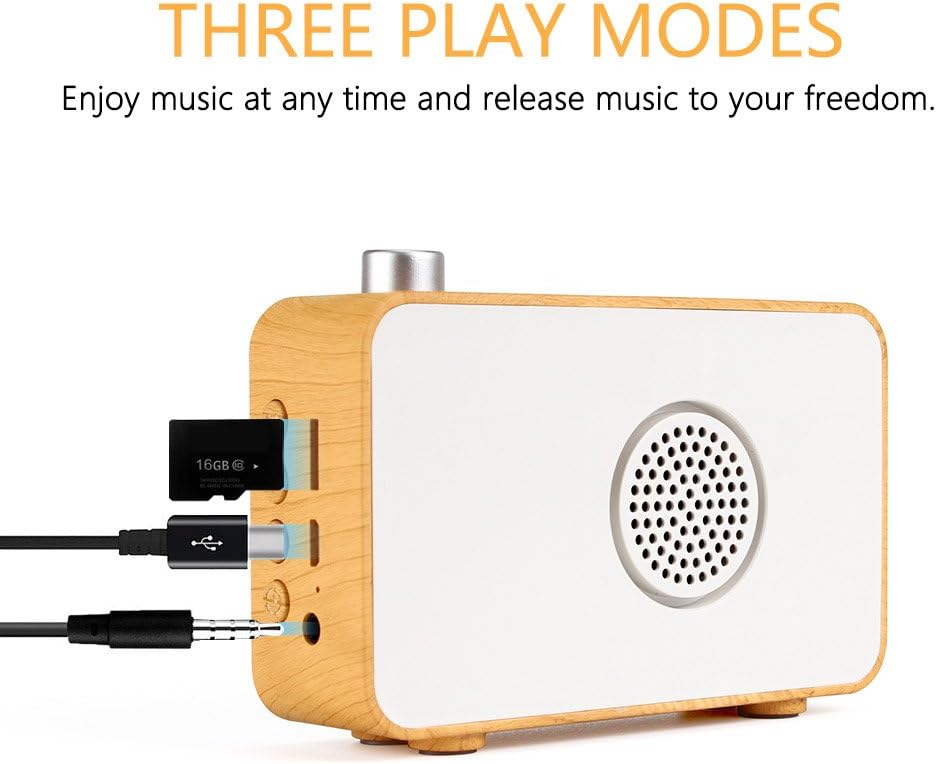

చిత్రం: వైపు view of the MIABOO speaker showing the TF card slot with a TF card inserted, along with USB and AUX ports.

AUX-IN మోడ్

1. Connect an external audio device (e.g., smartphone, MP3 player) to the AUX-IN port using a 3.5mm audio cable (not included).
2. Switch the device to AUX-IN mode.
3. Audio from the connected device will now play through the speaker. Control playback from the external device.

అలారం క్లాక్ ఫంక్షన్

1. In standby mode or while displaying the time, press and hold the 'Alarm' button (often labeled with a bell icon).
2. Use the '+' and '-' buttons to set the hour, then press the 'Alarm' button again to confirm.
3. Use the '+' and '-' buttons to set the minute, then press the 'Alarm' button again to confirm.
4. అలారం సెట్ చేయబడిందని సూచిస్తూ డిస్ప్లేలో అలారం చిహ్నం కనిపిస్తుంది.
5. To deactivate the alarm, press the 'Alarm' button briefly.

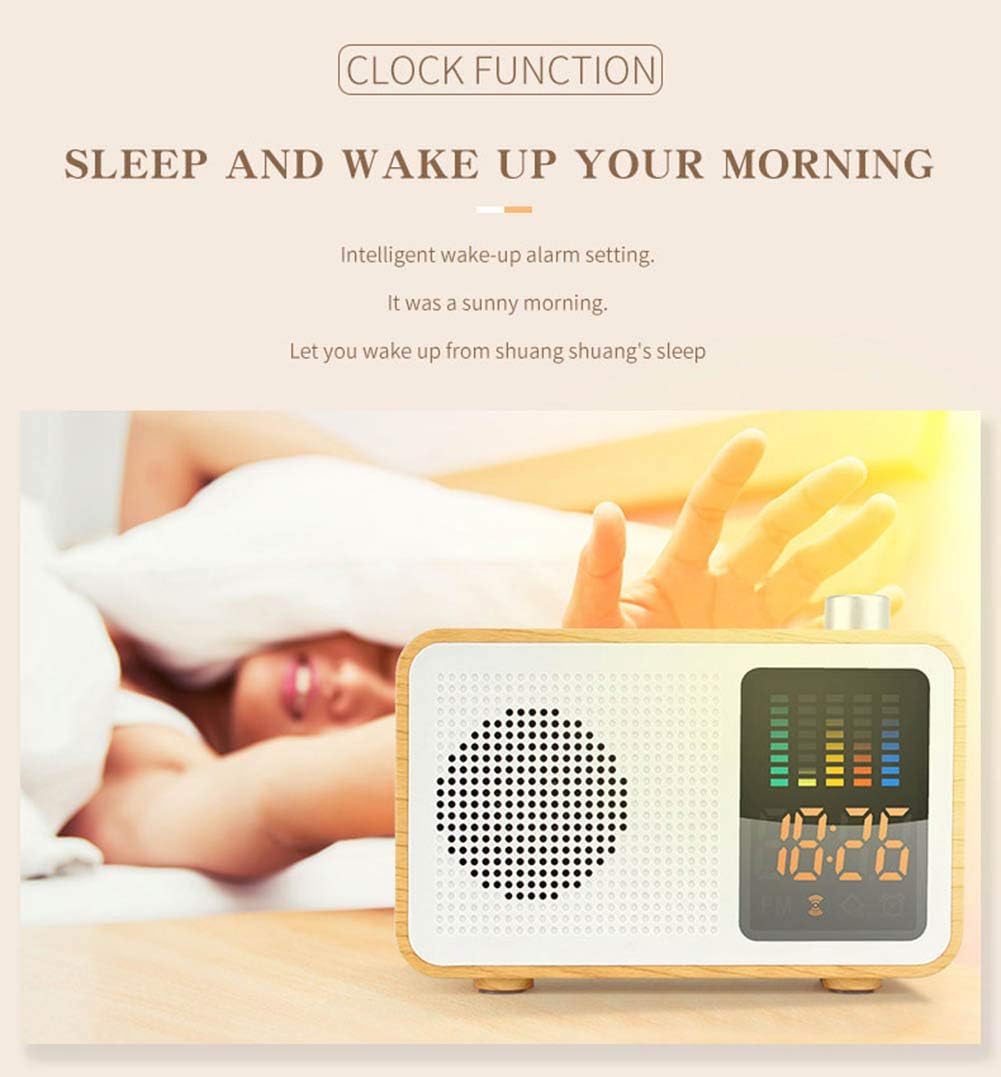

Image: The MIABOO speaker on a bedside table, displaying the time, illustrating its alarm clock function.

నిర్వహణ

క్లీనింగ్

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the surface. Avoid exposing the device to excessive moisture.

బ్యాటరీ సంరక్షణ

To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use for extended periods. Store the device in a cool, dry place.

ట్రబుల్షూటింగ్

• శక్తి లేదు: Ensure the device is charged. Connect the USB charging cable and allow it to charge for at least 30 minutes before attempting to power on again.
• పేలవమైన రేడియో రిసెప్షన్: Connect headphones to the AUX-IN port or the USB charging cable to improve antenna reception. Try repositioning the device.
• బ్లూటూత్ జత చేయడం సమస్యలు: Ensure the device is in Bluetooth pairing mode. Check that Bluetooth is enabled on your mobile device and that it is within range. Forget previous pairings on your mobile device and try pairing again.
• ధ్వని లేదు: Check the volume level on both the speaker and the connected audio source. Ensure the correct mode (Bluetooth, FM, TF, AUX) is selected.
• బటన్‌లు స్పందించలేదు: If buttons become unresponsive, try resetting the device by powering it off and on again. If the issue persists, ensure the battery is sufficiently charged.

స్పెసిఫికేషన్లు

Image: Diagram showing the dimensions of the MIABOO speaker (120mm length, 84.5mm height, 33.8mm width) and listing key specifications like Bluetooth version, frequency, output power, battery capacity, and materials.

వారంటీ మరియు మద్దతు

వారంటీ సమాచారం మరియు కస్టమర్ మద్దతు కోసం, దయచేసి కొనుగోలు డాక్యుమెంటేషన్‌ను చూడండి లేదా మీ రిటైలర్‌ను సంప్రదించండి. ఏవైనా వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.
