DEWIN E27 PIR Motion Detector LED Bulb User Manual

ఉత్పత్తి ముగిసిందిview

These smart LED lamp bulbs provide automatic illumination, eliminating the need to manually switch lights on or off. They are particularly beneficial for children and elderly individuals, as they remove the necessity of searching for light switches in dark rooms. The bulb automatically illuminates when motion is detected within 4 to 6 meters. Available in 5W, 7W, or 9W options, these bulbs feature 12, 18, or 24 LEDs respectively, providing 6000-6500K white light for comfortable and relaxing environments while also being energy-efficient. Installation is straightforward with a standard E27 socket; simply screw in the bulb and turn on the power. The integrated PIR infrared motion sensor includes a daylight detector, ensuring the bulb only activates at night. This warm white light bulb is suitable for various indoor locations such as basements, bathrooms, hallways, porches, corridors, stairwells, or entryways. Upon initial power connection, the bulb will flash twice and then stabilize within 15-20 seconds before beginning normal operation.

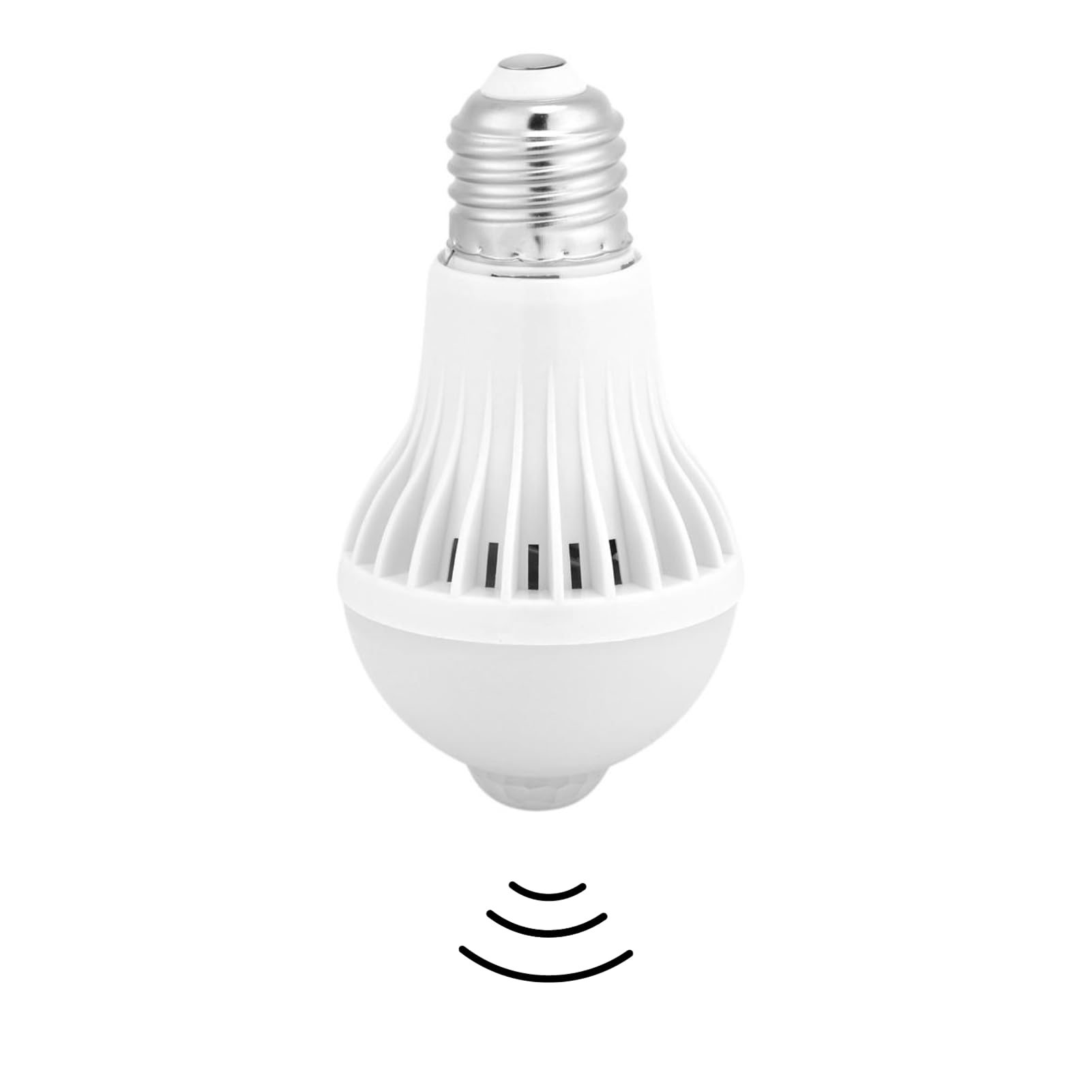

Image: The DEWIN E27 PIR Motion Detector LED Bulb, showcasing its design and the integrated motion sensor.

కీ ఫీచర్లు

• స్మార్ట్ మోషన్ డిటెక్షన్: The bulb automatically turns on and off when motion is detected within a 4 to 6 meter range, providing hands-free illumination. This feature is especially convenient for children and the elderly, eliminating the need to locate light switches in the dark.
• Low Energy Consumption, High Brightness: Available in 5W, 7W, or 9W, these E27 sensor bulbs feature 12, 18, or 24 LEDs respectively, emitting 6000-6500K white light. They provide ample brightness for living rooms, bedrooms, and children's rooms, ensuring comfort and relaxation while saving energy.
• సాధారణ సంస్థాపన: Featuring a standard E27 socket, installation is easy. Simply screw the bulb into the socket and turn on the power.
• PIR Infrared Motion Sensor: The bulb incorporates an infrared PIR motion sensor with a daylight detector, ensuring that the light only activates during nighttime conditions.
• విస్తృత అప్లికేషన్: This E27 warm white bulb is suitable for various indoor applications, including basements, bathrooms, hallways, porches, corridors, stairwells, or entryways.

చిత్రం: వివరణాత్మక view of the DEWIN E27 PIR Motion Detector LED Bulb, highlighting the integrated PIR sensor at the bottom.

Image: An illustrative diagram demonstrating the 4-6 meter detection range of the PIR motion sensor.

స్పెసిఫికేషన్లు

సంస్థాపన

The DEWIN E27 PIR Motion Detector LED Bulb is designed for simple and quick installation.

1. పవర్ ఆఫ్ అయిందని నిర్ధారించుకోండి: Before installation, always ensure that the power supply to the light fixture is turned off at the main switch to prevent electrical shock.
2. బల్బును స్క్రూ చేయండి: Carefully screw the E27 base of the LED bulb into a standard E27 light socket. Ensure it is securely tightened but do not overtighten.
3. శక్తిని పునరుద్ధరించండి: Turn the power supply back on at the main switch.
4. ప్రారంభ క్రియాశీలత: Upon first connection to power, the bulb will flash twice. Allow 15-20 seconds for the bulb to stabilize and begin normal operation.

చిత్రం: క్లోజప్ view of the E27 screw base, illustrating the standard fitting for installation.

Image: The DEWIN LED bulb from a side angle, clearly showing the E27 screw base ready for installation.

ఆపరేటింగ్ సూచనలు

The DEWIN PIR Motion Detector LED Bulb operates automatically based on motion and ambient light conditions.

• ఆటోమేటిక్ యాక్టివేషన్: The bulb will automatically turn on when it detects motion within its 4 to 6 meter range.
• పగటి సెన్సార్: The integrated daylight sensor ensures that the bulb only activates when the ambient light is low (i.e., at night or in dark environments). It will not turn on during daylight hours, conserving energy.
• ఆటోమేటిక్ డియాక్టివేషన్: After motion ceases and a short delay, the bulb will automatically turn off.
• ప్లేస్‌మెంట్ పరిగణనలు: For optimal performance, install the bulb in areas where motion detection is desired, such as hallways, stairwells, or entryways. Avoid placing it near heat sources or in direct sunlight, which could interfere with the sensor.

Image: The DEWIN LED bulb shown in various indoor applications, such as hallways, bathrooms, and stairwells, demonstrating its versatility.

నిర్వహణ

To ensure the longevity and optimal performance of your DEWIN E27 PIR Motion Detector LED Bulb, follow these simple maintenance guidelines:

• శుభ్రపరచడం: Ensure the power is off before cleaning. Gently wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the sensor or the bulb's surface.
• సెన్సార్ ప్రాంతం: Keep the motion sensor area clear of dust and obstructions to ensure accurate detection.
• పర్యావరణ పరిస్థితులు: This bulb is designed for indoor use. Avoid exposure to excessive moisture, extreme temperatures, or direct outdoor elements.

ట్రబుల్షూటింగ్

If you encounter issues with your DEWIN E27 PIR Motion Detector LED Bulb, please refer to the following common troubleshooting steps:

• Bulb does not turn on:
  • Check if the power supply to the socket is active.
  • బల్బ్ సురక్షితంగా స్క్రూ చేయబడిందని నిర్ధారించుకోండి.
  • Verify that the ambient light is low enough for the daylight sensor to activate (i.e., it's dark). The bulb will not activate in bright conditions.
  • Confirm there is motion within the 4-6 meter detection range.
• Bulb stays on constantly:
  • Check for continuous motion within the detection range.
  • Ensure the sensor is not obstructed or covered, which might trick it into detecting constant presence.
  • If installed in an area with constant air movement (e.g., near a vent), this might trigger the sensor.
• Bulb flashes or flickers:
  • బల్బ్ సాకెట్‌లో సురక్షితంగా బిగించబడిందని నిర్ధారించుకోండి.
  • స్థిరమైన విద్యుత్ సరఫరా కోసం తనిఖీ చేయండి.
  • If this occurs immediately after installation, allow the initial 15-20 second stabilization period.

ఈ దశలను ప్రయత్నించిన తర్వాత కూడా సమస్య కొనసాగితే, దయచేసి కస్టమర్ సపోర్ట్‌ను సంప్రదించండి.

వారంటీ మరియు మద్దతు

For information regarding warranty coverage, returns, or technical support for your DEWIN E27 PIR Motion Detector LED Bulb, please refer to the purchase documentation or contact the retailer directly. Keep your proof of purchase for any warranty claims.
