Kitchen HQ Speed Grater and Slicer with Suction Base II
Kitchen HQ Speed Grater and Slicer with Suction Base II User Manual
Model: Speed Grater and Slicer with Suction Base II
పరిచయం
Thank you for choosing the Kitchen HQ Speed Grater and Slicer with Suction Base II. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new kitchen appliance. Please read these instructions thoroughly before first use and retain them for future reference.
ఉత్పత్తి భాగాలు
The Kitchen HQ Speed Grater and Slicer with Suction Base II includes the following parts:
- Grater unit with integrated suction base
- 3 Stainless steel blade drums:
- Fine grating drum
- Thick grating drum
- స్లైసింగ్ డ్రమ్
- టర్నింగ్ హ్యాండిల్
- ఫుడ్ పషర్

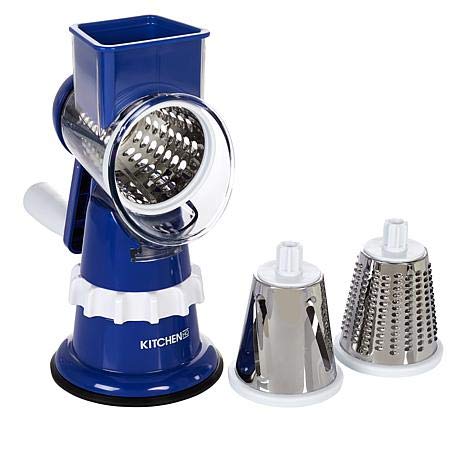

మూర్తి 1: పైగాview of the Kitchen HQ Speed Grater and Slicer with Suction Base II components.
సెటప్ మరియు అసెంబ్లీ
- ప్రారంభ శుభ్రపరచడం: Before first use, hand wash all components (grater unit, blade drums, handle, food pusher) with mild dish soap and warm water. Rinse thoroughly and dry completely.
- Secure the Suction Base: Place the grater unit on a clean, dry, smooth, and non-porous countertop surface. Press down firmly on the unit and engage the suction lever (if present, or twist the base if it's a twist-lock type) to secure the suction base. Ensure the unit is stable and does not move.
- Insert a Blade Drum: Select the desired stainless steel blade drum (fine, thick, or slicing). Align the drum with the opening in the grater unit and insert it until it clicks into place or is firmly seated.
- హ్యాండిల్ను అటాచ్ చేయండి: Insert the turning handle into the designated slot on the side of the blade drum. Turn the handle clockwise until it locks securely into position.
Your Kitchen HQ Speed Grater and Slicer is now ready for operation.
ఆపరేటింగ్ సూచనలు
This manual grater and slicer is designed for efficient processing of various fruits and vegetables without the need for electricity or batteries.
- పదార్థాలను సిద్ధం చేయండి: Cut fruits or vegetables into pieces that fit comfortably into the feeding chute.
- Place a Container: Position a bowl or container beneath the grater's output chute to collect the processed food.
- ఫీడ్ పదార్థాలు: Place a prepared piece of food into the feeding chute.
- Use the Food Pusher: Gently press down on the food with the food pusher. Do not force the food.
- హ్యాండిల్ను తిప్పండి: While applying gentle pressure with the food pusher, turn the handle clockwise steadily. The blade drum will rotate, grating or slicing the food.
- ప్రాసెస్ చేయడాన్ని కొనసాగించండి: Repeat steps 3-5 until all ingredients are processed.
Safety Note: Always use the food pusher. Never use your fingers or other utensils to push food into the chute while the blade drum is installed or the handle is turning.
సంరక్షణ మరియు నిర్వహణ
Proper care ensures the longevity and performance of your Kitchen HQ Speed Grater and Slicer.
- శుభ్రపరచడం: After each use, disassemble the unit by removing the handle and blade drum. Hand wash all components with warm water and mild dish soap. Use a brush to remove any food particles from the blade drums. Rinse thoroughly and dry immediately to prevent water spots or corrosion on stainless steel parts.
- డిష్వాషర్ భద్రత: While some components may be dishwasher safe, hand washing is recommended to preserve the sharpness of the blades and the finish of the plastic parts.
- నిల్వ: Store the clean and dry grater and its components in a safe place, away from children. Keep the blade drums protected to prevent accidental cuts and to maintain their sharpness.
ట్రబుల్షూటింగ్
If you encounter issues with your grater and slicer, refer to the following common problems and solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Suction base does not hold firmly. | Countertop surface is not clean, dry, or smooth. Suction mechanism not fully engaged. | Ensure the countertop is perfectly clean, dry, and smooth. Re-engage the suction lever or twist mechanism firmly. Try a different surface. |
| Food gets stuck in the blade drum or chute. | Overfilling the chute. Food pieces are too large or too soft. Insufficient pressure with food pusher. | Cut food into smaller, manageable pieces. Do not overfill the chute. Apply steady, gentle pressure with the food pusher. For softer foods, chill them slightly before grating. |
| Blade drum does not rotate smoothly. | Food particles are lodged in the mechanism. Handle not properly attached. | Disassemble and thoroughly clean all components, especially around the blade drum and handle connection points. Ensure the handle is securely locked into place. |
స్పెసిఫికేషన్లు
- మోడల్: Speed Grater and Slicer with Suction Base II
- కొలతలు (సుమారుగా): 9.5" L x 5" W x 10.5" H (24.1 సెం.మీ L x 12.7 సెం.మీ W x 26.7 సెం.మీ H)
- బరువు (సుమారుగా): 2.17 పౌండ్లు (0.98 కిలోలు)
- మెటీరియల్ కంపోజిషన్: ప్లాస్టిక్, స్టెయిన్లెస్ స్టీల్
- రంగు: నీలం
- UPC: 707785297662
- ASIN: B08P3SB7G9
వారంటీ మరియు మద్దతు
No specific warranty information or customer support contact details are provided with this product. For any inquiries, please refer to your retailer's return policy or contact Kitchen HQ directly through their official website or customer service channels if available.
