Classic Cantabile DP-230 Digital Piano Instruction Manual

1. పరిచయం

This manual provides essential information for the safe and efficient use of your Classic Cantabile DP-230 Digital Piano. Please read these instructions thoroughly before operating the instrument and retain them for future reference. This digital piano offers a realistic playing experience with its hammer-action keyboard and a wide range of features suitable for both beginners and experienced musicians.

2. భద్రతా సూచనలు

• విద్యుత్ సరఫరా: పేర్కొన్న పవర్ అడాప్టర్‌ను మాత్రమే ఉపయోగించండి. వాల్యూమ్‌ను నిర్ధారించుకోండిtage matches your local power supply. Disconnect the power cord during thunderstorms or when not in use for extended periods.
• ప్లేస్‌మెంట్: Place the piano on a stable, level surface. Avoid direct sunlight, heat sources, and excessive humidity. Keep away from strong electromagnetic fields.
• తేమ: Do not expose the instrument to rain or moisture. Do not place objects containing liquids on the piano.
• వెంటిలేషన్: Ensure proper ventilation around the instrument. Do not block ventilation openings.
• శుభ్రపరచడం: Use a soft, dry cloth for cleaning. Avoid abrasive cleaners, waxes, or solvents.
• పిల్లలు: ఉక్కిరిబిక్కిరి అయ్యే ప్రమాదాలను నివారించడానికి చిన్న భాగాలు మరియు ప్యాకేజింగ్ పదార్థాలను పిల్లలకు దూరంగా ఉంచండి.

3. ప్యాకేజీ విషయాలు

దయచేసి మీ ప్యాకేజీలో అన్ని వస్తువులు ఉన్నాయో లేదో తనిఖీ చేయండి:

• Classic Cantabile DP-230 Digital Piano
• పవర్ అడాప్టర్
• Adjustable Piano Bench (Solid wood, matte white, black corduroy cover, height adjustable 47-56 cm, max. load 120 kg)
• Headphones (Frequency range 20-20,000 Hz, padded, ear-enclosing, 4m cable)
• Piano School Book for Beginners (DIN A4, 44 pages, with access to training videos, PlayAlongs, and MIDI files)
• మ్యూజిక్ స్టాండ్

Figure 3.1: Included accessories: piano bench, headphones, and piano school book.

4. సెటప్

4.1 అసెంబ్లీ

The Classic Cantabile DP-230 requires some assembly. Follow the instructions provided in the separate assembly guide for detailed steps. Ensure all screws are tightened securely before use. It is recommended to have two people for assembly due to the instrument's weight.

4.2 Connecting the Pedals

Connect the pedal unit cable to the corresponding port on the underside of the piano. Ensure a firm connection.

Figure 4.1: The three integrated pedals for dynamic and expressive playing.

4.3 పవర్ కనెక్షన్

Connect the power adapter to the DC IN port on the rear of the piano, then plug it into a suitable power outlet.

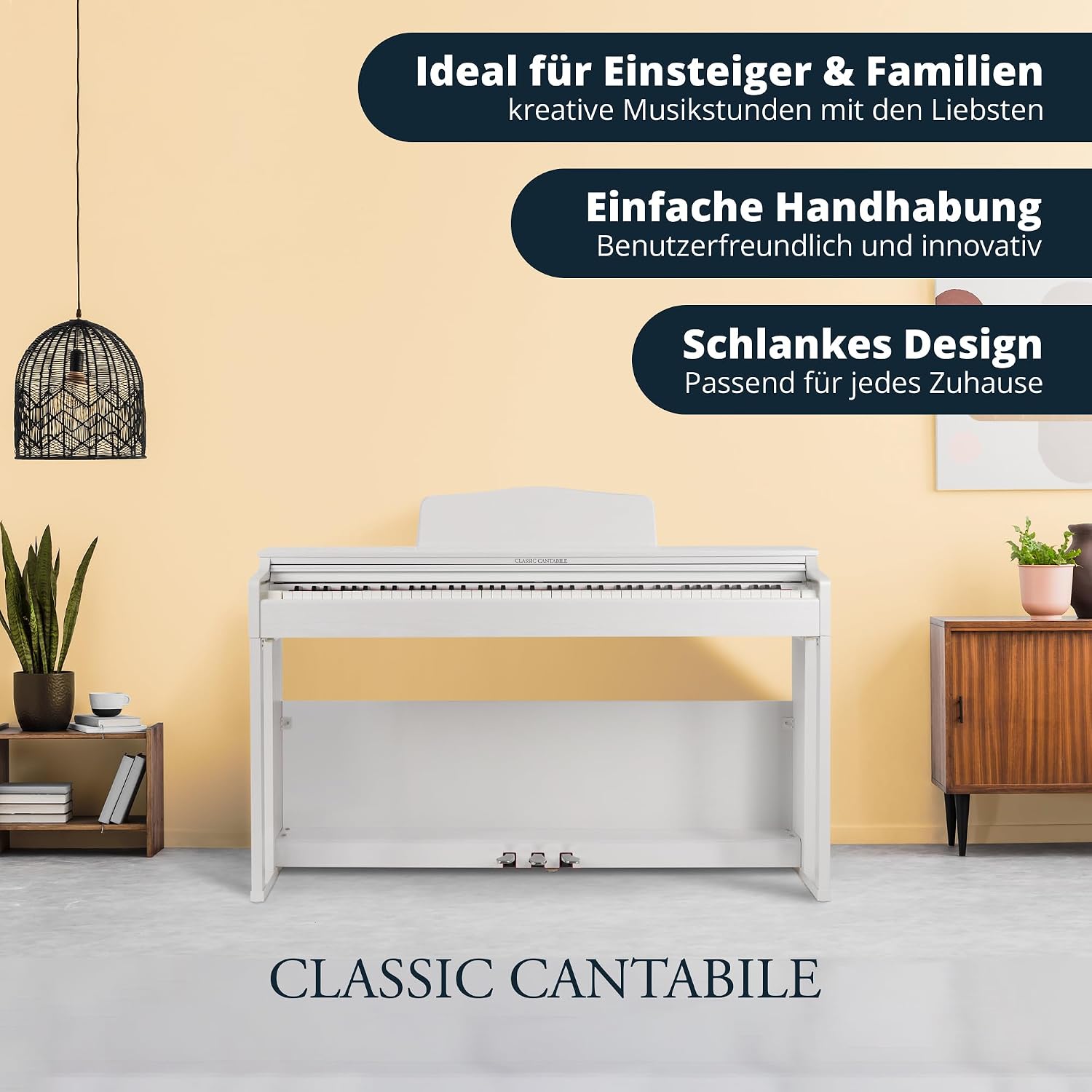

Figure 4.2: The Classic Cantabile DP-230 Digital Piano fully assembled.

5. ఆపరేటింగ్ సూచనలు

5.1 పవర్ ఆన్/ఆఫ్

నొక్కండి శక్తి పియానోను ఆన్ లేదా ఆఫ్ చేయడానికి కంట్రోల్ ప్యానెల్‌పై ఉన్న బటన్.

5.2 వాల్యూమ్ నియంత్రణ

ఉపయోగించి మొత్తం వాల్యూమ్‌ను సర్దుబాటు చేయండి మాస్టర్ వోల్ knob or buttons on the control panel.

5.3 వాయిస్ ఎంపిక

The DP-230 features 40 different voices. Refer to the detailed voice list in the separate user manual for specific instructions on how to select and combine voices.

5.4 Rhythm Selection

Access the 200 accompaniment rhythms. Use the రిథమ్ VOL control to adjust the rhythm volume independently.

5.5 మెట్రోనోమ్

Activate the built-in metronome to assist with timing. The tempo can be adjusted from 20 to 280 beats per minute (bpm).

Figure 5.1: Integrated metronome for practice and retractable keyboard cover for protection.

5.6 టచ్ ప్రతిస్పందన

The 88-key hammer-action keyboard includes touch response, allowing for dynamic expression based on how hard or soft you play the keys.

Figure 5.2: The 88 weighted keys with hammer mechanism provide a realistic playing feel.

5.7 Layer and Split Functions

The piano supports Layer and Split functions, allowing you to combine different sounds or divide the keyboard into two sections with separate voices.

6. కనెక్షన్లు

The DP-230 offers various connectivity options:

• Headphone Jacks (2x 6.3 mm stereo): Connect up to two pairs of headphones for silent practice.
• Audio IN/OUT (RCA): Connect external audio devices for playback or output the piano's sound to an ampజీవితకాలం లేదా రికార్డింగ్ పరికరం.
• మిడి ఇన్/అవుట్: Connect to other MIDI-compatible instruments or devices.
• USB నుండి హోస్ట్: Connect the piano to a computer for MIDI data transfer, allowing use with music software.

చిత్రం 6.1: పైగాview వెనుక ప్యానెల్ కనెక్షన్లు.

Figure 6.2: Two headphone jacks for silent practice and USB-to-Host for computer connectivity.

7 కీ ఫీచర్లు

• 88-Key Hammer Mechanism: Provides a realistic piano feel with graded hammer action.
• 128-Note Polyphony: Allows up to 128 notes to sound simultaneously, ensuring complex pieces are played without note drop-out.
• 40 Voices & 200 Rhythms: A versatile selection of instrument sounds and accompaniment styles.
• 3 Pedals: Sustain, Soft, and Sostenuto pedals for expressive control.
• ఇంటిగ్రేటెడ్ స్పీకర్లు: Two 15-watt speakers deliver clear and powerful sound.
• Retractable Keyboard Cover: Protects the keys from dust and damage when not in use.
• Adjustable Music Stand: Conveniently holds sheet music.

Figure 7.1: Features including 128-note polyphony, 40 voices, and 200 rhythms.

8. నిర్వహణ

8.1 శుభ్రపరచడం

Wipe the piano's surface with a soft, dry, lint-free cloth. For stubborn dirt, slightly dampen the cloth with water and a mild soap solution, then wipe dry immediately. Avoid using chemical cleaners, solvents, or abrasive materials, as these can damage the finish.

8.2 Keyboard Care

Regularly wipe the keys with a soft, dry cloth. If keys become sticky, use a slightly damp cloth with a very mild soap solution, then dry thoroughly. Do not allow liquids to seep between the keys.

8.3 నిల్వ

When not in use, ensure the keyboard cover is closed to protect the keys from dust. Store the piano in a stable environment, away from extreme temperatures and humidity fluctuations.

9. ట్రబుల్షూటింగ్

10. స్పెసిఫికేషన్లు

11. వారంటీ మరియు మద్దతు

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you encounter any issues not covered in this manual or require technical assistance, please contact Classic Cantabile customer support or your authorized dealer. Keep your proof of purchase for warranty claims.
