1. పరిచయం
This manual provides essential instructions for the safe installation, operation, and maintenance of your Wavemaster 7000 Replacement 110V Jet Pump. This pump is designed as an aftermarket replacement for Watkins Part # 36675, specifically for Hot Springs systems. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your pump.
2. భద్రతా సమాచారం
Always observe the following safety precautions to reduce the risk of injury, electric shock, fire, or property damage.
- విద్యుత్ ప్రమాదం: Ensure power is disconnected at the circuit breaker before attempting any installation, maintenance, or service.
- వాల్యూమ్tagఇ అనుకూలత: This pump operates on 110 వోల్ట్ మాత్రమే. Connecting to a 220 VOLT system will cause severe damage and void the warranty. Verify your power supply before installation.
- అర్హత కలిగిన సిబ్బంది: Installation and electrical connections should be performed by a qualified electrician or service technician in accordance with all local and national electrical codes.
- నీరు మరియు విద్యుత్: Never operate the pump if it or the surrounding area is wet. Avoid contact with electrical components when wet.
- సురక్షిత సంస్థాపన: Ensure the pump is securely mounted to prevent vibration and movement during operation.
- డ్రెయిన్ ప్లగ్: Always ensure the drain plug is properly installed and sealed before operating the pump.
3. ఉత్పత్తి ముగిసిందిview
The Wavemaster 7000 is a robust replacement jet pump designed for specific Hot Springs spa systems. It features reinforced plastic construction for durability and 2-inch inlet and outlet ports for efficient water flow.

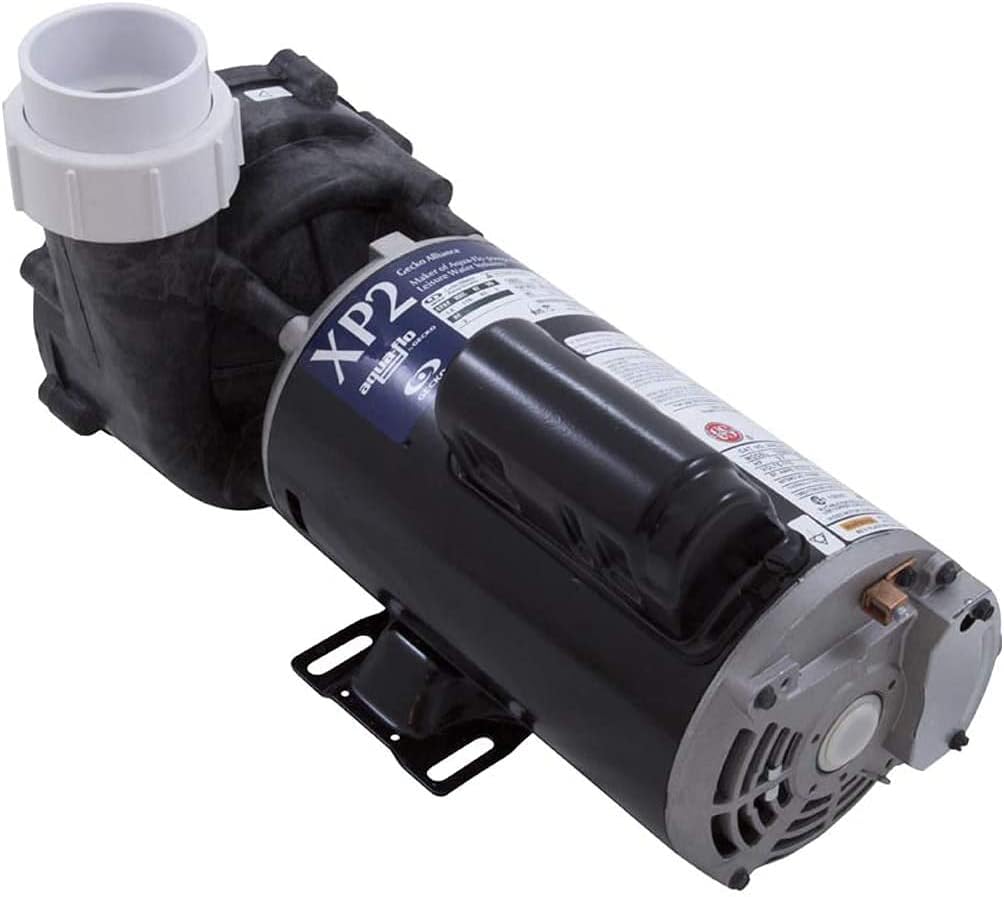

Figure 1: Wavemaster 7000 Jet Pump, showing the motor and wet end with 2-inch ports.
ముఖ్య లక్షణాలు ఉన్నాయి:
- Aftermarket replacement for Watkins Part # 36675.
- Operates on 110V power supply only.
- Reinforced plastic construction for the wet end.
- Standard 2-inch inlet and outlet ports.
4. సెటప్ మరియు ఇన్స్టాలేషన్
Follow these steps for proper installation of your replacement jet pump. Ensure all safety precautions are observed before proceeding.
- పవర్ డిస్కనెక్ట్ చేయండి: Turn off the main power to your hot tub or spa system at the circuit breaker. Verify that no power is reaching the pump.
- మురుగునీటి వ్యవస్థ: Drain the hot tub or spa completely to prevent water spillage during pump removal and installation.
- పాత పంపును తొలగించండి: Disconnect the plumbing unions from the old pump. Carefully disconnect the electrical wiring from the old pump, noting the connections for reference. Remove the old pump from its mounting.
- Transfer Drain Plug: Locate the drain plug on your old pump. It is crucial to transfer this drain plug to your new Wavemaster 7000 pump before installation. Ensure it is securely tightened to prevent leaks.
- Position New Pump: Place the new Wavemaster 7000 pump in the mounting location. This pump is designed for direct replacement of Watkins Part # 36675, requiring no modification to the mounting or plumbing.
- ప్లంబింగ్ను కనెక్ట్ చేయండి: Reconnect the plumbing unions to the 2-inch inlet and outlet ports of the new pump. Hand-tighten first, then use a wrench to ensure a snug, leak-free connection. Do not overtighten.
- విద్యుత్ వైరింగ్ను కనెక్ట్ చేయండి: This pump is 110V only. Connect the electrical wiring to the high-speed side of the pump. Refer to the wiring diagram on the pump motor label and your spa's electrical schematic for correct connections. Ensure all connections are secure and insulated.
చిత్రం 2: వెనుక view of the Wavemaster 7000 Jet Pump motor, showing typical electrical connection points. Consult the pump's label for specific wiring instructions.
ముఖ్యమైన: Double-check all electrical connections and ensure the pump is properly grounded. Confirm that the power supply is 110V before proceeding.
5. ఆపరేటింగ్ సూచనలు
After successful installation, follow these steps to operate your Wavemaster 7000 jet pump.
- Fill Spa: Refill your hot tub or spa with water to the recommended operating level.
- లీక్ల కోసం తనిఖీ చేయండి: Before restoring power, visually inspect all plumbing connections for any signs of leaks. Tighten connections as necessary.
- శక్తిని పునరుద్ధరించండి: Turn on the main power to your hot tub or spa system at the circuit breaker.
- పంప్ను ప్రైమ్ చేయండి: Most spa systems have an automatic priming cycle. If your system does not, or if the pump does not prime automatically, consult your spa's owner's manual for manual priming procedures. Listen for the pump to draw water and begin circulating.
- మానిటర్ ఆపరేషన్: Observe the pump during its initial operation. Check for unusual noises, vibrations, or leaks. Ensure water is flowing through the jets.
The pump will operate according to your spa's control system settings. Refer to your spa's owner's manual for specific instructions on adjusting jet functions and filtration cycles.
6. నిర్వహణ
క్రమం తప్పకుండా నిర్వహణ ఉత్తమ పనితీరును నిర్ధారిస్తుంది మరియు మీ పంపు యొక్క జీవితాన్ని పొడిగిస్తుంది.
- లీక్ల కోసం తనిఖీ చేయండి: Periodically check plumbing connections for leaks. Address any leaks promptly to prevent damage.
- క్లీన్ ఫిల్టర్: Ensure your spa's filter cartridge is regularly cleaned or replaced according to your spa manufacturer's recommendations. A clogged filter can strain the pump.
- శీతాకాలం: If you live in an area prone to freezing temperatures, properly winterize your spa and pump to prevent freeze damage. This typically involves draining the pump and plumbing lines. Consult your spa's owner's manual for detailed winterization procedures.
- మోటార్ వెంటిలేషన్: Ensure the pump motor has adequate ventilation. Do not obstruct the motor's cooling fins.
- విద్యుత్ కనెక్షన్లు: Annually, or as needed, inspect electrical connections for corrosion or looseness. Ensure they are clean and secure (with power disconnected).
7. ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with your jet pump. For complex problems, contact a qualified service technician.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| పంప్ ప్రారంభం కాదు | విద్యుత్ లేదు; బ్రేకర్ ట్రిప్ అయింది; వైరింగ్ సరిగా లేదు; మోటారు సమస్య | Check circuit breaker; verify electrical connections; consult a technician if motor is faulty. |
| పంపు నడుస్తుంది కానీ నీటి ప్రవాహం లేదు | Air lock (not primed); closed valves; clogged filter; low water level | Prime the pump; open all valves; clean/replace filter; fill spa to proper level. |
| Pump is noisy or vibrating | Air in system; loose mounting; debris in wet end; worn bearings | Prime the pump to remove air; secure mounting bolts; inspect wet end for debris (with power off); contact technician for bearing issues. |
| పంపు నుండి నీరు కారుతోంది | Loose plumbing connections; faulty seal/gasket; missing drain plug | Tighten plumbing unions; inspect and replace seals/gaskets if necessary; ensure drain plug is installed and tight. |
8. స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ | Wavemaster 7000 |
| భర్తీ కోసం | Watkins Part # 36675 |
| వాల్యూమ్tage | 110V (AC Adapter) |
| ఇన్లెట్ / అవుట్లెట్ పోర్ట్స్ | 2 అంగుళాలు |
| మెటీరియల్ | రీన్ఫోర్స్డ్ ప్లాస్టిక్ |
| ఉత్పత్తి కొలతలు (L x W x H) | 15.88" x 7.94" x 7.81" |
| వస్తువు బరువు | 34 పౌండ్లు |
| నిర్దిష్ట ఉపయోగాలు | Hot Spring Systems, High-Speed Water Flow Rates |
9. వారంటీ మరియు మద్దతు
For specific warranty information regarding your Wavemaster 7000 Replacement Jet Pump, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms and conditions may vary.
For technical support or assistance with installation and troubleshooting beyond the scope of this manual, please contact the manufacturer or your authorized service provider. Keep your purchase receipt and model information readily available when seeking support.
