Accuweight Digital Pocket Scale AW255 1000g Instruction Manual

పరిచయం

ధన్యవాదాలు, ధన్యవాదాలు.asing the Accuweight Digital Pocket Scale AW255 1000g. This high-precision electronic scale is designed for accurate measurements from 0.1g up to 1000g. Its compact size and versatile functions make it ideal for various applications, including weighing jewelry, cooking ingredients, medicines, powdered milk, coffee, pet food, and verifying postage fees. This manual provides essential information for proper setup, operation, and maintenance to ensure optimal performance and longevity of your scale.

Image: The Accuweight Digital Pocket Scale AW255 1000g demonstrating its use for various items, emphasizing its wide range of applications.

భద్రతా జాగ్రత్తలు

• The scale is a precision instrument. Do not drop it or subject it to strong impacts, as this may cause malfunction.
• Place items gently on the weighing pan. Dropping items forcefully can cause damage to the scale.
• The main unit is not washable. Do not expose the main unit to water or immerse it in water.
• When storing, do not place objects on the weighing pan or apply any load to it.
• When using the protective cover, ensure it is properly placed on the weighing pan.
• Always use the scale on a flat, stable surface. Using it on an unstable surface may result in inaccurate readings or risk of falling.
• Do not insert fingers into the gaps of the scale.
• Do not place the scale in high-temperature environments.
• Avoid leaving the scale near stoves or in direct sunlight.
• Do not place the scale in humid or magnetic environments.
• Do not heat, disassemble, modify, or use the scale underwater.

సెటప్

1. బ్యాటరీ ఇన్‌స్టాలేషన్

1. స్కేల్ దిగువన ఉన్న బ్యాటరీ కంపార్ట్‌మెంట్ కవర్‌ను తెరవండి.
2. సరైన ధ్రువణతను (+/-) నిర్ధారించుకోవడానికి రెండు AAA బ్యాటరీలను చొప్పించండి.
3. బ్యాటరీ కంపార్ట్‌మెంట్ కవర్‌ను సురక్షితంగా మూసివేయండి.

2. ప్రారంభ నియామకం

Place the scale on a firm, flat, and stable surface, free from vibrations or drafts, to ensure accurate measurements.

Image: The Accuweight Digital Pocket Scale AW255 1000g, illustrating its compact dimensions and the two AAA batteries required for operation.

ఆపరేటింగ్ సూచనలు

1. పవర్ ఆన్/ఆఫ్

నొక్కండి ఆన్/ఆఫ్ button to turn the scale on. The display will light up. To turn off the scale, press and hold the ఆన్/ఆఫ్ button. The scale features an automatic shut-off function, turning off after 90 seconds of inactivity to conserve battery life.

2. బరువు

With the scale powered on and displaying "0.0g", gently place the item to be weighed onto the center of the weighing pan. The weight will be displayed on the LCD screen.

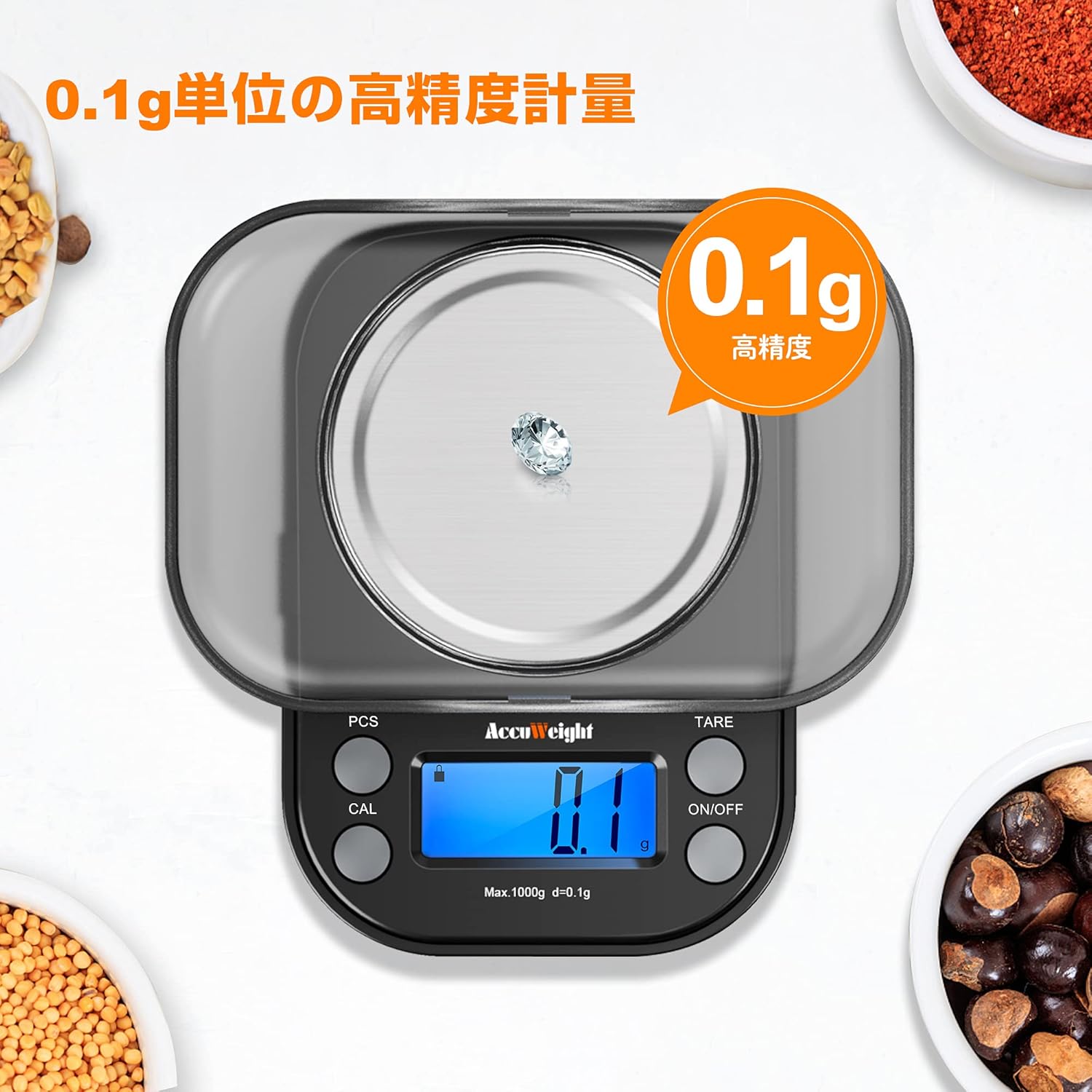

Image: The Accuweight Digital Pocket Scale AW255 1000g demonstrating its 0.1g precision by accurately weighing a small diamond.

3. టారే ఫంక్షన్

The tare function allows you to subtract the weight of a container, so you can weigh only the contents. Place an empty container on the weighing pan, then press the తారే button. The display will reset to "0.0g". You can now add items to the container, and only their weight will be measured.

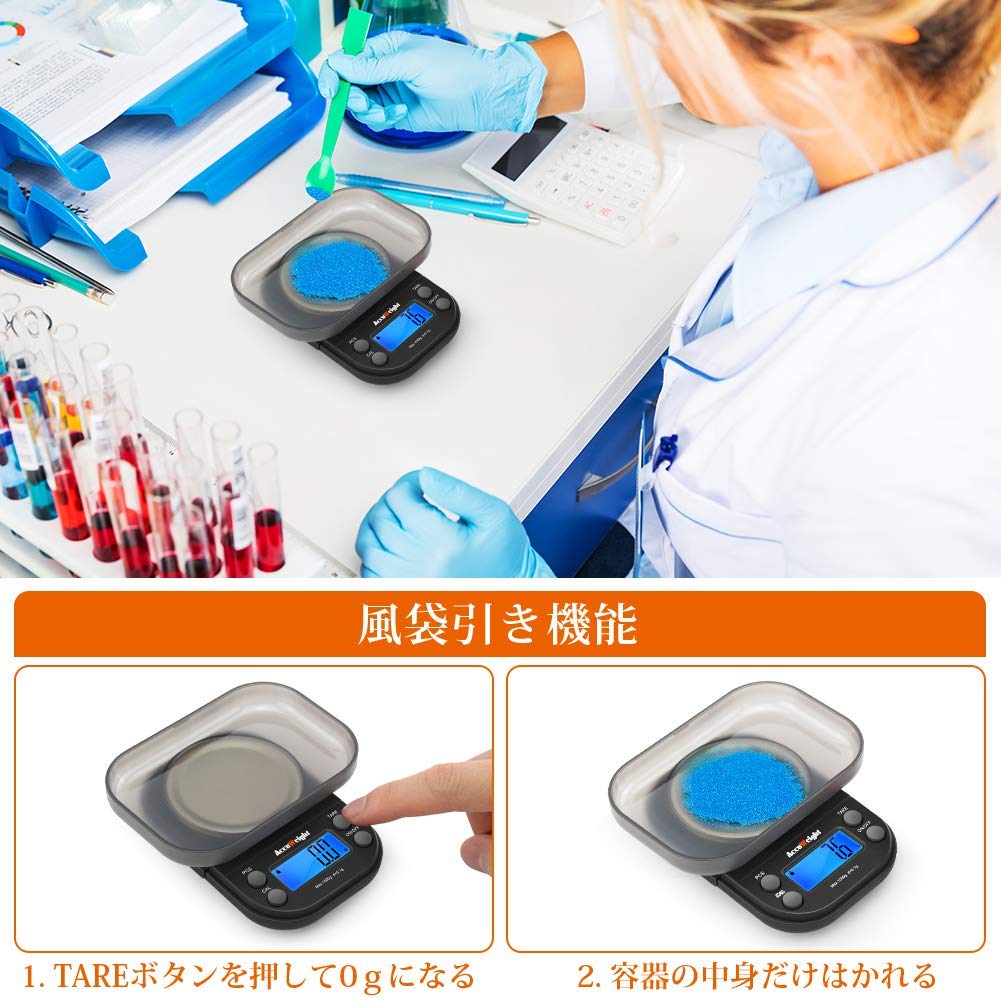

Image: The Accuweight Digital Pocket Scale AW255 1000g illustrating the tare function. A container is placed on the scale, and the display is reset to 0g before adding the substance to be weighed.

4. Counting Function (PCS)

1. షార్ట్ ప్రెస్ ది PCS button to enter counting mode. If using a container, perform the tare function first.
2. లాంగ్ ప్రెస్ ది PCS button. The "PCS" indicator will flash.
3. ఉపయోగించండి యూనిట్లు button to select a sample quantity (25, 50, 75, or 100 pieces).
4. Place the selected number of sample items on the weighing pan and press PCS మళ్ళీ నిర్ధారించడానికి.
5. You can now add more items, and the scale will display the total count.

Video: A demonstration of the counting function on a precision kitchen scale, showing how to set a sample quantity and count multiple items.

5. Calibration (CAL)

Calibration ensures the accuracy of your scale. It is recommended to calibrate regularly or if you suspect inaccurate readings.

1. నొక్కండి ఆన్/ఆఫ్ స్కేల్‌ని ఆన్ చేయడానికి బటన్.
2. నొక్కండి మరియు పట్టుకోండి CAL button until "CAL" appears on the display, then release. The display will then show "100.00".
3. Place a 100g calibration weight on the center of the weighing pan. The display will change to "200.00".
4. Place a 200g calibration weight on the weighing pan. The display will show "PASS" once calibration is complete. Remove the weights.

Image: The Accuweight Digital Pocket Scale AW255 1000g illustrating the four-step calibration procedure using standard weights.

6. యూనిట్ మార్పిడి

నొక్కండి యూనిట్లు button to cycle through the available weighing units (e.g., grams (g), ounces (oz), carats (ct), grains (gn), troy ounces (ozt), pennyweights (dwt)).

Video: A demonstration of a pocket digital scale, showcasing its compact design and various weighing applications for small items like jewelry and food.

నిర్వహణ

• శుభ్రపరచడం: స్కేల్‌ను మృదువైన, డితో తుడవండిamp వస్త్రం. రాపిడి క్లీనర్లను ఉపయోగించవద్దు లేదా స్కేల్‌ను నీటిలో ముంచవద్దు.
• నిల్వ: Store the scale in a clean, dry environment. Avoid extreme temperatures, humidity, and magnetic fields. Do not place heavy objects on the weighing pan during storage.
• బ్యాటరీ భర్తీ: Replace batteries when the low battery indicator appears on the display to ensure continued accurate operation.

ట్రబుల్షూటింగ్

స్పెసిఫికేషన్లు

• బ్రాండ్: ACCUWEIGHT
• మోడల్: AW255 1000g (Manufacturer Model Number: IC255 1000g-JP)
• సామర్థ్యం: 1000 grams (1kg)
• ఖచ్చితత్వం: 0.1 గ్రాములు
• బరువు యూనిట్లు: g, oz, ct, gn, tl, ozt, dwt (selectable via UNITS button)
• ప్రదర్శన: బ్యాక్‌లైట్‌తో LCD
• శక్తి మూలం: 2 x AAA బ్యాటరీలు (చేర్చబడినవి)
• ఆటో-ఆఫ్: 90 సెకన్ల ఇనాక్టివిటీ
• మెటీరియల్: ABS plastic, Stainless Steel weighing pan
• ఫీచర్లు: Tare function, Counting function (PCS), Calibration function, Low battery indicator, Overload indicator
• ఉత్పత్తి బరువు: సుమారు 140 గ్రాములు

వారంటీ సమాచారం

Accuweight products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact customer support.

మద్దతు

If you have any questions, concerns, or require assistance with your Accuweight Digital Pocket Scale AW255 1000g, please do not hesitate to contact our customer support team. We are committed to providing satisfactory service and solutions to our customers.

For support, please visit the Accuweight store on Amazon or refer to the contact information provided in your product packaging.
