1. పరిచయం
This manual provides essential information for the safe and effective installation, operation, and maintenance of your VEVOR 30x30 Inch Stainless Steel Pool Handrail (2-Pack). Please read these instructions thoroughly before installation and retain them for future reference.
2. భద్రతా సమాచారం
- బరువు సామర్థ్యం: Each handrail is designed to support a vertical weight of up to 220 lbs (100 kg) and a side pull load of 375 lbs (170 kg). Do not exceed these limits.
- Saltwater Pools: For saltwater pool environments, 316 stainless steel or other specialized materials are generally recommended. This 304 stainless steel product may have a potential risk of rusting in such conditions. Regular inspection and maintenance are crucial.
- సురక్షిత సంస్థాపన: Ensure the handrails are securely mounted to a stable surface according to the installation instructions to prevent accidents.
- పిల్లలు: Supervise children around pool areas, especially when using handrails.
3. ప్యాకేజీ విషయాలు
ఇన్స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి.
- VEVOR 30x30 Inch Stainless Steel Pool Handrail (2 units)
- Non-Slip Grip Covers (2 units)
- Installation Hardware (including expansion anchors, screws, drill bit, and open-end wrench)
4. స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| బ్రాండ్ | VEVOR |
| మోడల్ సంఖ్య | B-3030-D |
| మెటీరియల్ | 304 స్టెయిన్లెస్ స్టీల్ |
| రంగు | సిల్వర్ వైట్ |
| ఉత్పత్తి కొలతలు (L x W x H) | 30 x 30 x 3.94 అంగుళాలు (76.2 x 76.2 x 10 సెం.మీ.) |
| నికర బరువు (యూనిట్కు) | Approx. 6.95 lbs (3.15 kg) - Total 13.9 lbs for 2 units |
| లంబ బరువు సామర్థ్యం | 220 పౌండ్లు (100 కిలోలు) |
| Side Pull Load Bearing | 375 పౌండ్లు (170 కిలోలు) |
| ముగింపు రకం | ఆకృతి గల |
| శైలి | ఆధునిక |

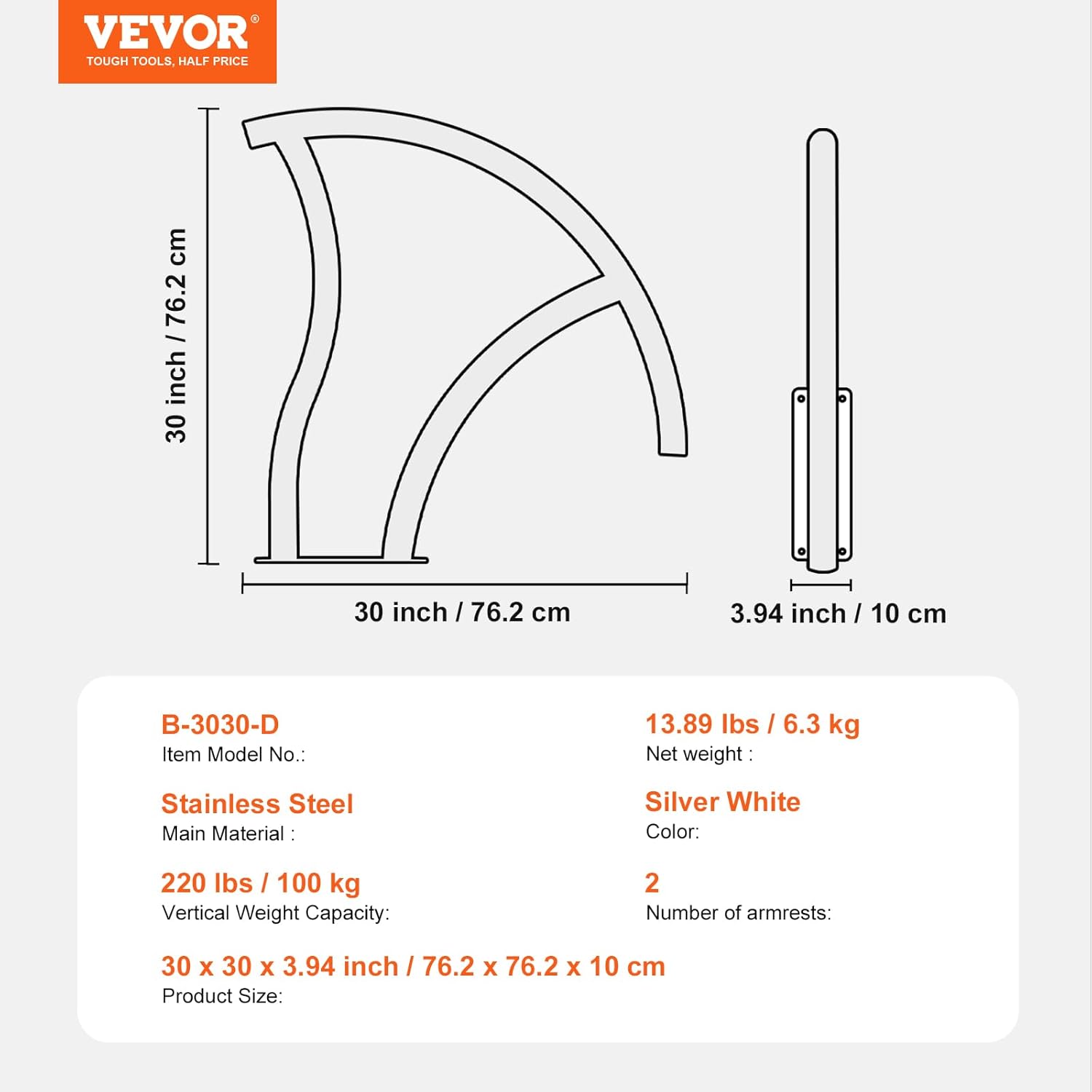

Figure 4.1: Detailed dimensions and specifications of the VEVOR Pool Handrail.
5. సెటప్ మరియు ఇన్స్టాలేషన్
The VEVOR Pool Handrail is designed for easy installation on various surfaces including concrete, wood, tile, or marble. Follow these steps for secure mounting.

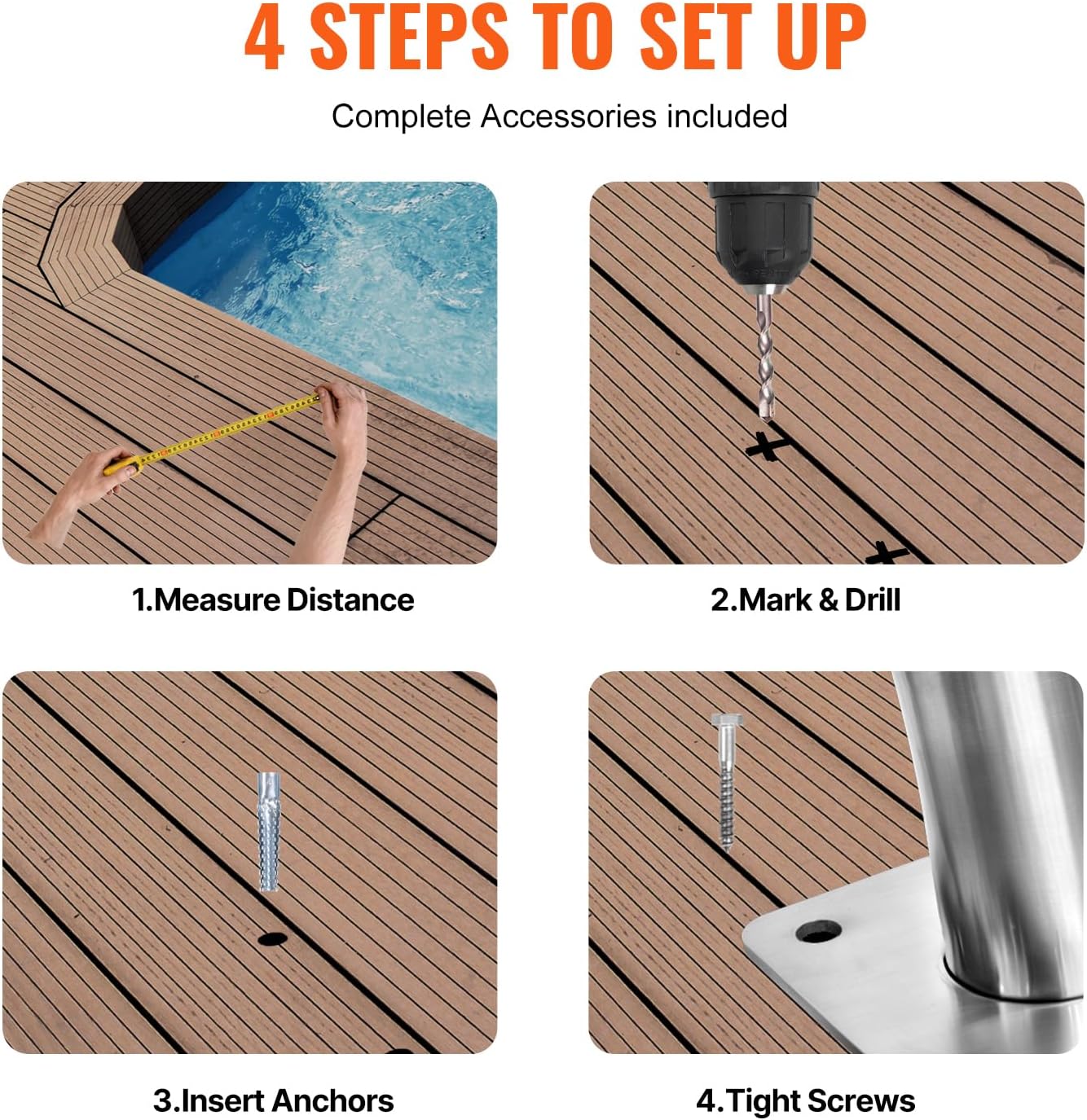

చిత్రం 5.1: పైగాview 4-దశల సంస్థాపనా ప్రక్రియలో.
ఇన్స్టాలేషన్ దశలు:
- కొలత మరియు స్థానం: Carefully determine the desired location for each handrail. Ensure adequate clearance and optimal positioning for safe entry and exit. Mark the exact drilling points for the base plate.
- డ్రిల్ రంధ్రాలు: Using the appropriate drill bit (included) and a suitable drill (a hammer drill is recommended for concrete surfaces), drill holes at the marked locations. Ensure the depth and diameter match the provided expansion anchors.
- యాంకర్లను చొప్పించండి: Place the expansion anchors into the drilled holes. Ensure they are fully seated.
- సురక్షితమైన హ్యాండ్రైల్: Position the handrail base plate over the anchors. Insert the screws and tighten them securely using the provided open-end wrench. Ensure the handrail is firm and does not wobble.
Figure 5.2: The handrail base plate is compatible with concrete, wood, and brick surfaces.
Grip Cover Installation:
The non-slip grip covers are designed for comfort and enhanced grip. Simply wrap the covers around the top section of the handrails and secure them using the integrated Velcro fasteners.
Figure 5.3: Demonstrating the non-slip grip cover and its Velcro attachment.
6. ఆపరేటింగ్ సూచనలు
The VEVOR Pool Handrails are designed to provide stable support for safe entry and exit from pools, spas, and decks.
- సురక్షిత ప్రవేశం/నిష్క్రమణ: Always use the handrails to steady yourself when entering or exiting the water. Maintain a firm grip on the handrail.
- నాన్-స్లిప్ గ్రిప్: The included grip covers enhance safety by providing a comfortable, non-slip surface, especially when wet or in varying temperatures.
Figure 6.1: The handrail provides stable support for safe pool access.
7. నిర్వహణ
Regular maintenance will ensure the longevity and continued safe operation of your VEVOR Pool Handrails.
- రొటీన్ క్లీనింగ్: Clean the stainless steel handrails regularly with a soft cloth and mild, non-abrasive detergent. Rinse thoroughly with fresh water and dry to prevent water spots.
- Rust Spot Removal: If rust spots appear, particularly in saltwater environments, gently clean them using a blue Scotch Brite pad. Avoid harsh abrasive cleaners or steel wool, which can damage the finish.
- Grip Cover Care: The grip covers can be removed for cleaning. Wash with mild soap and water, then air dry. Reattach securely.
- హార్డ్వేర్ తనిఖీ: Periodically inspect all mounting hardware to ensure screws and anchors remain tight. Re-tighten if any looseness is detected.
Figure 7.1: The 304 stainless steel construction requires proper care, especially in corrosive environments.
8. ట్రబుల్షూటింగ్
- Handrail Feels Loose:
సాధ్యమైన కారణం: Mounting hardware is not sufficiently tightened or has loosened over time.
పరిష్కారం: Re-check all screws and anchors. Tighten them securely. If the mounting surface is compromised, consider re-drilling in a new location or using stronger anchors. - తుప్పు మచ్చలు కనిపించడం:
సాధ్యమైన కారణం: Exposure to corrosive elements, especially in saltwater pools, or lack of regular cleaning.
పరిష్కారం: Clean rust spots immediately with a blue Scotch Brite pad. Increase cleaning frequency. For saltwater pools, be aware that 304 stainless steel may be susceptible to corrosion; consider alternative materials for future installations if rust is persistent. - Grip Covers Fading/Wearing Out:
సాధ్యమైన కారణం: Prolonged exposure to sunlight and pool chemicals.
పరిష్కారం: This is typically cosmetic and does not affect the functionality of the handrail. Replacement grip covers may be available from VEVOR customer support.
9. వారంటీ మరియు మద్దతు
For warranty information, technical support, or to inquire about replacement parts, please contact VEVOR customer service through their official website or the retailer where the product was purchased. Please have your model number (B-3030-D) and purchase details ready.
