పరిచయం
This instruction manual provides essential information for the installation and maintenance of the replacement belt set for the Denon DRW-660 Dual Cassette Deck. Please read this manual thoroughly before proceeding with any installation or maintenance to ensure proper function and longevity of your equipment.

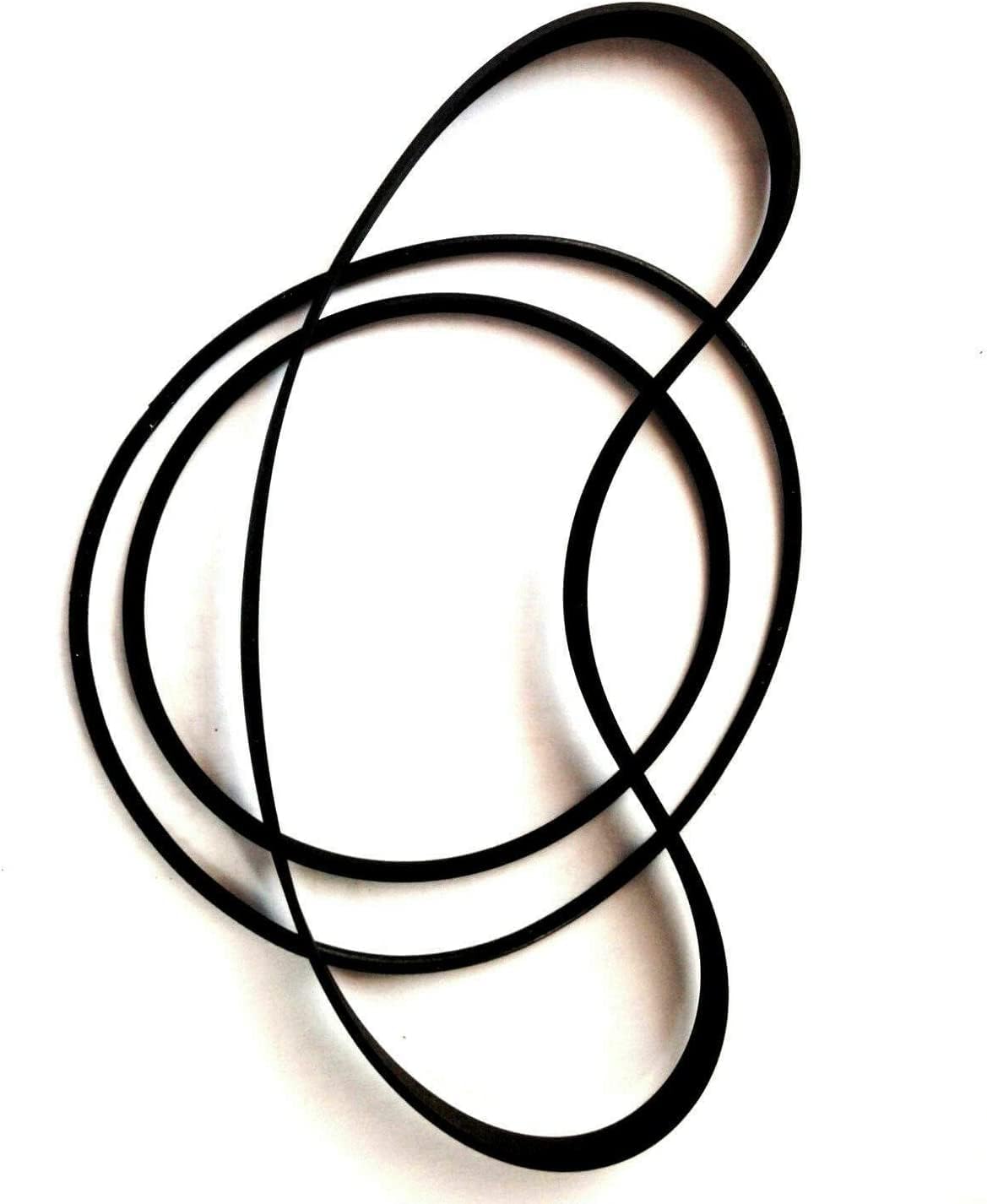

Image: A set of three replacement belts designed for the Denon DRW-660 Dual Cassette Deck. These belts are made of durable rubber and are crucial for the proper operation of the cassette mechanism.
ఉత్పత్తి ముగిసిందిview
This product is a set of three replacement belts specifically designed for the Denon DRW-660 Dual Cassette Deck. These belts are critical components for the tape transport mechanism, ensuring accurate playback and recording speeds.
ముఖ్య లక్షణాలు:
- అనుకూలత: Specifically engineered for the Denon DRW-660 model.
- మెటీరియల్: Constructed from durable rubber for long-lasting performance.
- ఫంక్షన్: Restores proper tape speed and reduces wow/flutter in the cassette deck.
సెటప్ మరియు ఇన్స్టాలేషన్
Replacing the belts in a cassette deck requires careful attention and some technical aptitude. It is recommended to consult the original service manual for the Denon DRW-660 for detailed disassembly instructions. If you are not comfortable performing this procedure, seek assistance from a qualified technician.
అవసరమైన సాధనాలు:
- చిన్న ఫిలిప్స్ హెడ్ స్క్రూడ్రైవర్
- Flathead screwdriver (for prying, if necessary)
- Tweezers or small pliers
- Isopropyl alcohol and cotton swabs (for cleaning old belt residue)
ఇన్స్టాలేషన్ దశలు:
- పవర్ ఆఫ్ మరియు డిస్కనెక్ట్: Ensure the Denon DRW-660 is completely powered off and unplugged from the electrical outlet before beginning any work.
- యంత్రాంగాన్ని యాక్సెస్ చేయండి: బయటి సి ని జాగ్రత్తగా తొలగించండిasing of the cassette deck to gain access to the tape transport mechanism. This typically involves removing screws from the back and sides.
- Locate Old Belts: Identify the old, worn-out belts. There are usually multiple belts for different functions (e.g., capstan, counter, reel drive).
- పాత బెల్టులను తొలగించండి: Gently remove the old belts. Note their routing paths before removal, as this will be crucial for installing the new ones. Clean any residue from the pulleys and flywheels using isopropyl alcohol and cotton swabs.
- కొత్త బెల్టులను ఇన్స్టాల్ చేయండి: Carefully route the new replacement belts onto the appropriate pulleys and flywheels. Ensure they are seated correctly and are not twisted. Refer to diagrams if available from the original service manual.
- మళ్లీ కలపండి: Once all new belts are installed and properly tensioned, reassemble the cassette deck casing.
- పరీక్ష కార్యాచరణ: Plug in the unit and test its functionality with a known good cassette tape. Check for proper playback, fast forward, and rewind operations.
Operating Considerations After Belt Replacement
After successful belt replacement, the Denon DRW-660 Dual Cassette Deck should operate as intended. Observe the following:
- టేప్ వేగం: Verify that playback and recording speeds are consistent and accurate.
- వావ్ మరియు ఫ్లట్టర్: Listen for any noticeable fluctuations in pitch (wow and flutter), which should be significantly reduced or eliminated with new belts.
- రవాణా విధులు: Ensure all tape transport functions (Play, Record, Fast Forward, Rewind, Stop, Pause) engage smoothly and reliably.
If any issues persist, re-check the belt routing and ensure all connections are secure.
నిర్వహణ
Proper maintenance extends the life of your cassette deck and its new belts.
- రెగ్యులర్ క్లీనింగ్: Periodically clean the tape heads, capstan, and pinch rollers with isopropyl alcohol to prevent tape residue buildup.
- దుమ్ము నివారణ: Keep the cassette deck covered when not in use to prevent dust accumulation, which can affect mechanical parts and belt longevity.
- బెల్ట్ తనిఖీ: While not easily accessible, if you notice performance degradation over time, the belts may need re-inspection or replacement again after many years of use.
ట్రబుల్షూటింగ్
This section addresses common issues that may arise after belt replacement.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Tape speed is incorrect or inconsistent. | Belts are twisted, improperly routed, or not seated correctly. | Re-open the unit and verify belt routing and tension. Ensure no twists. |
| Tape transport functions (FF/RW/Play) do not work. | Belt slipped off a pulley, or a connection was dislodged during reassembly. | Inspect belt placement. Check for loose wires or connectors. |
| Squealing or grinding noises. | Friction from unlubricated moving parts or improper belt alignment. | Ensure belts are not rubbing against other components. Lubricate moving parts if necessary (refer to service manual). |
స్పెసిఫికేషన్లు
This replacement belt set is manufactured to meet or exceed the original specifications for the Denon DRW-660 Dual Cassette Deck.
- ఉత్పత్తి రకం: Replacement Drive Belts
- పరిమాణం: 3 belts per set
- అనుకూల మోడల్: Denon DRW-660 Dual Cassette Deck
- మెటీరియల్: అధిక నాణ్యత రబ్బరు
- తయారీదారు: Nobrend (as per product specifications)
- UPC: 376282367552
వారంటీ మరియు మద్దతు
For information regarding warranty or product support, please refer to the seller from whom you purchased this replacement belt set. The seller for this product is M&A Srt. For general inquiries about Denon products, please visit the official Denon webసైట్.
విక్రేత సమాచారం: M&A Srt
