1. పరిచయం
This manual provides essential information for the installation, operation, and maintenance of your new Generic replacement wired LCD touch panel controller. This controller is designed for seamless compatibility with various Haier central air-conditioning indoor units, specifically models 0150401331, 0150401331C, 0150401331D, 0150401331H, and YR-E17. The unit is pre-programmed and requires no additional software setup, functioning upon correct physical installation and power connection.
2. ప్యాకేజీ విషయాలు
Please inspect the package contents carefully upon receipt. The standard package includes:
- 1 x Wired LCD Touch Panel Controller
- Mounting Screws (quantity may vary)
- Wiring Connectors (quantity may vary)
- Basic Installation Guide (as depicted below)
గమనిక: Batteries are not required for this wired controller. Additional tools for installation (e.g., screwdriver, wire stripper) are not included.

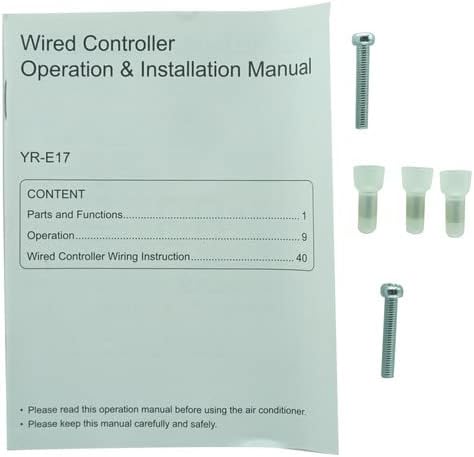

Image: Contents of the package, showing the manual cover, mounting screws, and wiring connectors.
3. సంస్థాపన
Installation of the wired controller requires basic electrical knowledge. If you are unsure, please consult a qualified technician. Ensure the main power to the air-conditioning unit is turned OFF before proceeding with installation.
3.1 కంట్రోలర్ను మౌంట్ చేయడం
- Select a suitable location on an interior wall, away from direct sunlight, heat sources, or drafts, and at a comfortable height for operation.
- Carefully open the controller casing. The back plate typically separates from the front panel. Refer to the "PRESS TO OPEN" indicator on the back of the unit.
- Route the necessary wiring from the air-conditioning unit to the chosen mounting location.
- Secure the back plate of the controller to the wall using the provided mounting screws. Ensure it is level and firmly attached.

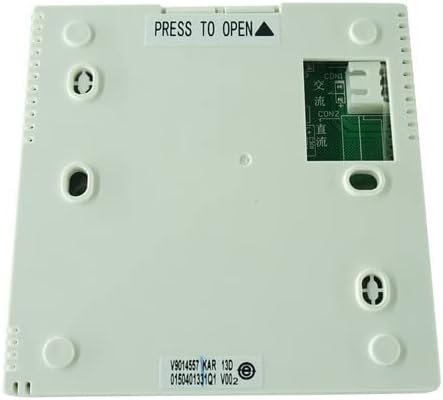

చిత్రం: వెనుక view of the controller, indicating mounting points and wiring connection terminals.
3.2 వైరింగ్ కనెక్షన్లు
Connect the wires from the air-conditioning indoor unit to the corresponding terminals on the controller's back plate. The terminals are typically labeled (e.g., CON1, CON2). Refer to the wiring diagram provided with your specific Haier air-conditioning unit for precise connections. Ensure all connections are secure and properly insulated.
- CON1: Connect to [Specific wire from AC unit, consult AC manual].
- CON2: Connect to [Specific wire from AC unit, consult AC manual].
జాగ్రత్త: Incorrect wiring can damage the controller or the air-conditioning unit. Always follow the wiring instructions specific to your Haier unit model.
3.3 Final Assembly and Power-On
- Once wiring is complete, carefully attach the front panel of the controller to the secured back plate. Ensure it clicks into place firmly.
- Restore power to the air-conditioning unit at the main circuit breaker.
- The controller's LCD screen should illuminate, indicating successful power-on.
4. ఆపరేషన్
This wired controller features an intuitive LCD touch panel for managing your air-conditioning unit. The exact display and button layout may vary slightly, but core functions remain consistent.
4.1 ప్రాథమిక విధులు
- పవర్ ఆన్/ఆఫ్: తాకండి శక్తి icon or button to turn the unit on or off.
- ఉష్ణోగ్రత సర్దుబాటు: ఉపయోగించండి పైకి / క్రిందికి బాణాలు or +/- symbols on the touch screen to set your desired temperature.
- మోడ్ ఎంపిక: తాకండి మోడ్ button to cycle through available operating modes: Cool, Heat (if applicable), Fan, Dry, Auto.
- ఫ్యాన్ వేగం: నొక్కండి ఫ్యాన్ వేగం button to adjust the fan intensity (e.g., Low, Medium, High, Auto).
- టైమర్ ఫంక్షన్: If available, touch the టైమర్ button to set a schedule for the unit to turn on or off automatically. Follow on-screen prompts for setting times.
4.2 LCD డిస్ప్లే సమాచారం
The LCD screen typically displays the following information:
- ప్రస్తుత గది ఉష్ణోగ్రత
- ఉష్ణోగ్రత సెట్ చేయండి
- ఆపరేటింగ్ మోడ్ చిహ్నం
- ఫ్యాన్ స్పీడ్ ఇండికేటర్
- Timer Status (if active)
- Error Codes (if any issues arise)
5. నిర్వహణ
Proper maintenance ensures the longevity and optimal performance of your controller.
- శుభ్రపరచడం: Gently wipe the LCD touch panel and controller surface with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the screen or internal components.
- ప్రభావాన్ని నివారించండి: Protect the controller from physical shocks or impacts, which can damage the screen or internal circuitry.
- పర్యావరణ పరిస్థితులు: Ensure the controller is not exposed to extreme temperatures, high humidity, or direct water spray.
6. ట్రబుల్షూటింగ్
మీ కంట్రోలర్తో మీకు సమస్యలు ఎదురైతే, ఈ క్రింది సాధారణ ట్రబుల్షూటింగ్ దశలను చూడండి:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| కంట్రోలర్ డిస్ప్లే ఖాళీగా ఉంది. | No power supply; loose wiring connection. | Check main power to AC unit. Verify wiring connections at CON1/CON2 are secure. |
| Air conditioner not responding to commands. | Incorrect wiring; communication error; AC unit issue. | Re-check wiring against AC unit manual. Power cycle the AC unit. If problem persists, consult a technician. |
| టచ్ స్క్రీన్ స్పందించడం లేదు లేదా సరికాదు. | Dirt/debris on screen; internal fault. | Clean the screen gently. Power cycle the AC unit. If issue continues, contact support. |
For persistent issues or error codes not listed, please refer to your Haier air-conditioning unit's specific manual or contact a qualified service professional.
7. స్పెసిఫికేషన్లు
- బ్రాండ్: సాధారణమైనది
- మోడల్ అనుకూలత: Haier 0150401331, 0150401331C, 0150401331D, 0150401331H, YR-E17
- నియంత్రిక రకం: Wired, LCD Touch Panel
- ప్రత్యేక ఫీచర్: అదనపు ప్రోగ్రామింగ్ అవసరం లేదు
- మద్దతు ఉన్న పరికరాల గరిష్ట సంఖ్య: 1 (Controls one indoor unit)
- తయారీదారు: హాట్స్మ్ట్బ్యాంగ్
- ASIN: B0BYN6VQJ5
- మొదటి తేదీ అందుబాటులో ఉంది: మార్చి 16, 2023
8. వారంటీ మరియు మద్దతు
Specific warranty information for this Generic replacement controller is not provided in the product details. For warranty claims, technical support, or further assistance, please contact the seller directly through your purchase platform. Keep your purchase receipt or order number handy for faster service.
