Sojag Roma 8 ft. x 8 ft. Gazebo Instruction Manual

ముఖ్యమైన భద్రతా సమాచారం

Please read this entire instruction manual carefully before assembly or operation and retain for future reference. Always follow the illustrated instructions for assembly and disassembly.

• Secure the gazebo to a stable foundation to prevent it from tipping over in windy conditions.
• Keep children and pets away from the gazebo during assembly and disassembly.
• Do not use the gazebo in windy or stormy conditions.
• Check screws, nuts, and bolts periodically (or every 6 months). Tighten if required.

ప్యాకేజీ విషయాలు

Ensure all parts are present before beginning assembly. Refer to the diagram below for identification.

Figure 1: Assembled Sojag Roma 8 ft. x 8 ft. Gazebo with curtains and netting tied back.

మూర్తి 2: వివరంగా view ప్యాకేజీలో చేర్చబడిన అన్ని భాగాలు.

సెటప్: అసెంబ్లీ సూచనలు

Assembly requires at least two adults. Follow these steps carefully for proper setup.

దశ 1: పోస్ట్ అసెంబ్లీ

Connect the Left Up Screen (#1) to the Left Down Screen (#2) and the Right Up Screen (#3) to the Right Down Screen (#4) to form the four main posts of the gazebo. Ensure the parts align correctly and secure them as shown in the diagram.

Figure 3: Assembling the vertical posts (Parts 1, 2, 3, 4).

Step 2: Beam Assembly

Attach the Left Beams (#5) and Right Beams (#6) to the top of the assembled posts. These beams will form the upper perimeter of the gazebo frame. Ensure all connections are secure.

Figure 4: Connecting horizontal beams (Parts 5, 6) to the posts.

Step 3: Top Tube Assembly

Assemble the Top Up Tubes (#7) and Top Down Tubes (#8) and connect them to the Roof Connector (#9). This forms the central roof structure. Then, attach this assembly to the main frame, ensuring all connections are firm. Finally, secure the Finials (#14) to the top of the posts for decorative and structural completion.

Figure 5: Assembling the roof tubes (Parts 7, 8) with the roof connector (Part 9) and attaching finials (Part 14).

Step 4: Canopy and Netting Assembly

Drape the Fabric Cover (#10) over the assembled roof frame. Ensure it is centered and evenly distributed. Secure the fabric cover to the frame using the provided hooks (#13) and any integrated fasteners. Next, attach the Netting (#11) around the perimeter of the gazebo, hanging it from the upper truss sections. Ensure the netting is properly aligned and can be zipped closed for full enclosure.

Figure 6: Attaching the fabric cover (Part 10) and netting (Part 11).

దశ 5: గెజిబోను భద్రపరచడం

Once the gazebo is fully assembled, use the Stake Kit (#12) to secure the base of each post to the ground. This is crucial for stability, especially in moderate wind conditions. For additional security, consider anchoring the gazebo to a deck or concrete slab if available.

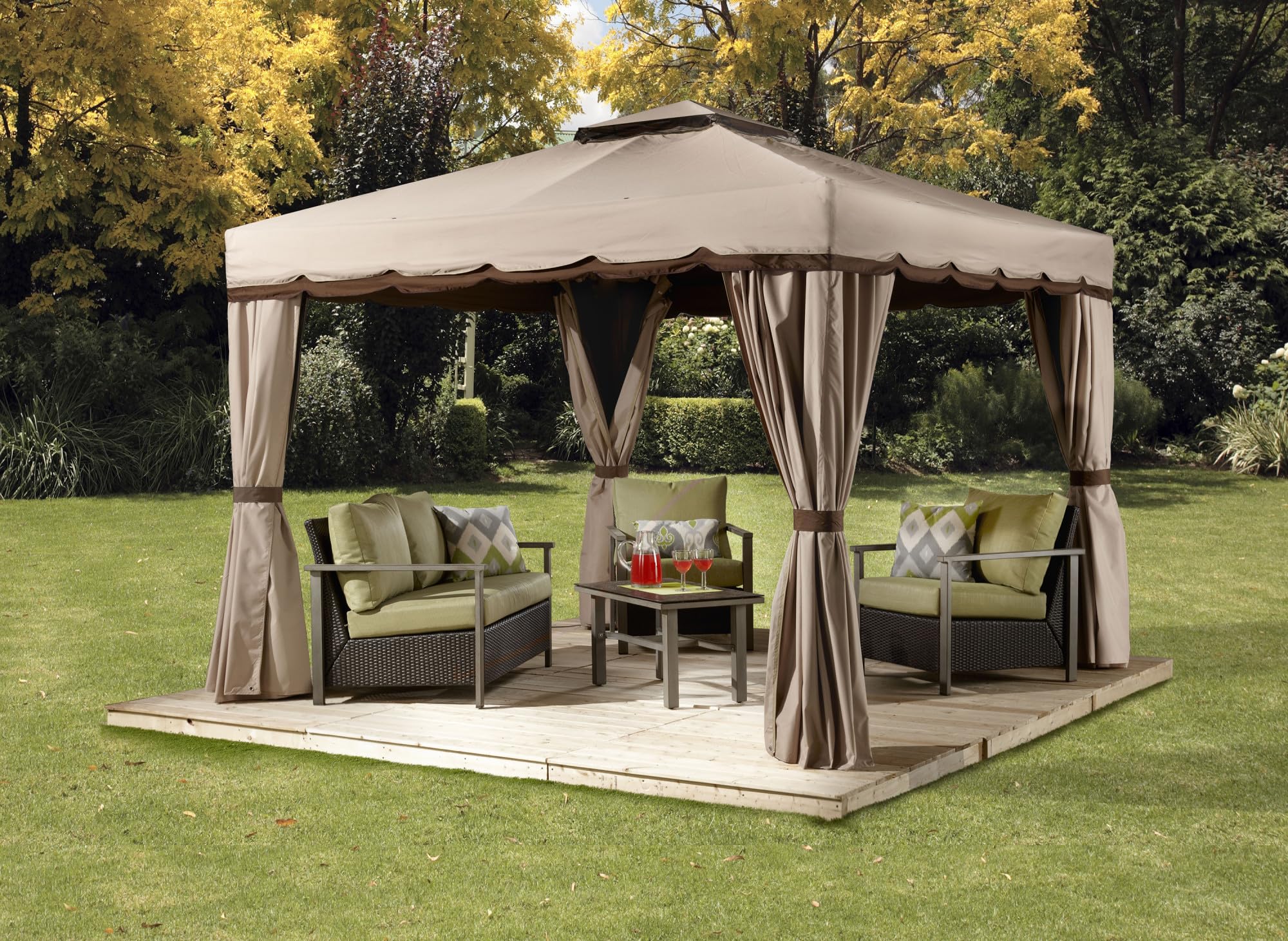

Figure 7: The fully assembled and secured Sojag Roma Gazebo.

అసెంబ్లీ వీడియో గైడ్

For a visual guide on setting up a similar gazebo, please refer to the video below. While the model may vary slightly, the general assembly principles apply.

ఆపరేటింగ్ సూచనలు

The Sojag Roma Gazebo is designed for versatile outdoor use, offering shade and protection from insects.

• Mosquito Netting: The gazebo is equipped with nylon mosquito net curtains. These can be zipped closed to provide full enclosure and protection from insects.
• కర్టెన్లు: The tasteful polyester curtains can be drawn for privacy or tied back to allow for an open-air feel.
• వెంటిలేషన్: The design allows for proper ventilation even when the netting is closed.

నిర్వహణ

క్రమం తప్పకుండా నిర్వహణ మీ గెజిబో యొక్క జీవితాన్ని మరియు రూపాన్ని పొడిగిస్తుంది.

• శుభ్రపరచడం: Clean the polyester roof and curtains with mild soap and water. Rinse thoroughly and allow to air dry completely before storage.
• ఫ్రేమ్ కేర్: The powder-coated aluminum frame is rustproof and requires minimal maintenance. Wipe down with a damp అవసరమైనంతవరకు వస్త్రం. రాపిడి క్లీనర్లను నివారించండి.
• ఫాస్టెనర్ తనిఖీలు: Periodically inspect all screws, nuts, and bolts. Tighten any loose fasteners to maintain structural integrity.
• శీతాకాలపు నిల్వ: In regions with heavy snow or strong winds, it is recommended to disassemble and store the gazebo indoors during the off-season to prevent damage.

ట్రబుల్షూటింగ్

If you encounter issues with your Sojag Roma Gazebo, refer to the following common solutions:

స్పెసిఫికేషన్లు

వారంటీ సమాచారం

This Sojag Roma Gazebo comes with a 1 సంవత్సరం పరిమిత తయారీదారు వారంటీ. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects under normal use and conditions.

కస్టమర్ మద్దతు

For further assistance, missing parts, or warranty inquiries, please contact Sojag customer support. Have your model number (500-9161618) and proof of purchase ready when contacting support.

మీరు సాధారణంగా తయారీదారు అధికారిక వెబ్‌సైట్‌లో సంప్రదింపు సమాచారాన్ని కనుగొనవచ్చు webసైట్ లేదా మీ రిటైలర్ ద్వారా.
