VEVOR Commercial Hand Sink Instruction Manual

1. పరిచయం

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your VEVOR Commercial Hand Sink. This 17x12.8 inch stainless steel sink with faucet and side splash is designed for various commercial and home applications, including restaurants, kitchens, bars, garages, and laundry rooms. Please read this manual thoroughly before use and retain it for future reference.

చిత్రం 1.1: ముగిసిందిview of the VEVOR Commercial Hand Sink.

2. సెటప్ మరియు ఇన్‌స్టాలేషన్

The VEVOR Commercial Hand Sink offers flexible installation options: wall-mounted or embedded. All necessary parts for installation are included in the package.

2.1 ప్యాకేజీ విషయాలు

• 1 x Sink
• 1 x Faucet
• 1 x Basket Strainer Drain
• 1 x వాల్ మౌంట్ బ్రాకెట్
• 1 x టూల్‌కిట్
• 1 x వినియోగదారు మాన్యువల్

2.2 ఇన్‌స్టాలేషన్ ఐచ్ఛికాలు

Choose between wall-mounted or embedded installation based on your space and preference. Ensure the mounting surface is sturdy enough to support the sink's weight when filled with water.

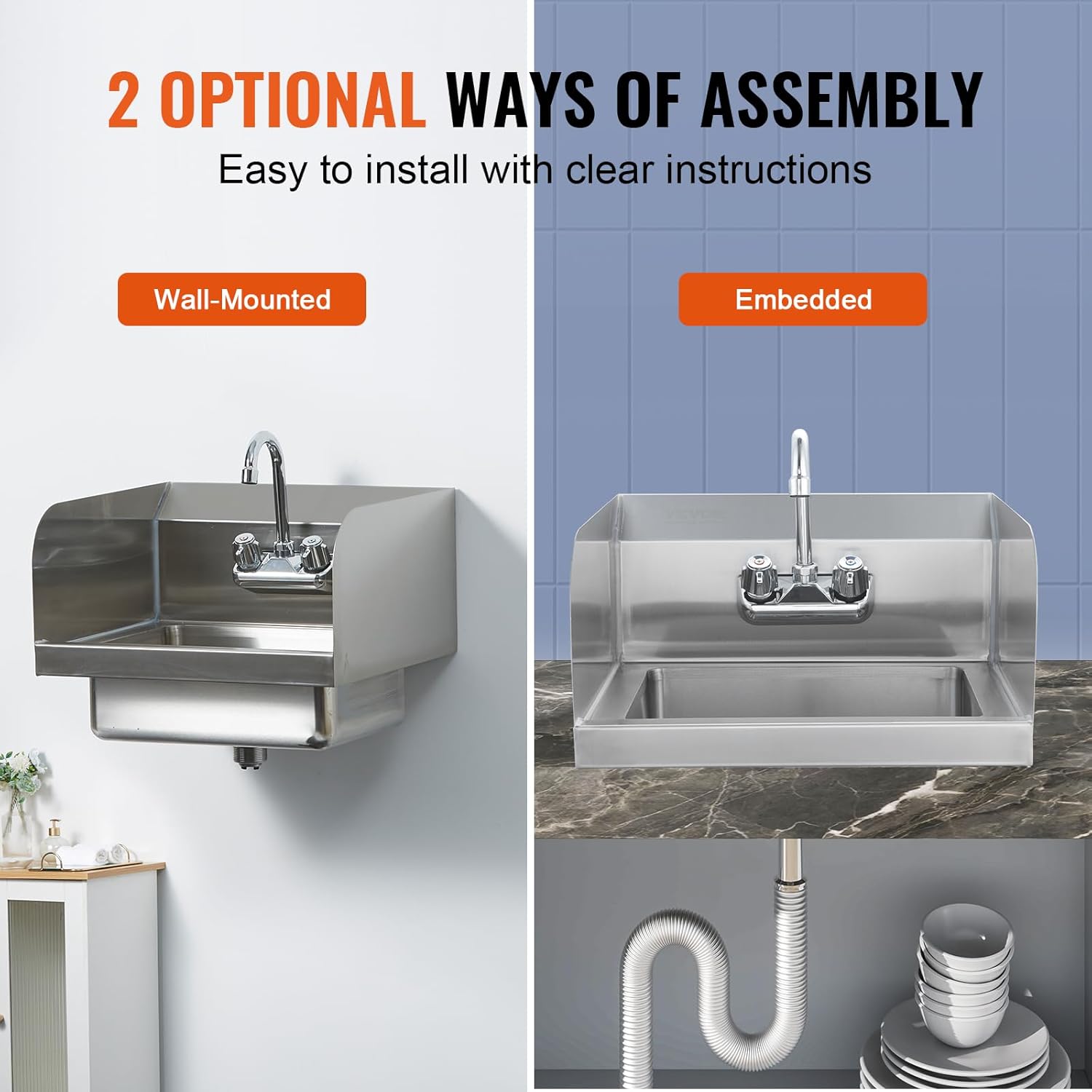

Image 2.1: Illustration of wall-mounted and embedded installation options.

2.3 Drainage System Assembly

Assemble the premium stainless steel basket strainer and drain components as shown in the diagram to ensure proper water flow and prevent clogs. Secure all connections to prevent leaks.

Image 2.2: Components of the fast drainage system.

2.4 Faucet Installation

Install the faucet, ensuring the hot and cold water inlets are correctly connected. The faucet features a ceramic valve core for leak prevention and a 360° rotatable design for flexible use.

Image 2.3: Faucet details highlighting the ceramic valve core and 360° rotation.

2.5 ఇన్‌స్టాలేషన్ వీడియో గైడ్

ఇన్‌స్టాలేషన్ ప్రక్రియపై దృశ్య మార్గదర్శిని కోసం, దయచేసి క్రింది వీడియోను చూడండి:

3. ఆపరేటింగ్ సూచనలు

The VEVOR Commercial Hand Sink is designed for ease of use in various settings.

3.1 సాధారణ ఉపయోగం

This utility sink is ideal for hand washing, tool cleaning, and washing produce. Its versatile design makes it suitable for commercial kitchens, laundry rooms, bars, garages, and home use.

చిత్రం 3.1: ఉదాamples of the sink's versatile applications.

3.2 Faucet Operation

Turn the hot and cold water handles to achieve the desired water temperature and flow. The 360° rotatable faucet allows for flexible access, making it convenient for various tasks.

3.3 Splashback Protection

The three high splashbacks are designed to protect your walls and cabinets from water splashes, helping to keep your workspace dry and clean during use.

4. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your stainless steel hand sink.

4.1 Cleaning the Sink

• Regularly clean the stainless steel surfaces with a mild detergent and a soft cloth.
• Avoid abrasive cleaners, steel wool, or harsh chemicals that can scratch or damage the polished finish.
• నీటి మరకలను నివారించడానికి శుభ్రమైన నీటితో బాగా కడిగి, మృదువైన గుడ్డతో ఆరబెట్టండి.

4.2 Drainage System Care

• Periodically remove and clean the basket strainer to prevent food particles and debris from accumulating and causing clogs.
• Check drain connections for any signs of leaks and tighten if necessary.

4.3 Faucet Maintenance

The ceramic valve core is designed for durability and leak prevention. If you notice any drips or leaks from the faucet, inspect the connections and the valve core for any issues. Contact customer support if the problem persists.

5. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your hand sink.

5.1 నీటి లీకులు

• సమస్య: Water leaking from faucet or drain connections.
• పరిష్కారం: Ensure all connections, including the faucet and drain assembly, are securely tightened. Check the ceramic valve core in the faucet for proper seating.

5.2 నెమ్మదిగా నీటి పారుదల

• సమస్య: Water drains slowly from the sink basin.
• పరిష్కారం: Remove the basket strainer and clean any accumulated food particles or debris. Ensure the drain pipe is clear of obstructions.

5.3 Water Pressure Issues

• సమస్య: Low water pressure from the faucet.
• పరిష్కారం: Check the water supply lines for any kinks or obstructions. Ensure the main water supply valve is fully open.

6. స్పెసిఫికేషన్లు

Detailed specifications for the VEVOR Commercial Hand Sink, Model DLSSC4.

Image 6.1: Key dimensions of the VEVOR Commercial Hand Sink.

7. వారంటీ మరియు మద్దతు

Specific warranty details are not provided within this manual. For warranty information, technical support, or replacement parts, please contact VEVOR customer service directly through their official website or the retailer where the product was purchased. Please have your model number (DLSSC4) and purchase date available when contacting support.
