SAE and Metric Master Socket Set User Manual

పరిచయం

Thank you for choosing the SAE and Metric Master Socket Set. This comprehensive 54-piece set is designed for a wide range of auto repair and general mechanical tasks, offering both SAE and Metric sizes for versatility. Crafted from premium heat-treated chrome moly steel, each component is built for durability and high-force torque applications. The set features clearly marked sockets for easy identification and comes in a robust carrying case for convenient storage and transport.

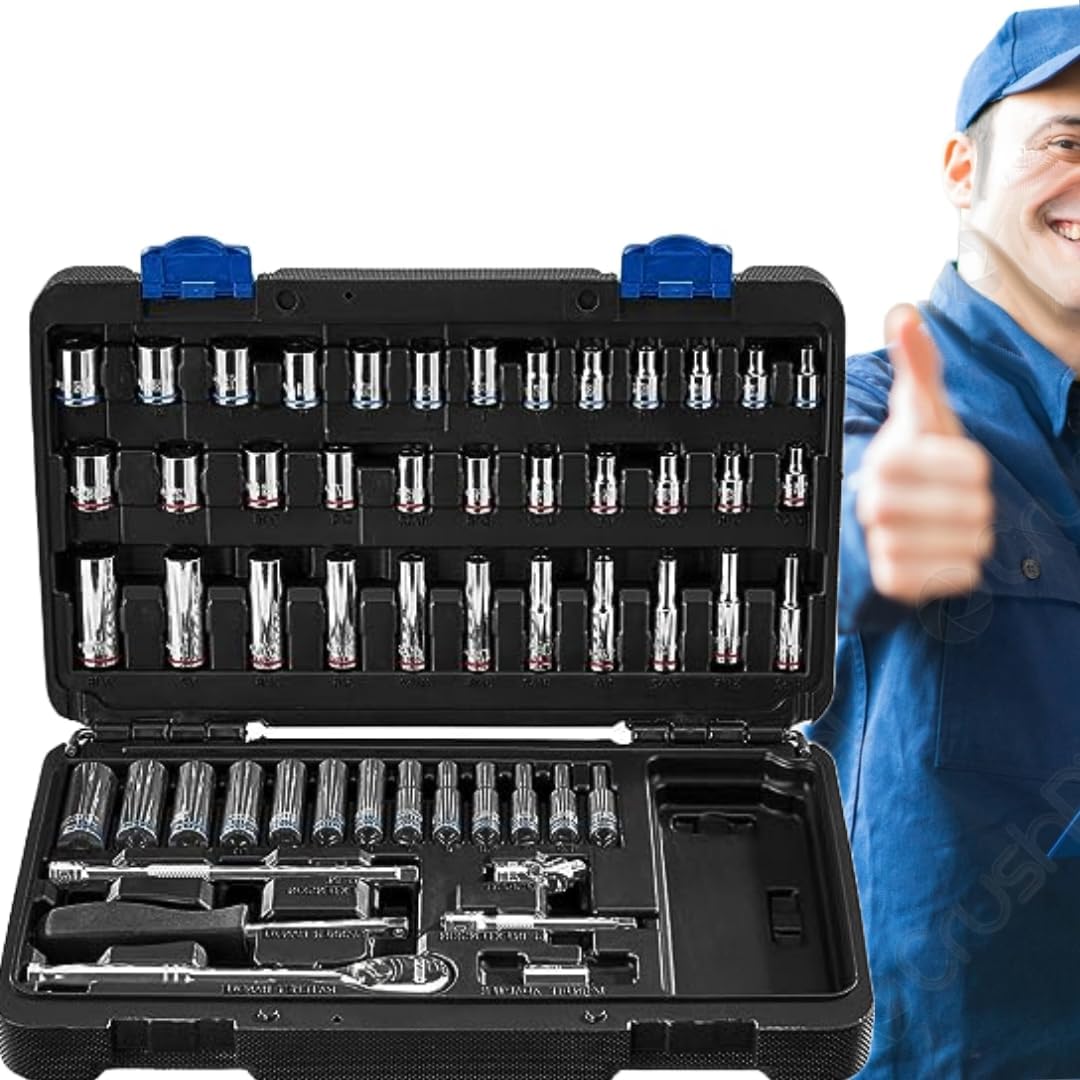

This image displays the 54-piece SAE and Metric Master Socket Set neatly organized within its durable black carrying case. The case is open, revealing various sizes of shallow and deep sockets, extension bars, a universal joint, hex bit holder, spinner handle, and an ultra-thin sealed head ratchet. The tools are made of chrome moly steel, designed for durability. A person in a blue uniform is visible in the background, giving a thumbs-up gesture, indicating satisfaction.

ఉత్పత్తి విషయాలు

Your SAE and Metric Master Socket Set includes the following components:

• 24 x 1/4 in. Drive Shallow Sockets (SAE: 5/32 in., 3/16 in., 7/32 in., 1/4 in., 9/32 in., 5/16 in., 11/32 in., 3/8 in., 7/16 in., 1/2 in., 9/16 in.; Metric: 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm)
• 24 x 1/4 in. Drive Deep Sockets (SAE: 5/32 in., 3/16 in., 7/32 in., 1/4 in., 9/32 in., 5/16 in., 11/32 in., 3/8 in., 7/16 in., 1/2 in., 9/16 in.; Metric: 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm)
• 1 x 1/4 in. Drive Universal Joint
• 2 x 1/4 in. Drive Extension Bars (3 in. and 6 in.)
• 1 x 1/4 in. Drive Hex Bit Holder (1/4 in.)
• 1 x 1/4 in. Drive Spinner Handle (6 in.)
• 1 x 1/2 in. Drive Ultra-Thin Sealed Head Ratchet (6-1/2 in.)
• 1 x హెవీ డ్యూటీ క్యారీయింగ్ కేస్

సెటప్

1. సెట్‌ను అన్‌ప్యాక్ చేయండి: దాని ప్యాకేజింగ్ నుండి సాకెట్ సెట్‌ను జాగ్రత్తగా తొలగించండి.
2. భాగాలను తనిఖీ చేయండి: Open the carrying case and inspect all sockets, ratchets, and accessories for any signs of damage or missing pieces. Ensure all components are securely seated in their designated slots.
3. మిమ్మల్ని మీరు పరిచయం చేసుకోండి: Take a moment to identify the different sizes of SAE and Metric sockets, as well as the various extension bars, universal joint, and ratchet. Note the laser etchings and durable stamps for quick size identification.

ఆపరేటింగ్ సూచనలు

1. సరైన సాకెట్ ఎంచుకోండి: Choose the appropriate SAE or Metric socket size that perfectly fits the fastener you are working with. A snug fit prevents stripping the fastener head.
2. Attach to Ratchet/Handle: Firmly push the selected socket onto the square drive of the ratchet, spinner handle, or extension bar until it clicks into place.
3. Using Extension Bars and Universal Joint: For fasteners in hard-to-reach areas, attach an extension bar between the socket and the ratchet. The universal joint allows for angled access to fasteners.
4. Tightening/Loosening:
   • For tightening, ensure the ratchet direction switch is set to clockwise.
   • For loosening, set the ratchet direction switch to counter-clockwise.
   Apply steady, controlled force. Avoid excessive force that could damage the tool or fastener.
5. Using the Spinner Handle: The spinner handle is ideal for quickly turning fasteners once they have been initially loosened or before final tightening, where high torque is not required.
6. Hex Bit Holder: Use the hex bit holder with standard 1/4 inch hex bits for various screw types.

నిర్వహణ

• శుభ్రపరచడం: After each use, wipe down all tools with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
• సరళత: Periodically apply a small amount of light machine oil to the moving parts of the ratchet mechanism to ensure smooth operation and prevent corrosion.
• నిల్వ: Always store the socket set in its original heavy-duty carrying case. This protects the tools from dust, moisture, and impact, and keeps them organized for future use. Store in a dry environment.
• తనిఖీ: Regularly inspect sockets and other components for signs of wear, cracks, or damage. Replace any damaged tools immediately to ensure safety and optimal performance.

ట్రబుల్షూటింగ్

• Socket Slipping/Stripping Fastener:
  • కారణం: Incorrect socket size, worn socket, or stripped fastener head.
  • పరిష్కారం: Ensure you are using the correct size socket for the fastener. If the socket is worn, replace it. If the fastener head is stripped, specialized tools may be required for removal.
• Ratchet Not Engaging/Slipping:
  • కారణం: Internal mechanism wear, dirt, or lack of lubrication.
  • పరిష్కారం: Clean the ratchet mechanism thoroughly and apply a small amount of light machine oil. If the issue persists, the ratchet may need repair or replacement.
• Tools Corroding:
  • కారణం: Exposure to moisture or improper storage.
  • పరిష్కారం: Always store tools in a dry environment within their carrying case. Clean and dry tools thoroughly after use, especially if exposed to liquids.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

వారంటీ సమాచారం

This product is guaranteed to be free from defects in materials and workmanship for 90 days from the date of purchase. Limitations apply. Please retain your proof of purchase for warranty claims.

కస్టమర్ మద్దతు

For any questions, concerns, or support needs regarding your SAE and Metric Master Socket Set, please contact the seller or manufacturer through the platform where the product was purchased. Provide your model number and a detailed description of the issue for efficient assistance.
