ATsafepro 1/2'' 20-230 Nm Torque Wrench Instruction Manual

పరిచయం

Thank you for choosing the ATsafepro 1/2'' 20-230 Nm Torque Wrench. This precision tool is designed for accurate torque application in various automotive, motorcycle, and general mechanical tasks. Please read this manual thoroughly before use to ensure safe and effective operation and to maximize the lifespan of your tool.

Image: The ATsafepro 1/2 inch 20-230 Nm Torque Wrench, showcasing its design and scale.

భద్రతా సమాచారం

A torque wrench is a measuring instrument, not a standard wrench. Improper use can lead to inaccurate torque readings, damage to fasteners, or personal injury. Always follow these safety guidelines:

• ఎల్లప్పుడూ భద్రతా గ్లాసెస్ వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలను ధరించండి.
• Ensure the fastener and tool are clean and free of debris.
• Do not use the torque wrench as a breaker bar or for loosening fasteners.
• Avoid dropping the tool, as this can affect its calibration.
• Store the wrench at its lowest torque setting when not in use to relieve spring tension and maintain accuracy.
• Do not exceed the maximum torque capacity of 230 Nm.

Image: Important precautions for torque wrench usage, including a table illustrating breakaway torque limits for various drive sizes (1/4, 3/8, 1/2, 3/4, 1 inch drives).

ప్యాకేజీ విషయాలు

Your ATsafepro 1/2'' Torque Wrench kit includes the following items:

• 1 x ATsafepro 1/2'' Torque Wrench (20-230 Nm)
• 1 x ఎక్స్‌టెన్షన్ రాడ్
• 1 x 1/2" to 3/8" Socket Adapter
• 1 x కాలిబ్రేషన్ సర్టిఫికేట్
• 1 x నిల్వ కేసు

Image: The ATsafepro torque wrench kit, displaying the main wrench, a 1/2 inch extension rod, and a 3/8 inch drive adapter.

ఉత్పత్తి లక్షణాలు

The ATsafepro 1/2'' Torque Wrench is engineered for precision and durability:

• అధిక ఖచ్చితత్వం: Provides ±3% accuracy, calibrated and tested according to IS and ASME standards. Each wrench includes an individual calibration certificate.
• మన్నికైన నిర్మాణం: Made from robust, corrosion-resistant chrome vanadium steel for a comfortable, non-slip grip and long-lasting performance.
• ద్వంద్వ స్కేల్: Features clear, laser-etched Nm and lbf.ft scales for easy reading and suitability across various applications.
• Audible Click Mechanism: Emits a distinct "click" sound and tactile feedback when the preset torque value is reached, preventing over-tightening.
• Bi-directional Use: The wrench head allows for both clockwise and counter-clockwise torque application.
• బహుముఖ అప్లికేషన్: Ideal for maintenance on cars, SUVs, trucks, motorcycles, as well as for equipment assembly and tire replacement.

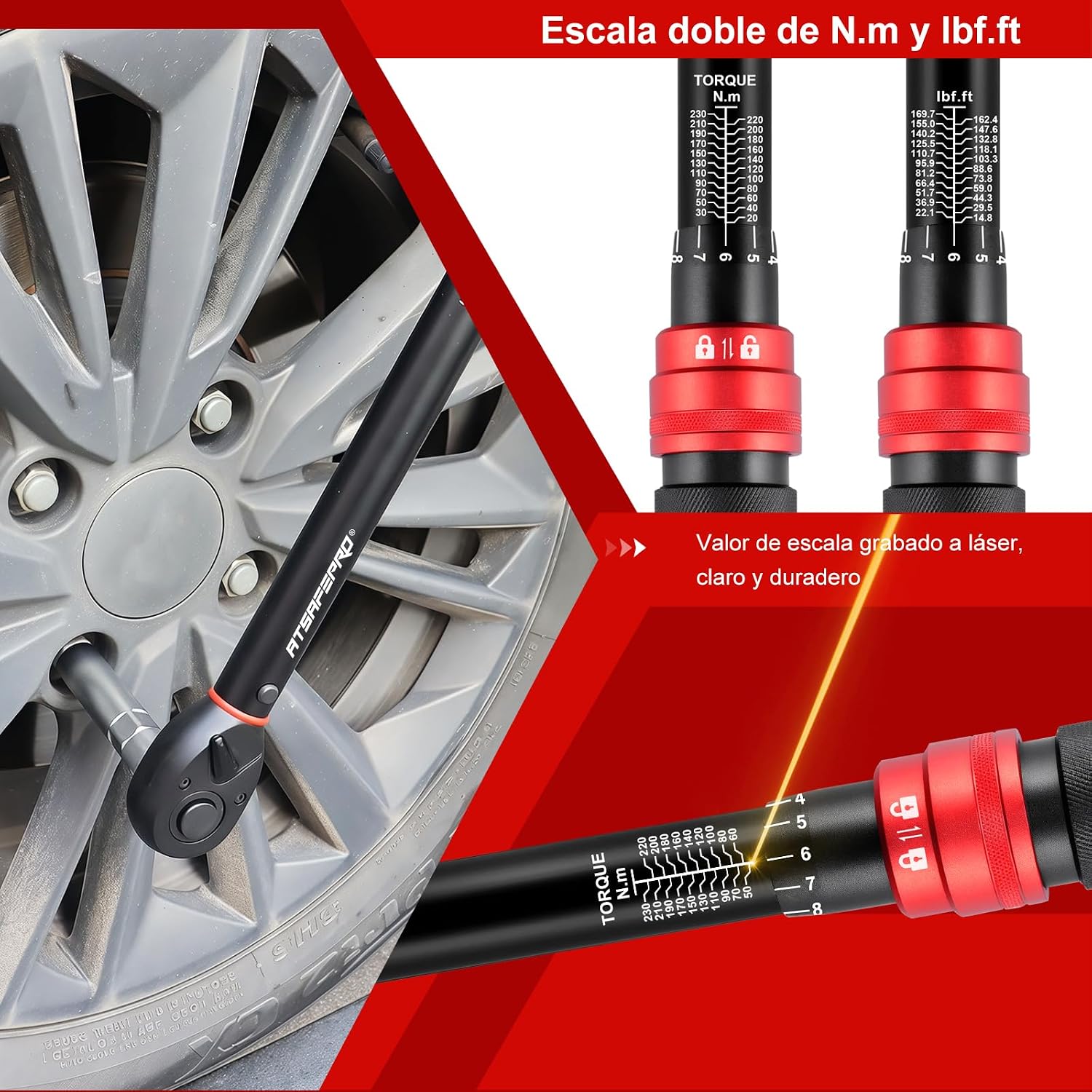

చిత్రం: వివరణాత్మక view of the torque wrench's handle, highlighting the dual Nm and lbf.ft scales, which are laser-engraved for clear and durable readings.

సెటప్

Before using your torque wrench, ensure it is properly set up for the desired torque value.

1. హ్యాండిల్‌ను అన్‌లాక్ చేయండి: Slide the locking ring down to unlock the handle. This allows the handle to rotate freely for torque adjustment.
2. Adjust Torque Value: Rotate the handle to align the desired torque value on the main scale with the zero mark on the micrometer scale. For fine adjustments, rotate the handle until the desired value on the micrometer scale aligns with the main scale line.
3. హ్యాండిల్‌ను లాక్ చేయండి: Slide the locking ring back up to secure the handle. The handle should no longer rotate.
4. ఉపకరణాలను అటాచ్ చేయండి: Insert the extension rod or 1/2" to 3/8" adapter into the square drive of the wrench, then attach the appropriate socket.

Image: A visual guide demonstrating the three steps to adjust the torque setting: unlock the handle, rotate to the desired value, and then lock the handle.

ఆపరేటింగ్ సూచనలు

Follow these steps for accurate torque application:

1. Prepare the Fastener: Ensure the fastener and mating surface are clean and free of rust or debris.
2. Attach Wrench: సాకెట్‌ను ఫాస్టెనర్‌పై గట్టిగా ఉంచండి.
3. బలాన్ని ప్రయోగించు: Apply smooth, steady force to the wrench handle. Do not use sudden jerks.
4. క్లిక్ కోసం వినండి: Continue applying force until you hear and feel a distinct "click." This indicates that the preset torque value has been reached.
5. Stop Applying Force: Immediately stop applying force once the click is detected to prevent over-tightening.
6. తదుపరి ఉపయోగం కోసం రీసెట్ చేయండి: For subsequent fasteners, release the pressure and allow the wrench to reset.

Image: A person demonstrating the use of the ATsafepro torque wrench to tighten a lug nut on a car wheel, ensuring proper torque application.

Video Demonstration: Torque Wrench Usage

Video: A demonstration showing the assembly of the torque wrench with an adapter and its application for tightening bolts on a bicycle frame, highlighting the click mechanism.

నిర్వహణ

Proper maintenance ensures the longevity and accuracy of your torque wrench:

• శుభ్రపరచడం: Wipe the wrench clean with a soft, dry cloth after each use. Do not use solvents or harsh chemicals.
• నిల్వ: Always store the torque wrench in its protective case. Before storing, adjust the torque setting to the lowest value (20 Nm) to relieve tension on the internal spring mechanism.
• క్రమాంకనం: Torque wrenches are precision instruments and should be recalibrated periodically, typically every 12 months or after 5000 uses, to maintain accuracy.
• లూబ్రికేషన్ మానుకోండి: Do not lubricate the internal mechanism of the torque wrench unless specified by the manufacturer.

ట్రబుల్షూటింగ్

If you encounter issues with your torque wrench, consider the following:

• నో క్లిక్ సౌండ్: Ensure the torque setting is correctly adjusted and locked. If the fastener is already tight, the wrench may not click. If the issue persists, the wrench may require recalibration or service.
• సరికాని రీడింగ్‌లు: Verify the torque setting is correct. Ensure the wrench is clean and has not been dropped or misused. Recalibration is recommended if accuracy is suspected.
• Stuck Adjustment Ring: Ensure the locking ring is fully disengaged before attempting to adjust the torque. Clean any debris from the adjustment mechanism.

స్పెసిఫికేషన్లు

చిత్రం: ఒక మాజీample of the ATsafepro calibration certificate, detailing inspection results and confirming the wrench's ±3% precision.

వారంటీ సమాచారం

ATsafepro products are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for any warranty claims. For specific warranty terms and conditions, refer to the documentation included with your product or contact ATsafepro customer support.

మద్దతు

For technical assistance, troubleshooting, or inquiries regarding your ATsafepro torque wrench, please contact our customer support team. Contact details can typically be found on our official webసైట్ లేదా ఉత్పత్తి ప్యాకేజింగ్‌లో.
