1. పరిచయం
The DollaTek 60W Constant Current Electronic Load Module is a versatile device designed for electronic load discharge and battery capacity testing. It operates in a single-mode constant current, allowing precise control over discharge parameters. This module is suitable for various applications requiring controlled power dissipation and accurate measurement of battery performance.
Key features include intelligent fan control, multiple protection functions, and clear digital displays for voltage, current, Ah, and Wh readings.
2. భద్రతా సమాచారం
- Always ensure proper ventilation during operation, as the module can generate heat.
- పేర్కొన్న గరిష్ట వాల్యూమ్ను మించకూడదుtage and current ratings to prevent damage to the module or connected devices.
- Verify correct polarity when connecting power supplies and loads to avoid reverse polarity damage.
- Keep the module away from moisture and conductive materials.
- Handle with care to avoid electrostatic discharge (ESD) damage to electronic components.
3. ఉత్పత్తి ముగిసిందిview
The DollaTek 60W Constant Current Electronic Load Module features a robust design with an industrial-grade cooler for stable long-term operation. Below is an illustration of the module's main components and their functions.
మూర్తి 1: DollaTek 60W Electronic Load Module with labeled components. This image shows the large radiator, intelligent temperature control fan, power entry terminal, 4-wire voltage interface, voltage display, Ah/Wh parameter indicators, setting bit indicator, adjustment knob, current display, and ON/OFF button.
ముఖ్య లక్షణాలు:
- Industrial Cooler: Equipped with a large-tooth industrial cooler, ensuring long-term operational stability even in dusty environments.
- Automatic Current Limiting: Maximum power of 60W with automatic current limiting. For example, at 6V, it can handle up to 9.99A, while at 20V, it limits to a maximum of 3.00A to stay within the 60W power envelope.
- High Battery Test Statistics: Capable of recording up to 999.9 Ah or 9999 Wh. The test automatically stops when either value is reached.
- సమగ్ర రక్షణ విధులు: Includes Over-Temperature Protection (otP), Instantaneous Over-Power Protection (oPP), Over-Voltage Protection (ouP), Reverse Polarity Protection, and Abnormal Power Supply Voltagఇ రక్షణ.
- Intelligent Fan Control: The cooling fan intelligently adjusts its speed based on the cooler's temperature, optimizing cooling efficiency and reducing noise.
4. సెటప్
Follow these steps to set up your DollaTek Electronic Load Module:
- విద్యుత్ సరఫరా కనెక్షన్: Connect a DC 12V power supply (0.5A or more) to the module's power entry terminal. Ensure the power supply uses a 5.5*2.1mm specification plug with inside positive and outside negative polarity.
- లోడ్ కనెక్షన్: Connect the device or battery to be tested to the load terminals (P+ and P-). Ensure correct polarity: positive to P+ and negative to P-.
- మౌంటు (ఐచ్ఛికం): The module has positioning holes at 60mm * 88mm with a 3.2mm diameter. It can be mounted using 5mm pad columns (copper for 60W version).
- ప్రారంభ పవర్ ఆన్: After connecting the power supply and load, press the ON/OFF button to power on the module.

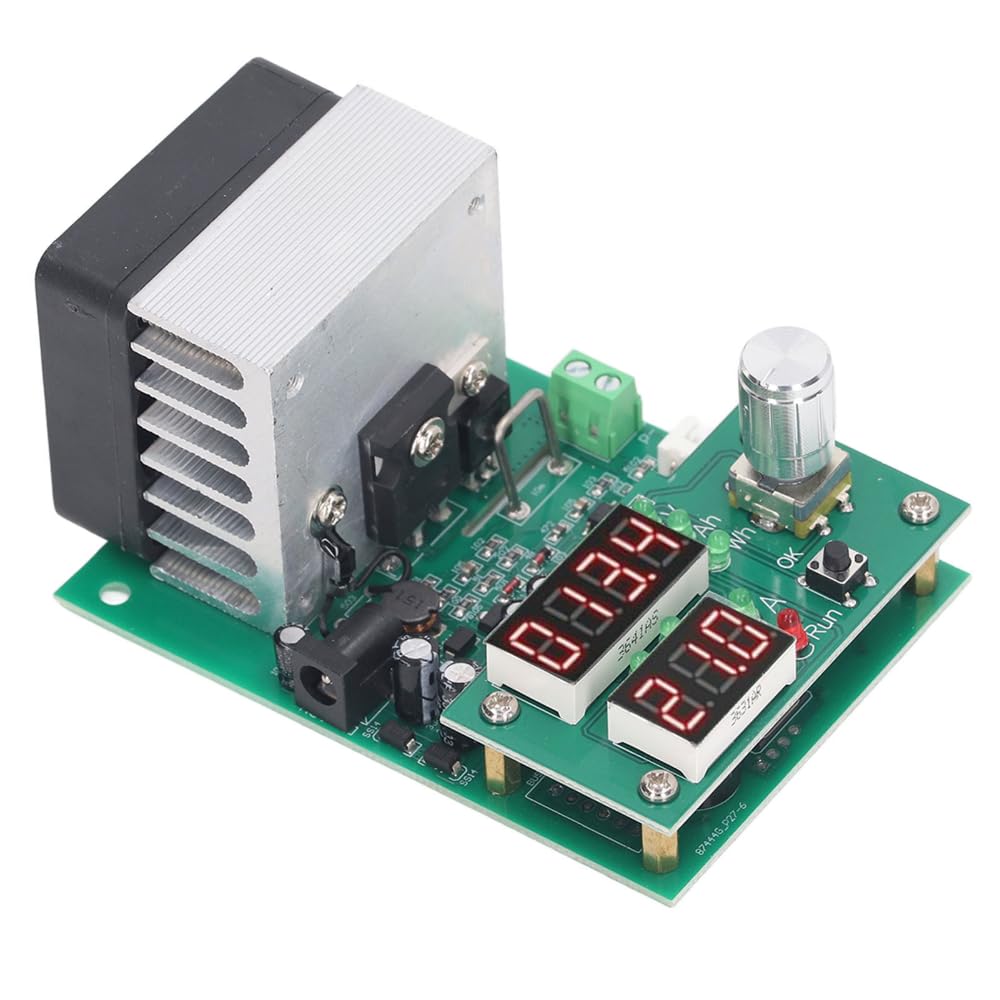

మూర్తి 2: టాప్ view of the DollaTek 60W Electronic Load Module, showing the digital displays and control knob.
5. ఆపరేటింగ్ సూచనలు
5.1 ప్రాథమిక ఆపరేషన్
- పవర్ ఆన్/ఆఫ్: Press the ON/OFF button to turn the module on or off.
- Entering Settings Menu: Long press the ON/OFF button to enter the function setting menu.
- సర్దుబాటు పారామితులు: Use the adjustment knob (pushable) to navigate through settings and change values. Press the knob to confirm selections.
5.2 Setting Discharge Parameters
The module allows setting the discharge current and termination voltage. The display will show 'V' for voltage, 'A' for current, 'Ah' for Amp-hours, and 'Wh' for Watt-hours.
- డిశ్చార్జ్ కరెంట్: Adjustable from 0.20 A to 9.99 A, with steps of 0.1 A or 0.01 A.
- ముగింపు వాల్యూమ్tage: Adjustable from 1.0 V to 25.0 V, in increments of 1 V or 0.1 V. This is the voltage at which the discharge test will stop.
మూర్తి 3: Examples of display settings, including entering the function setting menu and buzzer on/off options.
5.3 Starting and Stopping a Test
Once parameters are set, initiate the test. The module will discharge the connected battery or device at the set constant current until the termination voltage is reached, or the maximum Ah/Wh value is recorded.
- The test automatically stops when the set termination voltage is reached or when the statistical value (999.9 Ah or 9999 Wh) is met.
- The module provides real-time readings of voltage, current, and accumulated Ah/Wh during the test.
5.4 బజర్ సెట్టింగ్లు
The module includes a buzzer to signal events, such as reaching the termination voltage. You can enable or disable the buzzer through the settings menu.
- Long press the ON/OFF button to enter the settings menu.
- Navigate to the buzzer setting option (refer to Figure 3 for visual guidance).
- Use the adjustment knob to toggle the buzzer ON or OFF.
6. నిర్వహణ
- శుభ్రపరచడం: Use a soft, dry cloth to clean the module. Do not use liquids or abrasive cleaners.
- నిల్వ: మాడ్యూల్ను ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.
- తనిఖీ: Periodically check for any loose connections or visible damage to the components.
7. ట్రబుల్షూటింగ్
ఈ విభాగం సాధారణ సమస్యలను మరియు వాటి సంభావ్య పరిష్కారాలను చర్చిస్తుంది.
| Issue/Error Code | వివరణ | పరిష్కారం |
|---|---|---|
| otP | Over-Temperature Protection activated. | Ensure adequate ventilation. Reduce the load or allow the module to cool down. Check if the fan is operating correctly. |
| oPP | Instantaneous Over-Power Protection activated. | The power drawn exceeds the 60W limit. Reduce the discharge current or increase the termination voltage to stay within the power limits. |
| ouP | ఓవర్-వాల్యూమ్tage Protection activated. | ఇన్పుట్ వాల్యూమ్tage is too high. Ensure the connected power source or battery voltage is within the module's operating range (1-30V). |
| రివర్స్ ధ్రువణత | Module does not power on or shows error. | Check the connections to the load and power supply. Ensure positive (+) and negative (-) terminals are connected correctly. |
| Abnormal Power Supply Voltage | Module does not power on or behaves erratically. | Verify that the input power supply is providing a stable 12V and at least 0.5A. |
| ఫ్యాన్ పనిచేయడం లేదు | Cooling fan is not spinning. | The fan is intelligently controlled and only activates when the cooler temperature rises. If the module is hot and the fan is still not spinning, check for obstructions or fan malfunction. |
8. స్పెసిఫికేషన్లు
Technical specifications for the DollaTek 60W Constant Current Electronic Load Module:

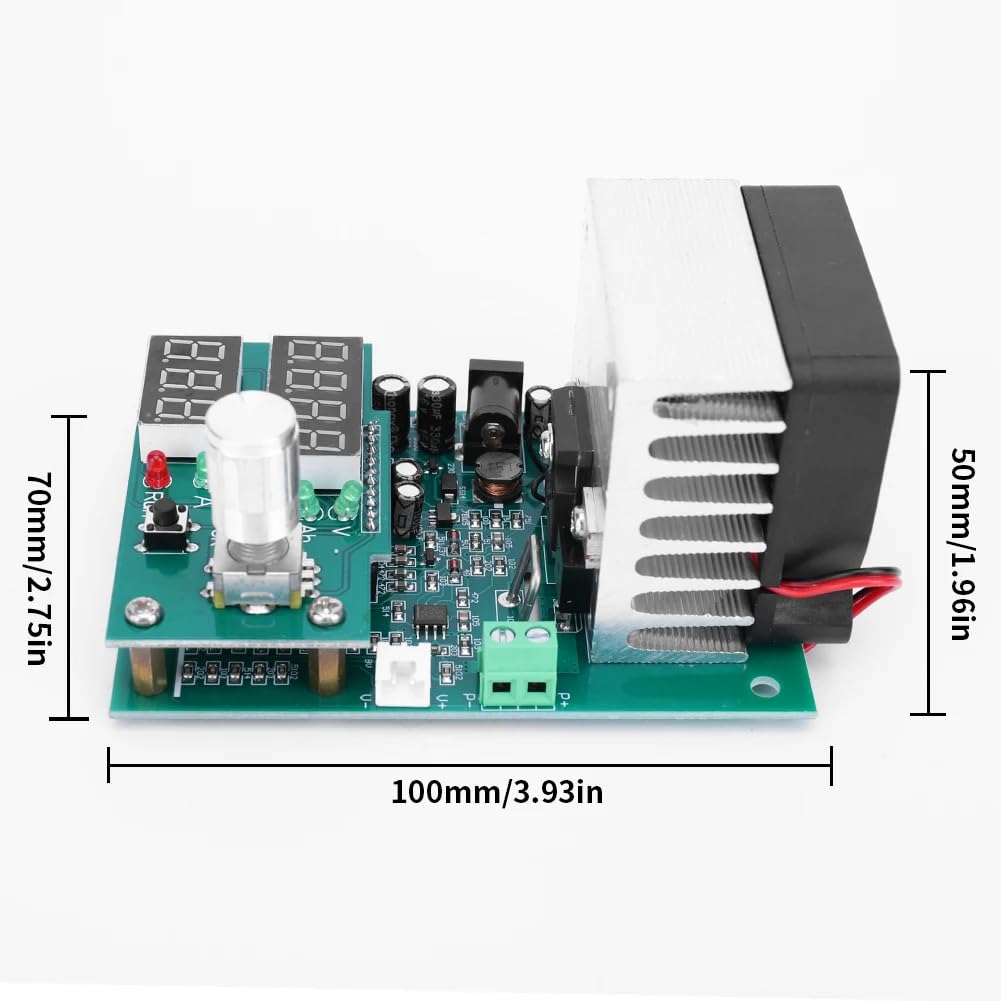

మూర్తి 4: Dimensions of the DollaTek 60W Electronic Load Module (approx. 100mm x 70mm x 50mm).
| పరామితి | విలువ |
|---|---|
| ఆపరేటింగ్ మోడ్ | Single-mode Constant Current |
| డిశ్చార్జ్ కరెంట్ పరిధి | 0.20 - 9.99 A (0.1 A or 0.01 A step) |
| Max Discharge Current Error | 0.7% @ 0.01 ఎ |
| Max Capacity Test Error | 0.5 A: 2.5%, 2 A: 1.5%, 5 A and above: 1.2% |
| ముగింపు వాల్యూమ్tagఇ పరిధి | 1.0 - 25.0 V (1 V or 0.1 V increments) |
| డిశ్చార్జ్ వాల్యూమ్tagఇ పరిధి | 1 - 30 V (Note: 9.99 A requires measured voltagఇ > 1.3 V) |
| మాక్స్ వాల్యూమ్tage Measurement Error | 0.8% +-0.02 V |
| గరిష్ట శక్తి | 60 W (automatically limits current) |
| Max Battery Test Statistics | 999.9 Ah or 9999 Wh (test stops when either reached) |
| Positioning Hole Location | 60mm * 88mm, Hole Diameter 3.2mm |
| మౌంటు | 5mm Pad Column (60W: copper column) |
| బరువు | 180 g (60W version) |
| విద్యుత్ సరఫరాను లోడ్ చేయండి | DC 12 V, 0.5 A or more |
| ఫ్యాన్ నియంత్రణ | Intelligent, temperature-based speed control |
| రక్షణ విధులు | otP, oPP, ouP, Reverse Polarity, Abnormal Power Supply Voltage |
| Dimensions (60W) | 112 x 70 x 57 mm (including fan projection approx. 12mm) |
| వర్తింపు | CE, EMC, RoHS |
9. వారంటీ మరియు మద్దతు
9.1 వారంటీ సమాచారం
This DollaTek product is covered by a standard limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for warranty claims.
9.2 కస్టమర్ మద్దతు
For technical assistance, troubleshooting, or any inquiries regarding your DollaTek 60W Constant Current Electronic Load Module, please contact the seller or manufacturer directly. Provide your model number (DollaTek-60W-ECTD) and a detailed description of your issue for efficient support.
