Smiling Shark TD-0123 LED Headlight User Manual

ఉత్పత్తి ముగిసిందిview

The Smiling Shark TD-0123 is a versatile LED headlight designed for various outdoor and work activities. It features powerful white light illumination, a red tail light for safety, extended battery life, and convenient motion sensor operation. Its durable, waterproof design ensures reliable performance in diverse conditions.

Figure 1: Smiling Shark TD-0123 Headlight with 7 LED strips, demonstrating 270-degree wide-angle and focused XPE beam modes. The top shows the headlight itself, featuring 7 high-brightness white LED strips. The bottom left demonstrates the 270-degree wide-angle COB light, ideal for broad area illumination. The bottom right shows the focused XPE spotlight, suitable for long-distance visibility.

ముఖ్య లక్షణాలు:

• శక్తివంతమైన తెల్లని కాంతి: Features 7 strip-style emitters for 270° wide-angle illumination and a 100m long-distance beam. Multiple modes including High, Low, Strobe, Side Light High, and Side Light Low.
• Red Tail Light: Enhances rear visibility with High Brightness and Flash modes, improving safety during night activities.
• పొడిగించిన బ్యాటరీ జీవితం: Equipped with two internal batteries (5000 mAh total), providing up to 16 hours of continuous use on a single charge.
• మోషన్ సెన్సార్ ఆపరేషన్: Built-in sensor allows hands-free control (on/off) with a wave of the hand.
• అన్ని వాతావరణాలలో మన్నిక: Designed with a durable, IPX4 waterproof housing, suitable for use in wet environments.

సెటప్ సూచనలు

1. Unpacking the Headlight

ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తొలగించండి. మీ దగ్గర ఈ క్రింది అంశాలు ఉన్నాయని నిర్ధారించుకోండి:

• Smiling Shark TD-0123 LED Headlight (x2)
• USB ఛార్జింగ్ కేబుల్ (x2)
• వినియోగదారు మాన్యువల్

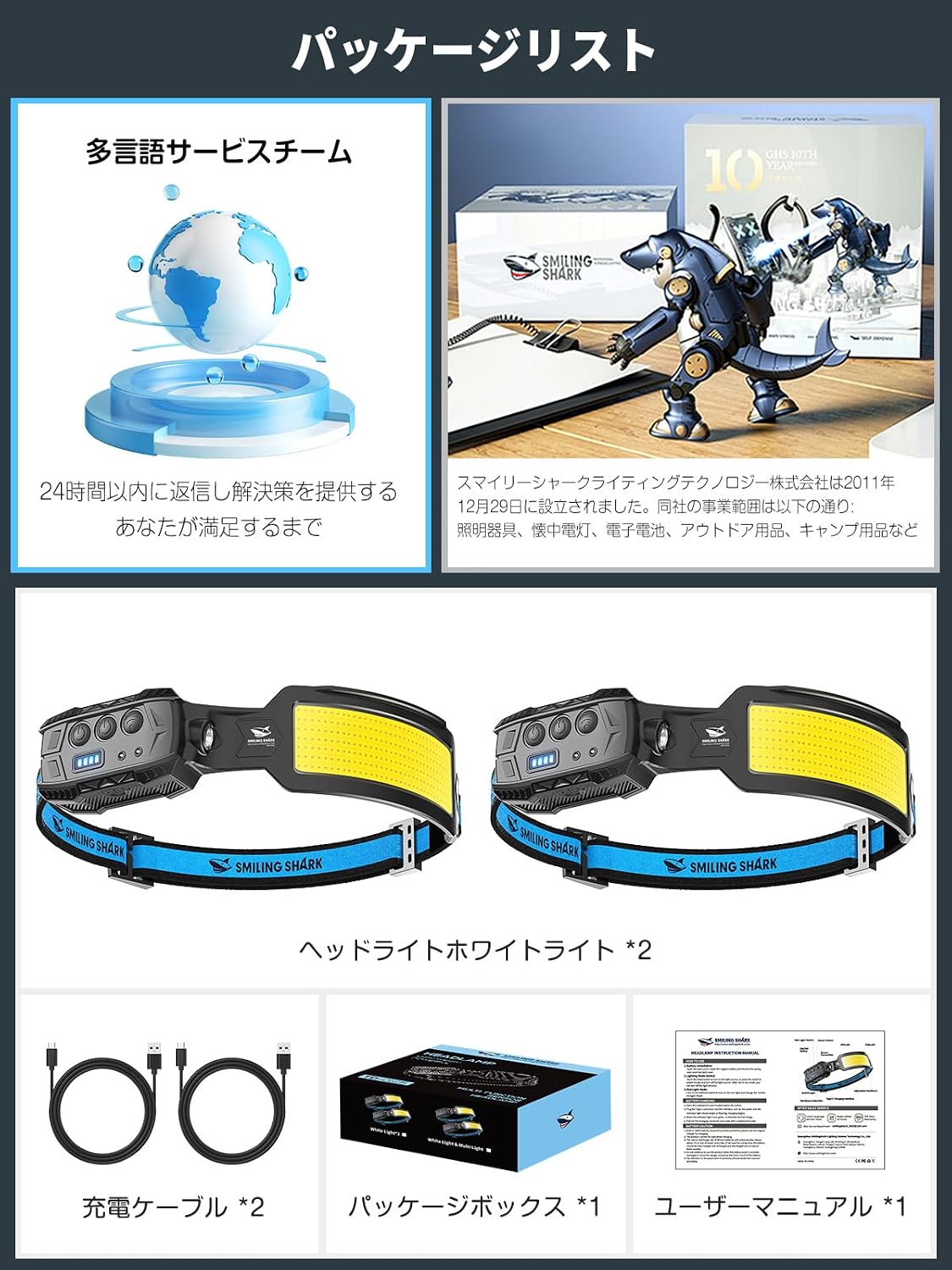

Figure 2: Package contents of the TD-0123 headlight, including two headlights, two USB charging cables, the product packaging box, and a user manual.

2. ప్రారంభ ఛార్జింగ్

Before first use, fully charge the headlight. This ensures optimal battery performance and longevity.

1. Locate the USB charging port on the headlight.
2. Connect the provided USB charging cable to the headlight and to a 5V1A USB power adapter (not included) or a computer USB port.
3. The charging indicator lights will show the charging status. Allow 1-2 hours for a full charge.
4. పూర్తిగా ఛార్జ్ అయిన తర్వాత, కేబుల్‌ను డిస్‌కనెక్ట్ చేయండి.

Figure 3: The TD-0123 headlight connected for USB charging, illustrating its 5000mAh battery capacity and fast charging capability. It is recommended to use a 5V1A adapter.

3. హెడ్‌బ్యాండ్‌ను సర్దుబాటు చేయడం

The elastic headband is adjustable to fit various head sizes and can be worn over hats or helmets.

• Place the headlight on your head.
• Adjust the straps to achieve a comfortable and secure fit. The light should sit firmly without being too tight.

ఆపరేటింగ్ సూచనలు

1. Power On/Off and White Light Modes

The main power button controls the white light modes.

1. Press the power button once to turn on the headlight in High Brightness mode (COB).
2. Press again to cycle through modes: Low Brightness (COB) → Strobe (COB) → Side Light High (XPE) → Side Light Low (XPE).
3. To turn off, press the power button after cycling through all modes, or press and hold the button for 2 seconds in any mode.

Figure 4: Various white light modes of the TD-0123 headlight, including COB high, COB low, Strobe, XPE high, and XPE low brightness settings.

2. Red Tail Light Operation

The red tail light is operated independently for rear visibility.

• Locate the red tail light button on the battery pack at the rear of the headband.
• Press the button once for constant red light.
• Press again for red flash mode.
• Press a third time to turn off the red tail light.

Figure 5: A cyclist using the TD-0123 headlight with the red tail light active, demonstrating improved rear visibility during night riding.

3. మోషన్ సెన్సార్ ఫంక్షన్

The motion sensor allows for hands-free control of the white light.

1. Activate the motion sensor by pressing the dedicated sensor button (usually indicated by a wave icon).
2. Once activated, wave your hand approximately 5-10 cm in front of the sensor to turn the white light on or off.
3. The motion sensor works in all white light modes (High, Low, Strobe, Side Light High, Side Light Low).
4. To deactivate the motion sensor, press the sensor button again.

Figure 6: A user demonstrating the motion sensor feature of the TD-0123 headlight, turning the light on or off with a simple hand wave.

నిర్వహణ

1. శుభ్రపరచడం

సరైన పనితీరు మరియు రూపాన్ని నిర్వహించడానికి:

• హెడ్‌లైట్ బాడీని మృదువైన, d తో తుడవండిamp గుడ్డ.
• Do not use abrasive cleaners or solvents, as these can damage the surface.
• Ensure the charging port cover is securely closed after charging to maintain water resistance.

2. ఛార్జింగ్ ఉత్తమ పద్ధతులు

• Always use the provided USB charging cable.
• Avoid overcharging the battery. Disconnect once fully charged.
• Charge the headlight at least once every three months if not in regular use to preserve battery health.

3. నిల్వ

హెడ్‌లైట్‌ను ప్రత్యక్ష సూర్యకాంతి మరియు విపరీతమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.

ట్రబుల్షూటింగ్

స్పెసిఫికేషన్లు

వారంటీ సమాచారం

Smiling Shark products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or contact customer support for specific warranty duration and terms.

కస్టమర్ మద్దతు

For any questions, technical assistance, or warranty claims, please contact Smiling Shark customer support through the retailer where the product was purchased or visit the official Smiling Shark webసంప్రదింపు సమాచారం కోసం సైట్.

We are committed to providing a satisfactory resolution within 24 hours.
