జెనరిక్ 5 మీ LED స్ట్రిప్ లైట్ 5050 యూజర్ మాన్యువల్

1. పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your Generic 5m LED Strip Light 5050. Please read this manual thoroughly before use to ensure proper function and safety.

The Generic 5m LED Strip Light 5050 is a versatile lighting solution featuring RGB color options, suitable for various indoor decorative applications. It includes a remote control for easy color and mode adjustments.

2. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని అంశాలు మీ ప్యాకేజీలో ఉన్నాయని నిర్ధారించుకోండి:

• 5m LED Strip Light (Model 5050)
• Power Adapter (Corded Electric)
• RGB కంట్రోల్ బాక్స్
• రిమోట్ కంట్రోల్

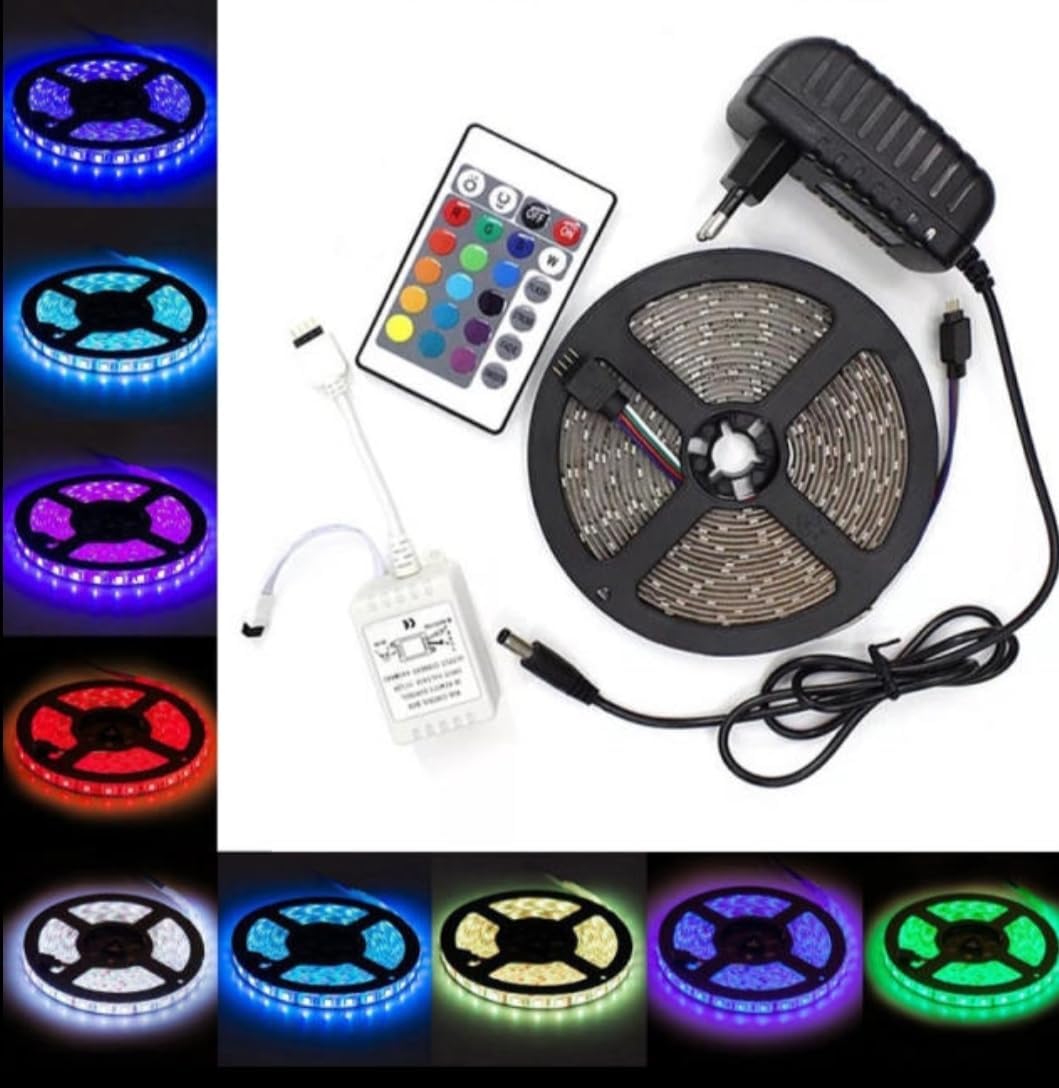

చిత్రం 1: ముగిసిందిview of the Generic 5m LED Strip Light 5050 components, showing the LED strip on a reel, the power adapter, the RGB control box, and the remote control.

Image 2: The Generic 5m LED Strip Light 5050 kit as packaged, displaying the LED strip, remote, and power supply within clear plastic.

3. భద్రతా సమాచారం

• ఈ ఉత్పత్తి కోసం రూపొందించబడింది ఇండోర్ ఉపయోగం మాత్రమే. నీటికి లేదా అధిక తేమకు గురికాకుండా ఉండండి.
• విద్యుత్ సరఫరా వాల్యూమ్ నిర్ధారించుకోండిtage matches the product's requirements (12 Volts DC).
• Do not cut or modify the LED strip unless specifically instructed, as this may damage the product and void the warranty.
• పిల్లలకు దూరంగా ఉంచండి.
• Unplug the power adapter from the wall outlet before cleaning or when not in use for extended periods.
• Do not cover the LED strip or power adapter with flammable materials during operation.

4. సెటప్ సూచనలు

1. ఉపరితలాన్ని సిద్ధం చేయండి: Choose a clean, dry, and smooth surface for installation. Ensure the surface is free of dust, oil, or moisture.
2. భాగాలను కనెక్ట్ చేయండి:
   • Connect the 4-pin connector from the LED strip to the RGB control box. Ensure the arrows on both connectors align.
   • Connect the DC plug from the power adapter to the RGB control box.


   చిత్రం 3: వివరణాత్మకమైనది view of the DC plug connection to the control box and the 4-pin connector for the LED strip. Also shows the remote control and the protective plastic sheet to be removed.
3. Remove Remote Battery Tab: Before using the remote control, pull out the clear plastic battery isolation tab from the remote's battery compartment.
4. LED స్ట్రిప్‌ను మౌంట్ చేయండి: Peel off the adhesive backing from the LED strip and carefully press it onto the desired surface. Apply firm, even pressure along the entire length of the strip to ensure good adhesion.
5. శక్తికి కనెక్ట్ చేయండి: పవర్ అడాప్టర్‌ను ప్రామాణిక ఎలక్ట్రికల్ అవుట్‌లెట్‌లోకి ప్లగ్ చేయండి.

5. ఆపరేటింగ్ సూచనలు

Use the provided remote control to operate your LED strip light.

రిమోట్ కంట్రోల్ విధులు:

• ఆన్/ఆఫ్: Power the LED strip on or off.
• రంగు బటన్లు: Select from various preset static colors (e.g., Red, Green, Blue, White, Purple, Yellow, Cyan).
• ప్రకాశం సర్దుబాటు: Increase or decrease the brightness of the selected color or mode.
• Mode Buttons (e.g., FLASH, FADE, JUMP): Select different dynamic lighting effects.
• వేగం సర్దుబాటు: Adjust the speed of dynamic lighting effects.

Image 4: The LED strip light illuminated in a vibrant purple color, demonstrating one of its many color options.

Image 5: The LED strip light illuminated in a bright red color, showcasing another available static color.

Image 6: The LED strip light illuminated in a vivid green color, illustrating its multi-color capabilities.

6. నిర్వహణ

• శుభ్రపరచడం: Disconnect the power before cleaning. Use a soft, dry cloth to gently wipe the LED strip and control box. Do not use liquid cleaners or abrasive materials.
• నిల్వ: If storing the LED strip for an extended period, ensure it is clean and dry. Store it in a cool, dry place away from direct sunlight.
• రిమోట్ కంట్రోల్ బ్యాటరీ: If the remote control stops responding, the battery may need replacement. Refer to the remote control's specific instructions for battery type and replacement procedure.

7. ట్రబుల్షూటింగ్

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information or technical support, please refer to the retailer or manufacturer's contact details provided at the point of purchase. Keep your purchase receipt as proof of purchase.
