KuWFi CPE120 and CPE130 2.4G Wireless WiFi Bridge and Outdoor Access Point User Manual

1. పరిచయం

This user manual provides comprehensive instructions for the installation, configuration, and operation of your KuWFi CPE120 and CPE130 2.4G Wireless WiFi Bridge and Outdoor Access Point. Please read this manual carefully before using the device to ensure proper setup and optimal performance. Keep this manual for future reference.

2. ఉత్పత్తి ముగిసిందిview

The KuWFi CPE120 and CPE130 are 300Mbps outdoor wireless devices designed to extend Wi-Fi coverage over long distances, up to 1KM. They support Point-to-Point (PTP) and Point-to-Multi-Point (PTMP) connections, functioning as both a wireless bridge and an access point. These devices are built for outdoor use, featuring waterproof, dustproof, and lightning protection.

2.1. CPE120 Features

• 300Mbps Outdoor Wireless WiFi Bridge.
• Supports 1KM Long Range WiFi Extender functionality.
• LED display for configuring PTP/PTMP connections.
• Supports AP and Bridge operation modes.
• Waterproof, dustproof, and lightning protection.
• Operating Temperature: -30℃ to 55℃.

2.2. CPE130 Features

• Economic 300Mbps outdoor CPE.
• LED display support for 1KM Long Range.
• Improved wireless networking for extended coverage.
• Seamless wireless connectivity for homes and secondary buildings.

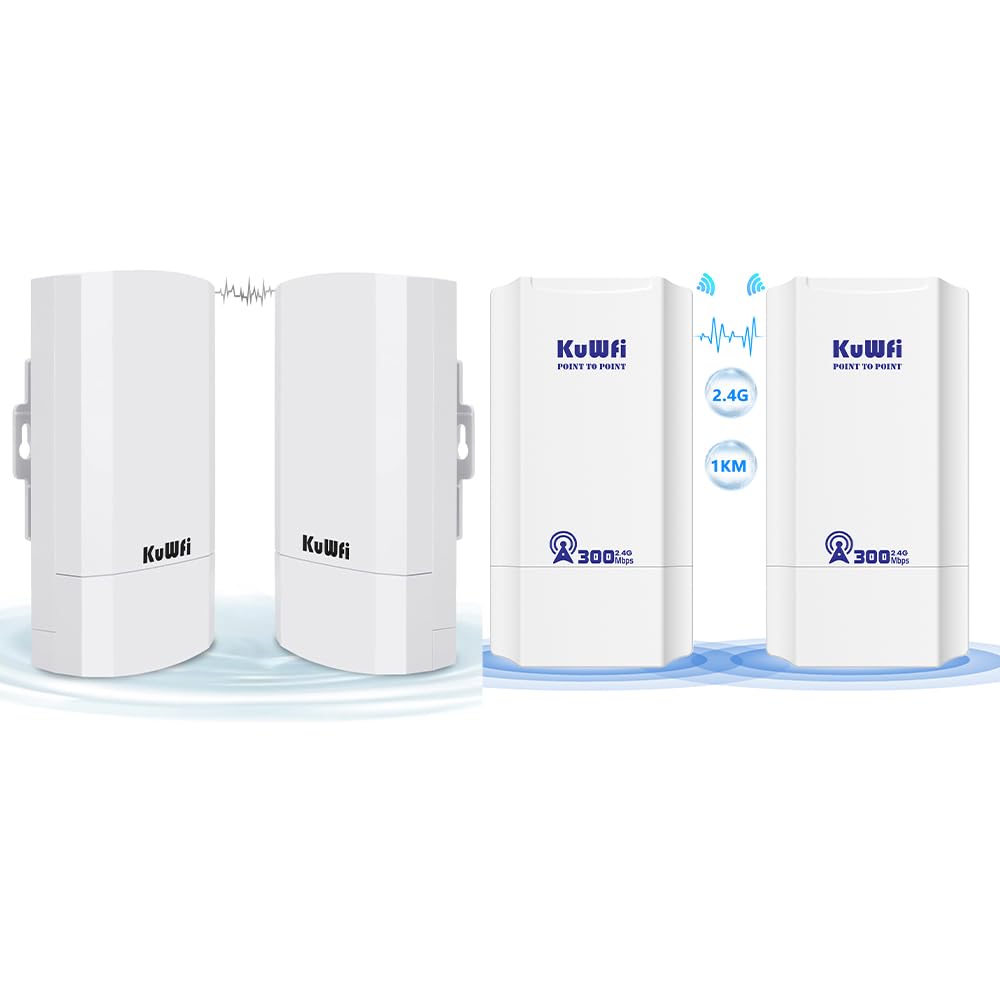

Figure 2.1: KuWFi CPE120/CPE130 Wireless Bridge Devices.

Figure 2.2: KuWFi CPE device highlighting 1KM long-range capability.

3. ప్యాకేజీ విషయాలు

ప్యాకేజీని తెరిచినప్పుడు, క్రింద జాబితా చేయబడిన అన్ని వస్తువులు ఉన్నాయని మరియు మంచి స్థితిలో ఉన్నాయని దయచేసి ధృవీకరించండి:

• KuWFi CPE120/CPE130 Wireless Bridge Device(s)
• PoE (Power over Ethernet) Injector(s)
• ఈథర్నెట్ కేబుల్(లు)
• Mounting Accessories (e.g., zip ties)
• వినియోగదారు మాన్యువల్ (ఈ పత్రం)

Figure 3.1: Included accessories and device dimensions.

4. హార్డ్‌వేర్ ఓవర్view

Familiarize yourself with the physical components of the CPE device.

4.1. పోర్ట్‌లు మరియు సూచికలు

Each CPE device features the following ports and LED indicators on its underside:

• WAN పోర్ట్: Used for connecting to the network (e.g., router, NVR) and for Power over Ethernet (PoE) input.
• LAN పోర్ట్: Used for connecting to client devices (e.g., IP camera, PC).
• తి రి గి స వ రిం చు బ ట ను: Used to reset the device to factory defaults. Press and hold for approximately 5-10 seconds while the device is powered on.
• LED డిస్ప్లే: A digital display showing configuration status (e.g., '8.8.8.8' for Master, '8.8.8.9' for Slave, or other status codes).
• సూచిక లైట్లు:
  • పవర్ LED: శక్తి స్థితిని సూచిస్తుంది.
  • WAN LED: WAN పోర్ట్ కార్యాచరణను సూచిస్తుంది.
  • LAN LED: LAN పోర్ట్ కార్యాచరణను సూచిస్తుంది.
  • సిగ్నల్ స్ట్రెంగ్త్ LED లు: Multiple LEDs indicating wireless signal strength.

Figure 4.1: CPE Device Ports and Indicators (Master and Slave exampలెస్).

మూర్తి 4.2: వివరంగా view of CPE device ports and controls.

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

The KuWFi CPE devices can be configured for Point-to-Point (PTP) or Point-to-Multi-Point (PTMP) connections. One device will act as the మాస్టర్, and the other(s) as బానిస(లు).

5.1. Basic Connection Diagram (PTP)

For a basic Point-to-Point setup, you will need two CPE devices. One acts as the Master, connected to your network source (e.g., router), and the other as the Slave, connected to your client device (e.g., IP camera, PC).

1. Master Device Setup:
   • Connect an Ethernet cable from your router/NVR to the WAN port of the Master CPE device.
   • Power the Master CPE device using the provided PoE injector.
   • Ensure the LED display on the Master device shows the correct configuration (e.g., '8.8.8.8').
2. Slave Device Setup:
   • Connect an Ethernet cable from the LAN port of the Slave CPE device to your client device (e.g., IP camera, PC).
   • Power the Slave CPE device using the provided PoE injector.
   • Ensure the LED display on the Slave device shows the correct configuration (e.g., '8.8.8.9').
3. మౌంటు: Mount the devices outdoors in a clear line of sight for optimal signal transmission. Use the provided mounting accessories.

Figure 5.1: Point-to-Point Extended Network Diagram.

Figure 5.2: Point-to-Point and Point-to-Multi-Point Extended Camera Monitoring Range.

Figure 5.3: Wireless Bridge Master and Slave Connection Exampలెస్.

5.2. Configuring Master/Slave Roles

The CPE devices typically use an LED display for initial configuration. Refer to the device's quick start guide or the manufacturer's website for specific steps on how to set one device as Master and the other(s) as Slave(s) using the LED display or a web ఇంటర్ఫేస్.

• మాస్టర్: Connects to the main network source (e.g., router).
• బానిస: Connects to the remote client device(s).

6. ఆపరేటింగ్ మోడ్‌లు

The KuWFi CPE devices support two primary operating modes:

• AP (యాక్సెస్ పాయింట్) మోడ్: In this mode, the device acts as a wireless access point, broadcasting a Wi-Fi signal for other devices to connect to. This is typically used when the CPE is connected to a wired network and needs to provide wireless access.
• వంతెన మోడ్: In this mode, the device creates a wireless link between two wired networks or extends a wired network wirelessly. This is the primary mode for PTP/PTMP connections, where one CPE bridges the network to another CPE.

7. నిర్వహణ

To ensure the longevity and optimal performance of your KuWFi CPE devices, follow these maintenance guidelines:

• శుభ్రపరచడం: Periodically clean the exterior of the devices with a soft, dry cloth. Do not use liquid cleaners or aerosols.
• ఫర్మ్‌వేర్ నవీకరణలు: Check the KuWFi official webసైట్ (www.kuwfi.com) for the latest firmware updates. Keeping the firmware updated can improve performance, add new features, and fix bugs.
• పర్యావరణ పరిరక్షణ: Ensure the devices are securely mounted and protected from extreme weather conditions beyond their specified operating range.

8. ట్రబుల్షూటింగ్

If you encounter issues with your KuWFi CPE devices, refer to the following common troubleshooting steps:

• శక్తి లేదు:
  • Ensure the PoE injector is properly connected and receiving power.
  • అన్ని కేబుల్ కనెక్షన్లను తనిఖీ చేయండి.
• నెట్‌వర్క్ కనెక్షన్ లేదు:
  • Verify that the Master and Slave devices are correctly configured (e.g., LED display shows correct codes).
  • Check the WAN/LAN LED indicators for activity.
  • Ensure there is a clear line of sight between the Master and Slave devices.
  • Try resetting both devices to factory defaults and reconfiguring them.
  • Confirm that the connected router/NVR is functioning correctly.
• Weak Signal/Slow Speed:
  • Adjust the alignment of the devices to ensure optimal signal strength.
  • Check for obstructions between the devices.
  • Ensure the distance between devices does not exceed the recommended range (1KM).
  • ఇతర 2.4GHz వైర్‌లెస్ పరికరాల నుండి అంతరాయాన్ని తగ్గించండి.
• యాక్సెస్ చేయలేరు Web Interface (if applicable):
  • Ensure your computer is connected to the CPE's LAN port or a network segment that can reach the CPE's IP address.
  • Verify the CPE's default IP address (refer to the quick start guide or device label).
  • Temporarily disable your computer's firewall.

For further assistance, please visit the KuWFi support webసైట్ లేదా కస్టమర్ సేవను సంప్రదించండి.

9. స్పెసిఫికేషన్లు

10. భద్రతా సమాచారం

దయచేసి క్రింది భద్రతా జాగ్రత్తలను గమనించండి:

• పరికరాన్ని తెరవవద్దు casing. అన్ని సర్వీసింగ్‌లను అర్హత కలిగిన సిబ్బందికి సూచించండి.
• Ensure proper grounding for lightning protection.
• Use only the power adapter and PoE injector provided by the manufacturer.
• పరికరాన్ని వేడి వనరుల దగ్గర లేదా ప్రత్యక్ష సూర్యకాంతిలో ఎక్కువసేపు ఉంచకుండా ఉండండి.
• Keep the device away from water or excessive humidity.

11. వారంటీ మరియు మద్దతు

Specific warranty information is not provided within this manual. For details regarding warranty coverage, technical support, or customer service, please refer to the product packaging, the official KuWFi webసైట్ (www.kuwfi.com), or contact your retailer.
