User Manual for jelkuz 10.26'' Wireless CarPlay Screen with Dash Cam

1. పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your jelkuz 10.26'' Wireless CarPlay Screen with 2.5K Dash Cam and Backup Camera. Please read this manual thoroughly before using the device to ensure proper functionality and safety.

1.1 ఉత్పత్తి ముగిసిందిview

The jelkuz portable car stereo integrates a 10.26-inch display with wireless Apple CarPlay and Android Auto capabilities, a 2.5K front dash camera, and a 1080P backup camera. It offers features such as GPS navigation, Bluetooth connectivity, AirPlay, AUX/FM audio output, and Siri/Google Assistant voice control. The front camera can rotate 180° for versatile recording, and the system supports simultaneous front and rear recording with a 64GB memory card included.

Figure 1: jelkuz 10.26 inch Wireless CarPlay Screen with Dash Cam and Backup Camera, showing the main unit, front camera, rear camera, and included accessories like the 64GB memory card and 33ft cable.

1.2 పెట్టెలో ఏముంది

• 1 x 10.26-inch Wireless CarPlay Screen Unit
• 1 x Rear Camera (1080P, waterproof)
• 1 x 64GB మెమరీ కార్డ్
• 1 x Suction Cup Bracket
• 1 x Sticker Bracket
• 1 x కార్ ఛార్జర్
• 1 x AUX కేబుల్
• 1 x 33 అడుగుల వెనుక కెమెరా కేబుల్
• 1 x వినియోగదారు మాన్యువల్

Figure 2: Diagram illustrating the contents of the product package and various vehicle types compatible with the device.

2. భద్రతా సమాచారం

• Do not operate the device or adjust settings while driving. Always pull over safely before making any adjustments.
• అన్ని కేబుల్స్ సురక్షితంగా కనెక్ట్ చేయబడ్డాయని మరియు డ్రైవర్ కేబుల్స్‌కు ఆటంకం కలిగించకుండా చూసుకోండి. view లేదా వాహన నియంత్రణలు.
• The device is compatible with vehicles from 7-36V. Using it with incompatible voltagఇ నష్టం కలిగించవచ్చు.
• పరికరాన్ని తీవ్రమైన ఉష్ణోగ్రతలు, ఎక్కువసేపు ప్రత్యక్ష సూర్యకాంతి మరియు తేమ నుండి దూరంగా ఉంచండి.
• పరికరాన్ని మీరే విడదీయడానికి లేదా మరమ్మతు చేయడానికి ప్రయత్నించవద్దు. అర్హత కలిగిన సేవా సిబ్బందిని సంప్రదించండి.
• The rear camera is waterproof, but ensure all connections are sealed to prevent water ingress.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

3.1 డిస్ప్లే యూనిట్‌ను మౌంట్ చేయడం

The display unit can be mounted using either the self-adhesive bracket or the suction mount. Choose a location on your dashboard or windshield that does not obstruct your view లేదా ఎయిర్‌బ్యాగ్‌లకు అంతరాయం కలిగిస్తాయి.

1. మౌంటు ఉపరితలాన్ని పూర్తిగా శుభ్రం చేయండి.
2. Attach the chosen bracket to the display unit.
3. Secure the bracket to the desired location. For the suction mount, press firmly and engage the lever. For the adhesive bracket, peel off the protective film and press firmly for 30 seconds.
4. Adjust the angle of the display for optimal viewing. The brackets allow for 360° rotation.

Figure 3: Illustration of the suction cup and sticker brackets, showing their 360° adjustability and examples of various mounting positions in a car. Also depicts the wide range of compatible vehicles.

3.2 శక్తిని కనెక్ట్ చేస్తోంది

Connect the provided car charger to the display unit's power input and then plug the charger into your vehicle's cigarette lighter socket.

3.3 Installing the Cameras

1. ముందు కెమెరా: The front camera is integrated into the display unit and can be rotated 180° to record the front, side, or inside of the car. Adjust its angle as needed.
2. వెనుక కెమెరా:
   • Mount the 1080P waterproof rear camera at the back of your vehicle, typically above the license plate or near the rear window.
   • Route the 33ft rear camera cable from the rear camera to the main display unit, ensuring it does not interfere with vehicle components or passenger movement.
   • Connect the rear camera cable to the designated input on the display unit.
   • (Optional) For automatic reverse guidelines, connect the rear camera's red wire to your vehicle's reverse light power supply.

Figure 4: Demonstrates the 180° rotation capability of the front camera, allowing it to record the front view, వైపు view, or inside the car, useful for monitoring children in the back seat.

Figure 5: Illustrates the dual recording capability (2.5K front, 1080P rear) and the adjustable reverse guideline feature for parking assistance.

4. ఆపరేటింగ్ సూచనలు

4.1 ప్రారంభ పవర్ ఆన్ మరియు సెటప్

Once powered, the device will boot up. Follow any on-screen prompts for initial language and time settings.

4.2 Wireless Apple CarPlay / Android Auto Connection

The device supports wireless connection to Apple CarPlay and Android Auto for seamless smartphone integration.

1. On the display unit, select the "CarPlay" or "Android Auto" icon.
2. మీ స్మార్ట్‌ఫోన్‌లో, బ్లూటూత్ మరియు వై-ఫైని ప్రారంభించండి.
3. కోసం వెతకండి the device's Bluetooth name (e.g., "TF781BT_xxxxxx") in your phone's Bluetooth settings and pair.
4. రెండు పరికరాల్లోనూ జత చేసే కోడ్‌ను నిర్ధారించండి.
5. Once paired via Bluetooth, the device will automatically prompt you to use CarPlay or Android Auto via Wi-Fi. Confirm the connection.

Figure 6: Step-by-step guide showing how to connect an iPhone to the device for Wireless Apple CarPlay and Android Auto via Bluetooth pairing.

చిత్రం 7: పైగాview of the wireless connectivity options including Apple CarPlay, Android Auto, and Mirror Link, with examples of their interfaces on the display.

4.3 డాష్ క్యామ్ రికార్డింగ్ విధులు

The device supports simultaneous 2.5K front and 1080P rear camera recording.

• లూప్ రికార్డింగ్: ఫూtage is recorded in continuous loops. When the memory card is full, the oldest files are overwritten automatically.
• G-సెన్సార్: In case of a sudden impact or collision, the G-sensor will automatically lock the current video file భర్తీ చేయకుండా నిరోధించడానికి.
• రాత్రి దృష్టి: Enhanced low-light recording capabilities ensure clear footage even in dark conditions.
• వీడియో ప్లేబ్యాక్: Access recorded videos directly on the display unit or by removing the 64GB memory card and viewing on a computer.
• మొబైల్ యాప్ కనెక్షన్: Use the dedicated mobile app (via 5G WiFi) to preview, play, and download recorded files in real-time on your smartphone.

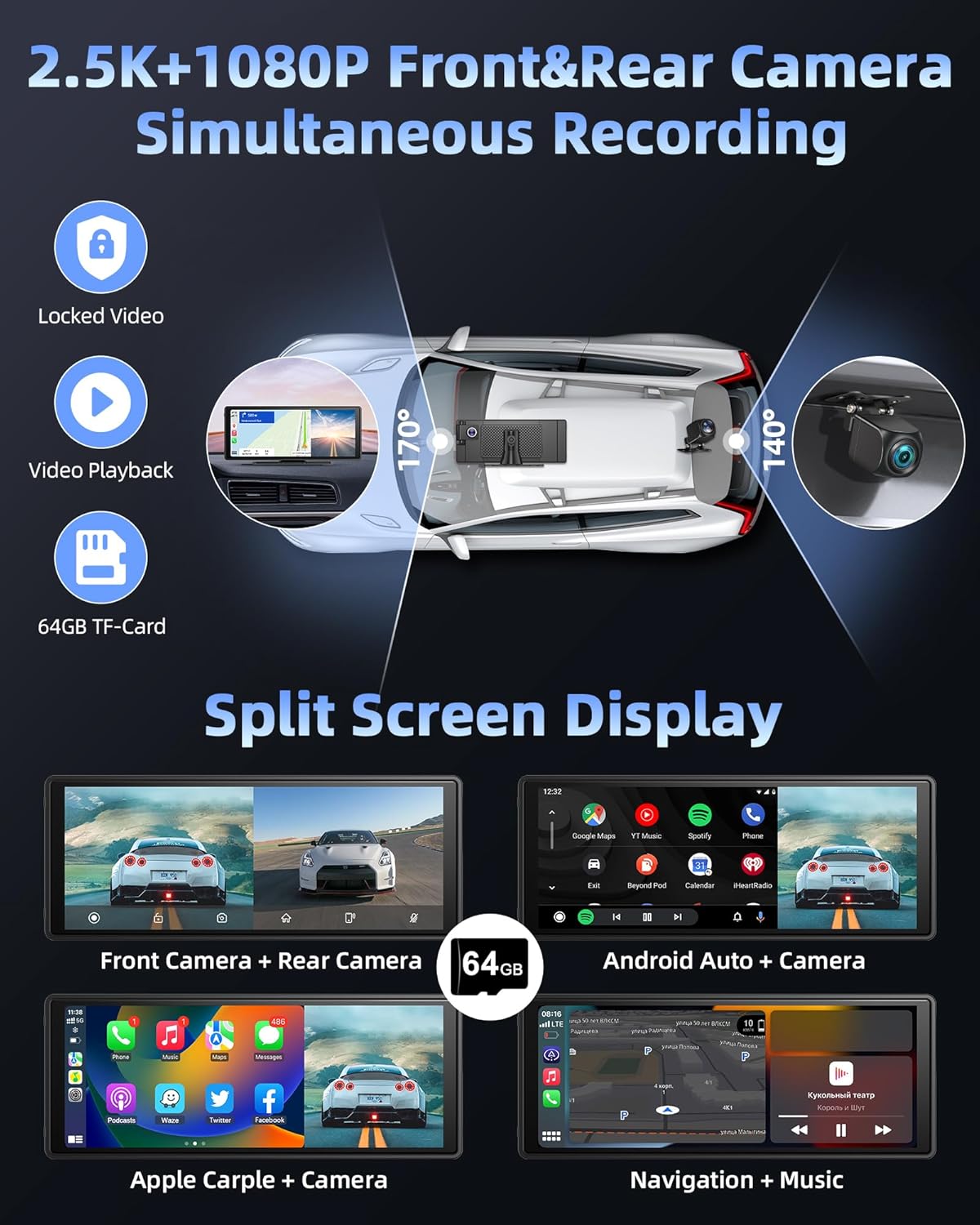

Figure 8: Shows the dual recording feature with 2.5K front and 1080P rear cameras, along with examples of split-screen display modes for viewing camera feeds and applications simultaneously.

4.4 స్ప్లిట్ స్క్రీన్ డిస్ప్లే

The device supports various split-screen modes, allowing you to view camera feeds and applications simultaneously.

• Front Camera + Rear Camera
• Android Auto + Camera
• Apple CarPlay + Camera
• Navigation + Music
• Phone + Front/Rear Camera

Figure 9: Various split-screen configurations, including front camera with rear camera, Android Auto with camera, Apple CarPlay with camera, and navigation with music.

4.5 ఆడియో అవుట్‌పుట్ ఎంపికలు

The device offers multiple ways to output audio to your car's sound system.

• బ్లూటూత్: Connect the device to your car's original Bluetooth system for audio playback and hands-free calling. The dual Bluetooth 5.0 design enhances stability.
• FM ట్రాన్స్మిటర్: Transmit audio wirelessly to your car's FM radio by setting both the device and your car radio to the same FM frequency.
• AUX అవుట్‌పుట్: Connect the provided AUX cable from the device's AUX output to your car's AUX input for a wired audio connection.
• అంతర్నిర్మిత స్పీకర్: ఈ పరికరంలో డైరెక్ట్ ఆడియో అవుట్‌పుట్ కోసం అంతర్నిర్మిత స్పీకర్ ఉంది.

Figure 10: Visual representation of the four audio output methods: Bluetooth, FM transmission, built-in speaker, and AUX connection.

4.6 వాయిస్ కంట్రోల్ (సిరి/గూగుల్ అసిస్టెంట్)

Utilize voice commands for hands-free operation through Siri (for Apple CarPlay) or Google Assistant (for Android Auto).

• Activate voice control by saying "Hey Siri" or "Hey Google" (if configured on your phone) or by tapping the voice assistant icon on the screen.
• Examples of commands: "Navigate to [address]", "Call [contact name]", "Play [song/artist]", "What's the weather today?".

Figure 11: Depicts the voice control functionality with examples of commands and the mobile app connection for real-time video preview మరియు డౌన్‌లోడ్ చేయండి.

4.7 Auto Dimming Function

The display features an auto-dimming function to adjust screen brightness based on ambient light, reducing glare during night driving.

• Access the display settings to configure auto-dimming preferences, including brightness levels and scheduled dimming times.

Figure 12: Highlights advanced features such as auto-dimming, intelligent voice control, customizable reverse guidelines, and the ability to flip camera views (up/down/left/right).

5. నిర్వహణ

• శుభ్రపరచడం: Use a soft, dry cloth to clean the display screen and device body. Do not use abrasive cleaners or solvents.
• మెమరీ కార్డ్: Periodically format the 64GB memory card (at least once a month) to ensure optimal recording performance and prevent data corruption. Back up any important footage ఫార్మాట్ చేయడానికి ముందు.
• రక్షణ చిత్రం: The product surface may have a removable protective film. If scratches or dirt appear, this film can be peeled off.
• ఫర్మ్‌వేర్ నవీకరణలు: తయారీదారుని తనిఖీ చేయండి website or contact support for any available firmware updates to improve performance and add new features.

6. ట్రబుల్షూటింగ్

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

Jelkuz offers a 1-year after-sale service for this product. If you encounter any questions during installation or use, or require technical support, please refer to the contact information provided on the instruction manual included in your product package.

For customized boot icon service, please contact the after-sale address specified in the instruction manual.
