1. పరిచయం
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Generic ROPER PUMPS 2AM16 A Series Petroleum Transfer Gear Pump. This pump is designed for transferring petroleum products and similar liquids within its specified operating parameters. Adherence to these instructions will ensure optimal performance and longevity of the equipment.
2. భద్రతా సమాచారం
Always prioritize safety when working with industrial equipment. Failure to follow these safety guidelines can result in serious injury or equipment damage.
2.1 సాధారణ భద్రతా జాగ్రత్తలు
- Always wear appropriate personal protective equipment (PPE), including eye protection, gloves, and protective clothing, when handling, installing, or maintaining the pump.
- Ensure the pump is properly grounded before operation to prevent electrical hazards.
- Do not operate the pump with damaged components or if any leaks are detected.
- Refer to local regulations, industry standards, and material safety data sheets (MSDS) for specific requirements related to the fluids being pumped.
- చేతులు, జుట్టు మరియు వదులుగా ఉండే దుస్తులను కదిలే భాగాలకు దూరంగా ఉంచండి.
2.2 విద్యుత్ భద్రత
- Disconnect all power to the pump and motor before performing any maintenance, service, or inspection.
- Ensure all electrical connections are secure, properly insulated, and conform to local electrical codes.
- Only qualified personnel should perform electrical wiring and troubleshooting.
2.3 Fluid Handling Safety
- Be aware of the properties of the fluid being pumped, including flammability, toxicity, and corrosiveness. Use appropriate containment and spill response procedures.
- Do not exceed the pump's maximum temperature or pressure ratings.
- Ensure proper ventilation when pumping volatile liquids.
3. ఉత్పత్తి ముగిసిందిview
The ROPER PUMPS 2AM16 is an A Series petroleum transfer gear pump designed for reliable fluid transfer applications.
3.1 ముఖ్య లక్షణాలు
- Integral Relief Valve: Provides protection against overpressure.
- Cast Iron Construction: Ensures durability and resistance to wear.
- Steel Helical Gears: Designed for smooth operation and efficient fluid transfer.
- Bronze Bushings: Offer reliable bearing support.
- Buna Mechanical Seal: Provides effective sealing for petroleum products.
- 1 1/4 inch NPT Ports: Standardized connections for easy integration into existing systems.
- Max Ratings: 30.8 GPM (Gallons Per Minute) flow, 150 PSI (Pounds per Square Inch) pressure, 212°F (100°C) temperature.
3.2 భాగాలు

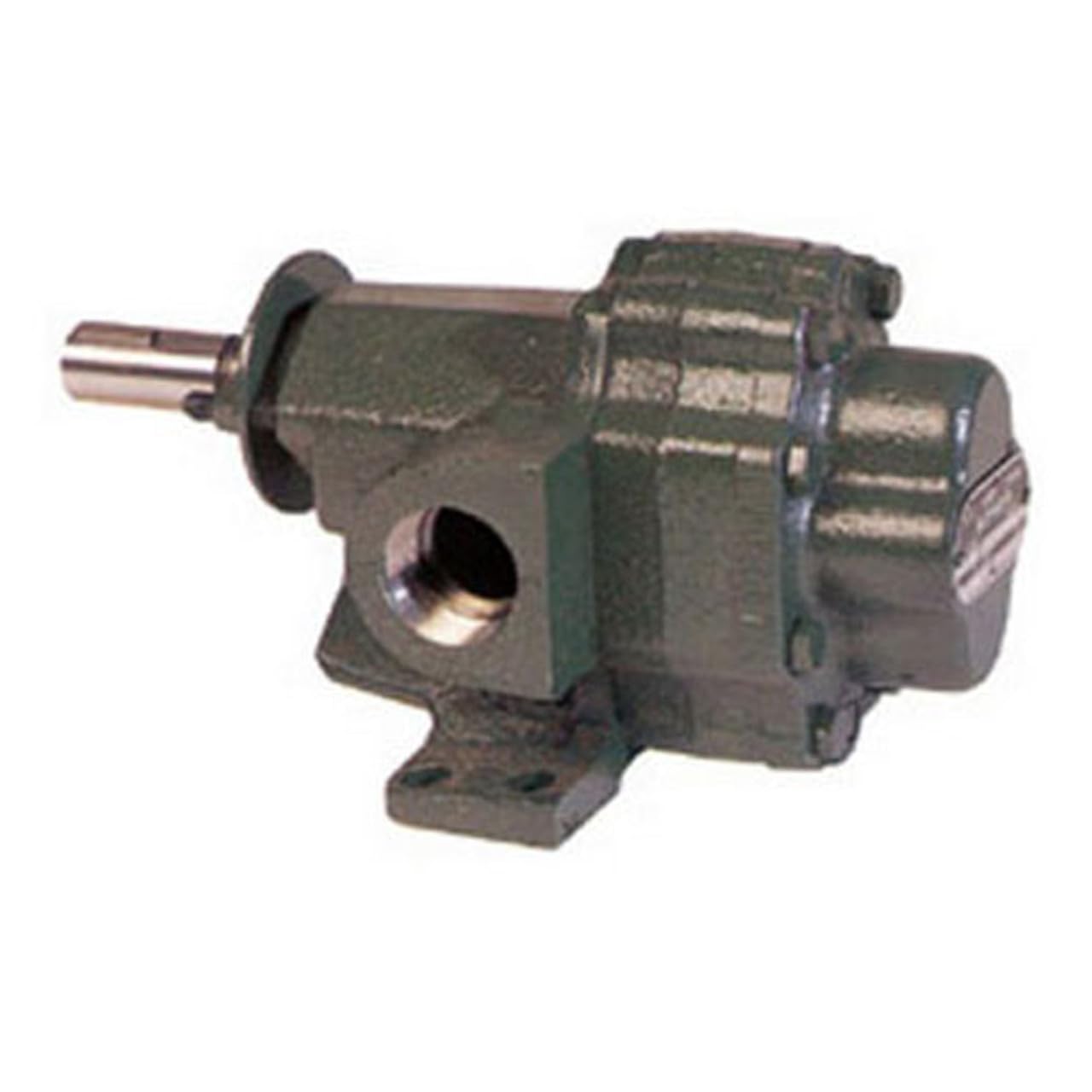

Figure 1: Generic ROPER PUMPS 2AM16 A Series Petroleum Transfer Gear Pump. This image shows the overall structure of the pump, highlighting its robust cast iron construction and the location of its 1 1/4 inch NPT ports.
4. సెటప్ మరియు ఇన్స్టాలేషన్
Proper installation is critical for the pump's performance and safety. If unsure, consult a qualified technician.
4.1 అన్ప్యాకింగ్ మరియు తనిఖీ
- పంపును దాని ప్యాకేజింగ్ నుండి జాగ్రత్తగా తొలగించండి.
- Inspect the pump for any visible shipping damage. Report any damage to the carrier immediately.
- ప్యాకింగ్ స్లిప్లో జాబితా చేయబడిన అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి.
4.2 మౌంటు
- Mount the pump on a stable, level, and rigid surface capable of supporting the pump's weight, the motor's weight, and the weight of connected piping and fluid.
- Ensure adequate space around the pump for ventilation, routine maintenance, and inspection.
- Use appropriate fasteners to secure the pump firmly to its mounting base.
4.3 పైపింగ్ కనెక్షన్లు
- Connect 1 1/4 inch NPT piping to the inlet (suction) and outlet (discharge) ports of the pump.
- Use appropriate thread sealants (compatible with the fluid being pumped) to ensure leak-free connections.
- Ensure that piping is properly supported to prevent stress on the pump casing. Misaligned or unsupported piping can lead to premature pump failure.
- Install isolation valves on both suction and discharge lines for maintenance purposes.
4.4 విద్యుత్ కనెక్షన్లు
- All electrical wiring must be performed by a qualified electrician in accordance with local and national electrical codes.
- Ensure the motor (if supplied separately) is correctly wired for the intended voltage, phase, and rotation direction. Incorrect rotation will prevent the pump from operating effectively.
- Verify proper grounding of both the pump and motor to prevent electrical shock.
5. ఆపరేటింగ్ సూచనలు
Follow these steps for safe and effective pump operation.
5.1 ప్రీ-ఆపరేషన్ చెక్లిస్ట్
- Verify all piping connections are secure and leak-free.
- Ensure the suction line is fully submerged in the fluid and free of obstructions.
- Confirm that all necessary valves in the suction and discharge lines are in the correct position (open for flow).
- Check the fluid level in the supply tank.
- Confirm electrical connections are correct and power is available.
5.2 పంపును ప్రారంభించడం
- Open all necessary valves in the suction and discharge lines.
- Slowly start the pump motor.
- Monitor the pump for unusual noises, vibrations, or immediate leaks. If any issues are observed, shut down the pump immediately and investigate.
- Allow the pump to reach stable operating conditions.
5.3 పంపును ఆపడం
- Close the discharge valve (if applicable) to prevent backflow.
- Turn off the pump motor.
- Close the suction valve (if applicable) to isolate the pump.
6. నిర్వహణ
క్రమం తప్పకుండా నిర్వహణ మీ పంపు యొక్క దీర్ఘాయువు మరియు సమర్థవంతమైన ఆపరేషన్ను నిర్ధారిస్తుంది.
6.1 సాధారణ తనిఖీ
- Periodically inspect the pump for any signs of leaks, wear, corrosion, or damage.
- Check all fasteners for tightness. Loose fasteners can lead to vibration and misalignment.
- Monitor pump performance for any changes in flow, pressure, or noise levels.
6.2 సరళత
- The pump's bronze bushings are typically lubricated by the pumped fluid. Ensure the fluid is clean and compatible with the bushing material.
- Refer to the motor manufacturer's instructions for specific motor lubrication requirements.
6.3 Seal Replacement
- The Buna mechanical seal may require replacement if leaks occur around the shaft.
- Seal replacement should be performed by a qualified service technician to ensure proper installation and prevent damage.
7. ట్రబుల్షూటింగ్
This section provides solutions to common operating problems. For issues not listed, contact technical support.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Pump not priming or losing prime | Air leaks in suction line; Suction line not submerged; Clogged suction strainer; Insufficient fluid in supply tank. | Check and seal all suction line connections; Ensure suction line is fully submerged; Clean suction strainer; Replenish fluid in supply tank. |
| Reduced flow or pressure | Blockages in suction or discharge lines; Excessive wear on pump gears; Incorrect motor speed or rotation; Partially closed valves. | Inspect and clear lines; Inspect and replace worn gears; Verify motor wiring and rotation; Ensure all valves are fully open. |
| అధిక శబ్దం లేదా కంపనం | Cavitation (insufficient suction head); Misalignment between pump and motor; Worn bearings or gears; Loose mounting bolts. | Increase suction head or reduce flow; Check and correct alignment; Inspect and replace worn components; Tighten mounting bolts. |
| Fluid leakage from pump | Worn mechanical seal; Loose pipe connections; Cracked casing. | Replace mechanical seal; Tighten pipe connections; Inspect casing for damage and replace if necessary. |
8. స్పెసిఫికేషన్లు
Detailed technical specifications for the ROPER PUMPS 2AM16.
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | 2AM16 |
| బ్రాండ్ | Generic (ROPER PUMPS) |
| నిర్మాణ సామగ్రి | Cast Iron (Housing), Steel (Helical Gears), Bronze (Bushings) |
| పోర్ట్ పరిమాణం | 1 1/4 inch NPT |
| గరిష్ట ప్రవాహం రేటు | నిమిషానికి 30.8 గ్యాలన్లు (GPM) |
| గరిష్ట ఒత్తిడి | 150 PSI |
| గరిష్ట ఉష్ణోగ్రత | 212°F (100°C) |
| సీల్ రకం | Buna Mechanical Seal |
| సుమారు వస్తువు బరువు | 40 పౌండ్లు |
9. వారంటీ మరియు మద్దతు
For warranty information, technical assistance, or to order replacement parts, please contact your supplier or the manufacturer directly. Keep your purchase receipt and the pump's model number (2AM16) readily available for reference when contacting support.
