Generic Portable Camping Stove (Model XND-006) Instruction Manual

ఉత్పత్తి ముగిసిందిview

The Generic Portable Camping Stove (Model XND-006) is a lightweight and compact single-burner butane gas stove designed for outdoor use. It offers precise temperature control with an adjustable burner and features an Instastart ignition for automatic, matchless lighting. With a heat output of 8,530 BTU, it provides efficient cooking with less fuel. The stove includes a porcelain-coated grate for easy cleanup and a wind baffle to help shield the flame. It is ideal for camping, picnics, roadside cooking, and as an emergency backup during power outages.

ముఖ్య లక్షణాలు:

• పోర్టబుల్ డిజైన్: Lightweight and compact with an included carrying case for easy transport.
• ఖచ్చితమైన ఉష్ణోగ్రత నియంత్రణ: Single adjustable burner allows for fine-tuning of heat.
• శుభ్రపరచడం సులభం: Features a removable porcelain-coated grate and a dripping tray for quick maintenance.
• Matchless Lighting: Instastart ignition for convenient, automatic lighting.
• పవన రక్షణ: Integrated wind baffle helps maintain flame stability in breezy conditions.
• అధిక ఉష్ణ ఉత్పత్తి: Delivers 8,530 total BTUs of cooking power.

ప్యాకేజీ విషయాలు

• Generic Portable Camping Stove (Model XND-006)
• క్యారీయింగ్ కేసు

భద్రతా సమాచారం

Please read and understand all safety warnings and instructions before operating this appliance. Failure to follow these instructions may result in fire, explosion, serious injury, or death.

• బాహ్య వినియోగం కోసం మాత్రమే: This stove is designed for outdoor use in well-ventilated areas. Do not use indoors, in tents, or in unventilated enclosures.
• ఇంధనం: Use only 8 oz butane gas canisters. Ensure the canister is correctly installed and locked before ignition.
• లీక్‌లు: Check for gas leaks before each use. Apply soapy water to connections; bubbles indicate a leak. Do not use if a leak is detected.
• క్లియరెన్స్: Maintain adequate clearance from combustible materials.
• పిల్లలు & పెంపుడు జంతువులు: పనిచేసే సమయంలో పిల్లలు మరియు పెంపుడు జంతువులను స్టవ్ నుండి దూరంగా ఉంచండి.
• వేడి ఉపరితలాలు: Stove surfaces become hot during use. Allow to cool completely before handling or storing.
• నిల్వ: Always remove the butane canister from the stove before storage. Store canisters in a cool, dry, well-ventilated area away from direct sunlight and heat sources.

సెటప్

Follow these steps to set up your portable campపొయ్యి:

1. Open the carrying case and remove the stove.
2. Ensure the stove is placed on a stable, level, non-combustible surface.
3. Open the fuel compartment cover on the side of the stove.
4. Ensure the fuel lock lever is in the 'UNLOCK' (upward) position and the control knob is in the 'OFF' position.
5. Align the collar of an 8 oz butane gas canister with the regulator guide inside the compartment and push the canister firmly into place.
6. Push the fuel lock lever down to the 'LOCK' position to secure the canister and engage the gas flow mechanism.
7. Close the fuel compartment cover.

Image: Close-up of the Generic Portable Camping Stove, highlighting the model number XND-006 and the fuel lock mechanism. This view helps in identifying the product and understanding the fuel insertion area.

ఆపరేటింగ్

Once the stove is set up with the butane canister, follow these steps to operate it:

1. Turn the control knob counter-clockwise to the 'IGNITION' position. You should hear a click and the burner should ignite.
2. If the burner does not ignite on the first attempt, return the knob to 'OFF' and repeat the ignition process.
3. Adjust the flame intensity by turning the control knob between 'MIN' and 'MAX' to achieve your desired cooking temperature.
4. To turn off the stove, turn the control knob clockwise to the 'OFF' position. Ensure the flame is completely extinguished.
5. After use, always lift the fuel lock lever back to the 'UNLOCK' position to disengage the canister and prevent gas leakage during storage.

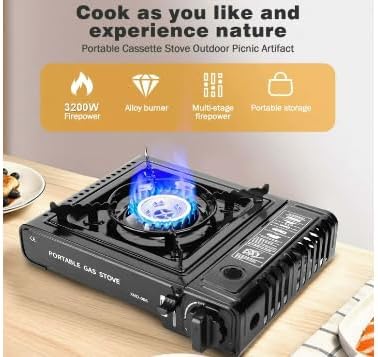

Image: The Generic Portable Camping Stove with a visible blue flame, demonstrating the stove in active operation. This image illustrates the ignition and burning process.

చిత్రం: వివరణాత్మక view of the control knob on the portable camping stove, clearly showing the markings for 'OFF', 'MIN', 'MAX', and 'IGNITION'. This helps users understand how to adjust the flame and ignite the stove.

నిర్వహణ

Proper maintenance ensures the longevity and safe operation of your stove:

• శుభ్రపరచడం: The porcelain-coated grate is removable for easy cleaning. Wipe down the enamel surface and dripping tray after each use to prevent buildup. Use mild soap and water.
• నిల్వ: Always remove the butane canister before storing the stove. Store the stove in its carrying case in a cool, dry place away from direct sunlight and heat.
• తనిఖీ: Periodically inspect the gas connections and hoses for any signs of wear, damage, or leaks. Replace any damaged parts immediately.

ట్రబుల్షూటింగ్

If you encounter issues with your stove, refer to the following common problems and solutions:

• Stove does not ignite:
  • Ensure the butane canister is correctly installed and the fuel lock lever is in the 'LOCK' position.
  • Check if the butane canister is empty and replace if necessary.
  • Verify the control knob is turned fully to the 'IGNITION' position.
• Flame is weak or inconsistent:
  • Check the fuel level in the butane canister.
  • Ensure the fuel lock lever is fully engaged.
  • Clean the burner head if it appears clogged.
• గ్యాస్ లీక్ గుర్తించబడింది:
  • Immediately turn off the stove and disengage the butane canister.
  • Move the stove to a well-ventilated area.
  • Do not use the stove until the leak is identified and repaired by a qualified professional.

స్పెసిఫికేషన్లు

వారంటీ & మద్దతు

For warranty information and customer support, please refer to the documentation included with your purchase or contact the manufacturer directly. Specific warranty terms and conditions may vary.
