KAMINIO MATTI Electric Fireplace Instruction Manual

1. పరిచయం

ధన్యవాదాలు, ధన్యవాదాలు.asing the KAMINIO MATTI Electric Fireplace. This freestanding electric fireplace is designed to provide both aesthetic appeal with its realistic 3D flame effect and functional heating for your living space. It features adjustable LED ambient lighting and can be conveniently controlled via a remote. Please read this manual thoroughly before installation and operation to ensure safe and efficient use.

2. భద్రతా సూచనలు

• Ensure the fireplace is connected to a grounded electrical outlet with the correct voltage.
• Do not place the fireplace near flammable materials, curtains, or furniture. Maintain adequate clearance around the unit.
• Do not cover the air vents of the fireplace, as this can lead to overheating.
• This appliance is equipped with an overheating protection system that automatically shuts off the unit if it gets too hot.
• The fireplace also features a window open detection function, which may temporarily pause heating if a sudden drop in room temperature is detected.
• There is no actual combustion, smoke, or carbon monoxide produced, making it safe for indoor use without ventilation requirements.
• ఆపరేషన్ సమయంలో పిల్లలు మరియు పెంపుడు జంతువులను ఉపకరణానికి దూరంగా ఉంచండి.
• శుభ్రపరిచే లేదా నిర్వహణకు ముందు యూనిట్‌ను అన్‌ప్లగ్ చేయండి.

3. ప్యాకేజీ విషయాలు

దయచేసి అన్ని భాగాలు ఉన్నాయని మరియు పాడవకుండా ఉన్నాయో లేదో తనిఖీ చేయండి:

• ఎలక్ట్రిక్ ఫైర్‌ప్లేస్ చొప్పించు
• Wooden Mantel/Surround Components
• రిమోట్ కంట్రోల్
• LED Ambient Light Strip
• పవర్ కేబుల్
• అసెంబ్లీ హార్డ్‌వేర్ (స్క్రూలు, నట్స్, మొదలైనవి)
• ఇన్స్ట్రక్షన్ మాన్యువల్

4. అసెంబ్లీ మరియు సెటప్

The KAMINIO MATTI Electric Fireplace is designed for straightforward assembly. It arrives in two packages: one containing the wooden mantel components and hardware, and the other containing the electric fireplace insert, power cable, and LED strip.

1. భాగాలను అన్‌ప్యాక్ చేయండి: ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తీసివేసి, గీతలు పడకుండా ఉండటానికి వాటిని మృదువైన, శుభ్రమైన ఉపరితలంపై వేయండి.
2. Assemble Wooden Mantel: Follow the detailed diagrams in the included assembly guide to construct the wooden mantel. Use a manual screwdriver for the wooden parts to avoid overtightening and damaging the engineered wood.
3. ఫైర్‌ప్లేస్ ఇన్సర్ట్‌ను ఇన్‌స్టాల్ చేయండి: Once the mantel is assembled, carefully slide the electric fireplace insert into the designated opening. Secure it using the provided screws. An electric screwdriver may be helpful for these screws, as the pilot holes can be small.
4. LED స్ట్రిప్ అటాచ్ చేయండి: Position and attach the LED ambient light strip as indicated in the assembly guide, typically along the top interior edge of the mantel.
5. ప్లేస్‌మెంట్: Place the assembled fireplace on a stable, level surface in your desired location, ensuring it is near a suitable electrical outlet and away from obstructions.
6. పవర్ కనెక్ట్ చేయండి: Plug the power cable into the fireplace and then into a grounded electrical outlet. The unit is now ready for operation (Plug & Play).

Image: KAMINIO MATTI Electric Fireplace in a living room setting, showcasing its elegant design and compact size.

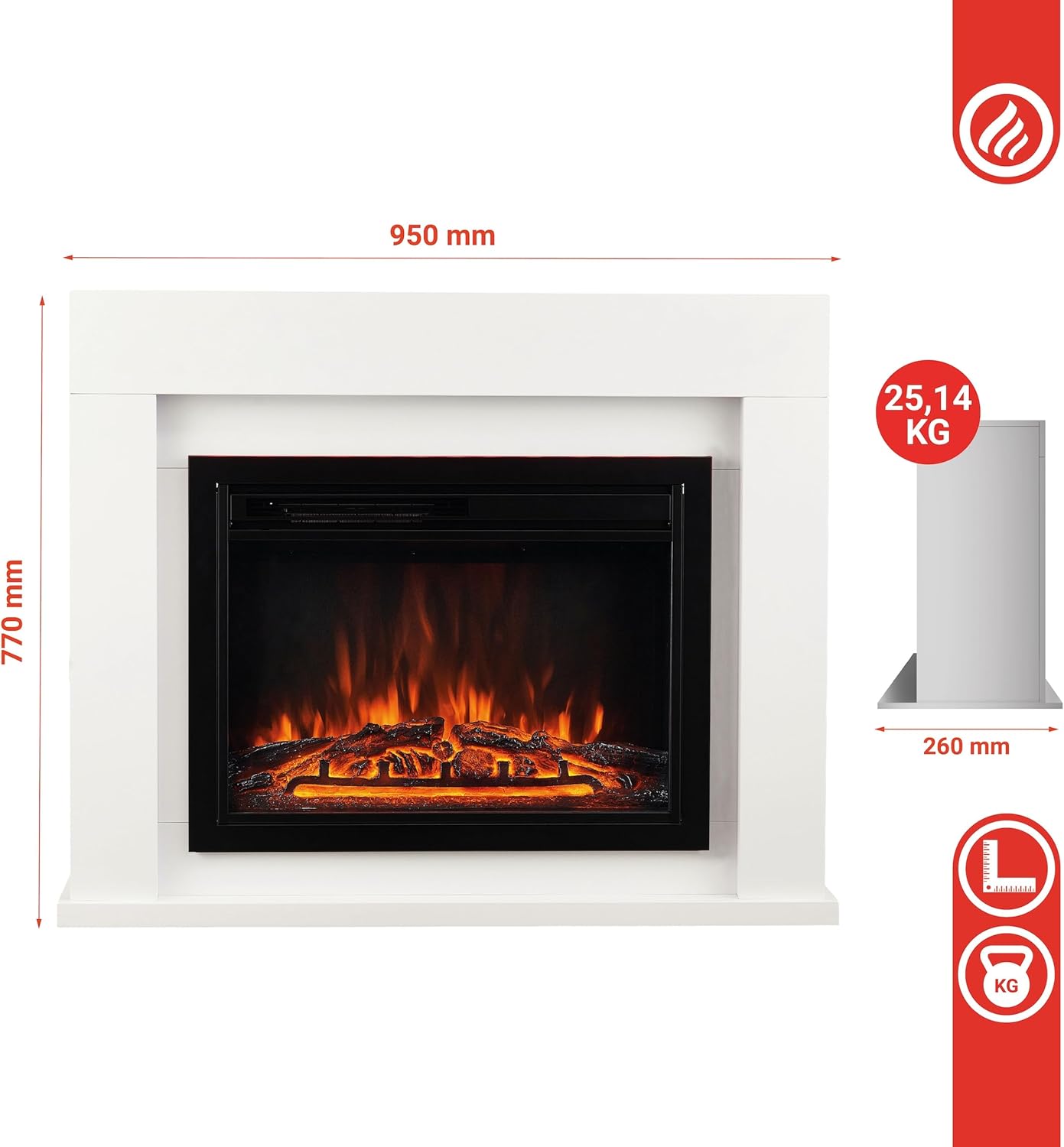

Image: Diagram illustrating the dimensions of the KAMINIO MATTI Electric Fireplace (950mm width, 770mm height, 260mm depth).

5. ఆపరేటింగ్ సూచనలు

The KAMINIO MATTI Electric Fireplace can be operated using the control panel located on the unit or the included remote control.

5.1. నియంత్రణ ప్యానెల్

The control panel is typically located on the top right side of the fireplace insert, under a small flap. It includes buttons for basic functions.

చిత్రం: క్లోజప్ view of the control panel on the fireplace insert, showing buttons for Backlight, Power, and I/O (On/Off).

5.2. రిమోట్ కంట్రోల్

The remote control provides full functionality for the fireplace. Ensure batteries are correctly inserted.

Image: The KAMINIO MATTI Electric Fireplace with its remote control, illustrating the various functions available for easy operation.

5.3. విధులు

• పవర్ ఆన్/ఆఫ్: Press the 'Power' button on the remote or the I/O switch on the control panel to turn the unit on or off.
• 3D Flame Effect: The fireplace features a realistic 3D flame effect. Use the 'DIMMER' button on the remote to cycle through 5 brightness levels for the flame.
• తాపన ఫంక్షన్: Activate the heating function using the remote. You can select between 1000W and 2000W heating levels. The thermostat allows you to set a desired room temperature between 15°C and 30°C. The heating system operates quietly.
• LED యాంబియంట్ లైట్: The fireplace includes an LED ambient light strip with 13 selectable colors. Use the 'BACKLIGHT' button on the remote to change colors or turn the ambient light on/off.
• టైమర్ ఫంక్షన్: Set a timer for automatic shutdown using the 'TIMER SET' button on the remote. This allows you to program the fireplace to turn off after a set period.
• తేదీ & సమయం: Adjust the date and time settings using the 'DATE TIME' button on the remote for scheduling functions.

చిత్రం: వివరణాత్మకం view of the realistic 3D flame effect and glowing logs, demonstrating the 5 adjustable brightness levels.

Image: Visual representation of the KAMINIO MATTI Electric Fireplace distributing warm air into a room, highlighting its heating capability.

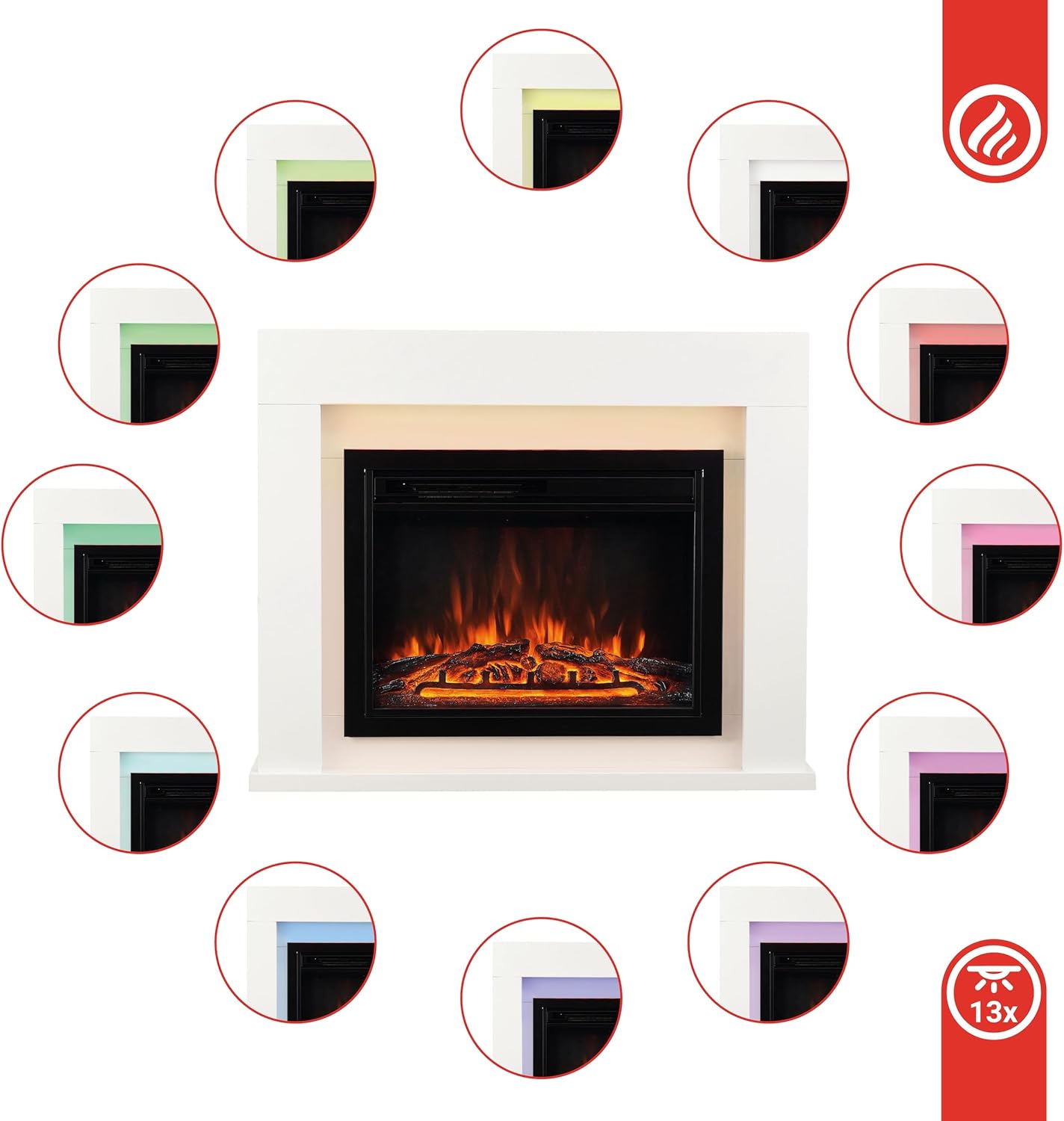

Image: The KAMINIO MATTI Electric Fireplace displaying various ambient LED light colors, illustrating the 13 available options.

6. నిర్వహణ

• శుభ్రపరచడం: Ensure the fireplace is unplugged and cool before cleaning. Use a soft, damp బాహ్య ఉపరితలాలను తుడవడానికి గుడ్డ. రాపిడి క్లీనర్లు లేదా స్ప్రేలను ఉపయోగించవద్దు.
• ఎయిర్ వెంట్స్: Regularly check and clean the air intake and outlet vents to ensure they are free from dust and debris, which can impede airflow and affect heating efficiency.
• నిల్వ: If storing the fireplace for an extended period, unplug it and cover it to protect it from dust.

7. ట్రబుల్షూటింగ్

If you encounter any issues with your KAMINIO MATTI Electric Fireplace, please refer to the following common problems and solutions:

• శక్తి లేదు: Check if the power cable is securely plugged into both the fireplace and the wall outlet. Ensure the wall outlet is functional by testing it with another appliance. Check the main power switch on the unit.
• వేడి లేదు: Verify that the heating function is activated and the thermostat is set to a temperature higher than the current room temperature. Check if the air vents are obstructed. The overheating protection or window open detection might have activated; try resetting the unit by unplugging it for a few minutes.
• No Flame Effect: Ensure the flame effect is turned on. Adjust the brightness settings using the remote control.
• రిమోట్ కంట్రోల్ పనిచేయదు: Check and replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace's sensor.
• అసాధారణ శబ్దాలు: A slight fan noise is normal during heating operation. If you hear loud or unusual noises, turn off and unplug the unit immediately and contact customer support.

For issues not covered here, please contact KAMINIO customer support.

8. స్పెసిఫికేషన్లు

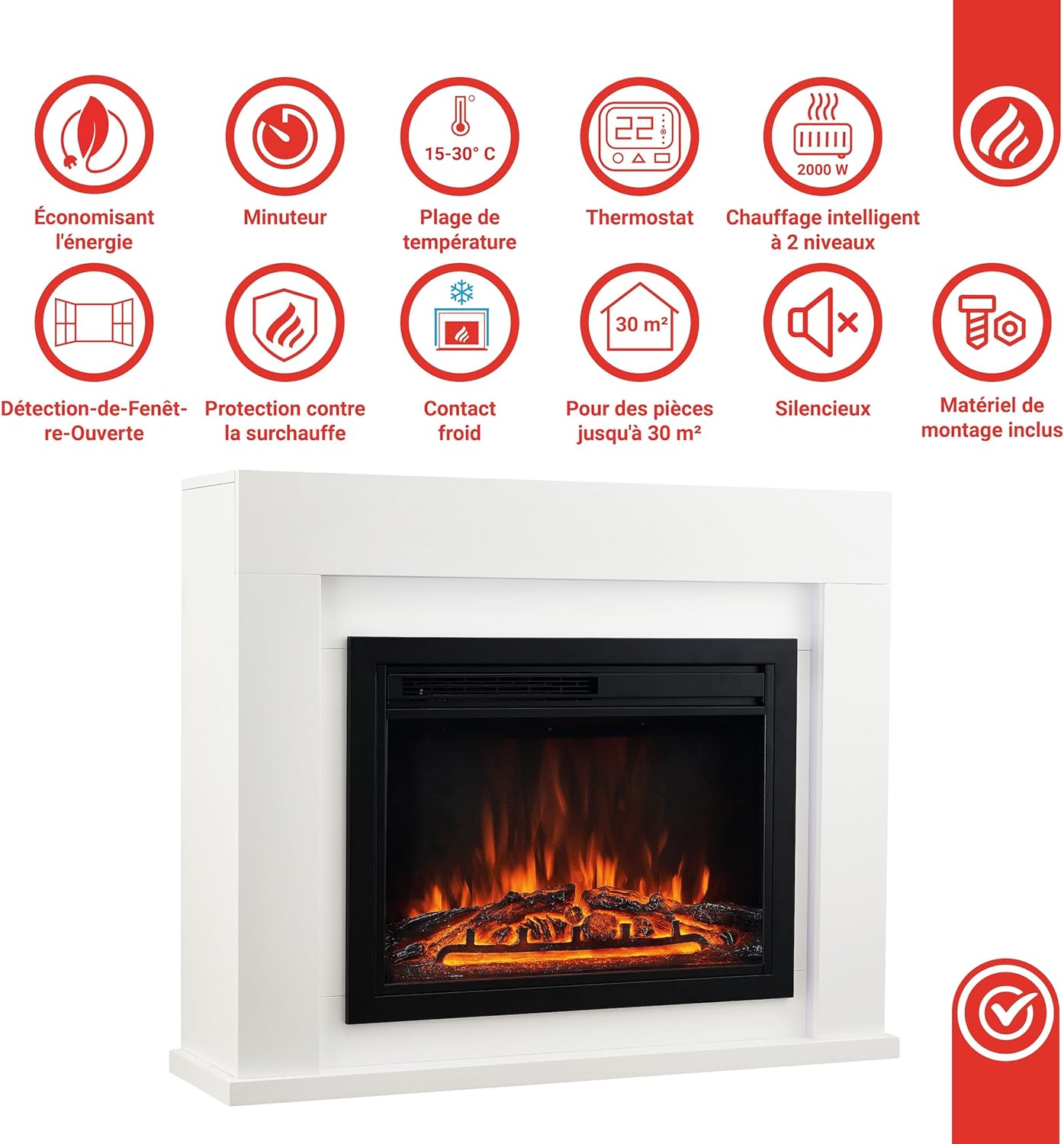

చిత్రం: పైగాview of KAMINIO MATTI Electric Fireplace features, including energy saving, timer, temperature range, thermostat, 2000W heating, open window detection, overheat protection, silent operation, and included assembly materials.

9. వారంటీ మరియు మద్దతు

KAMINIO provides spare parts availability for 3 years for this product. For any warranty claims, technical support, or questions regarding your KAMINIO MATTI Electric Fireplace, please contact your retailer or KAMINIO customer service directly. Please have your model number (E01-M01-W) and proof of purchase ready when contacting support.
