ClimaTek S1-6421651 2-Stage Control Circuit Board Instruction Manual

1. పరిచయం

This manual provides essential information for the safe and effective installation, operation, and maintenance of your ClimaTek S1-6421651 OEM Upgraded 2 Stage Control Circuit Board. This product is designed as a direct replacement for part # S1-6421651 and is compatible with York and other specified HVAC systems. Please read this manual thoroughly before proceeding with any procedures.

2. భద్రతా సమాచారం

హెచ్చరిక: సరికాని సంస్థాపన, సర్దుబాటు, మార్పు, సేవ లేదా నిర్వహణ ఆస్తి నష్టం, వ్యక్తిగత గాయం లేదా ప్రాణనష్టం కలిగించవచ్చు. ఇన్‌స్టాలేషన్ మరియు సర్వీస్ తప్పనిసరిగా అర్హత కలిగిన ఇన్‌స్టాలర్ లేదా సర్వీస్ ఏజెన్సీ ద్వారా నిర్వహించబడాలి.

• Always disconnect all electrical power to the unit before installing or servicing the control board. Failure to do so can result in electrical shock, personal injury, or death.
• అన్ని వైరింగ్ కనెక్షన్లు స్థానిక మరియు జాతీయ విద్యుత్ కోడ్‌లకు అనుగుణంగా ఉన్నాయని నిర్ధారించుకోండి.
• Do not operate the HVAC system with damaged wiring or components.
• సంస్థాపన మరియు సేవ సమయంలో తగిన వ్యక్తిగత రక్షణ పరికరాలు (PPE) ధరించండి.

3. ఉత్పత్తి ముగిసిందిview

The ClimaTek S1-6421651 is an OEM upgraded 2-stage control circuit board engineered for reliability and performance in HVAC systems. It serves as a critical component for managing the operational stages of your furnace or air handler.

ముఖ్య లక్షణాలు:

• Brand new OEM upgraded 2 Stage Control Circuit Board.
• Directly replaces Part # S1-6421651.
• Constructed with top-quality components for durability.
• Compatible with York and other relevant HVAC systems.

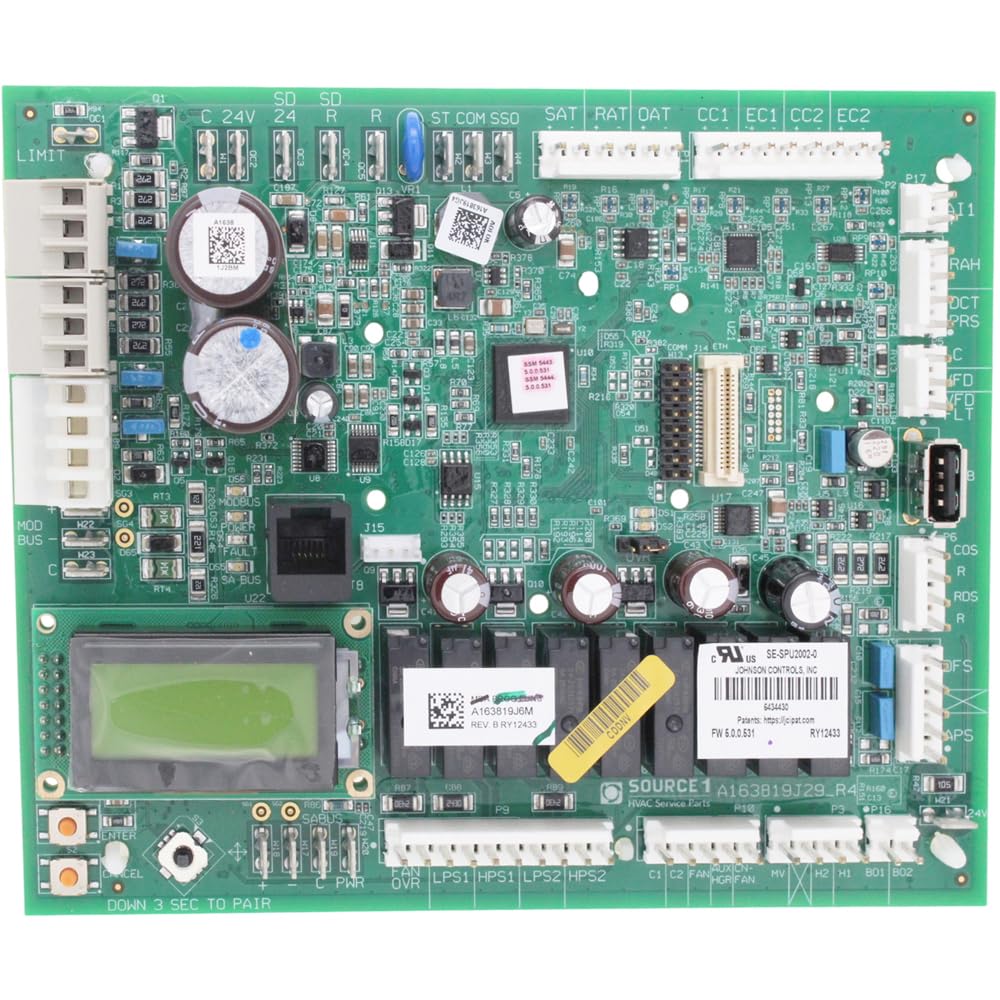

Image showing the ClimaTek S1-6421651 OEM Upgraded 2 Stage Control Circuit Board, highlighting its components and layout.

4. సంస్థాపన మరియు సెటప్

Installation of this control board should only be performed by a qualified HVAC technician. Incorrect installation can lead to system malfunction, damage, or safety hazards.

General Installation Steps (for qualified personnel):

1. పవర్ డిస్‌కనెక్ట్: Turn off all electrical power to the HVAC unit at the main service panel. Verify power is off using a voltagఇ మీటర్.
2. యాక్సెస్ కంట్రోల్ ప్యానెల్: Open the access panel to the furnace or air handler where the existing control board is located.
3. డాక్యుమెంట్ వైరింగ్: Carefully photograph or diagram all existing wiring connections to the old control board. This is crucial for correct re-connection.
4. పాత బోర్డును తొలగించండి: Disconnect all wires and mounting screws from the old control board. Remove the old board.
5. కొత్త బోర్డును ఇన్‌స్టాల్ చేయండి: Mount the new ClimaTek S1-6421651 control board in the same location using the appropriate mounting hardware.
6. వైరింగ్ కనెక్ట్ చేయండి: Reconnect all wires to the new board according to your documented wiring diagram. Ensure all connections are secure and correct.
7. ప్యానెల్ మూసివేయి: Securely close the access panel.
8. శక్తిని పునరుద్ధరించండి: Restore electrical power to the HVAC unit at the main service panel.
9. పరీక్షా వ్యవస్థ: Initiate a test cycle to ensure the HVAC system operates correctly through both stages of heating/cooling.

5. ఆపరేషన్

The ClimaTek S1-6421651 control board operates automatically within your HVAC system to manage the 2-stage heating and cooling cycles. Once properly installed and configured, it will interpret signals from the thermostat and other sensors to control the various components of the furnace or air handler, such as the blower motor, igniter, and gas valve, across two operational stages.

Users typically interact with the HVAC system through the thermostat, setting desired temperatures and modes (heat, cool, auto). The control board then executes these commands, optimizing system performance based on the 2-stage logic.

6. నిర్వహణ

The control board itself requires minimal direct user maintenance. However, regular professional maintenance of the overall HVAC system is recommended to ensure the longevity and proper functioning of all components, including the control board.

• వార్షిక తనిఖీ: Have a qualified technician inspect the HVAC system annually. During this inspection, the technician can check the control board for any signs of wear, corrosion, or loose connections.
• శుభ్రముగా ఉంచు: Ensure the area around the control board within the HVAC unit remains clean and free of dust and debris, which can impede performance or cause overheating.
• పర్యావరణ పరిస్థితులు: Protect the HVAC unit from extreme moisture or temperature fluctuations beyond its operating specifications.

7. ట్రబుల్షూటింగ్

If your HVAC system is experiencing issues after the installation of the ClimaTek S1-6421651 control board, consider the following troubleshooting steps. Always ensure power is disconnected before inspecting internal components.

సాధారణ సమస్యలు మరియు పరిష్కారాలు:

• యూనిట్‌కు విద్యుత్ లేదు:
  • Check the circuit breaker for the HVAC unit.
  • Verify all power connections to the control board are secure.
• System Not Responding to Thermostat:
  • Ensure thermostat wiring is correctly connected to the control board terminals.
  • Check the thermostat for proper settings and battery life (if applicable).
• Incorrect Staging Operation (e.g., only one stage working):
  • Verify that the thermostat is configured for 2-stagఇ ఆపరేషన్.
  • Inspect wiring for the second stage connection on both the thermostat and the control board.
• ఎర్రర్ కోడ్‌లు:
  • Many control boards have diagnostic LEDs. Refer to the specific HVAC unit's service manual for interpreting these codes.

ట్రబుల్షూటింగ్ దశలు సమస్యను పరిష్కరించకపోతే, తదుపరి రోగ నిర్ధారణ మరియు మరమ్మత్తు కోసం అర్హత కలిగిన HVAC సాంకేతిక నిపుణుడిని సంప్రదించమని సిఫార్సు చేయబడింది.

8. స్పెసిఫికేషన్లు

9. వారంటీ సమాచారం

This ClimaTek S1-6421651 control board is covered by the manufacturer's standard warranty. Please retain your proof of purchase for warranty claims. The warranty typically covers defects in materials and workmanship under normal use and service. Damage resulting from improper installation, misuse, or unauthorized repairs is not covered.

For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the seller directly.

10. మద్దతు

If you require technical assistance, have questions regarding installation, or need to report a product issue, please contact the seller or a qualified HVAC service professional.

మద్దతును సంప్రదించేటప్పుడు, దయచేసి ఈ క్రింది సమాచారాన్ని సిద్ధంగా ఉంచుకోండి:

• Product Model: S1-6421651
• కొనుగోలు తేదీ
• సమస్య యొక్క వివరణ
