VEVOR 500W 12V Horizontal Wind Turbine Generator User Manual

పరిచయం

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VEVOR 500W 12V Horizontal Wind Turbine Generator. Please read this manual thoroughly before attempting to install or operate the unit. Retain this manual for future reference.

భద్రతా హెచ్చరిక:

• Always ensure the wind turbine is installed in a location with adequate clearance from obstacles and power lines.
• Disconnect all power before performing any maintenance or inspection.
• సంస్థాపన మరియు నిర్వహణ సమయంలో తగిన వ్యక్తిగత రక్షణ పరికరాలు (PPE) ధరించండి.
• Installation should be performed by qualified personnel or under professional supervision.

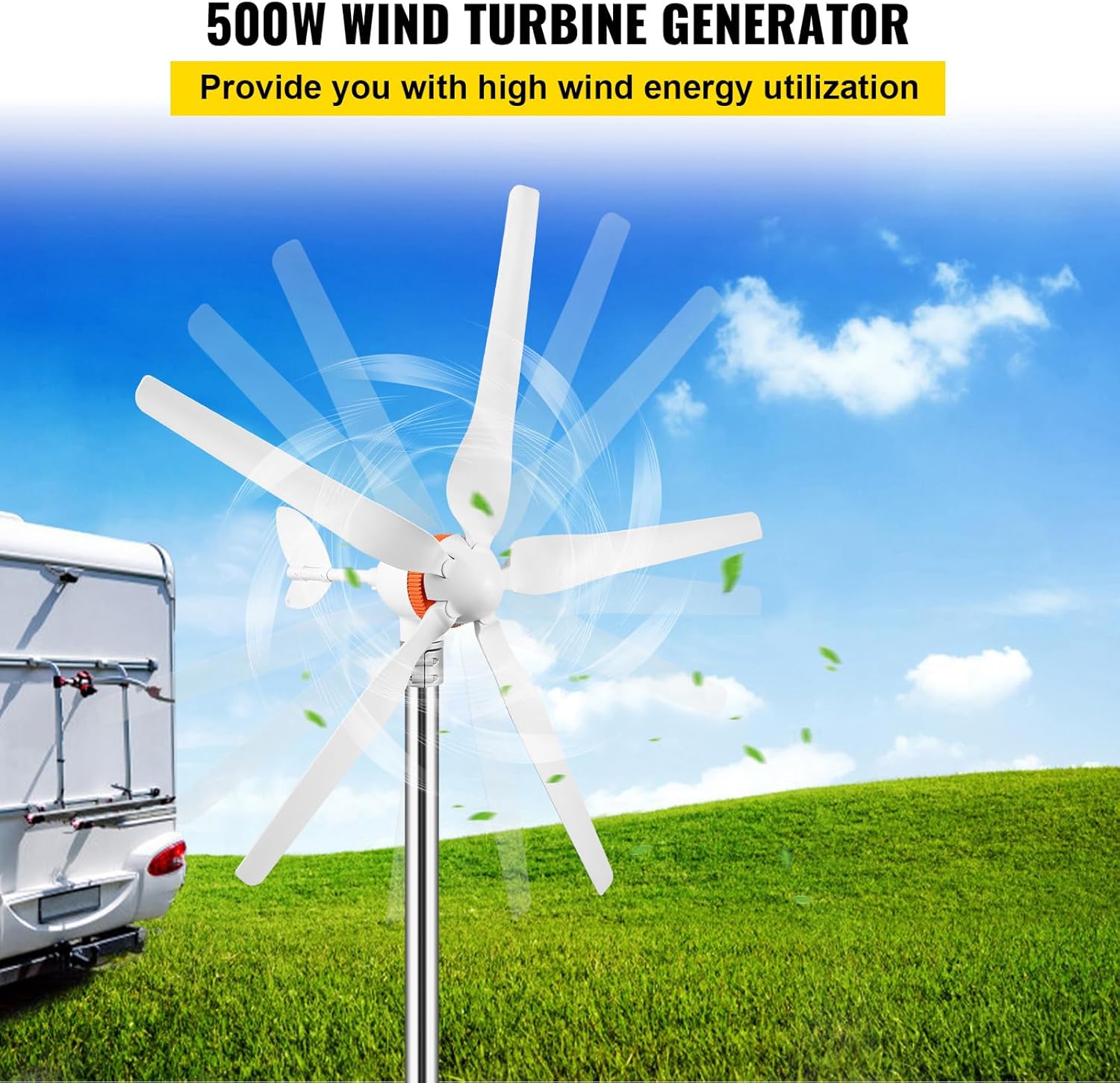

Image: The VEVOR 500W Wind Turbine Generator in an outdoor setting, demonstrating its application for power generation.

ప్యాకేజీ విషయాలు

అన్‌ప్యాక్ చేసిన తర్వాత అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి.

• 1 x Wind Turbine Generator
• 1 x MPPT Charge Controller
• 1 x Set of Screws and Nuts
• 1 x వినియోగదారు మాన్యువల్
• 5 x Nylon Blades

Image: All included components of the VEVOR Wind Turbine Generator kit, laid out for inspection. This includes the generator body, five nylon blades, the MPPT charge controller, and various fasteners and tools.

స్పెసిఫికేషన్లు

Detailed technical specifications for the VEVOR Wind Turbine Generator.

Image: A visual representation of the wind turbine's dimensions and key components, including the rotor diameter and overall length.

Image: This image highlights the efficient generator and its fittings, including the MPPT controller for optimal tracking performance and durable Teflon copper wire.

సెటప్ మరియు ఇన్‌స్టాలేషన్

Follow these steps for proper assembly and installation of the wind turbine. Ensure all safety precautions are observed.

1. Mounting the Generator Body: Secure the main generator body to a suitable pole or mast using the provided hoop design. Ensure the mounting is stable and capable of withstanding wind loads.
2. బ్లేడ్‌లను అటాచ్ చేయడం:
   • Attach each nylon blade to the hub using the screws and nuts. Ensure they are securely fastened.
   • Connect the assembled blade hub to the generator shaft.
3. Connecting the MPPT Controller: Connect the wind turbine's output wires to the MPPT charge controller. Then, connect the controller to your battery bank or load according to the wiring diagram provided with the controller. Ensure correct polarity.
4. తోక అసెంబ్లీ: Attach the stainless steel tail to the generator body. This component helps the turbine orient itself into the wind.
5. చివరి తనిఖీలు: Before operation, verify all connections are tight, and the turbine can rotate freely without obstruction.

Image: A six-step visual guide demonstrating the assembly process of the wind turbine blades onto the central hub, emphasizing secure fastening.

Image: This image illustrates the high-quality materials used in the turbine's construction, such as the cast aluminum body, stainless steel tail, and the convenient hoop design for mounting.

ఆపరేటింగ్ సూచనలు

The VEVOR Wind Turbine Generator is designed for automatic operation once properly installed and connected.

• Automatic Start-up: The turbine is designed to start generating power at a low wind speed of 2 m/s. It will automatically adjust its direction to capture the maximum wind energy.
• MPPT కంట్రోలర్: The included MPPT (Maximum Power Point Tracking) charge controller optimizes the power output from the wind turbine to efficiently charge your battery bank. Monitor the controller's display (if available) for charging status and system parameters.
• పవర్ అవుట్‌పుట్: The generator's output will vary with wind speed. It is rated for 500W at a wind speed of 13 m/s.
• బ్రేకింగ్ సిస్టమ్: The turbine features an electromagnetic braking system for safety and protection during high winds or maintenance. Refer to the MPPT controller manual for details on manual braking or automatic over-speed protection.

Image: This image details the nylon fiber blades, highlighting their lightweight and high-intensity properties, along with the double ball bearing system for low vibration and automatic windward adjustment.

నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your wind turbine.

• దృశ్య తనిఖీ (నెలవారీ): Check for any loose bolts, damaged blades, or signs of corrosion on the turbine body, tail, and mounting pole.
• Blade Cleaning (As needed): Clean the blades to remove dirt, dust, or ice buildup, which can reduce efficiency. Use a soft cloth and mild detergent if necessary.
• Electrical Connections (Annually): Inspect all electrical connections, especially at the generator, controller, and battery, to ensure they are secure and free from corrosion.
• Bearing Check (Annually): Listen for unusual noises from the generator or rotor, which could indicate bearing wear.
• Storm Preparation: In anticipation of severe weather or high winds exceeding the survival wind speed, consider engaging the turbine's braking mechanism if available, or lowering the mast if possible.

ట్రబుల్షూటింగ్

ఈ విభాగం మీరు ఎదుర్కొనే సాధారణ సమస్యలకు పరిష్కారాలను అందిస్తుంది.

వారంటీ మరియు మద్దతు

For warranty information or technical support, please contact VEVOR customer service. Keep your purchase receipt and model number (VV-FLFDJ-S7-5Y500W12VKZQ) readily available when contacting support.

You can typically find support contact details on the VEVOR official webసైట్ లేదా మీ కొనుగోలు ప్లాట్‌ఫారమ్ ద్వారా.
