జెనరిక్ F70076 ఆస్ట్రోనామికల్ రిఫ్లెక్టివ్ టెలిస్కోప్ యూజర్ మాన్యువల్

1. పరిచయం

This manual provides detailed instructions for the assembly, operation, and maintenance of your Generic F70076 Astronomical Reflective Telescope. Please read this manual thoroughly before use to ensure proper functionality and longevity of your instrument. This telescope is designed for amateur astronomers and beginners interested in observing celestial bodies such as the Moon, planets, and brighter deep-sky objects.

Image 1.1: The Generic F70076 Astronomical Reflective Telescope.

This image displays the complete telescope assembly, including the main optical tube, finderscope, and tripod mount.

2. భద్రతా సమాచారం

• హెచ్చరిక: Never look directly at the sun through your telescope or its finderscope without a professionally manufactured solar filter specifically designed for your telescope. Permanent eye damage or blindness can result. Always supervise children using the telescope.
• Do not leave the telescope unattended in direct sunlight. Sunlight focused through the telescope can damage objects or cause fires.
• Handle optical components with care to avoid scratches or damage. Avoid touching lens surfaces with bare hands.
• Ensure the tripod is stable on a level surface to prevent the telescope from tipping over.

3. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని భాగాలు మీ ప్యాకేజీలో ఉన్నాయని ధృవీకరించండి:

చిత్రం 3.1: ముగిసిందిview of all included accessories.

This image displays the complete set of components: the main body tube, tripod, attachment plate, various eyepieces, finderscope, screw set, moonlight filter, teleconverter, U-shaped frame mount, attachment plate bracket, and trimmer rod.

• Telescope Body Tube
• సర్దుబాటు త్రిపాద
• Main Bracket / U-shaped Frame Mount
• Finderscope with Bracket
• Eyepieces (e.g., 20mm, 10mm)
• Teleconverter (e.g., 2X Barlow Lens)
• Moonlight Filter
• Accessory Plate
• Screw Set for Assembly
• Trimmer Rod
• Smartphone Adapter (optional, if included)

4. కాంపోనెంట్ ఐడెంటిఫికేషన్

Familiarize yourself with the various parts of your telescope:

Image 4.1: Labeled diagram of the telescope.

This diagram identifies key components: Finderscope bracket, finderscope, eyepiece, adjustable pole, raised bar locking knob, left and right stop dog, body tube, focusing knob (bending and lifting rod screw), main bracket, horizontal locking knob, triangle base, foot stool, and accessories plate.

• Body Tube: The main optical tube of the telescope.
• ఫైండర్స్కోప్: A small telescope with a wide field of view, used for locating objects before viewing them through the main telescope.
• ఐపీస్: The lens through which you look to observe objects. Different eyepieces provide different magnifications.
• ఫోకస్సర్: Mechanism used to adjust the clarity of the image.
• Main Bracket / Mount: Supports the telescope tube and allows for movement.
• త్రిపాద: Provides a stable base for the telescope.
• Accessory Plate: A tray attached to the tripod for holding eyepieces and other accessories.

5. సెటప్

5.1. Assembling the Tripod

1. Extend the tripod legs to a suitable height. Ensure the legs are fully spread for maximum stability.
2. Attach the accessory plate to the center brace of the tripod. This will further stabilize the tripod.

5.2. Attaching the Main Bracket and Telescope Tube

1. Secure the main bracket (U-shaped frame mount) to the top of the tripod using the provided screws.
2. Carefully place the telescope body tube into the main bracket. Tighten the locking knobs on the bracket to hold the tube securely.

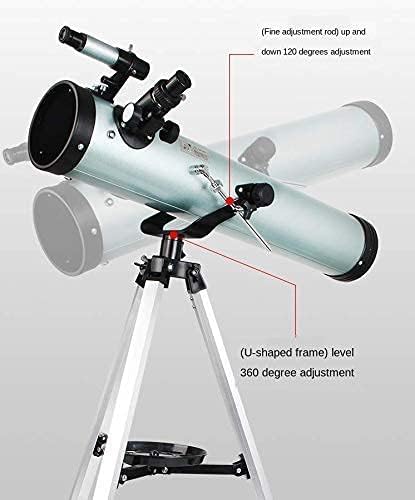

Image 5.1: Telescope mount adjustments.

This image illustrates the fine adjustment rod for vertical movement (up and down 120 degrees) and the U-shaped frame for 360-degree horizontal adjustment.

5.3. Installing the Finderscope

1. Slide the finderscope into its bracket on the main telescope tube.
2. Tighten the small screws on the finderscope bracket to secure it.

5.4. Inserting an Eyepiece

1. Loosen the thumbscrews on the focuser.
2. Insert the desired eyepiece (e.g., 20mm for lower magnification and wider field of view) into the focuser.
3. ఐపీస్‌ని ఉంచడానికి థంబ్‌స్క్రూలను బిగించండి.
4. If using a teleconverter (Barlow lens), insert it into the focuser first, then insert the eyepiece into the teleconverter.

5.5. Attaching a Smartphone Adapter (Optional)

If your package includes a smartphone adapter, follow these steps to attach it for astrophotography:

Image 5.2: Smartphone adapter setup.

This image demonstrates how to attach a smartphone to the telescope. First, aim the camera lens of the phone at the eyepiece. Then, tighten the adapter's screws to secure the phone in position.

1. Mount your smartphone securely into the adapter.
2. Align your phone's camera lens with the center of the telescope's eyepiece.
3. Tighten the adapter's screws to hold the phone in position.

6. ఆపరేటింగ్ సూచనలు

6.1. Aligning the Finderscope

Before observing, the finderscope must be aligned with the main telescope. This is best done during daylight hours:

1. Point the main telescope at a distant, stationary object (e.g., a treetop or building) at least a quarter-mile away.
2. ప్రధాన టెలిస్కోప్ యొక్క ఐపీస్‌లో వస్తువును మధ్యలో ఉంచండి.
3. Look through the finderscope. Use the adjustment screws on the finderscope bracket to move its crosshairs until they are centered on the same object.
4. Check alignment by switching between the main telescope and finderscope. Repeat until both are perfectly aligned.

6.2. దృష్టి కేంద్రీకరించడం

Once an object is centered in the eyepiece, turn the focusing knob slowly until the image is sharp and clear. For fine adjustments, use the bending and lifting fine-tuning knob if available.

6.3. మాగ్నిఫికేషన్‌ను మార్చడం

Magnification is determined by the focal length of the telescope divided by the focal length of the eyepiece. To change magnification, simply swap eyepieces. A lower focal length eyepiece provides higher magnification.

• Start with the lowest magnification eyepiece (highest focal length, e.g., 20mm) to locate and center objects.
• Once centered, switch to a higher magnification eyepiece (lower focal length, e.g., 10mm) for more detailed views.
• The teleconverter (Barlow lens) doubles the magnification of any eyepiece it is used with.

6.4. ఫిల్టర్లను ఉపయోగించడం

Filters can enhance observations by reducing glare or improving contrast.

• Moonlight Filter: This filter reduces the brightness of the Moon, making it more comfortable to observe and revealing subtle surface details. Screw it onto the bottom of your eyepiece before inserting the eyepiece into the focuser.
• Solar Filter: A specialized solar filter (not included, must be purchased separately and professionally manufactured) is required for safe solar observation. Never use the moonlight filter for solar observation.

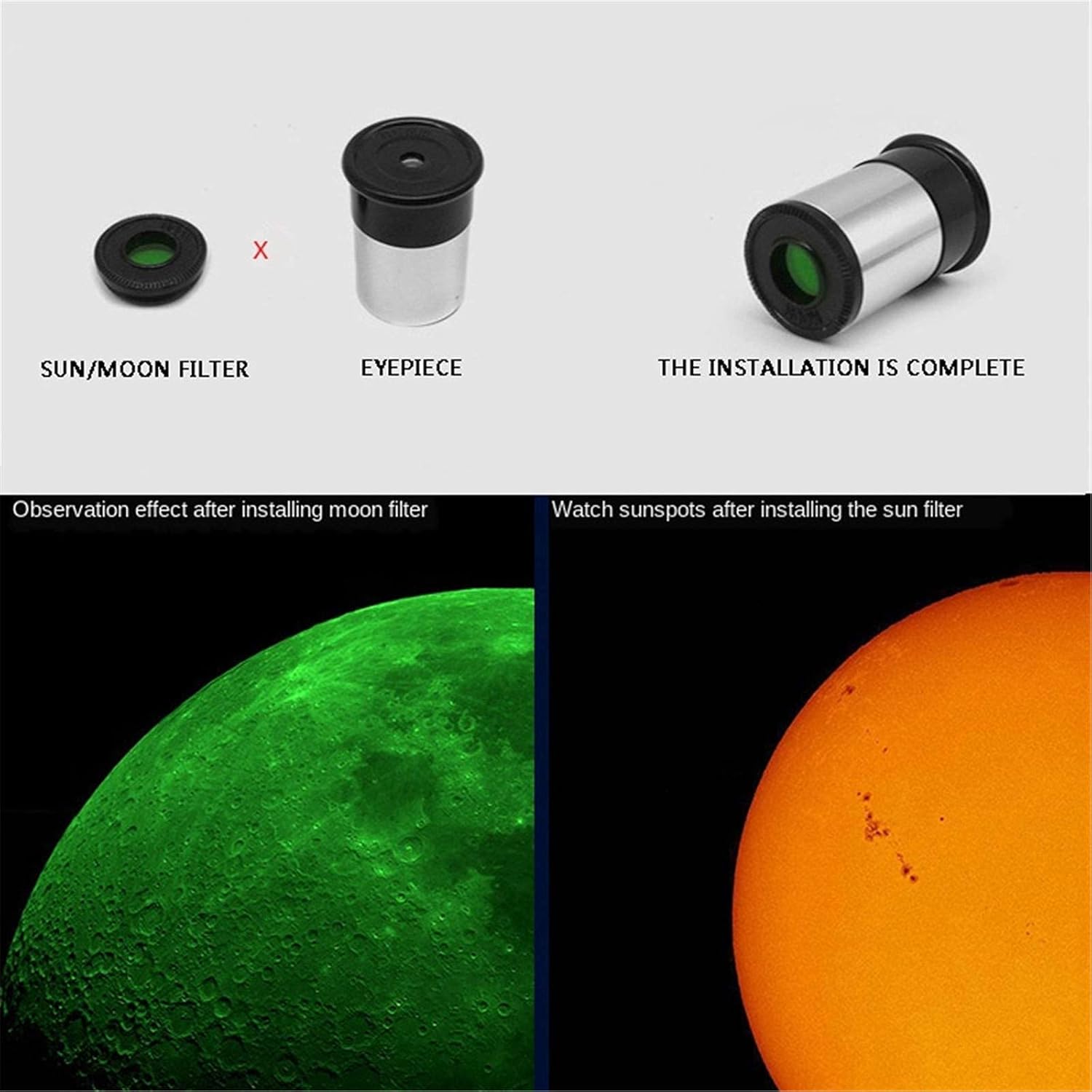

Image 6.1: Filter effects.

This image illustrates the observation effect after installing a moon filter (left, showing a green-tinted Moon with enhanced detail) and the appearance of sunspots after installing a proper sun filter (right, showing the Sun's surface with visible sunspots).

7. నిర్వహణ

• లెన్స్‌లను శుభ్రపరచడం: Use a soft, lint-free cloth specifically designed for optical lenses. Breathe lightly on the lens surface and gently wipe in a circular motion. For stubborn smudges, use a small amount of optical cleaning fluid on the cloth, not directly on the lens.
• అద్దం శుభ్రపరచడం: The primary mirror is delicate. Avoid touching it. If cleaning is absolutely necessary, consult a professional or refer to specialized guides for reflective telescope mirror cleaning.
• నిల్వ: Store the telescope in a dry, dust-free environment. Use the original packaging or a telescope case to protect it from dust and impacts. Avoid extreme temperature changes.
• సాధారణ సంరక్షణ: Regularly check all screws and knobs for tightness. Do not overtighten.

8. ట్రబుల్షూటింగ్

9. స్పెసిఫికేషన్లు

Image 9.1: Telescope aperture illustration.

This image highlights the large aperture of the telescope, which is 114mm according to product specifications, crucial for clear and bright imaging.

• మోడల్: F70076
• బ్రాండ్: సాధారణమైనది
• ఆబ్జెక్టివ్ లెన్స్ వ్యాసం: 114 మిల్లీమీటర్లు
• టెలిస్కోప్ మౌంట్ వివరణ: అల్టాజిముత్ మౌంట్
• ఫోకస్ రకం: మాన్యువల్ ఫోకస్
• ఐ పీస్ లెన్స్ వివరణ: జూమ్ చేయండి
• రంగంలో View: 0.33 డిగ్రీలు
• జూమ్ నిష్పత్తి: Up to 350x (with included accessories)
• అనుకూల పరికరాలు: Camera (via adapter)

10. వారంటీ మరియు మద్దతు

For any questions, technical assistance, or support regarding your Generic F70076 Astronomical Reflective Telescope, please contact the seller or manufacturer. While specific warranty details are not provided in this manual, please retain your proof of purchase for any potential warranty claims.
