LiberLive Portable Tankless Water Heater User Manual

1. పరిచయం

The LiberLive Portable Tankless Water Heater is designed to provide instant hot water for various outdoor and off-grid applications. Its compact and lightweight design makes it ideal for RV trips, camping, boat cabins, outdoor showers, and other activities where a reliable source of hot water is needed. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your water heater.

This image displays the LiberLive portable tankless water heater in black, shown with its gas regulator and shower head connected, ready for outdoor use.

This image illustrates the versatility of the water heater, showing its use for hot water during camping trips, outdoor showers, RV recreation, and pet bathing.

2. భద్రతా సమాచారం

Your safety is paramount. Please read and understand all safety warnings and instructions before operating this appliance. Failure to follow these instructions may result in property damage, personal injury, or death.

• బాహ్య వినియోగం కోసం మాత్రమే: This water heater is designed exclusively for portable outdoor use. Prolonged exposure to rain or water may damage internal components. Store in a dry area.
• Propane (LPG) Only: This appliance is designed for use with propane gas only. Do not attempt to use any other fuel.
• గ్యాస్ లీక్ తనిఖీలు: Always check for gas leaks before each use. Do not wrap tape between the gas regulator and the inlet pipe, as this can lead to poor sealing and gas leakage. Improper operation may cause the water heater to ignite unsafely.
• వేడెక్కడం రక్షణ: The unit is equipped with overheating protection, which automatically shuts off the water heater if the temperature exceeds 185°F (85°C).
• CSA సర్టిఫికేట్: This product is CSA certified and meets Canadian and U.S. safety standards, including flame failure protection, dry combustion protection, anti-freeze protection, high water pressure protection, and low water flow protection.
• వెంటిలేషన్: Ensure adequate ventilation during operation to prevent carbon monoxide buildup.

This image visually represents the six integrated safety features of the water heater: overheat protection, flame failure protection, anti-freezing protection, dry combustion protection, low water flow protection, and high water pressure protection, ensuring safe operation.

3. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని వస్తువులు మీ ప్యాకేజీలో చేర్చబడ్డాయని దయచేసి ధృవీకరించండి:

• 1 x Portable Tankless Water Heater
• 1 x 5 Feet Shower Head and Hose (with 5 spray patterns)
• 1 x 5 Feet CSA Certified Gas Regulator
• 1 x Hardware Packs
• 1 x యూజర్స్ మాన్యువల్

This image displays the main accessories included with the water heater: the gas regulator and the complete shower head set.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

Installation of your LiberLive portable water heater is designed to be quick and straightforward. Follow these steps for proper setup:

1. వాటర్ హీటర్‌ను వేలాడదీయండి: Use the integrated folding handle to hang the water heater securely in a well-ventilated outdoor area.
2. బ్యాటరీలను వ్యవస్థాపించండి: Open the battery compartment and insert two D-size batteries (not included) according to the polarity indicators. These batteries power the ignition system.
3. నీటి ప్రవేశద్వారాన్ని కనెక్ట్ చేయండి: Attach your cold water supply hose to the water inlet connection (typically marked 'Cold' or blue). Ensure a secure, leak-free connection. The unit requires only 3.6 PSI of water pressure to start.
4. Connect Water Outlet/Shower Kit: Connect the provided shower head and hose to the hot water outlet connection (typically marked 'Hot' or red).
5. Connect Gas Regulator: Attach the CSA certified gas regulator hose to the gas inlet connection on the water heater. Then, connect the other end of the gas regulator to your propane tank. Ensure all gas connections are tight and check for leaks using a soapy water solution before operation.

This diagram provides a clear, step-by-step guide for installing the water heater, detailing how to attach the water hose, shower kit, gas regulator, and insert the D-size batteries.

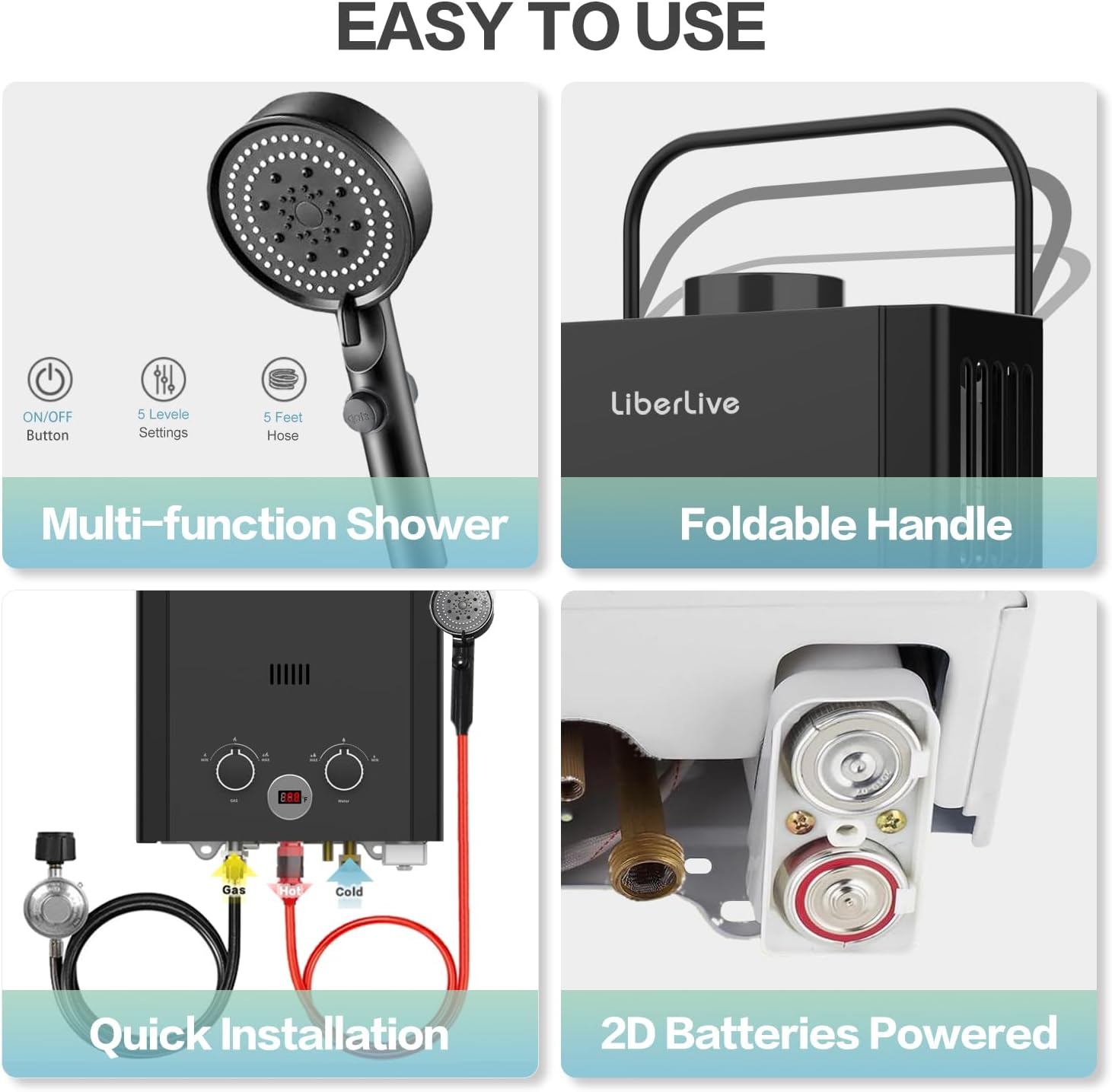

This image highlights the user-friendly aspects of the water heater, including its multi-function shower, convenient foldable handle, quick installation process, and power source from two D batteries.

5. ఆపరేటింగ్ సూచనలు

Once installed and all connections are secure, you can begin operating your water heater:

• నీటి సరఫరాను ప్రారంభించండి: Open the cold water supply valve to allow water to flow through the unit. The water heater will only ignite when sufficient water flow is detected.
• Open Propane Supply: Slowly open the valve on your propane tank.
• నియంత్రణలను సర్దుబాటు చేయండి: Use the two control knobs on the front panel to adjust the gas flow and water flow. The గ్యాస్ నాబ్ controls the heat output, and the నీటి బటన్ controls the water flow rate. Adjusting these will affect the final water temperature.
• LED డిజిటల్ డిస్‌ప్లే: The integrated LED display will show the accurate water temperature, allowing you to fine-tune settings for your desired comfort level.
• Shower Head Operation: The included shower head features an ON/OFF button and 5 spray patterns (Spray, Soft, Rain, Surfing, Pulse) for versatile use.

This image provides a closer look at the water heater's design, showcasing its screw-free back shell, anti-backflow exhaust system, the gas and water control knobs on the front panel, and the compartment for two D-size batteries.

ఈ చిత్రం వివరణాత్మకమైన view of the multi-function shower head, highlighting its ON/OFF button, five adjustable spray patterns, and the 5-foot hose for convenient use.

6. నిర్వహణ

Proper maintenance ensures the longevity and safe operation of your water heater:

• Storage in Cold Environments: If the water heater is to be stored in a cold environment or not in use for an extended period, it is crucial to drain the unit to prevent freezing and damage to the heat exchanger or water valve.
• Draining Procedure: Disconnect all water inlet and outlet pipes. Turn the drain valve on the lower right side of the water heater counterclockwise to open it and allow all water to drain completely.
• Disconnect Gas: Always disconnect the gas supply when the water heater is not in use.
• శుభ్రమైన బాహ్య: ప్రకటనతో బాహ్య భాగాన్ని తుడిచివేయండిamp అవసరమైనంతవరకు వస్త్రం. రాపిడి క్లీనర్లను ఉపయోగించవద్దు.

7. ట్రబుల్షూటింగ్

మీ వాటర్ హీటర్‌తో మీరు సమస్యలను ఎదుర్కొంటే, ఈ క్రింది సాధారణ సమస్యలు మరియు పరిష్కారాలను చూడండి:

• వేడి నీరు లేదు / యూనిట్ మండటం లేదు:
  • Ensure water supply is on and sufficient water pressure (minimum 3.6 PSI) is present.
  • Check that the propane tank valve is fully open and the tank contains propane.
  • Verify that the D-size batteries are correctly installed and have sufficient charge.
  • Confirm all gas and water connections are secure and leak-free.
• అస్థిరమైన నీటి ఉష్ణోగ్రత:
  • Adjust the gas and water flow knobs on the front panel to find the desired temperature balance.
  • Ensure consistent water pressure from your supply.
• Gas Odor / Flames Outside Unit:
  • IMMEDIATELY turn off the gas supply.
  • సబ్బు నీటి ద్రావణాన్ని ఉపయోగించి అన్ని గ్యాస్ కనెక్షన్లలో లీకేజీలు ఉన్నాయా అని తనిఖీ చేయండి. బుడగలు లీకేజీని సూచిస్తాయి.
  • Do not operate the unit if you detect a gas leak or see flames outside the combustion chamber. Contact qualified personnel for inspection and repair.
• తక్కువ నీటి ప్రవాహం:
  • Check your water supply pressure.
  • Ensure the water flow knob on the unit is set to maximum.
  • Inspect the shower head for any blockages or mineral buildup.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

Your LiberLive Portable Tankless Water Heater comes with a 1 సంవత్సరాల వారంటీ from the date of purchase. This warranty covers manufacturing defects and ensures reliable performance under normal use conditions.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact LiberLive customer support. Refer to the contact information provided with your purchase documentation or visit the official LiberLive webమద్దతు వివరాల కోసం సైట్.
