Dskeuzeew Power Tower DPT01 - User Manual

1. పరిచయం

Thank you for choosing the Dskeuzeew Power Tower DPT01. This multifunctional workout station is designed to provide a comprehensive strength training experience in your home. It features a robust structure, adjustable height, and versatile exercise options for various muscle groups. Please read this manual carefully before assembly and use to ensure safe and effective operation.

2. భద్రతా సమాచారం

హెచ్చరిక: ఈ భద్రతా సూచనలను పాటించడంలో విఫలమైతే తీవ్రమైన గాయం లేదా ఆస్తి నష్టం సంభవించవచ్చు.

• ఏదైనా వ్యాయామ కార్యక్రమాన్ని ప్రారంభించే ముందు వైద్యుడిని సంప్రదించండి.
• ప్రతి ఉపయోగం ముందు అన్ని బోల్ట్‌లు, నట్‌లు మరియు కనెక్షన్‌లు సురక్షితంగా బిగించబడ్డాయని నిర్ధారించుకోండి.
• Place the Power Tower on a flat, stable, and non-slip surface.
• ఉపయోగించే సమయంలో పిల్లలు మరియు పెంపుడు జంతువులను పరికరాలకు దూరంగా ఉంచండి.
• గరిష్ట బరువు సామర్థ్యాన్ని మించకూడదు 205 కిలోలు (450 పౌండ్లు).
• తగిన అథ్లెటిక్ దుస్తులు మరియు పాదరక్షలను ధరించండి.
• మీకు నొప్పి, తలతిరుగుడు లేదా వికారం అనిపిస్తే వెంటనే వ్యాయామం ఆపండి.
• Inspect the equipment regularly for wear and tear. Replace damaged parts immediately.

3. ప్యాకేజీ విషయాలు

Before assembly, verify that all components are present and undamaged:

• Steel tube frame components
• Pull-up bar
• Dip station components
• Training ropes (2)
• అసెంబ్లీ హార్డ్‌వేర్ (బోల్ట్లు, నట్లు, వాషర్లు, ఉపకరణాలు)
• వినియోగదారు మాన్యువల్

4. సెటప్ సూచనలు

Follow these steps for proper assembly of your Dskeuzeew Power Tower. It is recommended to have two people for assembly.

1. భాగాలను అన్‌ప్యాక్ చేయండి: ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తీసివేసి, వాటిని శుభ్రమైన, చదునైన ఉపరితలంపై వేయండి. ప్యాకేజీ విషయాల జాబితాను తనిఖీ చేయండి.
2. బేస్ ఫ్రేమ్‌ను సమీకరించండి: Connect the horizontal and vertical base frame components using the provided hardware. Ensure the H-type stable base is correctly oriented.
3. నిటారుగా ఉండే మద్దతులను అటాచ్ చేయండి: Secure the main upright supports to the base frame. Do not fully tighten bolts until all major components are in place.
4. Install Dip Station: Attach the dip station arms and backrest support to the uprights. Adjust the backrest to your preferred position (6 adjustable backrest positions available).
5. Mount Pull-Up Bar: Secure the pull-up bar to the top of the upright supports. Ensure it is level and stable.
6. Attach Training Ropes: Connect the training ropes to the designated attachment points on the frame.
7. తుది బిగింపు: Once all components are assembled, systematically tighten all bolts and nuts. Ensure the non-slip suction cups on the base are firmly pressed against the floor for maximum stability.

This image illustrates the Dskeuzeew Power Tower's robust steel frame and stable design. It highlights the non-slip suction cups at the base for enhanced stability and the H-type stable base structure, ensuring a secure workout environment.

5. ఆపరేటింగ్ సూచనలు

The Dskeuzeew Power Tower offers a variety of exercises. Always perform a warm-up before your workout.

5.1 ఎత్తు సర్దుబాటు

The Power Tower features 12 adjustable height levels, ranging from 170 cm to 220 cm (approximately 5.6 ft to 7.2 ft). To adjust the height:

1. Locate the adjustment pins on the upright supports.
2. Pull out the pins and slide the upper section of the frame to the desired height.
3. Ensure the pins fully re-engage into the corresponding holes at the new height. Verify stability before use.

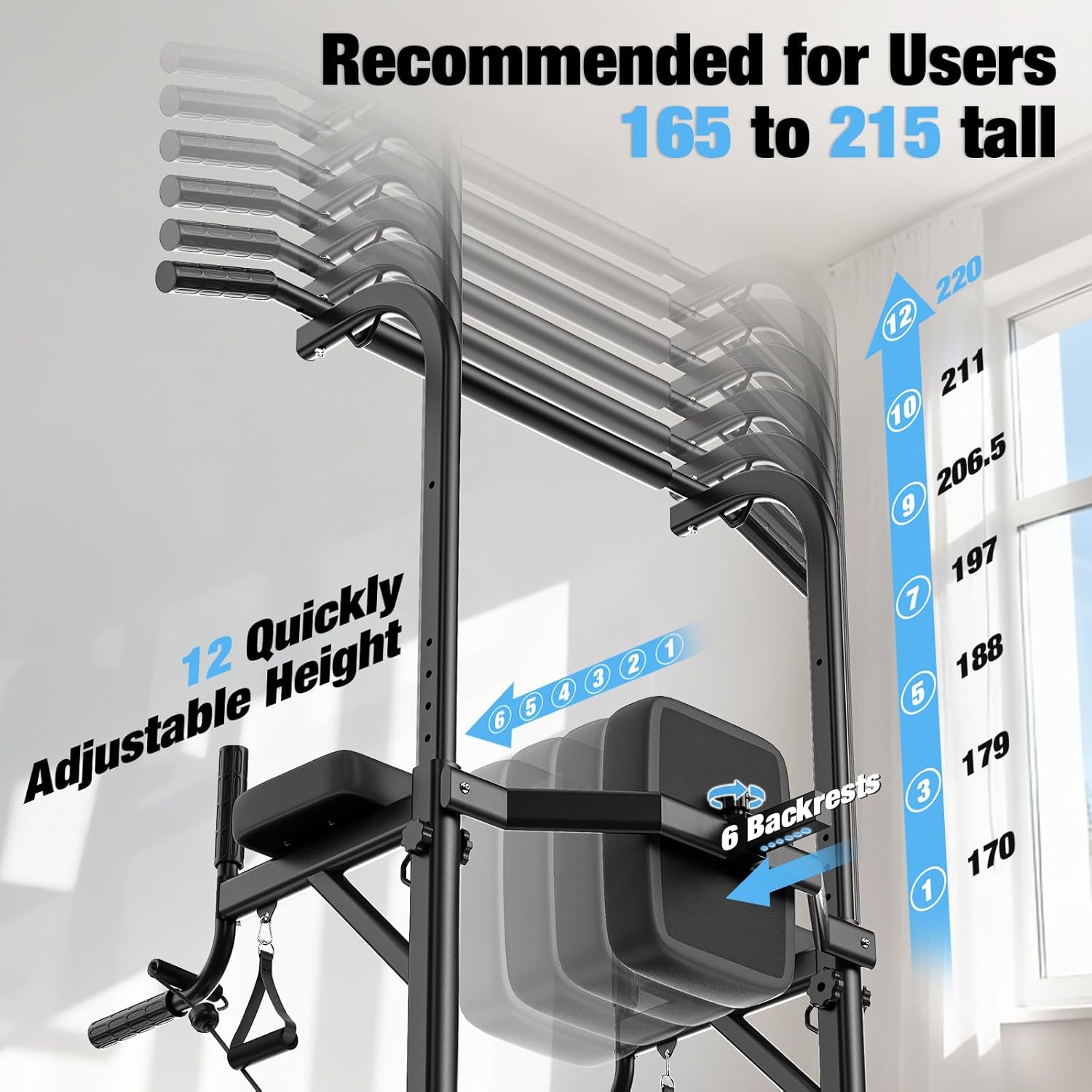

This image details the Dskeuzeew Power Tower's adjustable features. It shows the 12 quickly adjustable height levels, ranging from 170 cm to 220 cm, accommodating various user heights. Additionally, it highlights the 6 adjustable backrest positions for customized comfort and support during exercises.

5.2. Exercise Exampలెస్

The Dskeuzeew Power Tower allows you to target various muscle groups:

• పుల్-అప్స్/చిన్-అప్స్: Use the top bar to work your back, biceps, and shoulders. The high-density foam grips provide comfort.
• డిప్స్: Utilize the dip handles to train your triceps, chest, and shoulders. The padded handles offer additional comfort.
• Leg Raises/Knee Raises: Position your forearms on the padded armrests and back against the back support to target your abdominal muscles. The thickened elbow pads prevent scraping.
• పుష్-అప్స్: Use the lower handles for elevated push-ups, increasing range of motion and targeting chest and triceps.
• రెసిస్టెన్స్ బ్యాండ్ వ్యాయామాలు: Attach resistance bands to the frame or use the included training ropes for additional exercises.

This image emphasizes the comfort and durability features of the Dskeuzeew Power Tower. It showcases the thickened elbow pads designed to prevent discomfort and scraping during workouts. The illustration also compares the benefits of exercising with and without back support, highlighting the ergonomic design for user comfort.

This image demonstrates the Dskeuzeew Power Tower's impressive maximum load capacity of 205 kg (450 lbs). It visually confirms the superior stability provided by the robust construction, allowing users to perform exercises like pull-ups safely.

6. నిర్వహణ

Regular maintenance ensures the longevity and safety of your Power Tower.

• శుభ్రపరచడం: ఫ్రేమ్ మరియు ప్యాడ్ చేసిన ప్రాంతాలను ప్రకటనతో తుడవండిamp ప్రతి ఉపయోగం తర్వాత చెమట మరియు మురికిని తొలగించడానికి వస్త్రాన్ని ఉంచండి. అవసరమైతే తేలికపాటి సబ్బును ఉపయోగించండి, తరువాత పొడిగా తుడవండి.
• తనిఖీ: Periodically check all bolts, nuts, and connections for tightness. Retighten as needed.
• వేర్ అండ్ టియర్: Inspect padded areas, grips, and training ropes for any signs of wear, cracks, or damage. Replace worn parts immediately to prevent injury.
• నిల్వ: Store the Power Tower in a dry, cool place away from direct sunlight and extreme temperatures.

7. ట్రబుల్షూటింగ్

If you encounter issues with your Dskeuzeew Power Tower, refer to the following common solutions:

• అస్థిరత/తడబాటు: Ensure the Power Tower is on a flat, level surface. Check that all assembly bolts are fully tightened. Verify the non-slip suction cups are making full contact with the floor.
• కీచు శబ్దాలు: Identify the source of the squeak. It is often caused by loose connections. Tighten all bolts and nuts. Applying a small amount of silicone lubricant to pivot points may also help.
• ఎత్తు సర్దుబాటు చేయడంలో ఇబ్బంది: Ensure the adjustment pins are fully disengaged before attempting to slide the frame. Check for any obstructions in the adjustment holes.
• దెబ్బతిన్న/తప్పిపోయిన భాగాలు: Refer to the Customer Support section for assistance with damaged or missing components.

8. స్పెసిఫికేషన్లు

This image provides a clear overview of the Dskeuzeew Power Tower's dimensions, emphasizing its minimal space requirement. It displays key measurements such as the adjustable height range (170-220 cm), overall width (94 cm), and base footprint (104 cm length x 89 cm width), aiding users in planning their workout space.

9. వారంటీ సమాచారం

The Dskeuzeew Power Tower DPT01 comes with a పరిమిత వారంటీ. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or improper assembly.

10. కస్టమర్ మద్దతు

Dskeuzeew is committed to providing professional and friendly customer service. If you have any questions, concerns, or require assistance with your Power Tower, please do not hesitate to contact us.

If your product arrives damaged, scratched, or with incomplete parts, please contact our customer service team immediately. We are dedicated to resolving any issues promptly to ensure your satisfaction.

For support, please refer to the contact information provided with your purchase or visit the official Dskeuzeew brand store online.
