Generic LCR-P1 Transistor Tester User Manual

1. పరిచయం

The Generic LCR-P1 Transistor Tester is a versatile electronic component testing device designed for efficient identification and measurement of various components. It features intelligent identification, anti-burn protection, and a replaceable patch holder, making it suitable for a wide range of testing needs, including transistors, diodes, capacitors, resistors, inductors, and battery voltage.

2. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని వస్తువులు మీ ప్యాకేజీలో చేర్చబడ్డాయని దయచేసి ధృవీకరించండి:

• 1x LCR-P1 Transistor Tester
• 1x Patch Test Board
• 1x Data Cable (Type-C)
• 1x Description (Manual)
• 3x Test Hooks

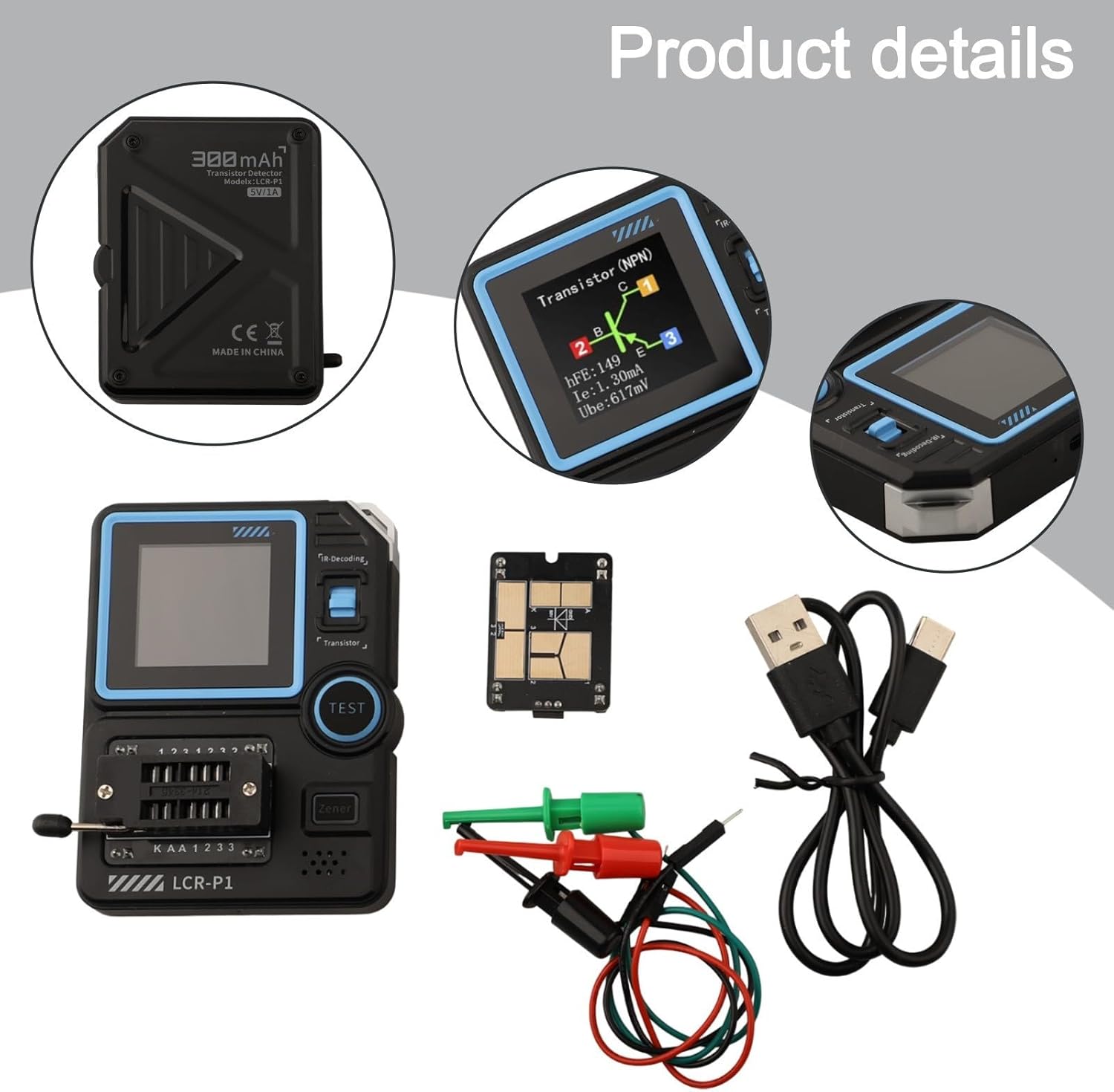

Image 2.1: The LCR-P1 Transistor Tester along with its included accessories: a Type-C data cable, a patch test board, and three test hooks.

3. ఉత్పత్తి లక్షణాలు

• Efficient Component Identification: Automatically identifies device parameters with a single button press upon insertion.
• Anti-Burn Protection: Features a mechanism to discharge undischarged capacitors upon insertion, protecting the meter.
• Replaceable Patch Holder: Innovative design allows for easy adaptation to various testing requirements.
• Infrared Signal Decoding: Supports decoding of infrared signals, useful for remote control testing.
• Precise Zener Diode Testing: Dedicated measurement channel for Zener diodes, with a measurable range of 0.01-32V.
• కాంపాక్ట్ మరియు పోర్టబుల్ డిజైన్: Small and lightweight for easy transport and use anywhere.

చిత్రం 3.1: వివరణాత్మకమైనది view of the LCR-P1 tester, showing its screen, patch holder, and the Type-C charging port. The back of the device indicates a 300mAh battery.

Image 3.2: The LCR-P1 Transistor Tester displayed with its patch test board, test hooks, and Type-C data cable, highlighting the complete set of components.

4. సెటప్

1. అన్‌ప్యాకింగ్ మరియు తనిఖీ: Carefully remove all components from the packaging. Inspect the tester and accessories for any visible damage.
2. ప్రారంభ ఛార్జింగ్: Before first use, ensure the device is fully charged. Connect the provided Type-C data cable to the tester's charging port and a 5V/1A power source. The battery capacity is 300mAh.
3. Connecting Test Accessories:
   • Patch Test Board: For surface-mount components or specific test configurations, insert the patch test board into the designated socket on the tester.
   • Test Hooks: For through-hole components or connecting to larger circuits, attach the test hooks to the appropriate terminals on the tester or patch test board.

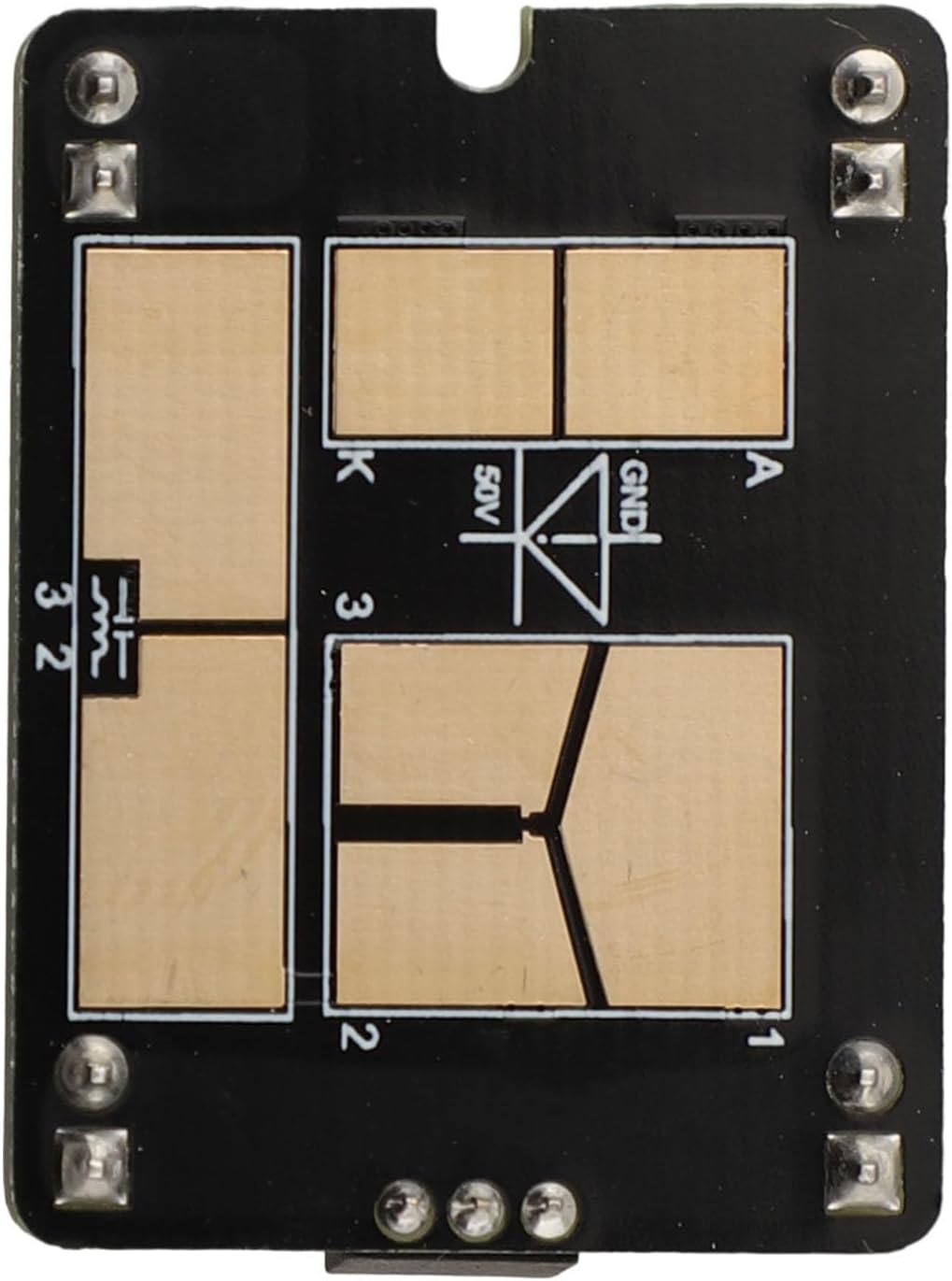

చిత్రం 4.1: క్లోజప్ view of the replaceable patch test board, showing its contact pads and markings for component placement.

5. ఆపరేటింగ్ సూచనలు

The LCR-P1 Transistor Tester is designed for straightforward operation. Always ensure the component to be tested is discharged, especially capacitors, to prevent damage to the tester.

1. పవర్ ఆన్/ఆఫ్: Press the 'TEST' button to power on the device. The device will automatically power off after a period of inactivity to conserve battery.
2. Component Testing (General):
   • Insert the component leads into the ZIF (Zero Insertion Force) socket or connect via test hooks/patch board.
   • మెల్లగా clamp భాగం.
   • Press the 'TEST' button. The tester will automatically identify the component type (e.g., transistor, diode, resistor, capacitor, inductor) and display its parameters on the 1.44-inch screen.


   Image 5.1: A close-up of the LCR-P1 tester's screen displaying the results of a transistor test, including NPN type, hFE, collector current (Ic), and base-emitter voltage (Ube).

3. Zener Diode Testing: For Zener diodes, ensure the device is powered on. The tester has a dedicated channel for Zener diodes, allowing measurement within the 0.01-32V range. Connect the Zener diode to the appropriate terminals and press 'TEST'.
4. Infrared (IR) Decoding: The tester supports infrared signal decoding. Point an IR remote control towards the IR receiver on the tester and press a button on the remote. The tester will display the decoded protocol and code.
5. బ్యాటరీ వాల్యూమ్tagఇ పరీక్ష: Connect the battery to the designated terminals. The tester can measure battery voltagఇ 0.1-4.5V నుండి.

చిత్రం 5.2: కోణీయ view of the LCR-P1 Transistor Tester, highlighting its compact form factor and the layout of its controls and display.

6. నిర్వహణ

• శుభ్రపరచడం: పరికరాన్ని శుభ్రం చేయడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి. రాపిడి క్లీనర్లు లేదా ద్రావకాలను ఉపయోగించవద్దు.
• నిల్వ: ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో టెస్టర్‌ను నిల్వ చేయండి.
• బ్యాటరీ సంరక్షణ: Recharge the internal lithium battery regularly, especially if the device will not be used for an extended period, to maintain battery health.

7. ట్రబుల్షూటింగ్

• పరికరం ఆన్ చేయడం లేదు: Ensure the battery is charged. Connect the Type-C cable to a 5V/1A power source and allow it to charge for at least 30 minutes before attempting to power on again.
• Incorrect readings or no detection:
  • Verify that the component leads are properly inserted and making good contact in the ZIF socket or with the test hooks.
  • Ensure the component is not damaged.
  • For capacitors, ensure they are fully discharged before testing.
• స్క్రీన్ ఖాళీగా ఉంది లేదా మిణుకుమిణుకుమంటోంది: Recharge the battery. If the issue persists, contact customer support.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

వారంటీ సమాచారం లేదా సాంకేతిక మద్దతు కోసం, దయచేసి మీ కొనుగోలుతో అందించిన డాక్యుమెంటేషన్‌ను చూడండి లేదా విక్రేతను నేరుగా సంప్రదించండి. కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.

10. అప్లికేషన్ Exampలెస్

Image 10.1: A technician using the LCR-P1 Transistor Tester during the inspection and repair of an air conditioning unit, demonstrating its utility in field service.

Image 10.2: The LCR-P1 Transistor Tester being used by a technician while performing maintenance on a boiler system, indicating its applicability in industrial and home appliance repair.

Image 10.3: A collage illustrating the LCR-P1 Transistor Tester's use in diverse scenarios, including electronic circuit development, appliance repair, and educational settings.
