VW-RZ-08, VW-RZ-58

Raise VW-RZ-08 / VW-RZ-58 Canbus Box Instruction Manual

Models: VW-RZ-08, VW-RZ-58

1. పరిచయం

The Raise VW-RZ-08 and VW-RZ-58 Canbus Boxes are designed to facilitate the integration of aftermarket Android head units with the existing CAN-bus system in various Volkswagen, Skoda, and Seat vehicles. This device translates vehicle data, enabling functions such as steering wheel control, reverse gear detection, door status display, and vehicle speed information to be communicated to your Android head unit.

This manual provides essential information for the proper installation, operation, and maintenance of your Canbus box.

Raise VW-RZ-08 and VW-RZ-58 Canbus Boxes for Volkswagen, Skoda, and Seat vehicles
చిత్రం 1.1: ముగిసిందిview of Raise VW-RZ-08 and VW-RZ-58 Canbus Boxes, compatible with Volkswagen, Skoda, and Seat vehicles.

2. భద్రతా సమాచారం

3. ప్యాకేజీ విషయాలు

దయచేసి మీ ప్యాకేజీలో అన్ని భాగాలు ఉన్నాయని ధృవీకరించండి:

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

Installation of the Canbus box requires basic knowledge of automotive electrical systems. It is recommended to have the installation performed by a professional.

సాధారణ ఇన్‌స్టాలేషన్ దశలు:

  1. వాహనాన్ని సిద్ధం చేయండి: Park the vehicle on a level surface, engage the parking brake, and turn off the ignition. Disconnect the negative terminal of the vehicle's battery.
  2. Remove Existing Head Unit: Carefully remove your vehicle's factory or existing aftermarket head unit to access the wiring harness.
  3. Identify Vehicle Wiring: Locate the vehicle's main wiring harness connector that previously connected to the head unit.
  4. Connect Canbus Box: Connect the vehicle-specific wiring harness provided with the Canbus box to the vehicle's main wiring harness. Then, connect the Canbus box itself to the dedicated connector on the wiring harness. Ensure all connections are firm and secure.
  5. ఆండ్రాయిడ్ హెడ్ యూనిట్‌కి కనెక్ట్ చేయండి: Connect the other end of the wiring harness (which includes the Canbus output) to your new Android head unit.
  6. పరీక్ష కనెక్షన్లు: Before fully reassembling, reconnect the vehicle's battery. Turn on the ignition and the Android head unit. Verify that the head unit powers on, and test basic functions like audio, steering wheel controls, and reverse camera (if applicable).
  7. సురక్షితంగా మరియు తిరిగి అమర్చండి: Once all functions are verified, carefully route and secure all cables to prevent pinching or damage. Reinstall the Android head unit and any trim panels.

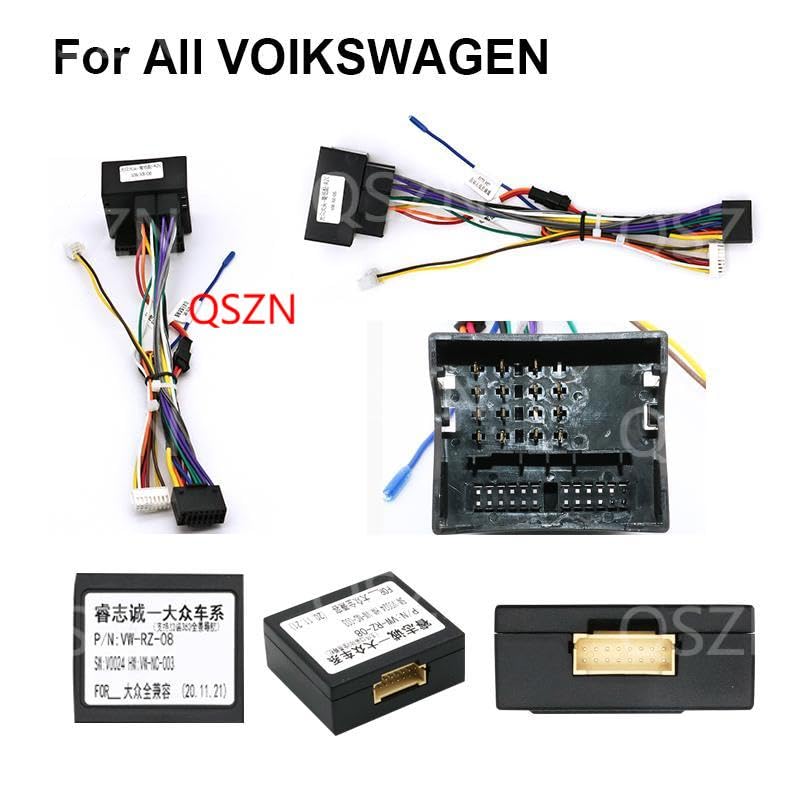

Wiring harnesses and Canbus boxes for installation
చిత్రం 4.1: ఉదాample of Canbus boxes and associated wiring harnesses for vehicle integration.

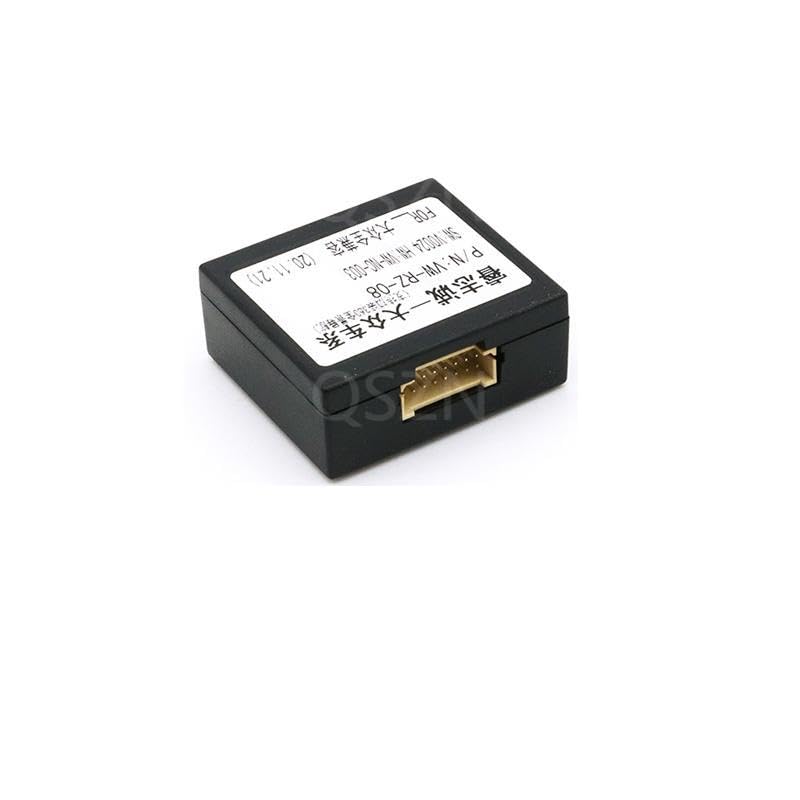

Close-up of VW-RZ-08 Canbus box connector
చిత్రం 4.2: వివరణాత్మకమైనది view of the connector on the VW-RZ-08 Canbus box, showing pin configuration.
వివరంగా view of Canbus box connector pins
Image 4.3: Close-up of the multi-pin connector, highlighting the interface for the wiring harness.

5. ఆపరేటింగ్ సూచనలు

Once correctly installed, the Raise Canbus box typically operates automatically. Most compatible Android head units will detect the Canbus box and its functions upon startup.

Key Functions Enabled:

Refer to your Android head unit's user manual for specific settings related to Canbus integration and function mapping.

6. నిర్వహణ

The Raise Canbus box is designed for maintenance-free operation. To ensure longevity and reliable performance:

7. ట్రబుల్షూటింగ్

If you encounter issues with your Canbus box, refer to the following troubleshooting guide:

Problem: Android Head Unit Does Not Power On

Problem: Steering Wheel Controls Not Working
