Atomberg Studio Nexus Smart 1200mm BLDC Ceiling Fan User Manual

పరిచయం

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Atomberg Studio Nexus Smart 1200mm BLDC Ceiling Fan. Please read this manual carefully before using the product to ensure safe and efficient operation.

ఉత్పత్తి ముగిసిందిview

The Atomberg Studio Nexus Smart 1200mm BLDC Ceiling Fan is designed for optimal air delivery and energy efficiency, featuring smart controls and a modern aesthetic.

కీ ఫీచర్లు

• శక్తి-సమర్థవంతమైన BLDC మోటార్: Consumes only 35W at top speed, saving up to 65% in electricity compared to unrated fans. BEE 5-star rated.
• High Air Delivery: Provides best-in-class air delivery of 230 CMM (Cubic Meters Per Minute).
• తక్కువ నాయిస్ ఆపరేషన్: Operates at noise levels less than 57 dB, significantly quieter than most regular fans.
• Smart IR Remote Control: Allows adjustment of speed, activation of Boost Mode, setting timers, and enabling Sleep Mode.
• IoT & App Control: Control the fan via voice commands and a mobile application.
• Moonbeam Light: Unique night light feature with 2 intensity levels, controllable via remote.
• స్థిరమైన వేగం: Maintains consistent speed during voltage fluctuations (165V-285V) and runs 3X longer on an inverter battery.
• ఆధునిక మినిమలిస్ట్ డిజైన్: Features a premium metallic body trim, wide designer curved blades, and a sophisticated moonbeam light.

Figure 1: Design elements of the Studio Nexus Smart fan, highlighting the metallic outer ring, curved blades, and moonbeam light.

చిత్రం 2: పైగాview of the fan's performance and smart features, including remote operation, high air delivery, low noise, and smart home integration.

సెటప్ మరియు ఇన్‌స్టాలేషన్

Ensure all components are present before beginning installation. Professional installation is recommended.

పెట్టెలో ఏముంది

• Blade set - 1 Unit
• Remote - 1 Unit
• Motor box - 1 Unit
• Canopy set - 1 Unit
• Downrod - 1 Unit
• Shackle kit - 1 Unit
• Manual Leaflet & Warranty card - 1 Unit

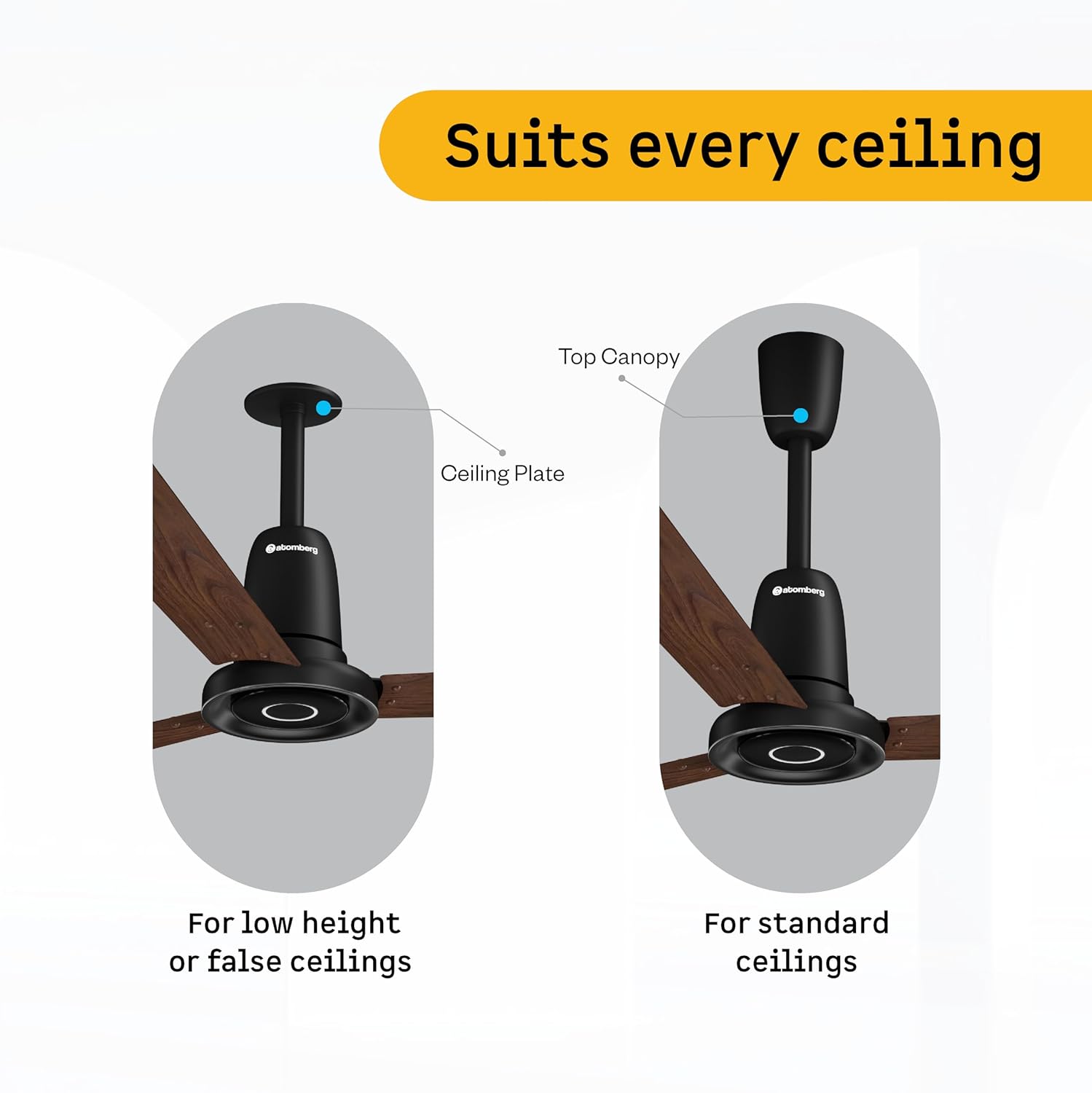

సీలింగ్ అనుకూలత

The Studio Nexus fan is designed for versatility, suitable for both standard and false/low-height ceilings.

• For standard ceilings, use both the bottom and top canopy.
• For low heights or false ceilings, an additional ceiling plate is provided. Use the top ceiling plate with the bottom canopy for these installations.

Figure 3: Installation options for different ceiling types, ensuring compatibility with false or low ceilings.

ఆపరేటింగ్ సూచనలు

రిమోట్ కంట్రోల్

The Smart IR Remote provides convenient control over your fan's functions. It is universal across Atomberg fans and does not require pairing.

• వేగం సర్దుబాటు: Use the numbered buttons (1-6) to select your desired fan speed.
• బూస్ట్ మోడ్: Activates the highest fan speed for rapid cooling.
• టైమర్ మోడ్: Set the fan to switch off after a pre-set number of hours.
• స్లీప్ మోడ్: Gradually decreases the fan's speed every two hours for comfortable sleep.
• LED లైట్లు: Turn the Moonbeam LED light ON or OFF.

Figure 4: The universal remote control for the Studio Nexus Smart fan, detailing its various functions.

Moonbeam Light

The integrated Moonbeam light serves as a night light and provides visual feedback for fan commands.

• It offers 2 intensity levels, adjustable via the remote control.
• The moonbeam blinks in response to remote commands (e.g., turning on/off, speed changes, timer/sleep mode activation) to confirm action.

IoT and App Control

For enhanced convenience, the fan can be controlled via the Atomberg Home App and supports voice commands.

• Download the Atomberg Home App from your device's app store.
• Follow the in-app instructions to connect your fan.
• Utilize voice commands for hands-free operation (compatible with Google Home and Alexa).

నిర్వహణ

క్రమం తప్పకుండా నిర్వహణ మీ ఫ్యాన్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.

• శుభ్రపరచడం: The fan is designed to be easy to clean. Use a soft, damp cloth to wipe down the blades and motor housing. Avoid abrasive cleaners.
• తుప్పు నిరోధకత: Constructed with aluminum blades and body, the fan offers good resistance to corrosion.
• తనిఖీ: Periodically check all mounting hardware to ensure it is secure.

ట్రబుల్షూటింగ్

If you encounter any issues with your Atomberg Studio Nexus Smart fan, please refer to the following common solutions:

• ఫ్యాన్ ఆన్ చేయడం లేదు: Check the power supply and ensure the fan is properly connected. Verify remote control batteries.
• Fan Not Responding to Remote: Ensure there are no obstructions between the remote and the fan. Replace remote batteries if necessary.
• అసాధారణ శబ్దం: Ensure all blades are securely attached and balanced. Check for any loose parts or obstructions.
• పేలవమైన గాలి ప్రసరణ: Verify the fan speed setting. Ensure blades are clean and free from dust buildup.

For persistent issues, please contact Atomberg customer support.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

Your Atomberg Studio Nexus Smart ceiling fan comes with a comprehensive warranty and dedicated customer support.

• ప్రామాణిక వారంటీ: A standard 3-year warranty is included with your purchase.
• పొడిగించిన వారంటీ: An additional 2-year warranty can be easily availed by registering your purchase on the official Atomberg webసైట్.
• కస్టమర్ కేర్: For any queries, support, or warranty claims, please contact Atomberg Technologies Pvt. Ltd. at support@atomberg.com లేదా 08448449442కు కాల్ చేయండి.

ఉత్పత్తి వీడియో ముగిసిందిview

త్వరిత వివరణ కోసం ఈ వీడియో చూడండిview of the Atomberg Studio Nexus Smart 1200mm BLDC Ceiling Fan, highlighting its features and benefits.
