Generic Metal Bunk Bed for Juniors, Twin Over Full (Model B09PQKC2S3) Instruction Manual

పరిచయం

This manual provides essential information for the safe assembly, operation, and maintenance of your Generic Metal Bunk Bed for Juniors, Twin Over Full. This bunk bed features a twin-over-full design, sturdy guard rails, a removable ladder, and a space-saving configuration. It is constructed from metal with a black glossy finish, offering a durable and functional sleeping arrangement. Please read all instructions carefully before assembly and use. Keep this manual for future reference.

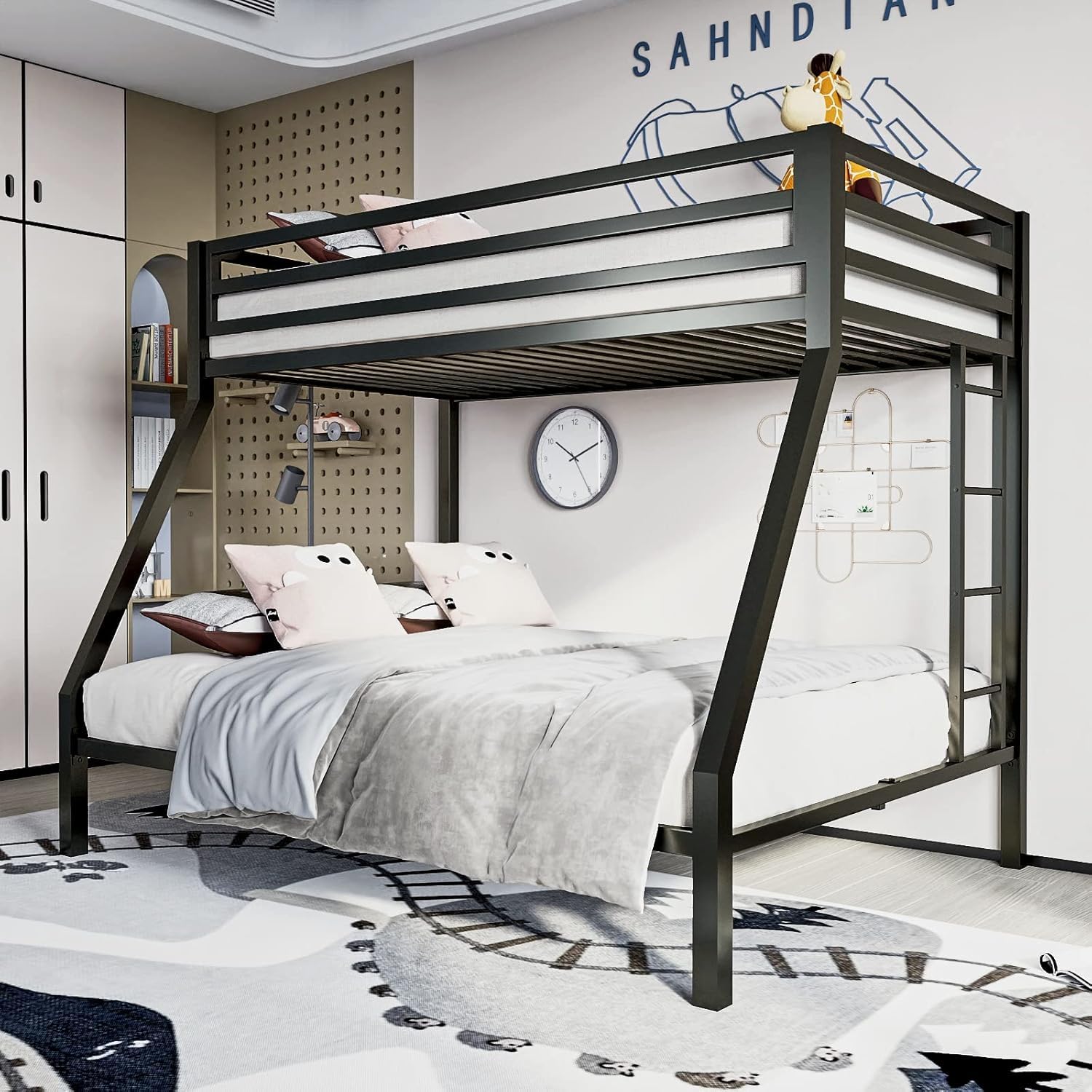

ఒక ఓవర్view of the assembled metal bunk bed, showcasing its twin-over-full configuration and black glossy finish.

భద్రతా హెచ్చరికలు

• గరిష్ట బరువు సిఫార్సు: The bunk bed is designed to support a maximum weight of 400 pounds (181 kg) per bunk. Do not exceed this limit.
• Guard Rails: The top bunk is equipped with high guard rails to prevent falls. Ensure they are always securely in place.
• పరుపు స్థానం: The mattress surface of the upper bed must be at least 5 inches (127 mm) below the top edge of the guardrail. Use a mattress with dimensions 75"L x 38"W for the twin bunk and 75"L x 54"W for the full bunk, with a recommended thickness of 4-6 inches.
• యాంటీ-టాప్లింగ్ పరికరం: An anti-toppling device is included to secure the bunk bed to a wall, enhancing stability and safety. It is highly recommended to install this device.
• నిచ్చెన వాడకం: Always use the provided ladder for accessing the top bunk. Ensure the ladder is securely attached before use.
• పిల్లల భద్రత: Bunk beds are not recommended for children under 6 years of age on the upper bunk.
• అసెంబ్లీ: Assembly must be performed by adults. Ensure all parts are correctly installed and tightened before use.

This image provides mattress recommendations and highlights that the mattress surface of the upper bed must be at least 5 inches (127 mm) below the top edge of the guardrail for safety.

A diagram illustrating the anti-toppling device, which secures the bunk bed to a wall for enhanced stability and safety.

పెట్టెలో ఏముంది

Verify that all components are present before beginning assembly. Refer to the parts list in your separate assembly manual for detailed identification.

• Slats (for both twin and full bunks)
• Bed frames (headboards, footboards, side rails)
• నిచ్చెన
• గార్డ్ పట్టాలు
• Anti-toppling device
• అసెంబ్లీ హార్డ్‌వేర్ (స్క్రూలు, బోల్టులు, నట్లు, అలెన్ రెంచ్)
• అసెంబ్లీ సూచనల మాన్యువల్

స్పెసిఫికేషన్లు

This diagram illustrates the overall dimensions of the bunk bed: 77.6 inches (length) x 56.3 inches (width at base) x 63 inches (height). The upper bunk is 41.3 inches wide, and the ground clearance is 12.4 inches. Both bunks are rated for 400 lbs.

సెటప్ మరియు అసెంబ్లీ

Assembly is required for this bunk bed. Please follow the detailed instructions provided in the included assembly manual. Ensure you have sufficient space and all necessary tools before starting. It is recommended to have two adults for assembly.

1. భాగాలను అన్‌ప్యాక్ చేయండి: Carefully unpack all parts and hardware. Compare with the "What's in the Box" section and the parts list in your assembly manual to ensure all items are present and undamaged.
2. Assemble Lower Bunk: Begin by assembling the frame for the full-size lower bunk. Attach the side rails to the headboard and footboard using the provided hardware. Do not fully tighten bolts until all major components are aligned.
3. Assemble Upper Bunk: Assemble the frame for the twin-size upper bunk in a similar manner.
4. Attach Guard Rails: Securely attach the guard rails to the upper bunk frame. Ensure they are firmly fastened.
5. Connect Bunks: Carefully lift and position the upper bunk onto the lower bunk frame. Securely fasten the connecting points as per the assembly manual.
6. నిచ్చెనను ఇన్‌స్టాల్ చేయండి: Attach the removable ladder to the designated hooks or attachment points on the bunk bed. Ensure it is stable and secure. The ladder features round, non-slip pedals for safe climbing.
7. స్లాట్‌లను ఇన్‌స్టాల్ చేయండి: Place and secure the mattress slats onto both the upper and lower bunk frames.
8. యాంటీ-టాప్లింగ్ పరికరాన్ని ఇన్‌స్టాల్ చేయండి: For enhanced safety, install the anti-toppling device by securing the bunk bed to a wall stud using the provided hardware. This prevents accidental tipping.
9. తుది బిగింపు: Once all components are assembled and aligned, go back and fully tighten all bolts and screws. Do not overtighten.

Refer to the specific diagrams and step-by-step instructions in your included assembly guide for detailed visual assistance.

ఒక క్లోజప్ view of the removable ladder, highlighting its design for safe access to the upper bunk.

ఆపరేటింగ్ సూచనలు

Using the Bunk Bed

• పరుపు స్థానం: Place a twin-size mattress (75"L x 38"W, 4-6" thickness) on the upper bunk and a full-size mattress (75"L x 54"W, 4-6" thickness) on the lower bunk. Ensure the upper mattress surface is at least 5 inches below the top of the guardrail.
• నిచ్చెన యాక్సెస్: Use the removable ladder to access the top bunk. Ensure the ladder is stable before climbing.
• శబ్దం లేని డిజైన్: The bunk bed is engineered with a noise-free frame to minimize squeaks and creaks, contributing to a quiet sleeping environment.

A detail of the bunk bed frame illustrating the noise-free and anti-shaking design elements.

నిర్వహణ

• శుభ్రపరచడం: Wipe the metal frame with a dry cloth to remove dust and dirt. Avoid using abrasive cleaners or harsh chemicals that could damage the finish.
• సాధారణ తనిఖీ: అన్ని బోల్ట్‌లు, స్క్రూలు మరియు కనెక్షన్‌లు బిగుతుగా ఉన్నాయని నిర్ధారించుకోవడానికి కాలానుగుణంగా వాటిని తనిఖీ చేయండి. స్థిరత్వం మరియు భద్రతను కాపాడుకోవడానికి అవసరమైనంతవరకు తిరిగి బిగించండి.
• Guard Rails: Ensure guard rails are always securely attached and free from damage.
• నిచ్చెన: Verify the ladder is stable and its pedals are intact.

ట్రబుల్షూటింగ్

కీచు శబ్దం లేదా శబ్దం

If the bunk bed develops squeaks or noises:

• Check all assembly bolts and screws. Tighten any loose connections.
• Ensure the bed is placed on a level surface. Uneven flooring can cause stress on the frame, leading to noise.
• Verify that the mattress slats are properly seated and secured.

అస్థిరత

If the bunk bed feels unstable:

• Re-check all connections and ensure they are fully tightened.
• Confirm that the anti-toppling device is correctly installed and secured to a wall stud.
• Ensure the bed is not overloaded beyond its maximum weight capacity.

వారంటీ మరియు మద్దతు

For warranty information or technical support, please refer to the contact details provided by the retailer or manufacturer at the time of purchase. Keep your purchase receipt as proof of purchase.
