పరిచయం
Thank you for choosing the Gaiatop Small Handheld Personal Fan, Model HF-16. This compact and powerful fan is designed to provide instant cooling with its high-speed turbo airflow, making it ideal for travel, outdoor activities, and everyday use. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device.
ఉత్పత్తి ముగిసిందిview
The Gaiatop HF-16 features a high-speed brushless motor, an LED display for speed and battery life, and a durable design for portability.
చిత్రం: ముందు view of the Gaiatop handheld fan, highlighting the LED display and control button. The display shows '100%' indicating full power or charge. Text on the image indicates 'Double Tap to Power On/Off', 'Hold for Fine-Tuned Airflow', and 'Tap for 5-Speed Settings'.

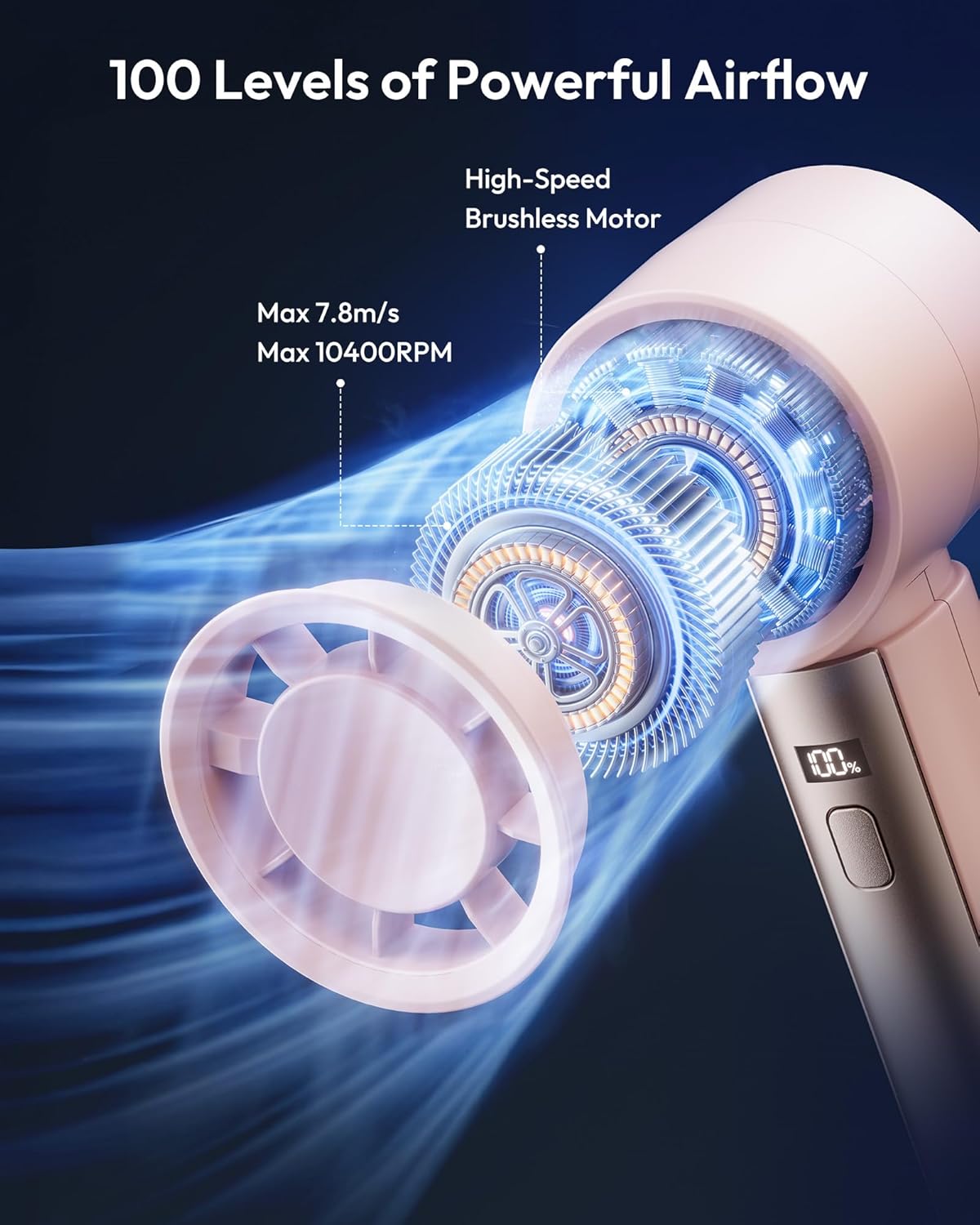

చిత్రం: Internal diagram of the fan, illustrating the high-speed brushless motor and the powerful airflow it generates. Specifications like Max 7.8m/s wind speed and Max 10400 RPM are visible.
సెటప్
ప్రారంభ ఛార్జింగ్
Before first use, fully charge the fan using the provided USB Type-C charging cable. Connect the cable to the fan's charging port and a compatible USB power source (e.g., wall adapter, computer USB port, power bank). The LED display will indicate charging status.
లాన్యార్డ్ను అటాచ్ చేస్తోంది
To attach the anti-loss wrist strap (lanyard), fold the tip of the lanyard into a small hook. This will allow it to slide through the designated hole on the fan more easily. Once through, gently pull to secure it.
ఆపరేటింగ్ సూచనలు
పవర్ ఆన్/ఆఫ్
- To power on the fan, డబుల్ క్లిక్ చేయండి నియంత్రణ బటన్.
- To power off the fan, డబుల్ క్లిక్ చేయండి the control button again.
ఫ్యాన్ వేగాన్ని సర్దుబాటు చేస్తోంది
- To adjust the fan speed in 5-speed increments, నొక్కండి the control button. The fan offers 5 distinct speed levels.
- For precise airflow control, పట్టుకోండి the control button. This allows you to fine-tune the speed from level 1 to 100. Release the button when the desired speed is reached.
LED డిస్ప్లే
The integrated LED screen displays the current speed level and the remaining battery runtime. The display will automatically turn off after 10 seconds to conserve energy. Press the control button once to illuminate the display again when needed.
చిత్రం: A woman using the Gaiatop handheld fan while hiking, showcasing its portability and effectiveness during outdoor activities. The fan is attached to her wrist with a lanyard.
ఛార్జింగ్
The Gaiatop HF-16 fan is equipped with a rechargeable battery, providing up to 7.5 hours of runtime depending on the speed setting. To charge, use the included USB Type-C cable. The LED display will show the charging progress and battery level.
చిత్రం: The Gaiatop handheld fan being charged via a USB-C cable, with a snowy background suggesting its cooling capabilities.
నిర్వహణ
To ensure optimal performance and longevity of your fan, follow these maintenance guidelines:
- శుభ్రపరచడం: Use a soft, dry cloth to wipe the exterior of the fan. Do not use abrasive cleaners or immerse the fan in water.
- నిల్వ: When not in use for extended periods, store the fan in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (around 50%) before storage to prolong battery life.
- అడ్డంకులను నివారించండి: Keep the fan's air inlet and outlet clear of dust, lint, and other obstructions to maintain efficient airflow.
ట్రబుల్షూటింగ్
If you encounter any issues with your Gaiatop fan, please refer to the following common problems and solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| ఫ్యాన్ ఆన్ అవ్వదు | Low battery; Incorrect power-on sequence | Charge the fan fully. Double-click the power button to turn on. |
| బలహీనమైన గాలి ప్రవాహం | Low battery; Obstruction in air inlet/outlet; Low speed setting | Charge the fan. Clear any obstructions. Increase fan speed. |
| Fan is noisy or makes a high-pitched whine | Possible manufacturing defect; Internal component issue | While some noise is normal at higher speeds, an unusual whine may indicate an issue. Contact customer support if the noise is excessive or persistent. |
| Slow charging or fan gets warm during charging | Using an incompatible charger; Normal heat dissipation | Ensure you are using a standard 5V USB charger. Slight warmth during charging is normal. If it becomes excessively hot, discontinue charging and contact support. |
| LED డిస్ప్లే పని చేయడం లేదు | Display timed out; Malfunction | Press the control button once to reactivate the display. If it remains off, contact customer support. |
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | గయాతోప్ |
| మోడల్ పేరు | హెచ్ఎఫ్ 16 |
| ఉత్పత్తి కొలతలు (D x W x H) | 2.3" x 2.2" x 6.3" |
| వస్తువు బరువు | 0.21 Kilograms (approx. 7.4 oz) |
| శక్తి మూలం | బ్యాటరీ ఆధారితమైనది |
| కనెక్టర్ రకం | USB టైప్ C |
| స్పీడ్ల సంఖ్య | 5 (with 100 fine-tune levels) |
| మాక్స్ విండ్ స్పీడ్ | 7.8 మీ/సె |
| గరిష్ట మోటార్ వేగం | 10400 RPM |
| శబ్దం స్థాయి | 58 డెసిబెల్స్ |
| రన్టైమ్ | Up to 7.5 hours (depending on speed) |
| మెటీరియల్ | యాక్రిలోనిట్రైల్ బుటాడిన్ స్టైరీన్ (ABS) |
| చేర్చబడిన భాగాలు | Charging Cable, Hand Strap |
భద్రతా సమాచారం
Please read and follow these safety precautions to prevent injury or damage:
- Do not insert fingers or any objects into the fan blades.
- ఫ్యాన్ను నీరు మరియు ఇతర ద్రవాలకు దూరంగా ఉంచండి.
- Do not disassemble, modify, or attempt to repair the fan yourself. Contact qualified personnel for service.
- పిల్లలు మరియు పెంపుడు జంతువులకు దూరంగా ఉంచండి.
- Do not expose the fan to extreme temperatures or direct sunlight for prolonged periods.
- ఛార్జింగ్ కోసం అందించిన ఛార్జింగ్ కేబుల్ లేదా సర్టిఫైడ్ USB టైప్-C కేబుల్ను మాత్రమే ఉపయోగించండి.
అధికారిక ఉత్పత్తి వీడియోలు
Small Handheld Personal Fan, High Speed Turbo Cooling
వీడియో: An official product video from Gaiatop demonstrating the features and powerful cooling capabilities of the Small Handheld Personal Fan. Duration: 0:37.
Portable Handheld Fan Mini High Speed Turbo Cooling Fans
వీడియో: A short official product video from Gaiatop showcasing the portable design and high-speed turbo cooling of the mini handheld fan. Duration: 0:16.
వారంటీ మరియు మద్దతు
Gaiatop products are designed for quality and reliability. For warranty information, product support, or any inquiries, please refer to the official Gaiatop website or contact their customer service directly. Please retain your proof of purchase for any warranty claims.
You can visit the Gaiatop brand store for more information: Gaiatop Store on Amazon
అదనపు ఉత్పత్తి చిత్రాలు
Enjoying the turbo breeze outdoors.
Compact and pocket-sized design.
