1. పరిచయం
This manual provides essential information for the safe and effective installation, operation, and maintenance of your new Gas Oven Range Ignitor. This component is designed to replace original ignitors in various GE, Hotpoint, and Kenmore gas oven ranges, ensuring proper ignition of the oven burner.
Please read this manual thoroughly before attempting any installation or repair. Retain this manual for future reference.
2. భద్రతా సమాచారం
హెచ్చరిక: సరికాని సంస్థాపన, సర్దుబాటు, మార్పు, సేవ లేదా నిర్వహణ ఆస్తి నష్టం, గాయం లేదా మరణానికి కారణం కావచ్చు. ఈ పరికరాన్ని ఇన్స్టాల్ చేయడానికి లేదా సర్వీసింగ్ చేయడానికి ముందు ఇన్స్టాలేషన్, ఆపరేటింగ్ మరియు నిర్వహణ సూచనలను పూర్తిగా చదవండి.
- Always disconnect power to the appliance at the circuit breaker or fuse box before attempting any service or repair.
- Turn off the gas supply to the appliance before beginning any work.
- Gas appliances should only be serviced by qualified personnel. If you are unsure about any step, consult a certified technician.
- సంస్థాపన సమయంలో చేతి తొడుగులు మరియు కంటి రక్షణ వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలను ధరించండి.
- Ensure all gas connections are leak-free after reassembly. Use a soap and water solution to check for bubbles.
- ఎలాంటి భద్రతా పరికరాలను దాటవేయవద్దు.
3. ఉత్పత్తి ముగిసిందిview
The Gas Oven Range Ignitor is a critical component responsible for igniting the gas in your oven's burner. It operates by heating up to a high temperature, which then ignites the gas flowing from the burner.
మూర్తి 3.1: ప్రధాన view of the Gas Oven Range Ignitor. This image shows the complete ignitor assembly, including the ceramic heating element, metal bracket, and electrical wires with connectors.
ముఖ్య భాగాలు:
- సిరామిక్ హీటింగ్ ఎలిమెంట్: The part that glows red hot to ignite the gas.
- మెటల్ మౌంటు బ్రాకెట్: Secures the ignitor within the oven.
- Electrical Wires: Connects the ignitor to the oven's electrical system.
- Wire Nuts: Provided for secure electrical connections.
4. సెటప్ మరియు ఇన్స్టాలేషన్
గమనిక: Always refer to your specific oven model's service manual for detailed instructions and safety precautions. The following is a general guide.
మీకు అవసరమైన సాధనాలు:
- స్క్రూడ్రైవర్ (ఫిలిప్స్ మరియు/లేదా ఫ్లాట్ హెడ్)
- Nut Driver or Socket Wrench
- Wire Strippers/Cutters (if needed for wire nuts)
- Multimeter (for testing, optional)
ఇన్స్టాలేషన్ దశలు:
- విద్యుత్ మరియు గ్యాస్ను డిస్కనెక్ట్ చేయండి: Before starting, ensure the oven's power supply is disconnected at the circuit breaker and the gas supply valve is turned off.
- Access the Ignitor: Depending on your oven model, you may need to remove the oven door, bottom panel, and/or burner assembly to access the ignitor.
- Locate the Old Ignitor: The ignitor is typically mounted near the gas burner tube.
- వైరింగ్ను డిస్కనెక్ట్ చేయండి: Carefully disconnect the electrical wires leading to the old ignitor. Note how they are connected. You may need to cut the wires if they are hard-wired, or simply unplug a connector.
Figure 4.1: Close-up of the electrical connector. This connector ensures a secure and proper electrical connection to the oven's wiring harness.
- Remove Old Ignitor: Unscrew any mounting screws holding the old ignitor in place and carefully remove it.
- Install New Ignitor: Mount the new ignitor in the same position as the old one, ensuring it is securely fastened.

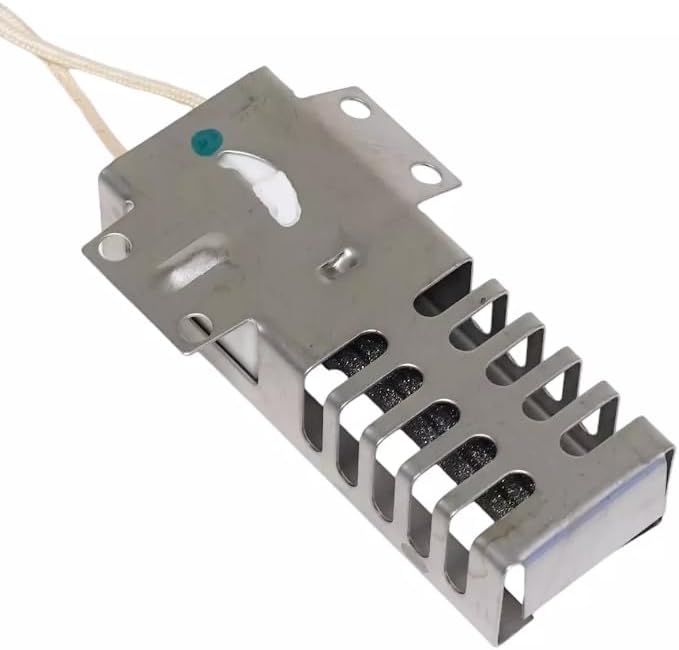

చిత్రం 4.2: దిగువ view of the ignitor showing mounting holes. These holes are used to secure the ignitor to the oven's internal structure.
- వైరింగ్ కనెక్ట్ చేయండి: Connect the new ignitor's wires to the oven's wiring. If using wire nuts, ensure a tight and secure connection.

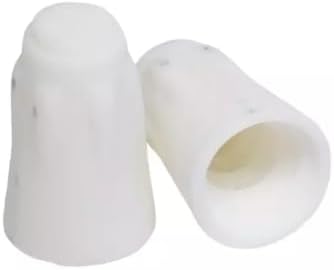

Figure 4.3: Included wire nuts for electrical connections. These nuts provide a safe and insulated connection for the ignitor's wiring.
- ఓవెన్ను తిరిగి అమర్చండి: తొలగించబడిన ఏవైనా ప్యానెల్లు లేదా భాగాలను తిరిగి ఇన్స్టాల్ చేయండి.
- విద్యుత్ మరియు గ్యాస్ను పునరుద్ధరించండి: Turn on the gas supply and then restore electrical power to the oven.
- పరీక్ష ఆపరేషన్: Test the oven to ensure the ignitor is functioning correctly and the burner ignites properly. Listen for the click of the gas valve opening and observe the ignitor glowing before ignition.
5. కార్యాచరణ
The gas oven range ignitor serves as both an ignition source and a safety device. When the oven is turned on, the ignitor receives electrical current and begins to heat up. As it reaches a sufficient temperature (typically around 1800-2500°F), its electrical resistance drops, allowing a larger current to flow. This increased current signals the gas valve to open, releasing gas to the burner. The hot ignitor then ignites the gas. If the ignitor does not reach the proper temperature, the gas valve will not open, preventing unignited gas from accumulating, thus acting as a safety interlock.
మూర్తి 5.1: క్లోజ్-అప్ view of the ignitor's ceramic heating element. This element is designed to glow intensely when energized, providing the necessary heat for gas ignition.
6. నిర్వహణ
The gas oven range ignitor is a wear item and generally does not require routine maintenance. However, periodic inspection can help identify potential issues before they lead to complete failure.
- దృశ్య తనిఖీ: During any oven cleaning or service, visually inspect the ignitor for cracks, discoloration, or signs of excessive wear. A healthy ignitor should glow brightly and consistently.
- శుభ్రముగా ఉంచు: Ensure the area around the ignitor is free from food debris or grease buildup, which can interfere with its operation.
- ప్రొఫెషనల్ చెక్: If you suspect an issue, it is recommended to have a qualified appliance technician inspect the ignitor and oven system.
7. ట్రబుల్షూటింగ్
If your oven is experiencing ignition problems, the ignitor is a common component to check. Always ensure power and gas are disconnected before performing any checks.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Oven not heating or heating slowly | Weak or failing ignitor. Ignitor not drawing enough current to open gas valve. | Test ignitor resistance with a multimeter (refer to oven service manual for correct values). Replace if out of specification or if it glows dimly. |
| Oven burner not igniting, but gas is present | Ignitor not glowing or glowing intermittently. | Check electrical connections to the ignitor. Ensure ignitor is securely mounted. Replace ignitor if it does not glow at all or glows very weakly. |
| Oven burner ignites, then goes out | Ignitor not maintaining sufficient temperature or current to keep gas valve open. | ఇగ్నిటర్ని భర్తీ చేయండి. |
ట్రబుల్షూటింగ్ దశలు సమస్యను పరిష్కరించకపోతే, అర్హత కలిగిన ఉపకరణాల మరమ్మతు సాంకేతిక నిపుణుడిని సంప్రదించమని సిఫార్సు చేయబడింది.
8. స్పెసిఫికేషన్లు
This Gas Oven Range Ignitor is a direct replacement part designed for compatibility with a wide range of GE, Hotpoint, and Kenmore gas oven models.
- పార్ట్ రకం: Gas Oven Range Ignitor
- మోడల్ సంఖ్య: JGBC20BEH1WH
- తయారీదారు: సాధారణమైనది
- ఉత్పత్తి కొలతలు: 1 x 1 x 1 అంగుళాలు (సుమారుగా)
- మూలం దేశం: చైనా
- చేర్చబడిన భాగాలు: Gas Oven Range Ignitor, Wire Nuts
- ASIN: B0F1C6MLVG
- మొదటి తేదీ అందుబాటులో ఉంది: మార్చి 12, 2025
Compatible Models (Partial List - Refer to Product Description for Full List):
- GE Models: PGS920SEF5SS, PGB980SET1SS, PGB920SEF1SS, JGBS19DEN4WW, JGB630DEF1BB, JGB650DEF2BB, JGBS22BEA2AD, JGBC20BEH1WH, and many more.
- Hotpoint Models: RGB525ET4WW, RGB528GEV3AD, RGB535GEV4AD, RGB628GEV4AD, RGB745WEH3WW, RGB530DEP1WW, and many more.
- Kenmore Models: 36272491990, 36272498990, 36475698890, 36273220205, 36273221201, and many more.
For a comprehensive list of compatible models, please refer to the detailed product description provided at the point of purchase or online listing.
9. వారంటీ మరియు మద్దతు
This product is typically covered by a standard return policy. For specific details regarding warranty coverage, returns, or exchanges, please refer to the retailer's policy where the product was purchased. As a generic replacement part, direct manufacturer support may be limited.
- రిటర్న్ పాలసీ: Generally, a 30-day refund/replacement policy is offered by the seller. Please check your purchase details for exact terms.
- సాంకేతిక సహాయం: For installation or troubleshooting assistance beyond this manual, it is recommended to consult a qualified appliance repair technician or refer to your oven's specific service manual.
