Fruhdi Mulin ML18D07 ML18-055A Power Recliner Motor Kit Instruction Manual

పరిచయం

This manual provides instructions for the installation, operation, and maintenance of the Fruhdi Mulin ML18D07 ML18-055A Power Recliner Motor Kit. This kit is designed as a replacement actuator for power recliners and lift chairs. Please read these instructions carefully before installation and use.

భద్రతా సమాచారం

Always unplug the power supply before performing any maintenance or troubleshooting. Do not exceed the maximum weight recommendation of 224.809 pounds to ensure stability and safety. Keep the power cord away from heat sources and sharp objects to prevent damage. Always follow the manufacturer's instructions for safe operation and maintenance.

ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• 1x Mulin Recliner Motor Actuator Replacement Model ML18D07 ML18-055A
• 1x Mulin Round 2 Button 5 Pin Switch Remote Control
• 1x Mulin Lift Chair Power Supply Replacement Transformer Kit (Batteries not included)
• 1x Mulin 4.26ft US Version AC Cable Cord

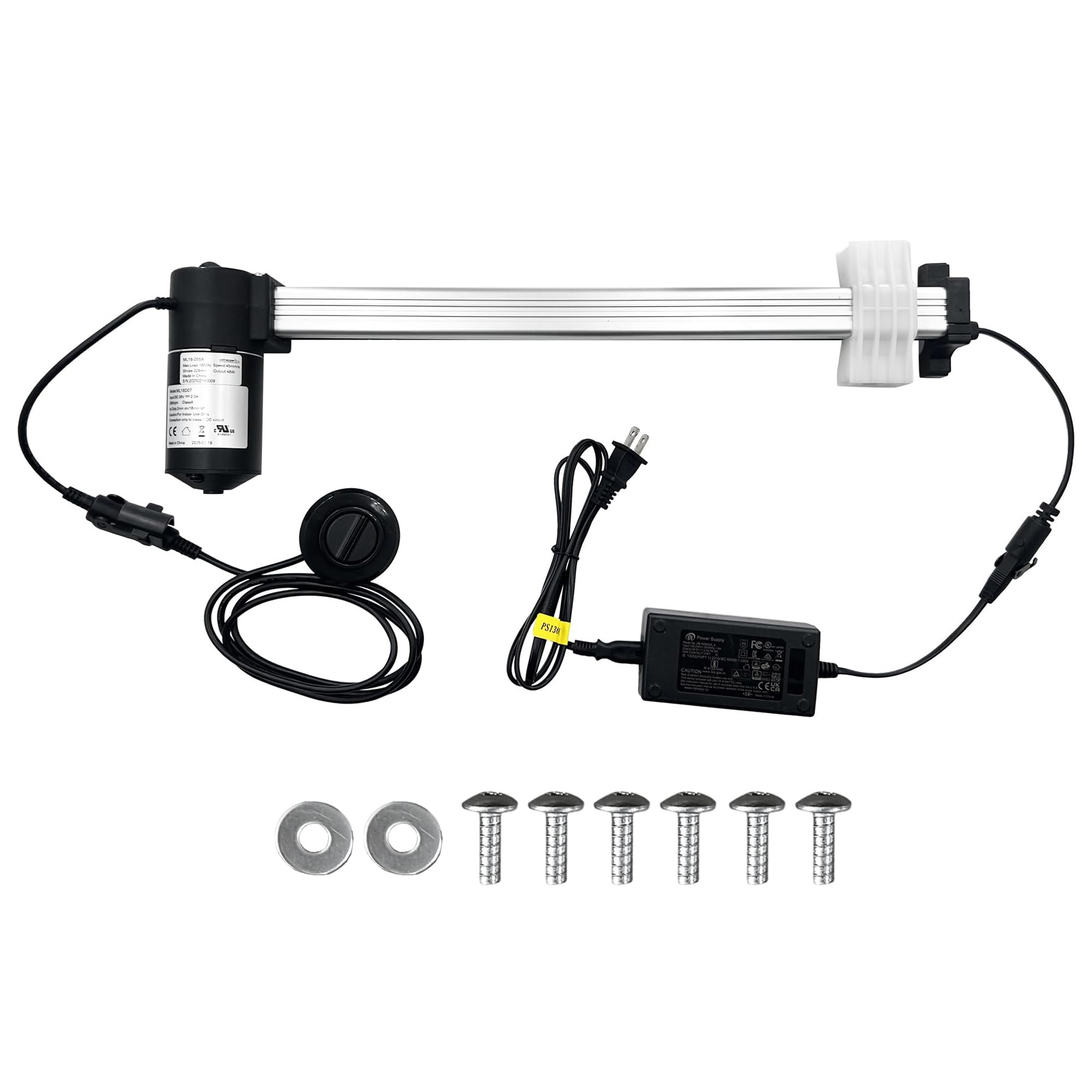

Image: The complete Fruhdi Mulin ML18D07 ML18-055A Power Recliner Motor Kit, showing the linear actuator, 2-button remote, power supply, and AC power cord.

ఇన్స్టాలేషన్ సూచనలు

దశ 1: పవర్ డిస్‌కనెక్ట్ చేయండి

Before beginning any installation, ensure the recliner or lift chair is unplugged from the wall outlet to prevent electrical hazards.

Step 2: Remove Old Components

Carefully disconnect the existing motor, hand control, and power supply from your recliner. Note the routing of cables and mounting positions for easier reinstallation of the new components.

Step 3: Install New Motor Actuator

Position the new ML18D07 ML18-055A motor actuator in the same location as the old unit. Secure it using the existing mounting points on the recliner frame. Ensure the motor is firmly attached and can move freely without obstruction.

చిత్రం: వివిధ views (back, top, bottom) of the ML18D07 ML18-055A motor actuator, illustrating its mounting points and overall structure for proper installation.

దశ 4: భాగాలను కనెక్ట్ చేయండి

Connect the new components as follows:

• Connect the 5-pin round plug from the hand control to the corresponding 5-pin port on the motor.
• Connect the 2-pin flat plug from the power supply to the corresponding 2-pin port on the motor.
• Connect the AC cable to the power supply, then plug the power supply into a standard wall outlet.

చిత్రం: క్లోజప్ view of the ML18D07 ML18-055A motor showing the 5-pin round connector for the hand control and the 2-pin flat connector for the power supply, indicating proper connection points.

Step 5: Test Operation

Once all connections are secure, plug the recliner into a power outlet and test the functionality using the hand control. Ensure smooth and complete movement in both directions.

ఆపరేటింగ్ సూచనలు

The included 2-button hand control operates the recliner's movement:

• నొక్కండి మరియు పట్టుకోండి "UP" button to extend the motor, moving the recliner to an upright or lifted position.
• నొక్కండి మరియు పట్టుకోండి "DOWN" button to retract the motor, moving the recliner to a reclined position.

Release the button at any desired position to stop movement.

నిర్వహణ

Regular maintenance ensures optimal performance and longevity of your motor kit:

• శుభ్రపరచడం: Keep the motor and surrounding areas free from dust and debris. Use a dry cloth for cleaning.
• కేబుల్ తనిఖీ: Periodically check all cables and connections for signs of wear, fraying, or damage. Ensure connections are secure.
• సరళత: The motor actuator is factory-lubricated and generally does not require additional lubrication. Avoid applying lubricants unless specifically instructed by the manufacturer.

ట్రబుల్షూటింగ్

If your recliner is not operating correctly, perform the following checks before seeking further assistance:

• కదలిక లేదు:
  • Ensure the power cord is securely plugged into both the wall outlet and the power supply.
  • Verify that the power supply is correctly connected to the motor.
  • Check the 5-pin hand control connection to the motor for security.
  • దానికి శక్తి ఉందని నిర్ధారించుకోవడానికి మరొక ఉపకరణంతో గోడ అవుట్‌లెట్‌ను పరీక్షించండి.
• Intermittent Movement:
  • Inspect all cable connections for looseness.
  • Check for any obstructions preventing the motor from moving freely.
• అసాధారణ శబ్దం:
  • A slight operational hum is normal. Excessive or unusual noise may indicate an issue. Ensure the motor is securely mounted and not rubbing against any part of the chair frame.

If issues persist after these checks, consult a qualified technician.

స్పెసిఫికేషన్లు

ముఖ్యమైన గమనిక

This motor is specifically model ML18D07 ML18-055A and is not a direct replacement for ML18D07 ML18-055B or ML18-055D. Always verify your existing motor's model number before ordering to ensure compatibility.
