Tararium H4F Aquarium Filter with UV Lamp వినియోగదారు మాన్యువల్

పరిచయం

The Tararium H4F Aquarium Filter is a 4-in-1 submersible pump system designed to maintain clear and healthy water in aquariums ranging from 40 to 150 liters. It combines mechanical filtration with a UV lamp for comprehensive water purification. This system effectively combats cloudy and green water, reduces cleaning frequency, and promotes a healthy aquatic environment for fish, turtles, and aquatic plants.

Key features include a powerful water flow of 600 liters per hour, a dual filtration system with a biochemical sponge and a 254 nm UV lamp, independent control switches for the pump and UV lamp, and adjustable dual water outlets for improved oxygenation and water circulation.

భద్రతా సూచనలు

• Always disconnect the power supply before performing any maintenance, installation, or cleaning.
• Ensure the filter is fully submerged in water during operation to prevent overheating and damage to the pump.
• UV l ఆపరేట్ చేయవద్దుamp outside of water or look directly at the UV light, as it can cause eye and skin damage. The external UV window is for status verification only.
• This appliance is designed for indoor use only and for use with aquariums.
• Check the power cord and plug for any damage before use. Do not use if damaged.
• పిల్లలకు దూరంగా ఉంచండి.
• వాల్యూమ్ నిర్ధారించుకోండిtage (220-240V/50Hz) matches your local power supply.

ప్యాకేజీ విషయాలు

అన్‌ప్యాక్ చేసిన తర్వాత, దయచేసి అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి:

• 1x Tararium H4F Filter Unit
• 1x Submersible Pump (integrated)
• 1x Biochemical Filter Sponge
• 1x UV Lamp (integrated)
• Adjustable Dual Water Outlets
• Power Cord with Type C (European) Plug

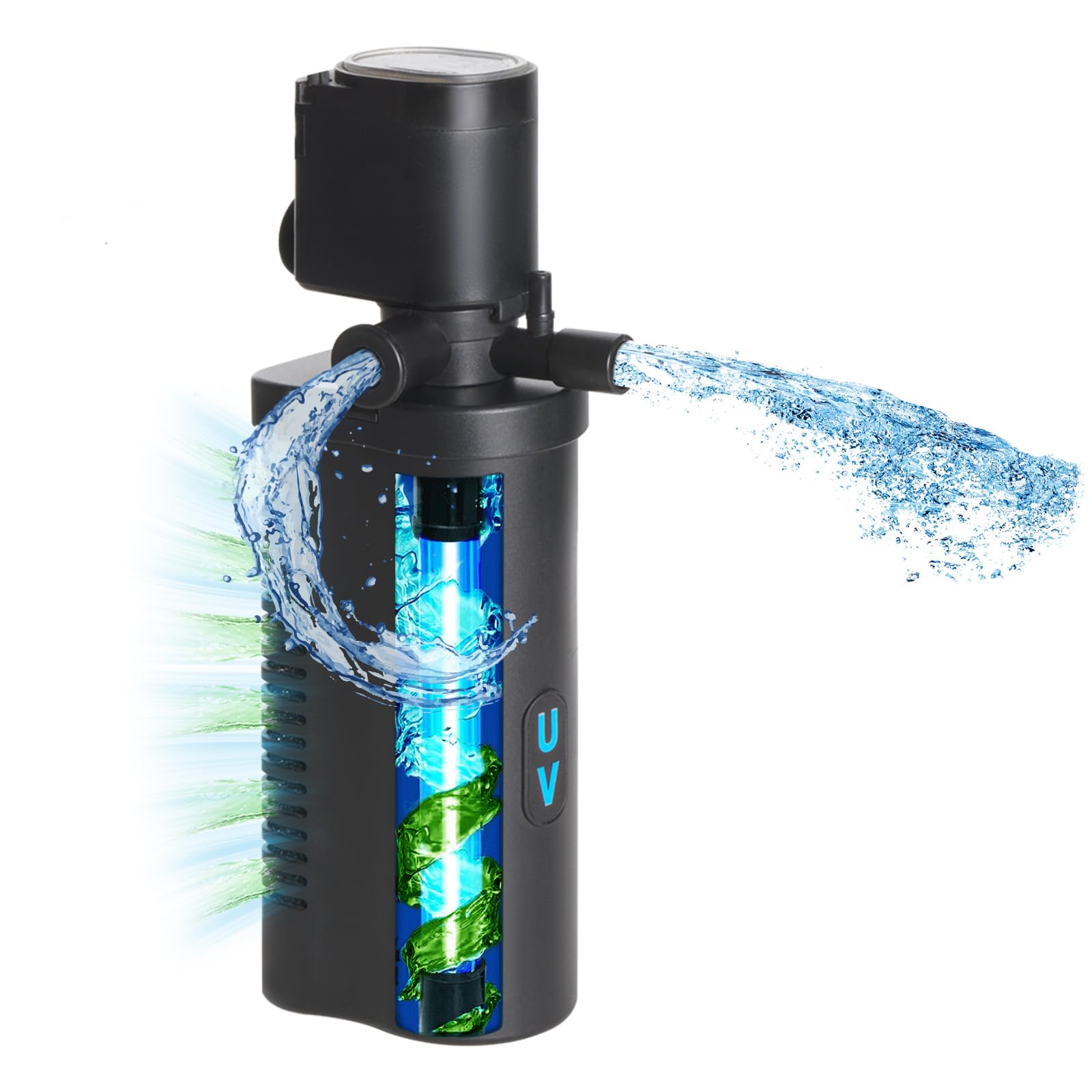

Image: Tararium H4F Aquarium Filter main unit. This image displays the complete filter assembly, including the pump, filter housing, and power cord.

సెటప్ సూచనలు

1. అన్‌ప్యాక్ చేసి తనిఖీ చేయండి: ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తొలగించండి. ఏవైనా నష్టం సంకేతాలు ఉన్నాయా అని తనిఖీ చేయండి.
2. ఫిల్టర్ మీడియాను అసెంబుల్ చేయండి: Ensure the biochemical filter sponge is correctly placed inside the filter housing. The UV lamp is pre-installed.
3. స్థానం: Place the filter unit fully submerged inside your aquarium. Ensure it is stable and not obstructed by decorations or substrate. The adjustable water outlets should be positioned to create optimal water circulation and oxygenation.
4. పవర్ కనెక్ట్ చేయండి: Plug the power cord into a suitable electrical outlet (220-240V/50Hz). Ensure a drip loop is formed to prevent water from running down the cord to the outlet.
5. ప్రారంభ ప్రారంభం: Once plugged in, the pump will start. Use the independent switches on the power cord to control the pump and the UV lamp విడిగా.

చిత్రం: పైగాview of Tararium filter models (CTUV-S4F, CTUV-H6F, CTUV-H8F) and their dimensions, highlighting the separate switches for pump and UV light. This image illustrates the physical appearance and control mechanism of the filter series.

ఆపరేటింగ్ సూచనలు

పవర్ కంట్రోల్

The Tararium H4F features independent switches for the pump and the UV lamp. This allows for flexible operation, such as running the pump for mechanical filtration without the UV lamp, or activating both for comprehensive water treatment.

• Locate the two switches on the power cord. One controls the pump, and the other controls the UV lamp.
• Flip the desired switch to the "ON" position to activate the component.
• The external UV window allows for easy visual verification of the UV lamp's operational status without direct exposure.

Water Flow and Oxygenation

The filter is equipped with dual adjustable water outlets. These can be rotated to direct water flow, improving oxygen content and circulation within the aquarium. Adjust them to suit the needs of your aquatic inhabitants and plants.

Image: Demonstrates various functions of the filter, including wave making, air supply, water pumping, and the easy-to-check UV light indicator. This image highlights the versatility and user-friendly aspects of the filter.

నిర్వహణ

Regular maintenance is crucial for the optimal performance and longevity of your Tararium H4F filter.

1. పవర్ డిస్‌కనెక్ట్ చేయండి: Always unplug the filter from the power outlet before any maintenance.
2. Filter Sponge Cleaning:
   • Carefully remove the filter unit from the aquarium.
   • Disassemble the filter housing to access the biochemical sponge.
   • Rinse the sponge thoroughly with old aquarium water (not tap water, as chlorine can kill beneficial bacteria) to remove accumulated debris. Do not over-clean, as some beneficial bacteria should remain.
   • Reassemble the filter and place it back into the aquarium.
3. యువి ఎల్amp భర్తీ:
   • యువి ఎల్amp's effectiveness diminishes over time. It is recommended to replace the UV lamp every 6 to 12 months, depending on usage and water conditions.
   • To replace, carefully open the UV lamp compartment (refer to the diagram for your specific model if available).
   • పాత l ను శాంతముగా తొలగించండిamp and insert a new, compatible UV lamp. Avoid touching the glass part of the new lamp ఒట్టి చేతులతో.
   • Ensure the compartment is securely sealed before re-submerging the filter.
4. ఇంపెల్లర్ క్లీనింగ్: Periodically check and clean the pump's impeller to ensure smooth operation and prevent blockages. Remove any debris or mineral buildup.

Image: Diagram illustrating the double deep filtration system, showing water flow through the biochemical sponge filter and the UV sterilizer. This image clarifies how the filter cleans the water.

ట్రబుల్షూటింగ్

Image: A visual comparison showing a green, cloudy aquarium before filtration and a crystal-clear aquarium after using the Tararium filter. This demonstrates the product's effectiveness in water clarification.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

This product comes with a standard manufacturer's warranty. Please refer to the packaging or contact your retailer for specific warranty terms and conditions. For technical support, replacement parts (such as UV lamps or filter sponges), or any inquiries, please contact Tararium customer service through their official webసైట్ లేదా మీ కొనుగోలు స్థానం.
