డెస్క్‌టాప్ డిష్‌వాషర్ యూజర్ మాన్యువల్

పరిచయం

Thank you for choosing the Desktop Dishwasher. This compact and efficient appliance is designed to simplify your dishwashing routine in small living spaces such as apartments, dormitories, and RVs. It features advanced cleaning technology, multiple wash modes, and safety features to ensure sparkling clean dishes with ease.

Please read this manual thoroughly before operating the dishwasher to ensure safe and optimal performance. Keep this manual for future reference.

ఉత్పత్తి ముగిసిందిview

The Desktop Dishwasher is a compact unit featuring a large panoramic view window on top, allowing you to monitor the washing process. It has a sleek, modern design suitable for countertop placement.

ముఖ్య లక్షణాలు:

• కాంపాక్ట్ డిజైన్: Space-saving desktop unit ideal for small living spaces.
• Door Safety Lock: Prevents accidental opening during operation and protects from hot water burns.
• Versatile Washing: 5 distinct washing modes for various dish types.
• Automatic Slag Discharge: Eliminates manual cleaning of food particles.
• పనోరమిక్ View విండో: Allows easy monitoring of washing progress.

సెటప్

అన్‌ప్యాకింగ్:

Carefully remove the dishwasher from its packaging. Ensure all packing materials are removed from inside and outside the unit. The package includes the Dishwasher unit and a User Manual.

ప్లేస్‌మెంట్:

Place the dishwasher on a stable, level countertop or surface. Ensure there is adequate space around the unit for ventilation and hose connections. The compact dimensions of approximately 16"D x 17"W x 15.7"H make it suitable for various kitchen layouts.

నీటి కనెక్షన్:

• Connect the inlet hose (approximately 1.5 feet long) to a suitable water supply.
• Ensure the inlet minimum pressure is at least 10 Pascal.
• Connect the outlet hose (approximately 60 inches long) to a drain or sink.

పవర్ కనెక్షన్:

Plug the dishwasher into a standard 220 Volt, 50 Hz power outlet. The unit has an energy consumption of 1.2 Kilowatts.

ఆపరేటింగ్ సూచనలు

వంటలను లోడ్ చేస్తోంది:

The dishwasher features an adjustable double-layer dish rack designed to accommodate dishes for a family of 3-5 people, with a capacity of 6 liters. Load dishes, bowls, and utensils securely, ensuring they do not obstruct the spray arms.

డిటర్జెంట్ కలుపుతోంది:

Add the recommended amount of dishwasher detergent to the dispenser. Refer to the detergent manufacturer's instructions for proper dosage.

వాష్ సైకిల్‌ను ఎంచుకోవడం:

The dishwasher offers 5 distinct washing modes to suit various cleaning needs. These include:

• భారీ: భారీగా మురికి వంటల కోసం.
• ఆర్థిక వ్యవస్థ: For lightly soiled dishes and energy saving.
• సున్నితమైన: For fragile items.
• సాధారణం: Standard daily wash.
• వేగవంతమైన: తేలికగా మురికిగా ఉన్న వస్తువులను త్వరగా కడగాలి.

Select the desired cycle using the electronic controls. The unit features a one-click operation to start the cleaning, disinfection, and drying program automatically.

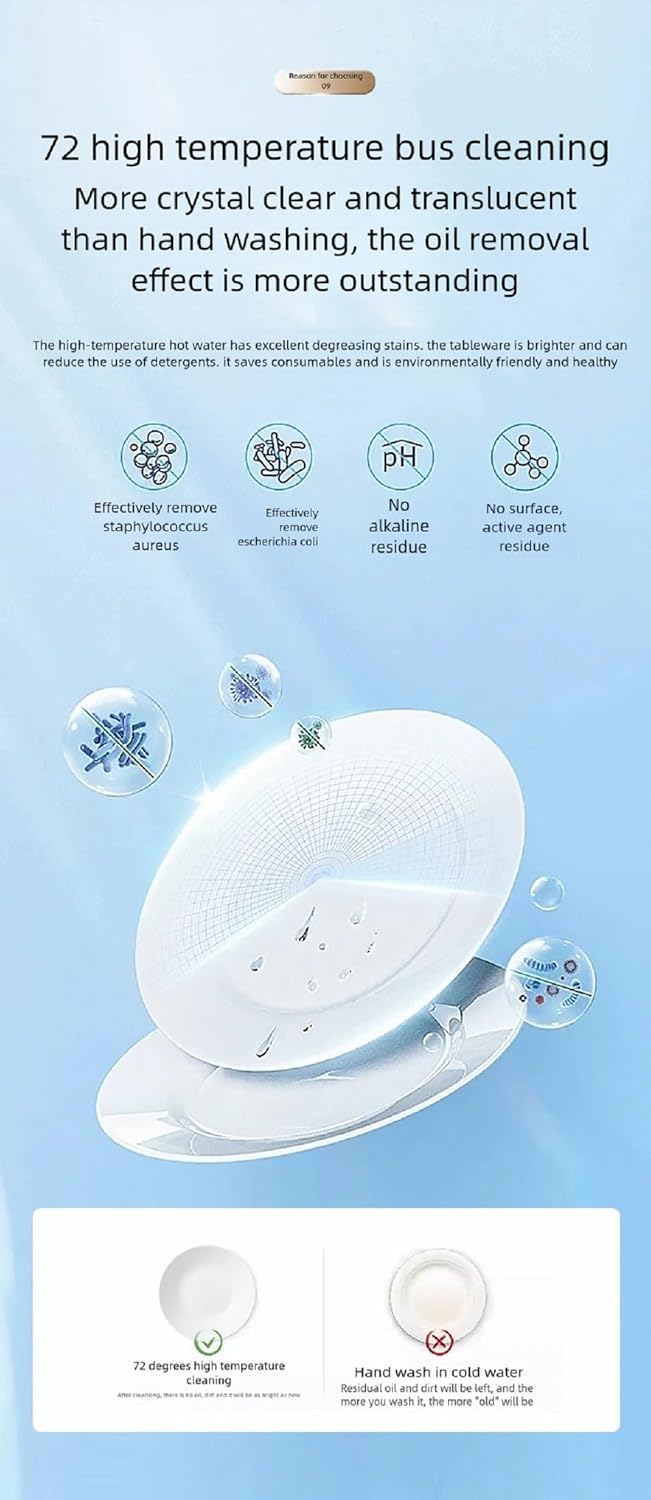

Advanced Cleaning Technology:

This dishwasher utilizes 72-degree high temperature cleaning for effective degreasing and sterilization, removing common bacteria like staphylococcus aureus and escherichia coli. It ensures dishes are crystal clear and free from alkaline or active agent residue.

The unit features a 720-degree all-round 6D sprinkler revolution with double rotating upper and lower spray arms. This system provides more than 30 water spraying directions, ensuring comprehensive cleaning of every corner of your dishes.

భద్రతా లక్షణాలు:

The dishwasher is equipped with a door security lock design that immediately powers off the unit if the door is opened during operation. This prevents accidental burns from hot water and steam, ensuring safety, especially around children.

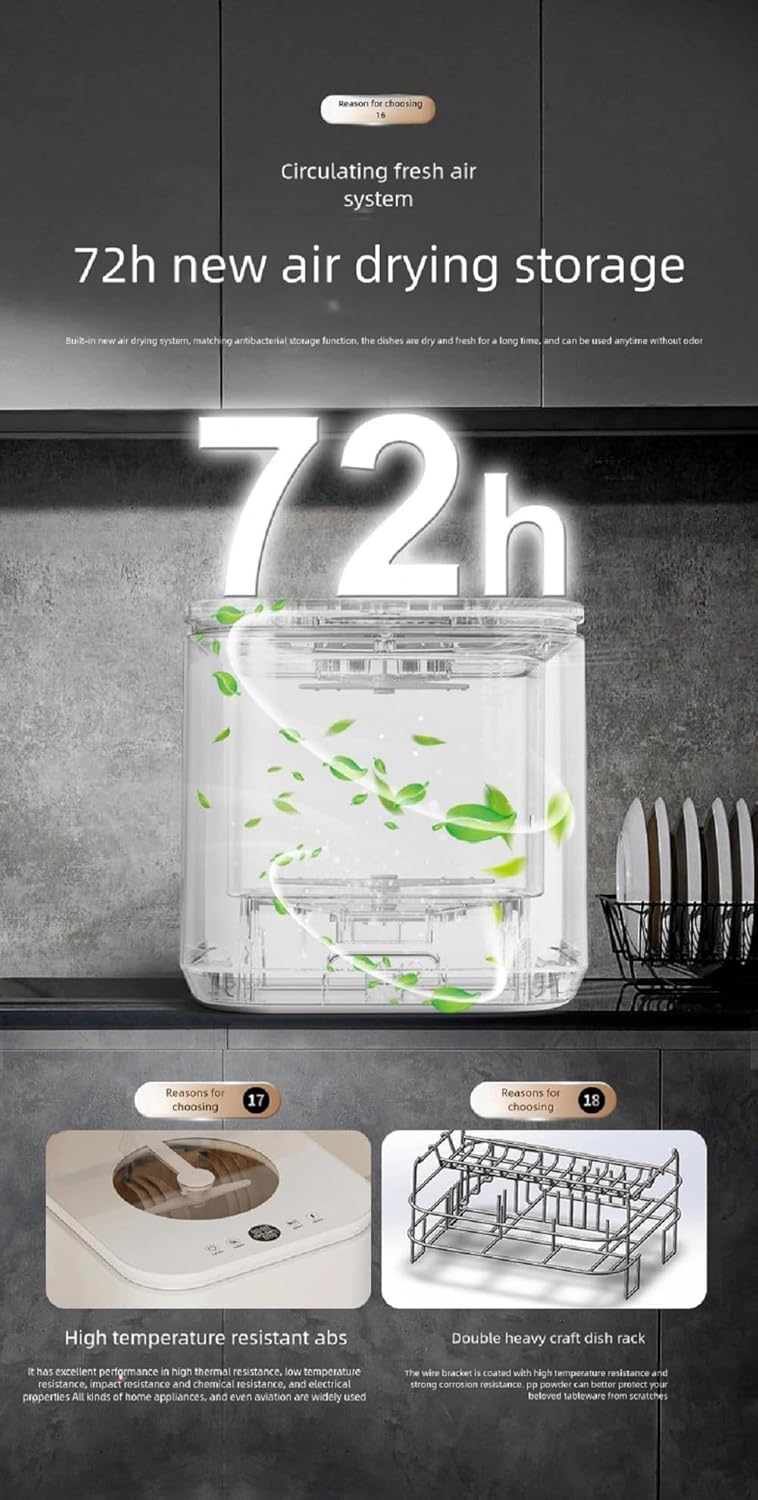

ఎండబెట్టడం మరియు నిల్వ:

After the wash cycle, the dishwasher utilizes a circulating fresh air system for 72 hours of new air drying storage. This built-in antibacterial storage function ensures dishes are dry and fresh for an extended period, ready for use anytime without odor.

నిర్వహణ

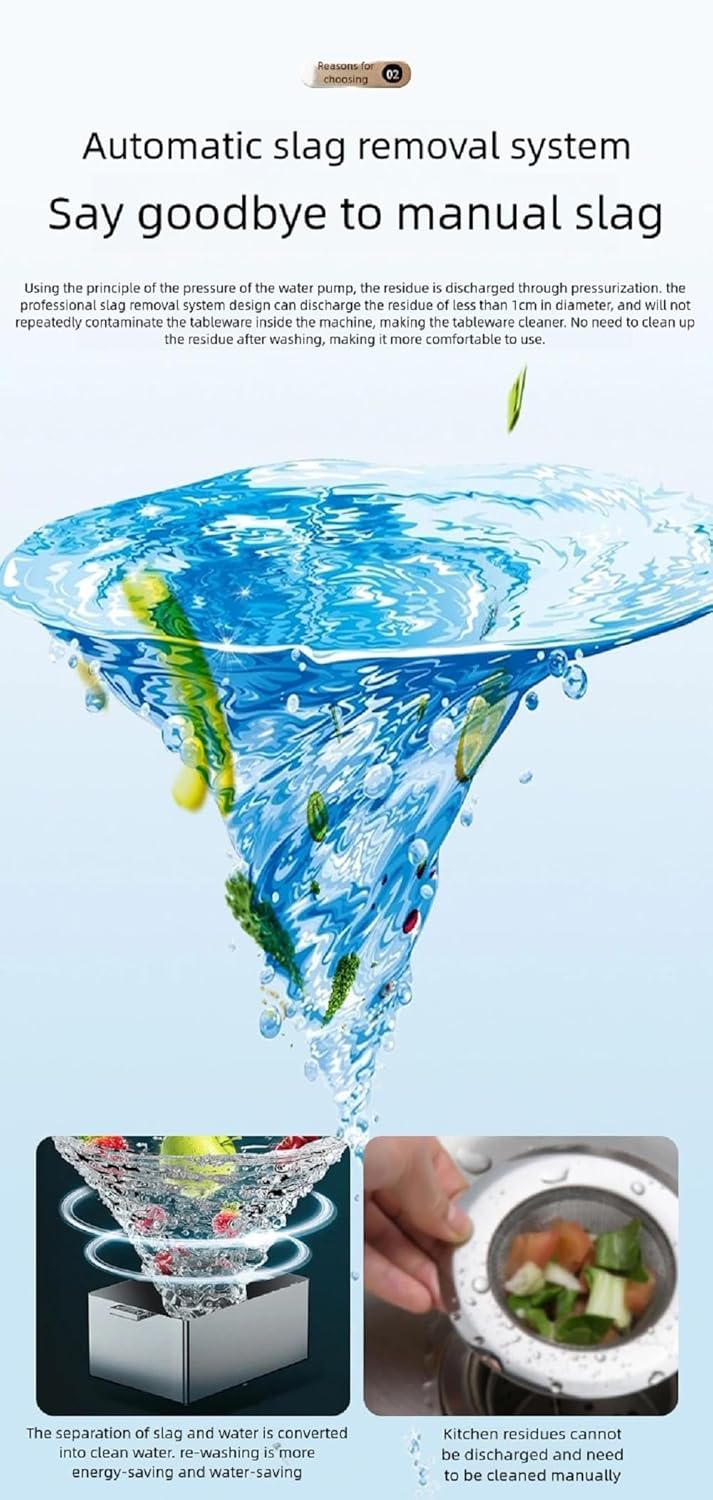

Automatic Slag Discharge System:

The dishwasher features an automatic slag removal system. Residue is discharged through pressurization, with particles less than 1 cm in diameter. This system prevents residue from contaminating the tableware, making cleaning more convenient and eliminating the need for manual residue removal.

సాధారణ శుభ్రపరచడం:

• డిష్‌వాషర్ బయటి భాగాన్ని మృదువైన, డి-క్లాత్‌తో తుడవండి.amp గుడ్డ.
• Periodically check and clean the spray arms and filters to ensure optimal performance.
• Use a dishwasher cleaner as recommended by the manufacturer to prevent mineral buildup.

ట్రబుల్షూటింగ్

If you encounter any issues with your Desktop Dishwasher, please refer to the following common troubleshooting tips:

• డిష్‌వాషర్ స్టార్ట్ కావడం లేదు: Ensure the power cord is securely plugged in and the door is fully closed and latched. Check your home's circuit breaker.
• శుభ్రంగా లేని వంటకాలు: Verify that dishes are loaded correctly and not blocking spray arms. Ensure sufficient detergent is used and the correct wash cycle is selected. Check water pressure.
• నీరు పారకపోవడం: Check the drain hose for kinks or blockages. Ensure the automatic slag discharge system is functioning correctly.
• అసాధారణ శబ్దాలు: Ensure dishes are not rattling against each other or the spray arms.

For persistent issues or problems not listed here, please contact customer support.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer, Rarlon 123, directly. Protection plans may also be available for extended coverage.
