PowerSmart Amerisun AV8621S1 21-inch Self-Propelled Gas Lawn Mower User Manual

పరిచయం

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your PowerSmart Amerisun AV8621S1 21-inch Self-Propelled Gas Lawn Mower. Please read and understand all instructions before using the product. Keep this manual for future reference.

భద్రతా సూచనలు

హెచ్చరిక: ఈ భద్రతా సూచనలను పాటించడంలో విఫలమైతే తీవ్రమైన గాయం లేదా మరణం సంభవించవచ్చు.

• Always wear appropriate personal protective equipment, including eye protection, hearing protection, and sturdy footwear, when operating the lawn mower.
• Keep hands and feet away from rotating parts. The blade is sharp and can cause severe injury.
• Ensure the area is clear of other people, especially children and pets, before and during operation.
• Never operate the mower in wet grass or rain, as this can lead to slipping and loss of control.
• Handle fuel with extreme care. It is highly flammable. Store fuel in approved containers and in a well-ventilated area.
• Do not refuel a hot engine. Allow the engine to cool before adding fuel.
• Before performing any maintenance or clearing blockages, always turn off the engine and disconnect the spark plug wire.
• Inspect the mower for damage before each use. Do not operate if any parts are damaged or missing.
• Mow across the face of slopes, not up and down, to reduce the risk of losing control.

ఉత్పత్తి ముగిసిందిview

The PowerSmart Amerisun AV8621S1 is a 21-inch self-propelled gas lawn mower designed for efficient lawn maintenance. Key features include:

• Powerful 170cc OHV Engine: Equipped with a forced air-cooling system for consistent performance.
• Self-Propelled System: Rear-wheel drive reduces user fatigue, making mowing easier.
• 3-in-1 Mowing Options: Offers mulching, side discharge, and rear bagging capabilities.
• Durable 21-inch Steel Deck: Provides a wide cutting path for faster coverage.
• 6-స్థానం ఎత్తు సర్దుబాటు: Easily adjust cutting height from 1.5 inches to 3.9 inches with a single lever.
• ఫోల్డబుల్ హ్యాండిల్: Designed for compact storage and transport.

మూర్తి 1: మొత్తం view of the Amerisun 21-inch Self-Propelled Gas Lawn Mower.

సెటప్

1. అన్ప్యాకింగ్ మరియు తనిఖీ

Carefully remove the lawn mower and all components from the packaging. Inspect for any shipping damage. Ensure all parts listed in the packing list are present.

2. అసెంబ్లీని నిర్వహించండి

Unfold the handle and secure it in the operating position using the provided knobs or levers. Ensure the handle is locked firmly to prevent movement during operation.

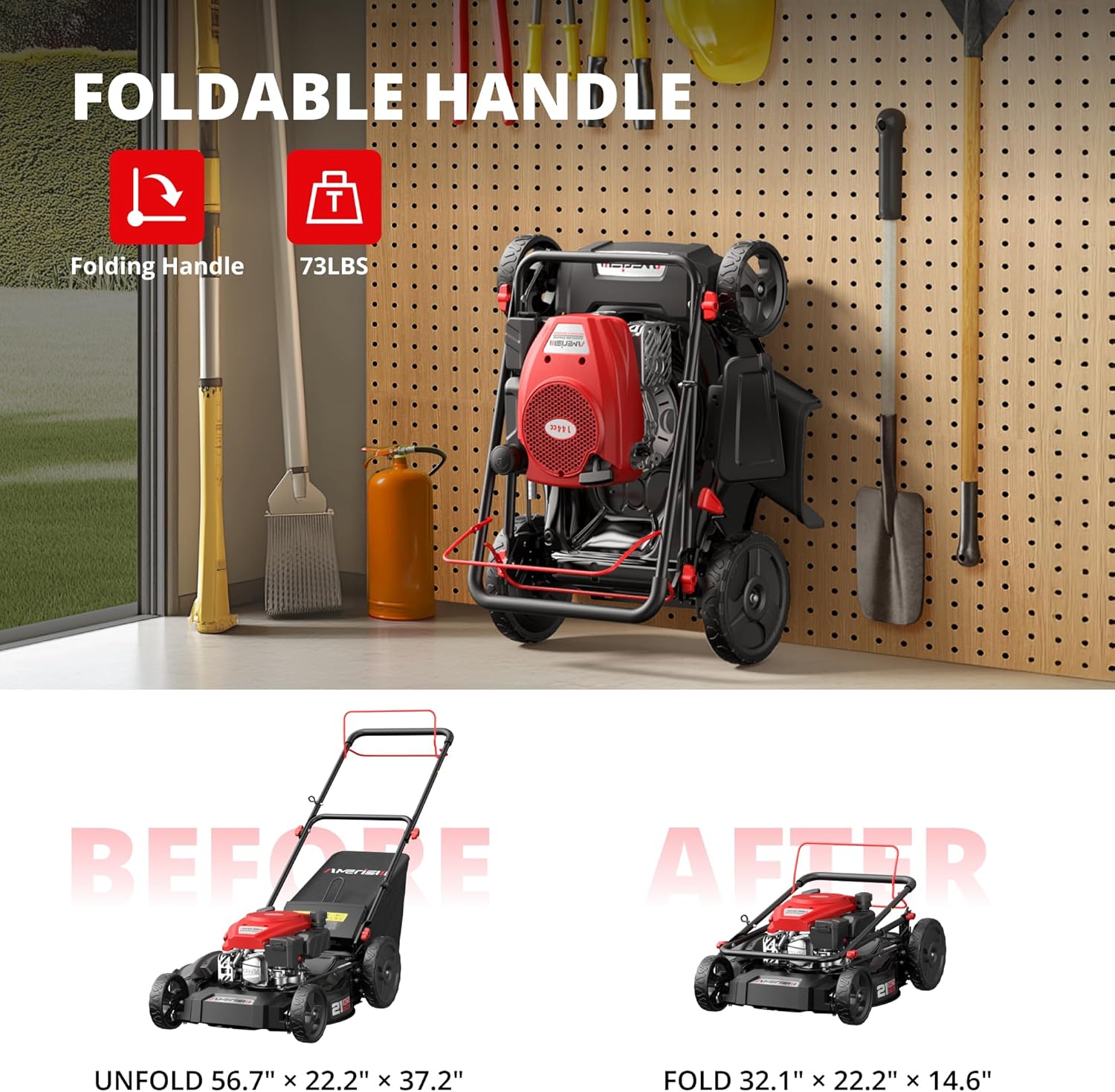

Figure 2: The foldable handle design allows for compact storage. Ensure it is securely locked before use.

3. ఇంజిన్ ఆయిల్ జోడించడం

Locate the oil fill cap. Remove the cap and slowly pour the recommended engine oil (typically SAE 30 or 10W-30, refer to engine manual for exact type and quantity) into the engine until it reaches the 'FULL' mark on the dipstick. Do not overfill.

Figure 3: Close-up of the 170cc OHV engine, showing the air-cooling system. The oil fill cap is typically located near the engine block.

4. ఇంధనాన్ని కలుపుతోంది

WARNING: Use fresh, unleaded gasoline with an octane rating of 87 or higher. Do not use E85 or fuel containing more than 10% ethanol. Never refuel indoors or near open flames.

Remove the fuel cap and fill the fuel tank with gasoline. Do not fill to the brim; leave space for fuel expansion. Securely replace the fuel cap.

5. Attaching Grass Bag (for Rear Bagging)

Lift the rear discharge door and hook the grass bag onto the mower chassis. Ensure it is securely attached to prevent grass clippings from escaping.

ఆపరేటింగ్ సూచనలు

1. ఆపరేషన్ ముందు తనిఖీలు

• ఇంజిన్ ఆయిల్ స్థాయిని తనిఖీ చేయండి.
• ఇంధన ట్యాంక్ తగినంతగా నిండి ఉందని నిర్ధారించుకోండి.
• Inspect the blade for sharpness and damage.
• Clear the mowing area of any debris, rocks, or foreign objects.
• అన్ని గార్డులు మరియు భద్రతా పరికరాలు స్థానంలో ఉన్నాయని మరియు సరిగ్గా పనిచేస్తున్నాయని నిర్ధారించుకోండి.

2. కట్టింగ్ ఎత్తును సర్దుబాటు చేయడం

The mower features a 6-position height adjustment system. To adjust, pull the single lever located near the wheels outwards and move it to the desired height setting (from 1.5 inches to 3.9 inches). Ensure all wheels are set to the same height.

Figure 4: The single lever for adjusting the cutting height across 6 positions.

3. ఇంజిన్ను ప్రారంభించడం

• స్పార్క్ ప్లగ్ వైర్ సురక్షితంగా కనెక్ట్ చేయబడిందని నిర్ధారించుకోండి.
• ఇంధనం కనిపించే వరకు ప్రైమర్ బల్బును (అమర్చబడి ఉంటే) 3-5 సార్లు నెట్టండి.
• Move the choke lever to the 'CHOKE' position (for cold starts).
• ఇంజిన్ బ్రేక్ లివర్‌ను హ్యాండిల్‌కు వ్యతిరేకంగా పట్టుకోండి.
• Pull the starter rope firmly and steadily until the engine starts.
• ఇంజిన్ స్టార్ట్ అయిన తర్వాత, చౌక్ లివర్‌ను క్రమంగా 'RUN' స్థానానికి తరలించండి.

4. Engaging Self-Propelled Drive

Once the engine is running, engage the self-propel lever (typically located on the handle) to activate the rear-wheel drive system. The mower will begin to move forward, reducing the effort required to push it.

Figure 5: A user demonstrating the self-propelled feature, which assists in moving the mower across the lawn.

5. Mowing Techniques and 3-in-1 System

For best results, mow in overlapping rows. The 3-in-1 system allows for versatile grass management:

• Rear Bagging: Collects grass clippings in the attached bag. Empty the bag regularly to maintain collection efficiency.
• సైడ్ డిశ్చార్జ్: Directs clippings out of the side chute. Attach the side discharge chute when not using the bag or mulching.
• మల్చింగ్: Finely cuts and redistributes clippings back onto the lawn as natural fertilizer. Ensure the mulching plug is inserted and the side discharge chute and grass bag are removed.

Figure 6: Illustration of the 3-in-1 mowing system, showing options for bagging, side discharge, and mulching.

మూర్తి 7: View of the durable 21-inch steel deck and cutting blade, designed for efficient grass processing.

6. ఇంజిన్‌ను ఆపడం

Release the engine brake lever. The engine will stop automatically. Wait for all moving parts to come to a complete stop before approaching the mower.

నిర్వహణ

WARNING: Always turn off the engine and disconnect the spark plug wire before performing any maintenance or cleaning.

1. రెగ్యులర్ క్లీనింగ్

After each use, clean the underside of the mower deck to prevent grass buildup, which can affect cutting performance. Use a stiff brush or scraper. Clean the engine cooling fins to ensure proper airflow.

2. ఇంజిన్ ఆయిల్

Check the oil level before each use. Change the engine oil after the first 5 hours of operation, then every 25 hours or annually, whichever comes first.

3. ఎయిర్ ఫిల్టర్

Inspect the air filter every 25 hours or more frequently in dusty conditions. Clean or replace as necessary to ensure proper engine performance.

4. స్పార్క్ ప్లగ్

Inspect the spark plug annually or every 50 hours. Clean or replace if fouled or worn. Ensure the gap is set correctly according to the engine manual.

5. బ్లేడ్ సంరక్షణ

Inspect the blade regularly for sharpness, cracks, or bends. A dull blade tears grass, leading to an unhealthy lawn. Sharpen or replace the blade as needed. Always use genuine replacement parts.

6. నిల్వ

For long-term storage (over 30 days), drain the fuel tank or add a fuel stabilizer to prevent fuel degradation. Clean the mower thoroughly. Store in a dry, well-ventilated area. The foldable handle allows for more compact storage.

ట్రబుల్షూటింగ్

స్పెసిఫికేషన్లు

అధికారిక ఉత్పత్తి వీడియో

వారంటీ మరియు మద్దతు

For warranty information or technical support, please refer to the documentation included with your product or contact PowerSmart customer service. Contact details can typically be found on the manufacturer's webసైట్ లేదా ఉత్పత్తి ప్యాకేజింగ్‌లో.
