పరిచయం
Thank you for choosing the HydroNozzle 3000 Psi Pressure Washer Wand. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your new pressure washer attachment. This product is designed to assist in cleaning various surfaces such as cars, patios, and gardens by providing a focused water stream from your standard garden hose.
భద్రతా సమాచారం
- Always ensure a secure connection to your garden hose before turning on the water supply.
- Do not point the nozzle at people, pets, or electrical outlets.
- Wear appropriate eye protection during operation.
- The pressure output of this device is primarily dependent on your household water system's pressure. It is not a standalone high-pressure washer.
- పిల్లలకు దూరంగా ఉంచండి.
- ఉపయోగంలో లేనప్పుడు ఉత్పత్తిని పొడి, చల్లని ప్రదేశంలో నిల్వ చేయండి.
ప్యాకేజీ విషయాలు
Your HydroNozzle 3000 Psi Pressure Washer Wand package should include the following components:
- 1 x HydroNozzle Jet Washer Wand
- 2 x Quick Connectors (3/4” standard and 1/2” garden hose compatible)
- 2 x Spray Nozzles (Fan-shaped and Linear)
- 1 x Microfiber Cleaning Mitt
- 1 x టెఫ్లాన్ టేప్
- రబ్బరు దుస్తులను ఉతికే యంత్రాలు
- వినియోగదారు మాన్యువల్
Image: All components of the HydroNozzle 3000 Psi Pressure Washer Wand kit, including the wand, nozzles, connectors, and cleaning mitt.
సెటప్ సూచనలు
- మంత్రదండం అటాచ్ చేయండి: Connect the metal wand extension to the handle assembly by screwing it clockwise until secure.
- ముక్కును ఎంచుకోండి: Choose either the Fan-shaped or Linear spray nozzle and screw it onto the end of the metal wand extension. Ensure it is tightened to prevent leaks.
- గొట్టానికి కనెక్ట్ చేయండి: Use the appropriate quick connector (3/4” standard or 1/2” garden hose) to attach the HydroNozzle to your garden hose. Ensure the connection is tight. You may use the included Teflon tape on threaded connections to prevent leaks.
- కనెక్షన్లను తనిఖీ చేయండి: Double-check all connections for tightness before turning on the water supply.

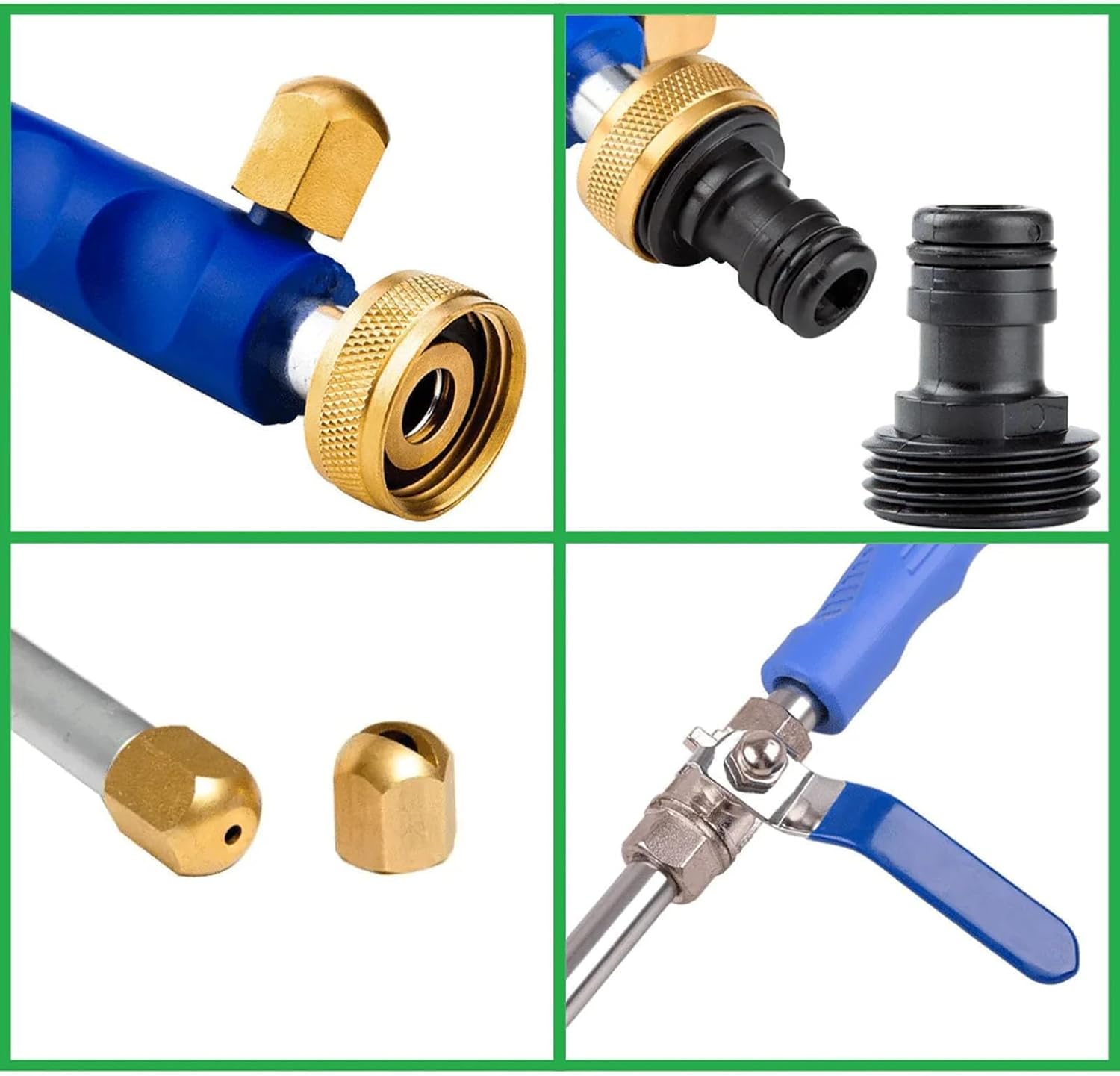

చిత్రం: వివరణాత్మకం view of the HydroNozzle's connection points, including the hose connector, wand attachment, and interchangeable nozzles.
ఆపరేటింగ్ సూచనలు
- నీటిని ఆన్ చేయండి: Slowly turn on the water supply to your garden hose.
- ప్రవాహాన్ని సక్రియం చేయండి: Use the trigger or lever on the HydroNozzle handle to control the water flow.
- స్ప్రేని సర్దుబాటు చేయండి: The two included nozzles provide different spray patterns:
- Linear (Cylinder-shaped) Nozzle: Provides a concentrated, powerful stream for stubborn dirt and grime.
- ఫ్యాన్ ఆకారపు నాజిల్: Delivers a wider, gentler spray for rinsing, general cleaning, or watering plants.
- క్లీనింగ్ అప్లికేషన్: Direct the water stream towards the surface you wish to clean. For enhanced pressure, consider using the HydroNozzle in conjunction with a pump or car washer system.
- ఉపయోగం తర్వాత: Turn off the water supply and release any remaining pressure by activating the wand until water stops flowing.
Image: Comparison of the two spray patterns produced by the HydroNozzle: a concentrated cylinder-shaped spray and a wider fan-shaped spray.
నిర్వహణ
- శుభ్రపరిచే నాజిల్లు: Periodically remove the nozzles and rinse them to clear any debris that may affect the spray pattern.
- కనెక్షన్లను తనిఖీ చేయండి: Regularly check all connections for wear or damage. Replace rubber washers if they appear worn to prevent leaks.
- నిల్వ: After each use, drain any remaining water from the wand. Store the HydroNozzle in a dry, protected area to prevent corrosion and damage, especially during freezing temperatures.
- మన్నిక: The HydroNozzle is constructed with solid copper interfaces, a metal wand, and an anti-slip handle designed for durability and resistance to corrosion and rust. Proper care will extend its lifespan.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| తక్కువ నీటి ఒత్తిడి | Insufficient household water pressure; clogged nozzle. | Ensure your main water supply is fully open. Clean the nozzle. For higher pressure, consider using with a pump or car washer. |
| కనెక్షన్ల నుండి నీరు లీక్ అవుతోంది | Loose connections; worn rubber washers. | Tighten all connections. Replace any worn rubber washers with new ones (included). Apply Teflon tape to threaded connections. |
| అస్థిరమైన స్ప్రే నమూనా | పాక్షికంగా మూసుకుపోయిన నాజిల్. | Remove and thoroughly clean the nozzle to clear any obstructions. |
స్పెసిఫికేషన్లు
- బ్రాండ్: సాధారణమైనది
- మోడల్ సంఖ్య: zhxs-884251
- మెటీరియల్: Brass, Plastic, Metal
- రంగు: నీలం
- అంశం కొలతలు (L x W x H): 2 x 2 x 17 అంగుళాలు
- వస్తువు బరువు: 1.2 పౌండ్లు
- ఇన్లెట్ కనెక్షన్ రకం: Garden Hose Thread
- గరిష్ట ఆపరేటింగ్ ప్రెజర్: 3000 Pound per Square Inch (Note: This refers to the product's structural integrity, not the output pressure from a standard garden hose.)
- పోర్టుల సంఖ్య: 2
- వాల్వ్ రకం: బాల్ వాల్వ్
Image: The HydroNozzle wand with measurements indicating its length and component sizes.
వారంటీ మరియు మద్దతు
Specific warranty information for this product is not provided in the available documentation. For any warranty claims or technical support, please contact the seller or manufacturer directly through your purchase platform. Keep your purchase receipt as proof of purchase.
