1. పరిచయం
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Generic ZUKED 310 Series Variable Frequency Drive (VFD) Inverter. This VFD is designed to control the speed and torque of AC induction motors by varying the motor input frequency and voltage. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage or injury.
2. భద్రతా సమాచారం
WARNING: Electrical shock hazard. Only qualified personnel should install, operate, and maintain this equipment.
- Always disconnect power before performing any wiring or maintenance. Wait at least 5 minutes after power-off for capacitors to discharge.
- Ensure proper grounding of the VFD and the motor.
- Do not touch internal components while power is applied or immediately after power-off.
- Protect the VFD from moisture, dust, corrosive gases, and direct sunlight.
- ఇన్పుట్ వాల్యూమ్ని ధృవీకరించండిtage matches the VFD's specifications before connecting power.
మూర్తి 2.1: Front panel of the VFD, showing the display, control buttons, and a 'DANGER 5 min' warning indicating residual voltage after power-off.
3. ఉత్పత్తి లక్షణాలు
The ZUKED 310 Series VFD Inverter offers robust performance and versatile control for various industrial applications. Key features include:
- వైడ్ వాల్యూమ్tagఇ అనుకూలత: Supports 3-phase input/output for industrial motors, with models for 1-phase 220V input to 3-phase 220V output, and 3-phase 380V input to 3-phase 380V output.
- Precise Motor Control: Advanced vector control technology ensures precise torque and speed regulation with a typical speed accuracy of ±0.5%.
- బలమైన డిజైన్: Compact structure with an IP55-rated dust and water-resistant enclosure, suitable for harsh workshop conditions.
- Integrated Automation: Features an integrated PID controller, RS485 communication interface, and multiple I/O ports for seamless automation system integration.
- శక్తి సామర్థ్యం: An energy-saving mode automatically adjusts output to match load demands, potentially reducing power consumption by 30%-60%.
- రక్షణ విధులు: Includes comprehensive protection against overcurrent, overvoltage, overload, phase loss, and short circuits.
- అవుట్పుట్ వాల్యూమ్tagఇ నియంత్రణ: Built-in Automatic Voltage Regulation (AVR) function maintains stable output voltage.
మూర్తి 3.1: పైగాview of the ZUKED 310 Series VFD Inverter.
మూర్తి 3.2: VFD model indicating 380V/220V compatibility and 11KW power rating.
మూర్తి 3.3: VFD model indicating 220V/380V compatibility and various power ratings from 0.75KW to 5.5KW.
4. స్పెసిఫికేషన్లు
| స్పెసిఫికేషన్ | విలువ |
|---|---|
| మోడల్ సంఖ్య | JBAQJAEEA-ZUKED-11KW-3PH380V-3PH380V |
| ఇన్పుట్ వాల్యూమ్tage (1-phase) | ఎసి 220 వి ± 10% |
| అవుట్పుట్ వాల్యూమ్tage (3-phase from 1-phase input) | AC 0-240V |
| ఇన్పుట్ వాల్యూమ్tage (3-phase) | ఎసి 380 వి ± 10% |
| అవుట్పుట్ వాల్యూమ్tage (3-phase from 3-phase input) | AC 0-440V |
| అవుట్పుట్ పవర్ ఎంపికలు | 0.75KW, 1.5KW, 2.2KW, 4KW, 5.5KW, 7.5KW, 11KW |
| అవుట్పుట్ ఫ్రీక్వెన్సీ | 0-320Hz |
| నియంత్రణ పద్ధతి | V/F నియంత్రణ, వెక్టర్ నియంత్రణ |
| రక్షణ లక్షణాలు | ఓవర్ కరెంట్, ఓవర్వాల్tage, Overload, Phase Loss, Short Circuit |
| ప్రత్యేక విధులు | Simple PLC, Built-in PID, AVR Function |
| ప్యాకేజీ కొలతలు | 0.39 x 0.39 x 0.39 అంగుళాలు (సుమారుగా) |
| వస్తువు బరువు | 3.53 ounces (Approximate) |
5. సంస్థాపన & వైరింగ్
5.1 పర్యావరణ అవసరాలు
- ఉష్ణోగ్రత: 0°C నుండి 40°C (32°F నుండి 104°F)
- తేమ: 90% RH కన్నా తక్కువ, కండెన్సింగ్ కానిది
- స్థానం: Avoid direct sunlight, corrosive gases, flammable materials, and excessive dust. Ensure adequate ventilation.
5.2 వైరింగ్ కనెక్షన్లు
Proper wiring is crucial for safe and reliable operation. Refer to the wiring diagrams below for correct connections.
మూర్తి 5.1: Single-phase and Three-phase wiring diagrams for the VFD.
5.2.1 Power Input (R, S, T / L1, L2)
- Single-Phase 220V Input: Connect the live wire to L1 and the neutral wire to L2.
- Three-Phase 380V Input: Connect the three phase wires to R, S, and T terminals.
- Always ensure a fuse is installed on the input line for protection.
5.2.2 Motor Output (U, V, W)
Connect the three motor phase wires to the U, V, and W terminals of the VFD. Ensure correct phase sequence for desired motor rotation. If the motor rotates in the wrong direction, swap any two of the U, V, W connections.
5.2.3 Braking Resistance (P+, PB)
If dynamic braking is required, connect an external braking resistor between the P+ and PB terminals. Refer to the VFD specifications for appropriate braking resistor values.
5.2.4 Grounding (PE)
Connect the PE (Protective Earth) terminal to a reliable ground point. Proper grounding is essential for safety and to minimize electromagnetic interference.
5.2.5 నియంత్రణ టెర్మినల్స్
The VFD features various control terminals for external control signals, including digital inputs (DI), analog inputs (AI), analog outputs (AO), and communication ports (RS485). Refer to the detailed diagram for specific terminal functions.
మూర్తి 5.2: వివరంగా view of the VFD's control and power terminals.
మూర్తి 5.3: వైపు view of the VFD, showing model details and ventilation.
6. సెటప్ & కాన్ఫిగరేషన్
The VFD's control panel allows for parameter setting and monitoring. The display shows operational status and parameter values, while buttons like PRG, M-FUN, SHIFT, RUN, STOP/REST, UP, DOWN, and ENTER are used for navigation and input.
6.1 ప్రాథమిక పారామీటర్ సెట్టింగులు
Upon initial power-up, it is essential to configure basic motor parameters and operating modes. Common parameters include:
- మోటారు రేట్ పవర్: Set according to your motor's nameplate.
- మోటార్ రేటెడ్ వాల్యూమ్tage: Set according to your motor's nameplate.
- మోటారు రేట్ కరెంట్: Set according to your motor's nameplate.
- Maximum Output Frequency: Typically 50Hz or 60Hz, but can be set up to 320Hz.
- Acceleration/Deceleration Time: Adjust these parameters to control how quickly the motor speeds up or slows down.
- నియంత్రణ మోడ్: Select between V/F control (Volts per Hertz) or Vector control based on application requirements. Vector control offers better performance for demanding applications.
Refer to the detailed parameter list in the full product manual (if available) for advanced settings, including PID control, simple PLC functions, and communication settings.
7. ఆపరేషన్
Once the VFD is correctly installed and configured, operation is straightforward.
7.1 Starting the Motor
నొక్కండి రన్ button on the control panel or activate the corresponding external run command (if configured). The motor will accelerate to the set frequency according to the acceleration time parameter.
7.2 Stopping the Motor
నొక్కండి STOP/REST button on the control panel or activate the corresponding external stop command. The motor will decelerate to a stop according to the deceleration time parameter.
7.3 Adjusting Frequency/Speed
ఉపయోగించండి ▲ ▲ తెలుగు (పైకి) మరియు ▼ (Down) arrow buttons on the control panel to adjust the output frequency, thereby changing the motor speed. The display will show the current output frequency or motor speed.

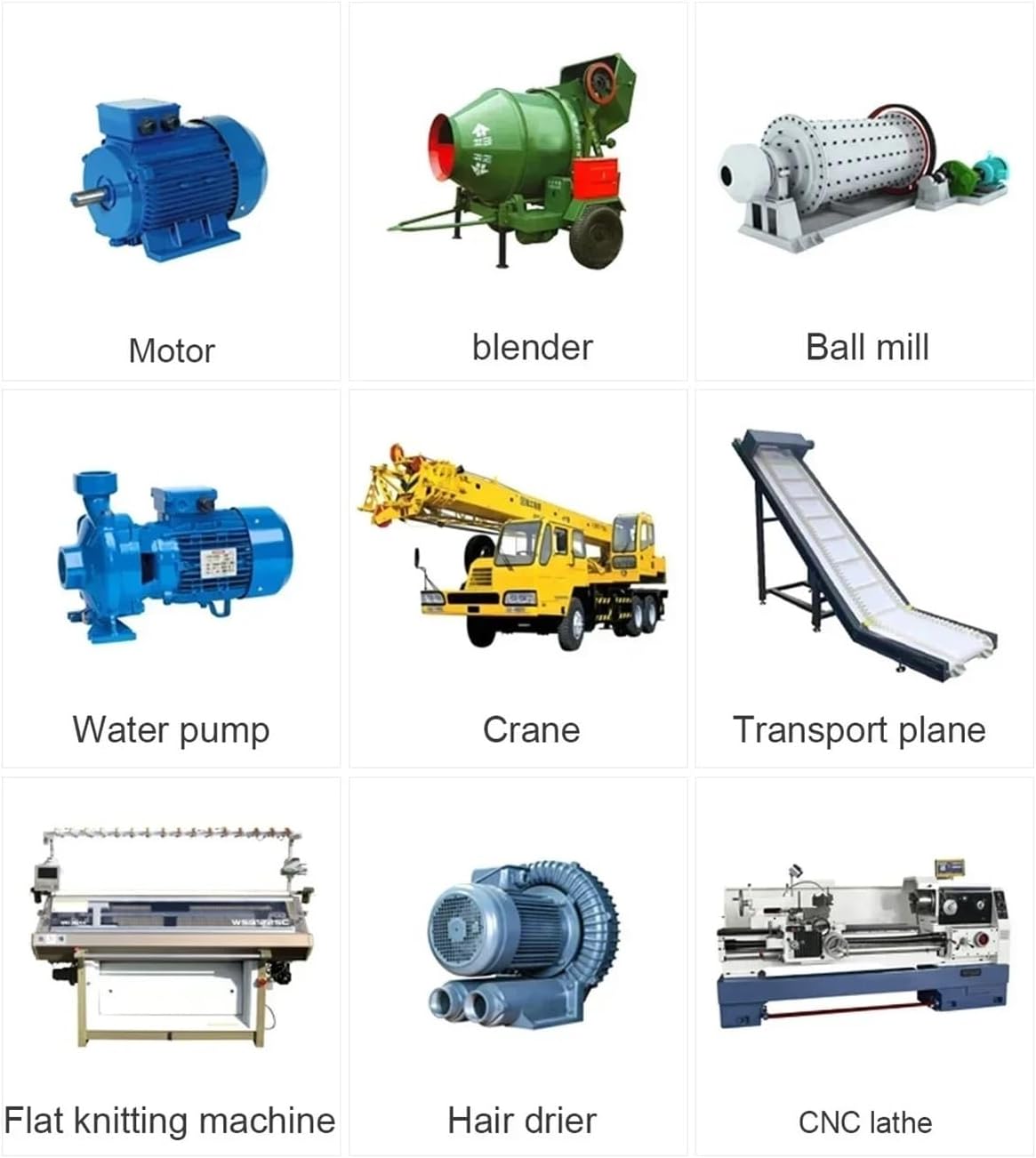

మూర్తి 7.1: Examples of industrial applications suitable for the VFD.
8. నిర్వహణ
Regular maintenance helps ensure the longevity and reliable operation of your VFD.
- శుభ్రపరచడం: Periodically clean the VFD's exterior and cooling fins to prevent dust accumulation, which can hinder heat dissipation. Use a soft, dry cloth. Do not use liquid cleaners.
- తనిఖీ: Regularly inspect wiring connections for tightness and signs of corrosion or damage. Check for any unusual noises or odors during operation.
- పర్యావరణ తనిఖీ: Ensure the operating environment remains within specified temperature and humidity limits.
- ఫ్యాన్ చెక్: Verify that the cooling fan (if present) is operating correctly and not obstructed.
WARNING: Always disconnect power and wait for the discharge period before performing any maintenance or inspection.
9. ట్రబుల్షూటింగ్
ఈ విభాగం సాధారణ సమస్యలకు మార్గదర్శకత్వాన్ని అందిస్తుంది. సంక్లిష్ట సమస్యల కోసం, సాంకేతిక మద్దతును సంప్రదించండి.
| Symptom/Error Code | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| మోటారు నడవదు | No power, incorrect wiring, stop command active, parameter error. | Check power supply, verify wiring, ensure run command is active, check motor parameters. |
| ఓవర్ కరెంట్ లోపం | Motor overload, short circuit in motor/cables, acceleration time too short. | Reduce load, check motor and cables, increase acceleration time, verify motor parameters. |
| ఓవర్వోల్tagఇ తప్పు | Deceleration time too short, input voltage too high, regenerative load. | Increase deceleration time, check input voltage, consider adding a braking resistor. |
| అండర్ వోల్tagఇ తప్పు | ఇన్పుట్ వాల్యూమ్tage too low, power supply instability. | ఇన్పుట్ వాల్యూమ్ని తనిఖీ చేయండిtage, ensure stable power supply. |
| ఓవర్లోడ్ లోపం | Motor or VFD overloaded. | Reduce mechanical load, check motor parameters, ensure VFD is correctly sized for the motor. |
10. వారంటీ & సపోర్ట్
Specific warranty terms and conditions for the Generic ZUKED 310 Series VFD Inverter are not provided within the product details. Please refer to your purchase documentation or contact your vendor for warranty information and technical support.
