SHINYSNAKE G600 MATX MFF Gaming Case

పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your SHINYSNAKE G600 MATX MFF Gaming Case. The G600 is designed for high-performance computing in a compact form factor, featuring a solid wood front panel, tempered glass side panel, and an optional 11.3-inch auxiliary screen for real-time hardware monitoring. Please read this manual thoroughly before beginning assembly to ensure proper setup and optimal performance.

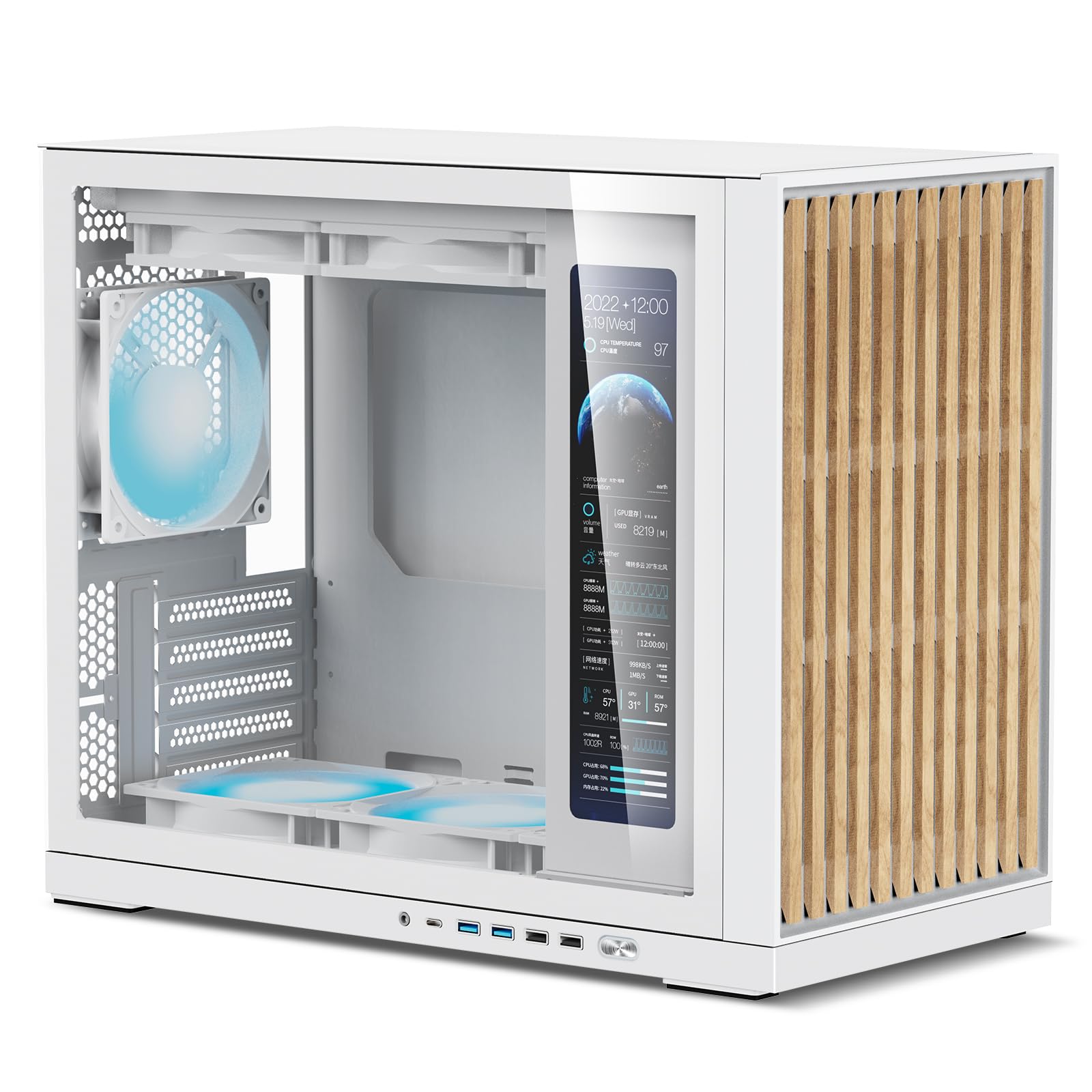

Image: The SHINYSNAKE G600 MATX MFF Gaming Case in white with its auxiliary screen displaying system information.

భద్రతా సమాచారం

• ఏదైనా భాగాలను ఇన్‌స్టాల్ చేయడానికి లేదా తీసివేయడానికి ముందు ఎల్లప్పుడూ వాల్ అవుట్‌లెట్ నుండి విద్యుత్ సరఫరాను డిస్‌కనెక్ట్ చేయండి.
• సున్నితమైన భాగాలకు ఎలక్ట్రోస్టాటిక్ డిశ్చార్జ్ (ESD) దెబ్బతినకుండా నిరోధించడానికి యాంటీ-స్టాటిక్ రిస్ట్ స్ట్రాప్ ధరించండి.
• భౌతిక నష్టాన్ని నివారించడానికి భాగాలను జాగ్రత్తగా నిర్వహించండి.
• చిన్న భాగాలు మరియు ఉపకరణాలను పిల్లలకు దూరంగా ఉంచండి.
• వేడెక్కకుండా ఉండటానికి కేసు చుట్టూ సరైన వెంటిలేషన్ ఉండేలా చూసుకోండి.
• Do not operate the system with the side panels removed unless performing maintenance or troubleshooting.

ప్యాకేజీ విషయాలు

Verify that all items are present before beginning assembly:

• SHINYSNAKE G600 MATX MFF Gaming Case (Auxiliary Screen Version)
• యాక్సెసరీ బాక్స్ (స్క్రూలు, కేబుల్ టైలు, స్టాండ్‌ఆఫ్‌లు మొదలైనవి)
• వినియోగదారు మాన్యువల్ (ఈ పత్రం)
• Auxiliary Screen USB Cable
• Auxiliary Screen Power Cable

సెటప్ మరియు ఇన్‌స్టాలేషన్

Follow these steps for proper assembly of your PC components within the G600 case.

1. కేసును సిద్ధం చేయండి

1. Carefully remove the tempered glass side panel and the solid wood front panel. These are typically secured with thumbscrews or a snap-on mechanism.
2. Unpack the accessory box and identify the various screws and mounting hardware.

Image: The SHINYSNAKE G600 case with its side panel removed, showing the internal layout.

2. మదర్బోర్డు సంస్థాపన

1. Install the CPU, CPU cooler (if air cooler), and RAM onto your Micro-ATX or Mini-ITX motherboard outside the case.
2. Align the motherboard with the standoffs inside the case. Ensure the I/O shield is correctly positioned.
3. అందించిన స్క్రూలను ఉపయోగించి మదర్‌బోర్డును భద్రపరచండి.

3. విద్యుత్ సరఫరా యూనిట్ (PSU) సంస్థాపన

The G600 supports ATX PSUs up to 160mm in length and features a 3-level adjustable PSU chamber to optimize clearance for GPUs and cooling.

1. Determine the optimal PSU chamber level based on your GPU length and AIO radiator thickness. Refer to the diagrams below for guidance.
2. Mount the PSU to the adjustable bracket and secure it in the desired position.
3. Route the necessary PSU cables through the cable management cutouts.

Image: Diagram illustrating the adjustable ATX PSU chamber for optimized clearance.

Image: Configuration for PSU Chamber Level 1, showing GPU and PSU length compatibility.

Image: Configuration for PSU Chamber Level 2, showing GPU and PSU length compatibility.

Image: Configuration for PSU Chamber Level 3, showing GPU and PSU length compatibility.

4. గ్రాఫిక్స్ కార్డ్ (GPU) ఇన్‌స్టాలేషన్

The G600 supports GPUs up to 400mm in length (5-slot).

1. Remove the necessary PCIe slot covers.
2. Insert your GPU into the primary PCIe slot on the motherboard.
3. Secure the GPU with screws.
4. Connect the appropriate PCIe power cables from the PSU to the GPU.

5. శీతలీకరణ వ్యవస్థ సంస్థాపన

The G600 offers flexible cooling options:

• ఎయిర్ కూలింగ్: Supports CPU air coolers up to 170mm tall. Up to 7 x 120mm fans can be installed (3x top, 1x rear, 3x bottom).
• లిక్విడ్ కూలింగ్: Supports 360mm AIO radiators at the top or bottom, or a 120mm AIO at the rear. Note: A 360mm AIO at the top or bottom may affect other component clearances.

1. Install your chosen fans or AIO radiator in the designated mounting points.
2. ఫ్యాన్ పవర్ కేబుల్‌లను మదర్‌బోర్డ్ లేదా ఫ్యాన్ కంట్రోలర్‌కు కనెక్ట్ చేయండి.

Image: Diagram showing air cooling fan configurations and CPU cooler height support.

Image: Diagram showing liquid cooling AIO radiator support for top, bottom, and rear mounts.

6. నిల్వ పరికర సంస్థాపన

The G600 supports various storage configurations:

• Rear: 1 x 2.5” SSD mount
• Bottom: 1 x 3.5” HDD mount (optional)
• Auxiliary Screen Bracket: 2 x 2.5” SSD mounts (if not using the screen)

1. Mount your SSDs and HDDs in the appropriate locations using the provided screws.
2. Connect SATA data and power cables.

Image: Visual representation of SSD and HDD mounting points within the case.

7. Front I/O Panel Connections

ముందు ప్యానెల్ కేబుల్‌లను మీ మదర్‌బోర్డుకు కనెక్ట్ చేయండి:

• 1 x USB 3.2 Type-C (10Gbps)
• 2 x USB 3.0 (5Gbps)
• 2 x USB 2.0
• 1 x హెడ్‌ఫోన్/మైక్రోఫోన్ కాంబో జాక్
• Power Button / Reset Button / LED indicators

Image: Close-up of the front I/O panel showing USB ports and audio jack.

8. Auxiliary Screen Setup

The 11.3-inch auxiliary screen (1920x480 resolution) displays real-time hardware data.

1. Connect the auxiliary screen's USB cable to an available USB 2.0 header on your motherboard.
2. Connect the auxiliary screen's power cable to a SATA power connector from your PSU.
3. Download and install the necessary monitoring software from the official SHINYSNAKE webసైట్.
4. Configure the display settings and choose from over 20 customizable themes to show CPU/GPU temperatures, clock speeds, fan RPM, and more.

Image: Features of the 11.3-inch auxiliary screen, including resolution, USB connection, and monitoring themes.

9. చివరి అసెంబ్లీ

1. Perform cable management to ensure optimal airflow and a clean aesthetic.
2. Reattach the tempered glass side panel and the solid wood front panel.

Installation Video (SHINY SNAKE G350 - General Guidance)

While this video is for the SHINY SNAKE G350 model, it may provide general visual guidance for PC component installation within a compact SHINY SNAKE chassis. Please note that specific steps and component layouts may differ for the G600.

Operating the Auxiliary Screen

Once your system is fully assembled and powered on, the auxiliary screen will activate. Ensure the monitoring software is installed and running in your operating system.

• సాఫ్ట్‌వేర్ కాన్ఫిగరేషన్: Use the SHINYSNAKE monitoring software to customize the information displayed on the screen. You can select from various metrics such as CPU temperature, GPU temperature, CPU/GPU load, fan speeds, and more.
• Theme Selection: The software offers over 20 customizable themes. Experiment with different themes to find one that suits your aesthetic and informational needs.
• Troubleshooting Display: If the screen does not power on or display information, verify the USB and power connections, and ensure the monitoring software is correctly installed and configured.

ఉత్పత్తి ముగిసిందిview Video (SHINY SNAKE G600)

ఈ వీడియో ఓవర్‌ని అందిస్తుందిview of the SHINY SNAKE G600 MATX Chassis, highlighting its features including the auxiliary screen.

నిర్వహణ

• డస్ట్ ఫిల్టర్లు: Regularly clean the dust filters (if present) to maintain optimal airflow and prevent dust buildup inside the case.
• బాహ్య క్లీనింగ్: ఒక మృదువైన ఉపయోగించండి, డిamp cloth to clean the exterior surfaces. Avoid abrasive cleaners or solvents that could damage the finish or wood panel.
• ఇంటీరియర్ క్లీనింగ్: Periodically open the case and use compressed air to remove dust from components and internal surfaces. Ensure the system is powered off and unplugged before cleaning.
• టెంపర్డ్ గ్లాస్: Clean the tempered glass panel with a microfiber cloth and a glass cleaner designed for electronics to avoid streaks or damage.

ట్రబుల్షూటింగ్

System Does Not Power On

• Check all power connections: PSU to wall, PSU to motherboard (24-pin and CPU 8-pin), and front panel power switch cable to motherboard.
• PSU స్విచ్ "ఆన్" స్థానంలో ఉందని నిర్ధారించుకోండి.
• Verify that the power button cable is correctly connected to the motherboard's front panel header.

Auxiliary Screen Not Displaying

• Confirm the USB and SATA power cables for the auxiliary screen are securely connected.
• Ensure the monitoring software is installed and running in your operating system.
• Check your motherboard's BIOS/UEFI settings to ensure USB 2.0 headers are enabled.

Poor Airflow / Overheating

• Verify all case fans are spinning and oriented correctly for optimal airflow (front/bottom intake, rear/top exhaust).
• Clean any dust filters or internal components that may be obstructing airflow.
• Ensure proper cable management to avoid blocking airflow paths.

స్పెసిఫికేషన్లు

Image: Detailed specifications table for the SHINYSNAKE G600 case.

వారంటీ మరియు మద్దతు

వారంటీ సమాచారం

The SHINYSNAKE G600 MATX MFF Gaming Case comes with a 2 సంవత్సరాల వారంటీ from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.

కస్టమర్ మద్దతు

For technical assistance, troubleshooting, or warranty inquiries, please contact SHINYSNAKE customer support through their official website or the retailer where the product was purchased. You may need to provide your product model number (G600-AS-WT) and proof of purchase.
