InnoVibe IVSP1597

InnoVibe Sound Machine with Wireless Charger & Bluetooth Speaker

Model: IVSP1597 - User Manual

పరిచయం

This manual provides instructions for the safe and effective use of your InnoVibe Sound Machine with Wireless Charger and Bluetooth Speaker. This device is designed to provide a relaxing environment through soothing sounds, play audio via Bluetooth, and wirelessly charge compatible smartphones. Please read this manual thoroughly before operation and retain it for future reference.

భద్రతా సమాచారం

  • పరికరాన్ని నీరు లేదా అధిక తేమకు గురిచేయవద్దు.
  • తీవ్రమైన ఉష్ణోగ్రతలను నివారించండి.
  • పరికరాన్ని మీరే విడదీయవద్దు లేదా మరమ్మతు చేయడానికి ప్రయత్నించవద్దు. అన్ని సర్వీసింగ్‌లను అర్హత కలిగిన సిబ్బందికి సూచించండి.
  • పిల్లలకు దూరంగా ఉంచండి.
  • Use only the provided power adapter or a certified equivalent.
  • Ensure proper ventilation when using the wireless charging function.

ప్యాకేజీ విషయాలు

  • InnoVibe Sound Machine (IVSP1597)
  • USB-C ఛార్జింగ్ కేబుల్
  • వినియోగదారు మాన్యువల్

ఉత్పత్తి ముగిసిందిview

Familiarize yourself with the device's components and controls.

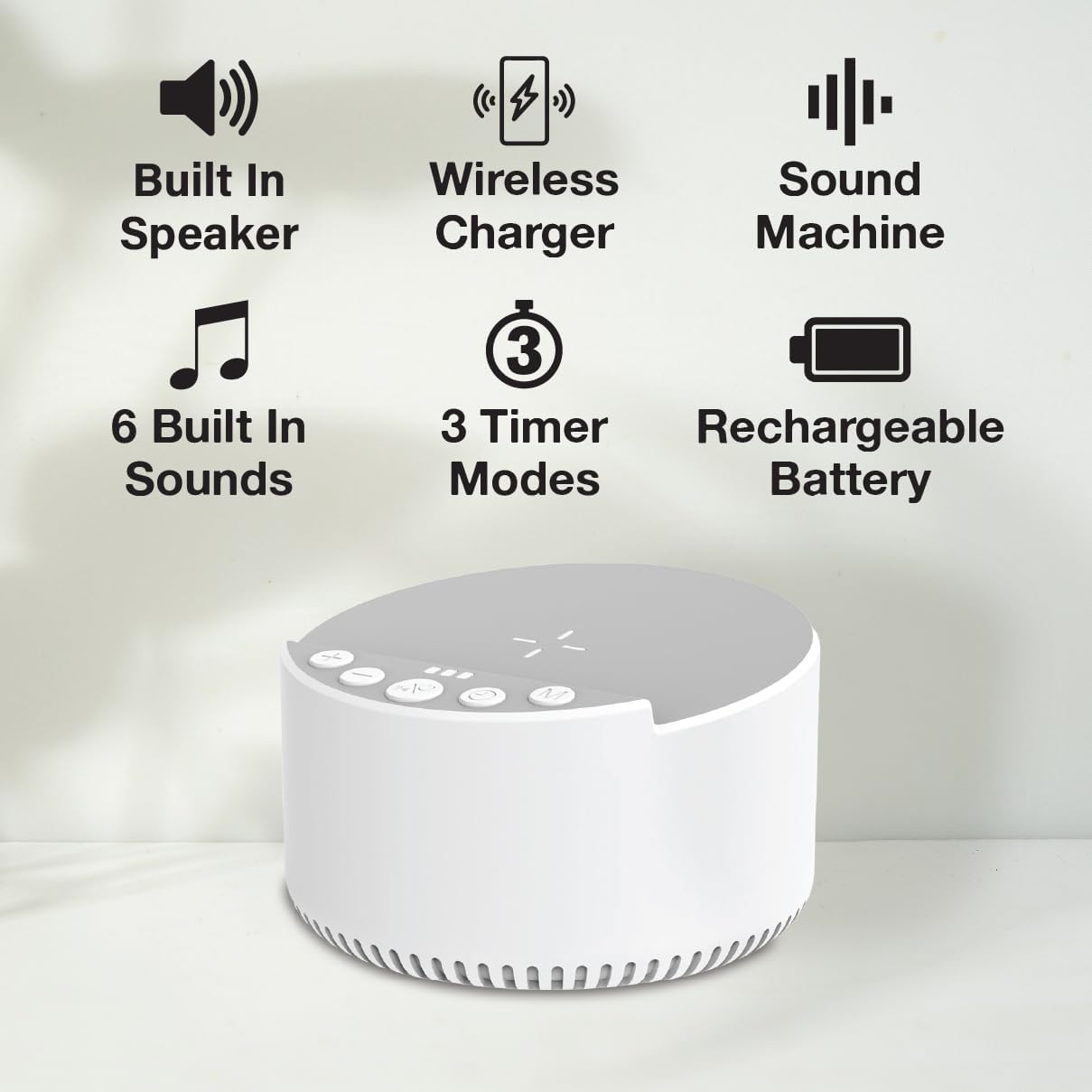

Diagram of InnoVibe Sound Machine features: Built-in Speaker, Wireless Charger, Sound Machine, 6 Built-in Sounds, 3 Timer Modes, Rechargeable Battery.

మూర్తి 1: Diagram illustrating the InnoVibe Sound Machine's features and control buttons, including the built-in speaker, wireless charger, sound machine function, 6 built-in sounds, 3 timer modes, and rechargeable battery.

InnoVibe Sound Machine with Wireless Charger and Bluetooth Speaker, front view.

మూర్తి 2: ముందు view of the InnoVibe Sound Machine, showcasing its compact design and top-mounted controls.

నియంత్రణలు:

  • పవర్ బటన్: పరికరాన్ని ఆన్/ఆఫ్ చేస్తుంది.
  • Sound Selection Buttons: Cycle through the 6 built-in sounds.
  • వాల్యూమ్ అప్ / డౌన్ బటన్లు: ధ్వని వాల్యూమ్‌ను సర్దుబాటు చేయండి.
  • టైమర్ బటన్: Sets the auto-off timer (15, 30, 60 minutes, or continuous).
  • బ్లూటూత్ బటన్: బ్లూటూత్ జత చేసే మోడ్‌ను సక్రియం చేస్తుంది.
  • వైర్‌లెస్ ఛార్జింగ్ ప్యాడ్: Located on the top surface for compatible devices.

సెటప్

  1. పవర్ కనెక్షన్: Connect the provided USB-C cable to the device's charging port and plug the other end into a compatible USB power adapter (not included) or a USB port. The device has a built-in rechargeable battery.
  2. ప్లేస్‌మెంట్: Place the device on a flat, stable surface, such as a nightstand or desk, ensuring adequate space for wireless charging and sound projection.

ఆపరేటింగ్ సూచనలు

1. పవర్ ఆన్/ఆఫ్

  • నొక్కండి మరియు పట్టుకోండి పవర్ బటన్ పరికరాన్ని ఆన్ లేదా ఆఫ్ చేయడానికి 2 సెకన్ల పాటు.

2. Sound Machine Function

The device offers 6 natural soothing sounds to aid relaxation and sleep.

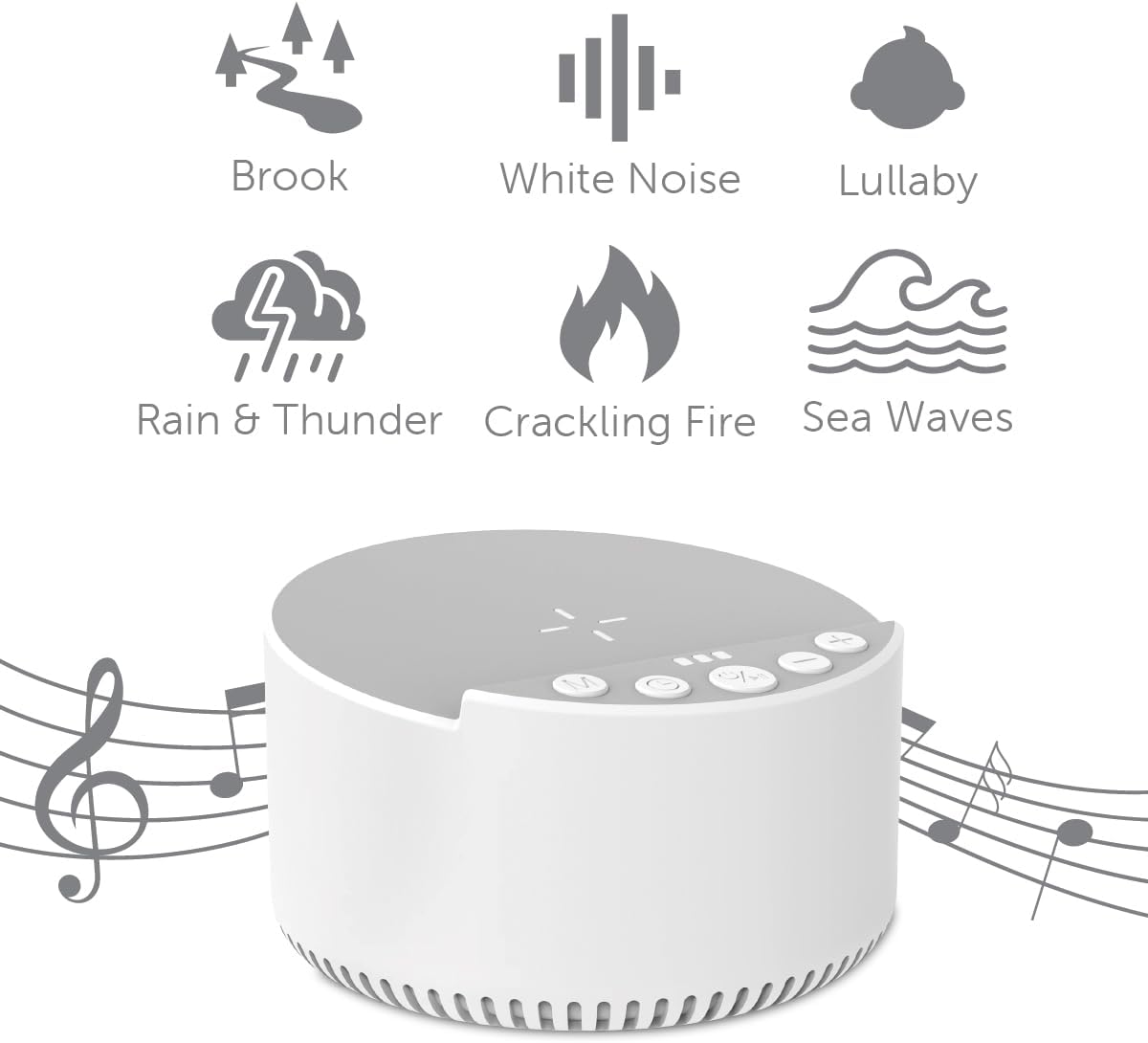

Icons representing the 6 natural sounds: Brook, White Noise, Lullaby, Rain & Thunder, Crackling Fire, Sea Waves.

మూర్తి 3: Visual representation of the six natural sounds available on the InnoVibe Sound Machine.

  1. ధ్వనిని ఎంచుకోండి: నొక్కండి ధ్వని ఎంపిక బటన్లు to cycle through the available sounds: White Noise, Ocean Waves, Rain & Thunder, Crackling Fire, Lullaby, and Flowing Brook.
  2. వాల్యూమ్ సర్దుబాటు: ఉపయోగించండి వాల్యూమ్ అప్/డౌన్ బటన్లు to set your desired listening level.
  3. టైమర్ సెట్ చేయండి: నొక్కండి టైమర్ బటన్ to choose an auto-off duration: 15 minutes, 30 minutes, 60 minutes, or continuous play. An indicator light may show the selected timer setting.
  4. మెమరీ ఫంక్షన్: The device will remember your last sound and volume settings when powered off and on again.
InnoVibe Sound Machine used for sleep aid.

మూర్తి 4: The InnoVibe Sound Machine positioned on a nightstand, providing soothing sounds for sleep.

3. బ్లూటూత్ స్పీకర్ ఫంక్షన్

మీ స్మార్ట్‌ఫోన్ లేదా ఇతర బ్లూటూత్-ప్రారంభించబడిన పరికరాల నుండి వైర్‌లెస్‌గా ఆడియోను ప్రసారం చేయండి.

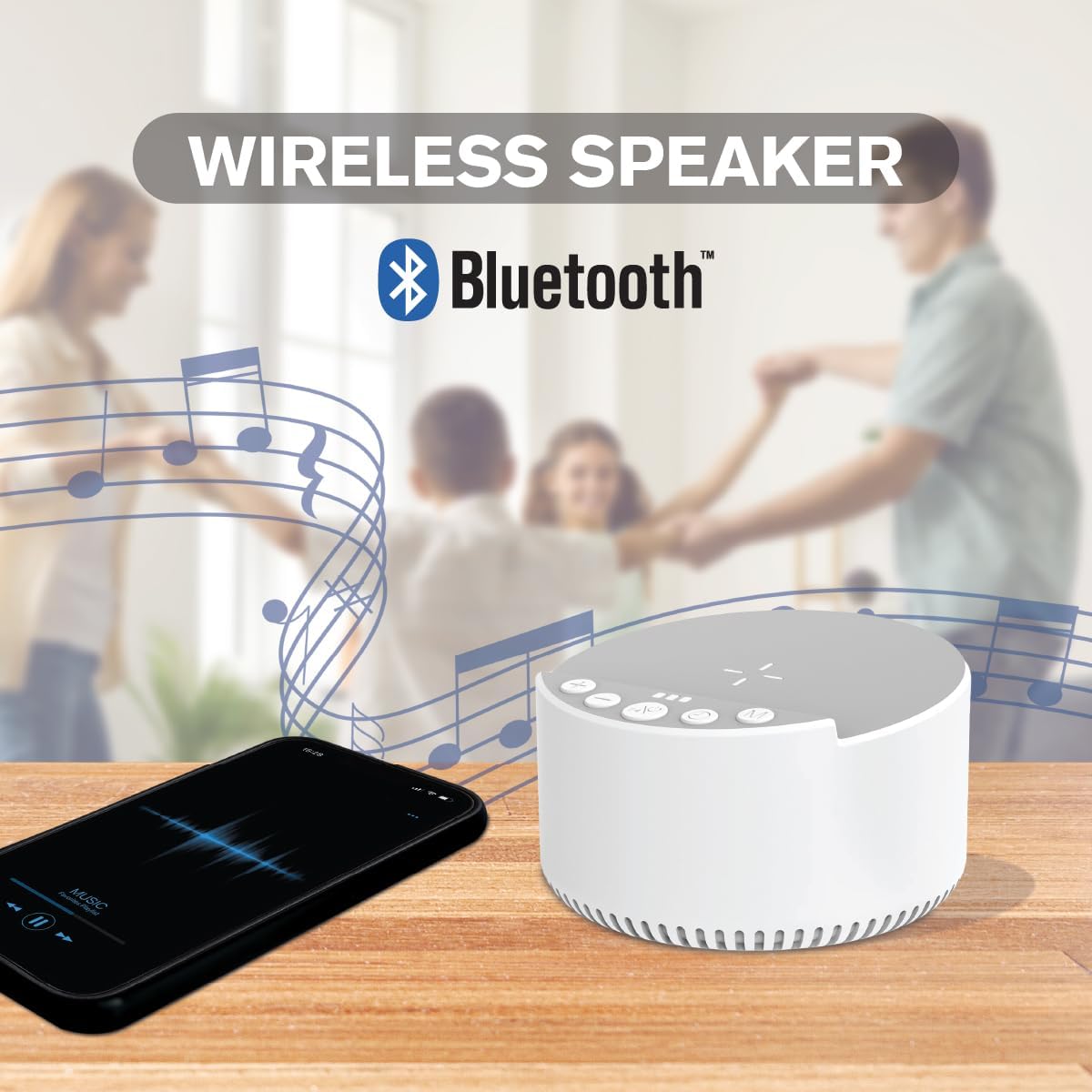

InnoVibe Sound Machine functioning as a Bluetooth speaker.

మూర్తి 5: The InnoVibe Sound Machine connected via Bluetooth to a smartphone, playing music.

  1. బ్లూటూత్‌ని యాక్టివేట్ చేయండి: పరికరం ఆన్‌లో ఉన్నప్పుడు, నొక్కండి బ్లూటూత్ బటన్. The device will enter pairing mode, indicated by a flashing light or audible prompt.
  2. జత పరికరం: On your smartphone or Bluetooth-enabled device, go to Bluetooth settings and select "IVSP1597" (or similar name) from the list of available devices.
  3. ఆడియోను ప్లే చేయండి: Once paired, you can play music, podcasts, or other audio from your connected device. Use the volume controls on both the sound machine and your connected device to adjust the sound level.

4. Wireless Charger Function

Charge compatible smartphones wirelessly by placing them on the charging pad.

InnoVibe Sound Machine wirelessly charging a smartphone.

మూర్తి 6: A smartphone being wirelessly charged on the InnoVibe Sound Machine's charging pad.

  1. ప్లేస్‌మెంట్: Place your Qi-compatible smartphone directly onto the wireless charging pad located on the top surface of the sound machine.
  2. ఛార్జింగ్ సూచిక: The device or your phone will indicate when charging has begun. Ensure the phone is centered on the pad for optimal charging.
  3. గమనిక: Wireless charging requires the sound machine to be powered on and connected to a power source.

నిర్వహణ

  • శుభ్రపరచడం: పరికరాన్ని మృదువైన, పొడి వస్త్రంతో తుడవండి. రాపిడి క్లీనర్‌లను లేదా ద్రావకాలను ఉపయోగించవద్దు.
  • నిల్వ: ఉపయోగంలో లేనప్పుడు పరికరాన్ని చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.

ట్రబుల్షూటింగ్

సమస్యసాధ్యమైన పరిష్కారం
పరికరం పవర్ ఆన్ చేయదు.Ensure the device is charged or connected to a power source. Press and hold the Power Button for 2 seconds.
స్పీకర్ నుండి శబ్దం లేదు.Check the volume level on both the sound machine and your connected Bluetooth device. Ensure a sound mode is selected.
బ్లూటూత్ జత చేయడం విఫలమైంది.Ensure the sound machine is in pairing mode. Turn off and on Bluetooth on your device. Move closer to the sound machine.
వైర్‌లెస్ ఛార్జింగ్ పనిచేయడం లేదు.Ensure your phone is Qi-compatible and centered on the charging pad. Remove any thick phone cases. Ensure the sound machine is powered on and connected to a power source.

స్పెసిఫికేషన్లు

ఫీచర్వివరాలు
మోడల్ సంఖ్యIVSP1597
బ్రాండ్ఇన్నోవైబ్
ఉత్పత్తి కొలతలు2.52"డి x 3.98"వా x 4.02"హ
వస్తువు బరువు13.3 ఔన్సులు
స్పీకర్ రకంఅంతర్నిర్మిత
స్పీకర్ అవుట్‌పుట్ పవర్3 వాట్స్
కనెక్టివిటీ టెక్నాలజీబ్లూటూత్
వైర్‌లెస్ ఛార్జింగ్ అవుట్‌పుట్15W (ఫాస్ట్ ఛార్జింగ్)
సౌండ్ మోడ్‌లు6 Natural Soothing Sounds
టైమర్ మోడ్‌లు15, 30, 60 minutes, Continuous
బ్యాటరీ1 ప్రామాణికం కాని బ్యాటరీ (చేర్చబడింది)
UPC810106639246

వారంటీ & మద్దతు

InnoVibe products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official InnoVibe website. Please have your model number (IVSP1597) ready when contacting support.
