GENERIC PC00299 G 799F ఎలక్ట్రానిక్ కాంపోనెంట్ ఇన్‌స్ట్రక్షన్ మాన్యువల్

1. పరిచయం

This instruction manual provides essential information for the safe and effective use of the GENERIC PC00299 G 799F electronic component. Please read this manual thoroughly before installation and operation, and retain it for future reference. This component is designed for integration into industrial electrical systems.

2. భద్రతా సమాచారం

Always observe the following safety precautions to prevent injury or damage to the component and associated equipment:

• Ensure power is disconnected from the system before installation or maintenance.
• అర్హత కలిగిన సిబ్బంది మాత్రమే సంస్థాపన మరియు సర్వీసింగ్ చేయాలి.
• Avoid touching exposed circuitry when power is applied.
• Protect the component from moisture, dust, and extreme temperatures.
• సరైన సంపుటాన్ని ధృవీకరించండిtage and current ratings before connecting to a power source.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

Follow these steps for proper installation of the PC00299 G 799F component:

1. తయారీ: Ensure the mounting surface is clean, dry, and free from conductive debris.
2. మౌంటు: Secure the component using appropriate fasteners through the designated mounting holes. Ensure it is firmly seated to prevent vibration.
3. విద్యుత్ కనెక్షన్లు:
   • Connect power supply lines to the designated input terminals. Refer to system schematics for polarity and voltagఇ అవసరాలు.
   • Connect output lines to the appropriate system interfaces.
   • అన్ని కనెక్షన్లు సురక్షితంగా ఉన్నాయని మరియు సరిగ్గా ఇన్సులేట్ చేయబడిందని నిర్ధారించుకోండి.
4. ధృవీకరణ: పవర్ వర్తించే ముందు అన్ని కనెక్షన్‌లను ఒకటికి రెండుసార్లు తనిఖీ చేయండి.

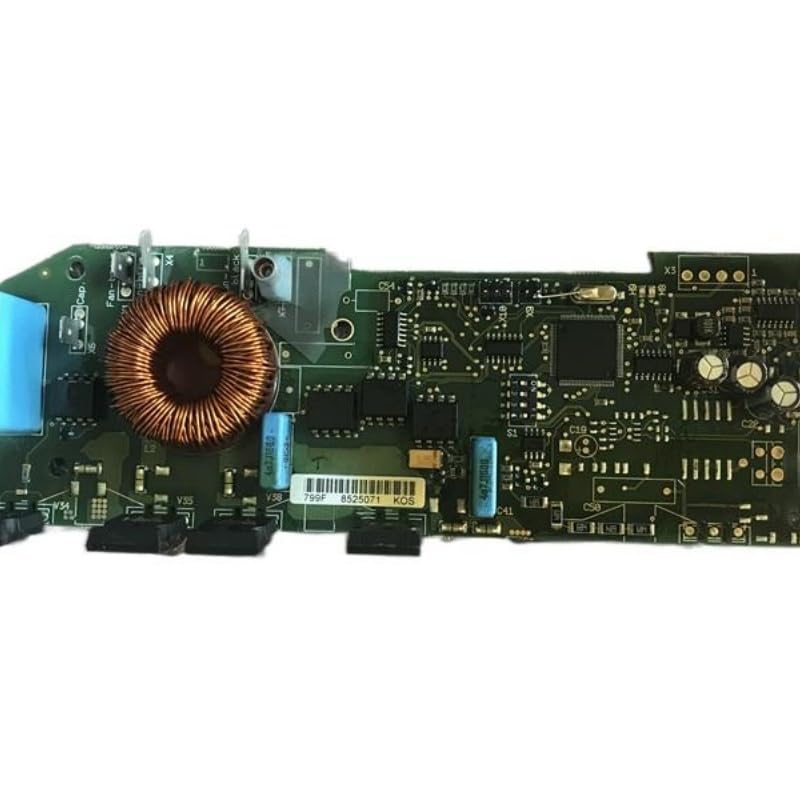

చిత్రం 1: పైగాview of the PC00299 G 799F electronic component. Key features include a prominent copper inductor coil, multiple capacitors (e.g., blue cylindrical ones), and various integrated circuits. Connectors such as X3, X4, X5 are visible, along with labels like "Cap", "Fan-t", "V35", "V38", "799F", "8525071", and "KOS".

4. ఆపరేటింగ్ సూచనలు

Once installed and powered, the PC00299 G 799F operates as an integral part of the larger system it is integrated into. Its function is typically automated or controlled by the host system. Refer to the primary system's operational manual for specific instructions on how to interact with the component's functionality.

• Ensure all system parameters are within the specified operating ranges.
• Monitor system indicators for proper component function.

5. నిర్వహణ

Regular maintenance ensures optimal performance and longevity of the PC00299 G 799F.

• శుభ్రపరచడం: Periodically inspect the component for dust and debris accumulation. Use a soft, dry brush or compressed air to gently clean the surface. Do not use liquid cleaners directly on the circuitry.
• తనిఖీ: Annually inspect all electrical connections for tightness and signs of corrosion. Check for any visible damage to the circuit board or components.
• పర్యావరణ నియంత్రణ: ఆపరేటింగ్ వాతావరణం పేర్కొన్న ఉష్ణోగ్రత మరియు తేమ పరిమితుల్లో ఉండేలా చూసుకోండి.

6. ట్రబుల్షూటింగ్

If the component or the system it is integrated into exhibits unexpected behavior, consider the following troubleshooting steps:

• శక్తి లేదు:
  • Verify that the power supply is active and connected correctly.
  • Check all power cables and connections for damage or looseness.
• అడపాదడపా ఆపరేషన్:
  • Inspect for loose connections or environmental factors like excessive heat or vibration.
  • Ensure the component is securely mounted.
• System Error Codes: Refer to the primary system's manual for interpretation of any error codes related to this component.

If issues persist after performing these steps, contact technical support.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

For information regarding the warranty period and terms for the GENERIC PC00299 G 799F, please refer to the documentation provided at the time of purchase or contact the manufacturer directly. Technical support can be obtained through the official GENERIC support channels.

Note: Unauthorized modifications or repairs will void the warranty.
