జెనరిక్ Zns07 స్మార్ట్ డిజిటల్ డోర్ లాక్ యూజర్ మాన్యువల్

1. పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your Generic Zns07 Smart Digital Door Lock. This advanced security solution is designed for various environments including homes, offices, hotels, and warehouses, offering multiple access options and a user-friendly interface.

2. భద్రతా సమాచారం

• సంస్థాపన మరియు ఉపయోగం ముందు అన్ని సూచనలను జాగ్రత్తగా చదవండి.
• Do not expose the lock to direct water or extreme temperatures.
• సిఫార్సు చేయబడిన బ్యాటరీ రకాలను మాత్రమే ఉపయోగించండి.
• Keep mechanical keys in a safe location outside the property.
• Ensure all components are securely fastened during installation.
• Regularly check battery levels to prevent unexpected lockouts.

3. ఉత్పత్తి ముగిసిందిview మరియు భాగాలు

The Zns07 Smart Digital Door Lock features a sleek design with an integrated LED display and touch keypad. It offers multiple unlocking methods for enhanced security and convenience.

చిత్రం 3.1: The Zns07 Smart Digital Door Lock, showcasing its modern design and how it appears when installed on a door. The image displays both the exterior unit with its keypad and camera, and the interior unit with its display and manual handle.

చిత్రం 3.2: This diagram illustrates the precise dimensions of the Zns07 Smart Digital Door Lock's interior and exterior units, measured in both centimeters and inches. Additionally, it displays the various components included in the package, such as the mortise lock, mounting hardware, and mechanical keys, essential for installation and operation.

ప్యాకేజీ విషయాలు:

• Smart Door Lock (Exterior and Interior Units)
• మోర్టైజ్ లాక్ బాడీ
• Mounting Hardware (screws, spindles, etc.)
• మెకానికల్ కీలు
• వినియోగదారు మాన్యువల్ (ఈ పత్రం)
• Batteries (may be included)

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

The Zns07 lock is designed for easy installation on most standard doors. Professional installation is recommended for optimal performance.

4.1 ప్రీ-ఇన్‌స్టాలేషన్ తనిఖీలు

• Verify door thickness and backset compatibility.
• సెక్షన్ 3లో జాబితా చేయబడిన అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి.

4.2 ఇన్‌స్టాలేషన్ దశలు (సాధారణం)

1. Prepare the door: Drill necessary holes according to the provided template (if applicable).
2. Install the mortise lock body into the door edge.
3. Mount the exterior unit, ensuring cables are routed correctly.
4. Connect the cables to the interior unit.
5. Mount the interior unit and secure it with screws.
6. Install batteries into the interior unit's battery compartment.
7. Test the lock's functionality with mechanical keys and initial programming.

4.3 ప్రారంభ ప్రోగ్రామింగ్

Upon first power-up, the lock will typically require setting an administrator password. Follow the on-screen prompts on the LED display or refer to the quick start guide for specific steps to set up your first administrator user.

5. ఆపరేటింగ్ సూచనలు

The Zns07 Smart Digital Door Lock offers multiple convenient ways to access your property.

5.1 అన్‌లాకింగ్ పద్ధతులు

• Digital Password: Enter your registered password on the touch keypad followed by the '#' key.
• స్మార్ట్ కార్డ్: Present a registered smart card to the designated sensor area on the exterior unit.
• వేలిముద్ర గుర్తింపు: Place a registered finger on the fingerprint sensor. The lock boasts a recognition speed of less than 0.5 seconds and a recognition rate of 99.99%.

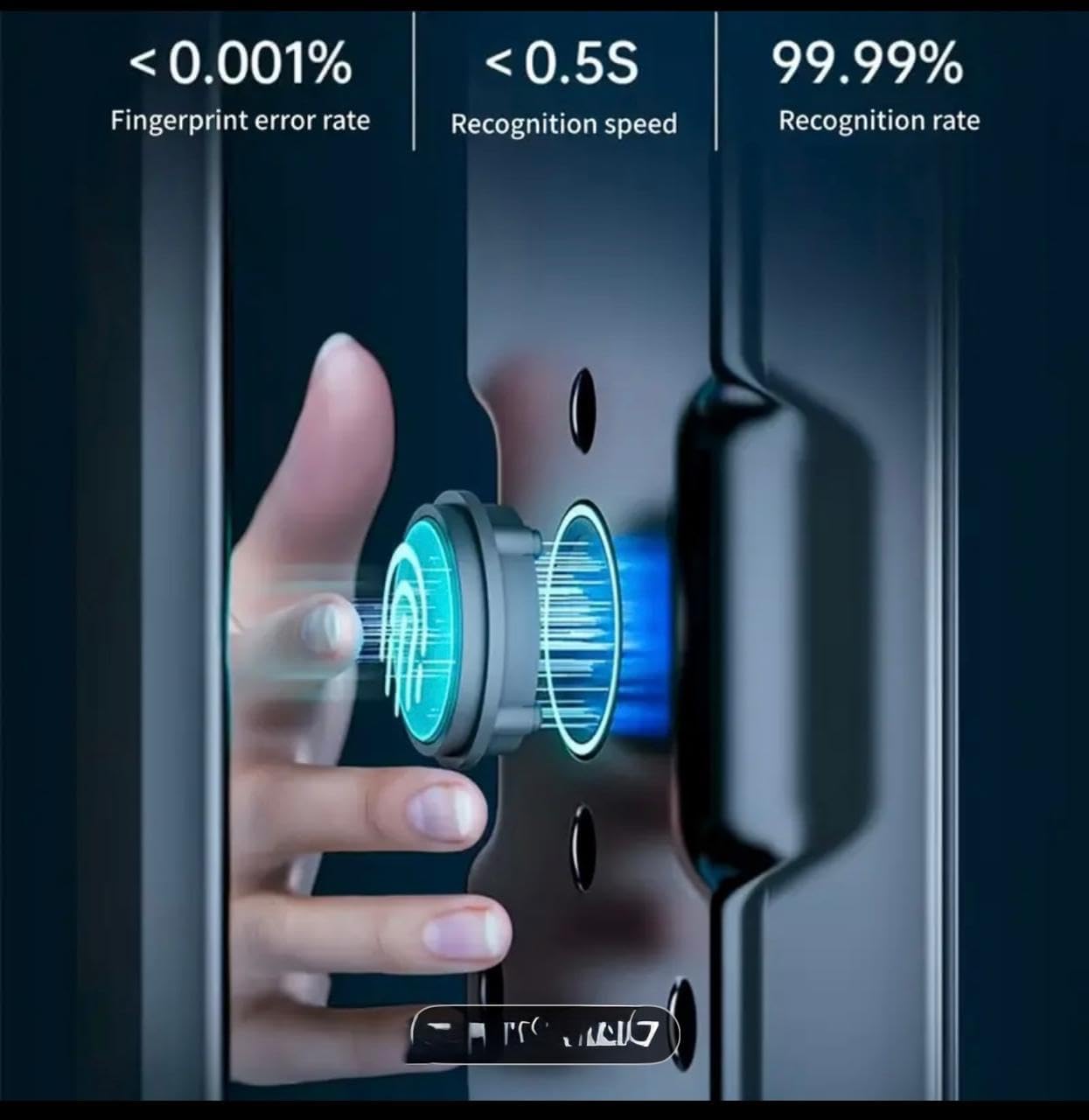

చిత్రం 5.1: ఈ చిత్రం క్లోజప్‌ను అందిస్తుంది view of the Zns07 Smart Digital Door Lock's fingerprint recognition technology. It highlights the sensor's capability with a visual representation of the scanning process, emphasizing its high accuracy and rapid recognition speed.

• మెకానికల్ కీ: In case of emergency or battery depletion, use the physical key to unlock the door.
• Remote Control (Optional/App-based): If connected to a compatible smart home system via WiFi, the lock may support remote unlocking via a mobile application.
• తాత్కాలిక పాస్‌వర్డ్: Generate time-sensitive passwords for guests or service personnel via the mobile application (if connected).

చిత్రం 5.2: This image details additional features of the Zns07 Smart Digital Door Lock, presented in a 'Cat's eye style' interface. It highlights capabilities such as WiFi internet connectivity, mobile phone temporary password generation, remote unlocking via mobile phone, an integrated doorbell, a camera with peephole function, and the option for mechanical key access.

5.2 LED Display and Touch Keypad

The integrated LED display provides visual feedback on lock status, battery level, and menu navigation. The touch keypad is used for entering passwords and navigating settings.

5.3 సైలెంట్ మోడ్

The lock features a silent mode that, when enabled, disables voice prompts during unlocking. This provides a quiet and undisturbed environment, ideal for homes with sleeping children or quiet offices.

చిత్రం 5.3: This image illustrates the 'Silent Mode' feature of the Zns07 Smart Digital Door Lock. The lock's display clearly shows 'SILENT MODE' activated, accompanied by a speaker icon with a cross, indicating that all voice prompts are disabled for a quiet operation.

5.4 Doorbell and Camera Function

The exterior unit may include a doorbell function and a camera (peephole function). When the doorbell is pressed, it can send a notification and image/video to your connected mobile phone, allowing you to see who is at your door.

6. నిర్వహణ

6.1 శుభ్రపరచడం

లాక్ ఉపరితలాన్ని మృదువైన, పొడి గుడ్డతో తుడవండి. ఫినిషింగ్ లేదా ఎలక్ట్రానిక్ భాగాలను దెబ్బతీసే రాపిడి క్లీనర్‌లు లేదా ద్రావకాలను ఉపయోగించవద్దు.

6.2 బ్యాటరీ భర్తీ

When the battery low indicator appears on the LED display, replace all batteries with new ones of the recommended type. Ensure correct polarity during installation.

7. ట్రబుల్షూటింగ్

• లాక్ స్పందించడం లేదు: బ్యాటరీ స్థాయిలను తనిఖీ చేయండి. తక్కువగా ఉంటే బ్యాటరీలను మార్చండి.
• Fingerprint/Card/Password not recognized: Ensure the fingerprint sensor/card reader is clean. Re-register the user if necessary. Verify the password is correct.
• లాక్ మెకానిజం ఇరుక్కుపోయింది: Check for any obstructions in the door frame or latch. Ensure the lock is properly aligned.
• LED డిస్ప్లే పనిచేయడం లేదు: Check battery connection. If issues persist, contact customer support.
• మర్చిపోయిన నిర్వాహక పాస్‌వర్డ్: Refer to the specific reset procedure in the quick start guide or contact customer support. This usually involves a factory reset, which will erase all user data.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information and technical support, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for warranty claims.
